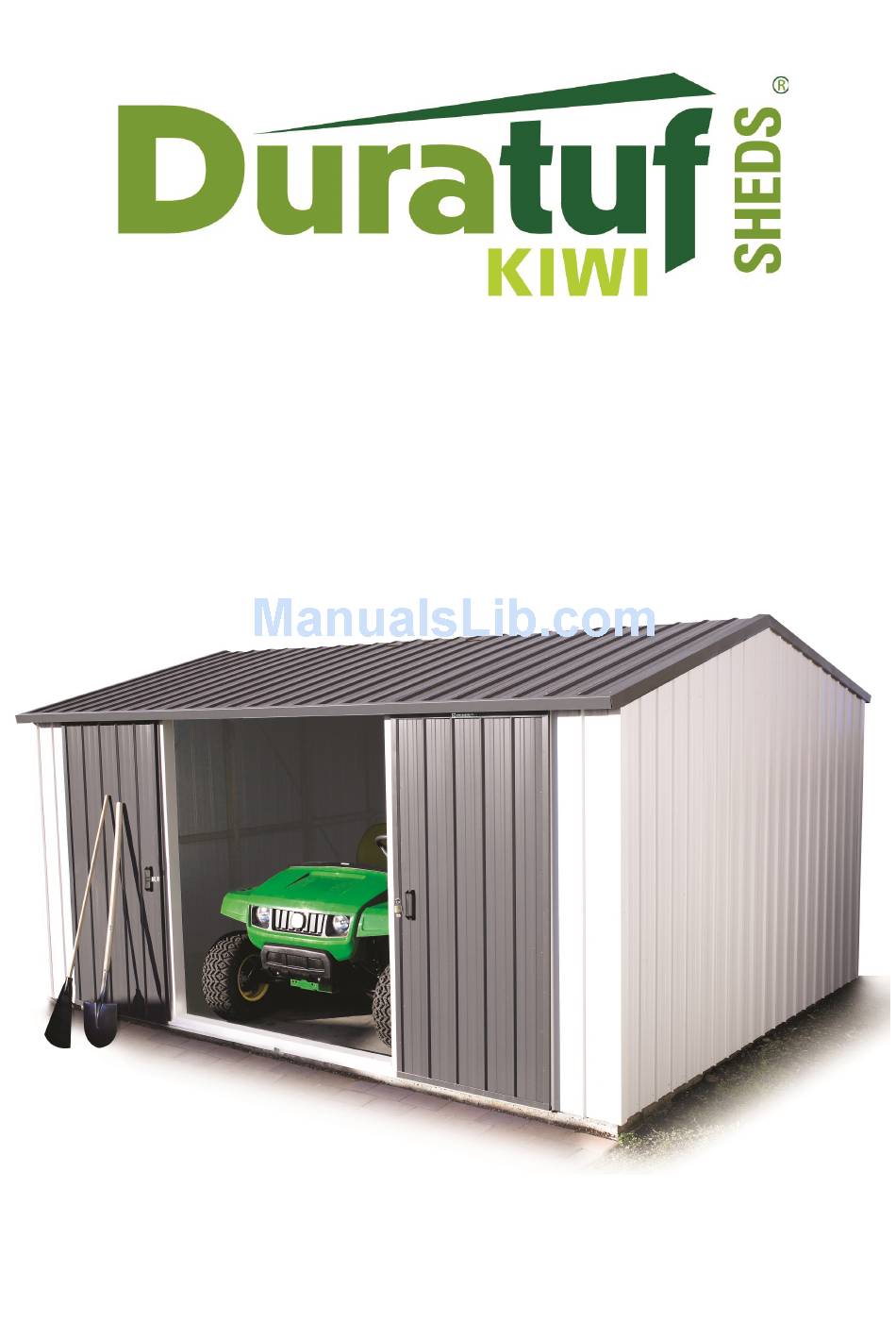

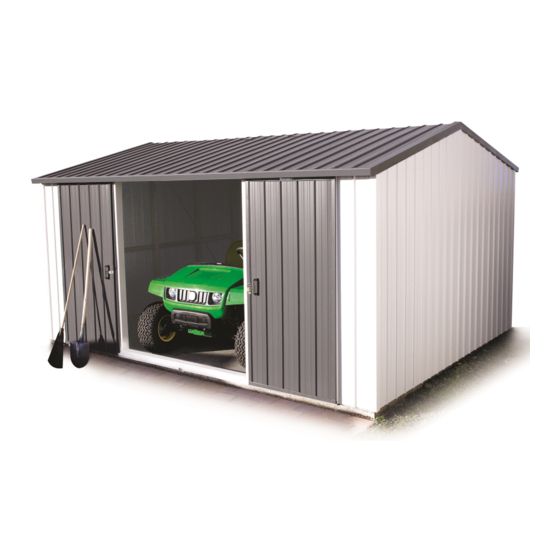

  • Page 1 Quality – Built In ASSEMBLY INSTRUCTIONS MK3B BASE SIZE 3380mm x 3380mm...
  • Page 2 ASSEMBLY INSTRUCTIONS  Tools Required: Drill  Drill Bit 3.5mm  Drill Bit 6mm (for clear roof panel only)  Riveter  Hammer  Nail Punch  Tape Measure  Ladder or Saw stool  Spanners x 2  String Line ...
  • Page 3 Gable End Wall Sheets 2.280m Wall Sheets 1.890m Door - Standard Security Instruction Booklet 0.260m Jack Studs - 140 x 45mm Jack Studs - 60 x 45mm 0.200m Hardware Pack Centre Door Stop Touch-up Paint & Brush 3.700m Roof Sheets Strip Bracing Fixed Window Frame 0.580m...
  • Page 4 1900 1900 3380...
  • Page 5 MK3B TIMBER FRAME JACK STUDS Note: For sheds with the Raised Floor Modification option the studs will be 1.780m long to allow the Wall Sheets to pro- trude 20mm below the Bottom Plate. Refer to Raised Floor Modification section (Page 15).
  • Page 6 MK3B TIMBER FRAME Step 4: Stand up Back Wall frame and one End frame and nail together, using two 75mm nails per join, top and bottom. Stand remaining Frames up and nail together. Nail in remaining .765m Nogs in End Walls.

  • Page 7: Terms Explanation

    MK3B WALL CLADDING TO AVIOD CORROSION:  Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting.  Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use ink to mark steel.
  • Page 8 MK3B WALL CLADDING Step 1: Front Wall: Start at the left hand side. Posi- tion the Wall Sheet with the LIP on the left hand side. Ensuring the LIP is flush with side of the Stud and the top of the Top Plate, tack in place.
  • Page 9 MK3B LOUVRE WINDOW (Optional) 588mm Step 1: Lay out the two window studs (883mm) and Step 2: On the inside of the shed, position studs Nog (634mm) on a flat surface. Position and Nog centrally on window opening. Nog and nail in place using 2x 75mm nails Make sure the studs are parallel and nail at each end.
  • Page 10 (G100) with three rivets to each side of the Window Frame to hold glass in place. Pre- drilling Glazing Beads is recommended. MK3B DOOR JAMB & CORNER FLASHINGS Step1: Fit Door Jamb Flashing (A104) in be- Step2: Measure and cut Doorstep Flashing (A106) tween Top and Bottom Plates and hard to fit in between Door Jambs.
  • Page 11 MK3B DOOR JAMB & CORNER FLASHINGS Step 3: Fit Corner Flashing (101) over corner Ribs with the top flush with the top of the Top Plate. Rivet in place with six rivets, three each side. Repeat with other three Corner Flashings.
  • Page 12 MK3B CLEAR ROOF PANEL (Optional) Step 1: Leave a gap where the Clear Panel is to be fitted. Position the next Roof Sheet. Ensure it overlaps correctly, then rivet together, one rivet in the centre and one approximately 600 mm down from the centre on both sides. Rit re- maining Roof Sheets, overlapping and riveting as you go.
  • Page 13 MK3B DOORS Step 1: Top Door Tracks: Mark the centre of the doorway on the Overdoor Flashing. Position Centre Door Stop on the front face of the Overdoor Flashing and up against the under- side of roof. Pre-drill holes and nail in place...
  • Page 14 For sheds with Raised Base Plate option the Door Step Flashing will protrude down past the Bottom Plate. Attach Door Guide with rivets. MK3B BARGE & SPOUTING Step 2: Centralise Barge Flashing on gable end Step 1: Attach left hand and right hand barges and rivet in place, one rivet into every (C102 &...
  • Page 15 MK3B HASP & STAPLE Using seven rivets, attach hasp to Left Hand Door and the staple to the Right Hand Door as shown. RAISED FLOOR MODIFICATION For sheds being placed on a purpose built floor, (concrete, cobbles, ply etc.), the Wall Sheets will pro- trude 20mm below the Base Plate.
  • Page 16 DURATUF PREMIUM SHED WARRANTY REFERENCE NO:_______________________ GUARANTEE TO CUSTOMER Congratulations on purchasing a Duratuf Storage Shed. With proper care and attention, this product will last many years. For your benefit PLEASE READ THE FOLLOWING INFORMATION CAREFULLY. WARRANTY ON METAL CLADDING...
