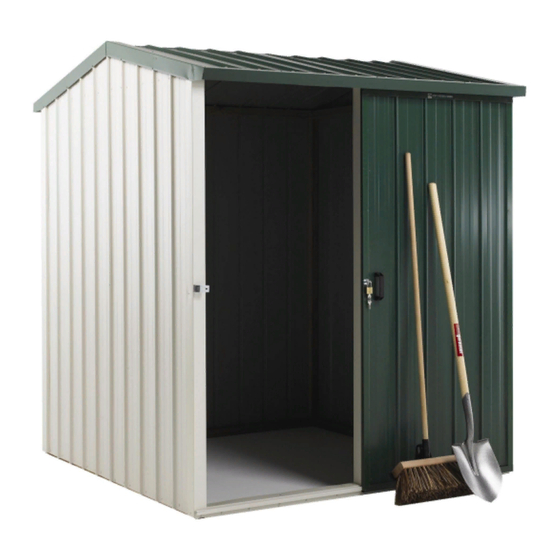

ASSEMBLY INSTRUCTIONS
MK1
BASE SIZE 1715mm x 1715mm

Advertisement

loading
Need help?

Need help?

Do you have a question about the Kiwi MK1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duratuf Kiwi MK1

Summary of Contents for Duratuf Kiwi MK1

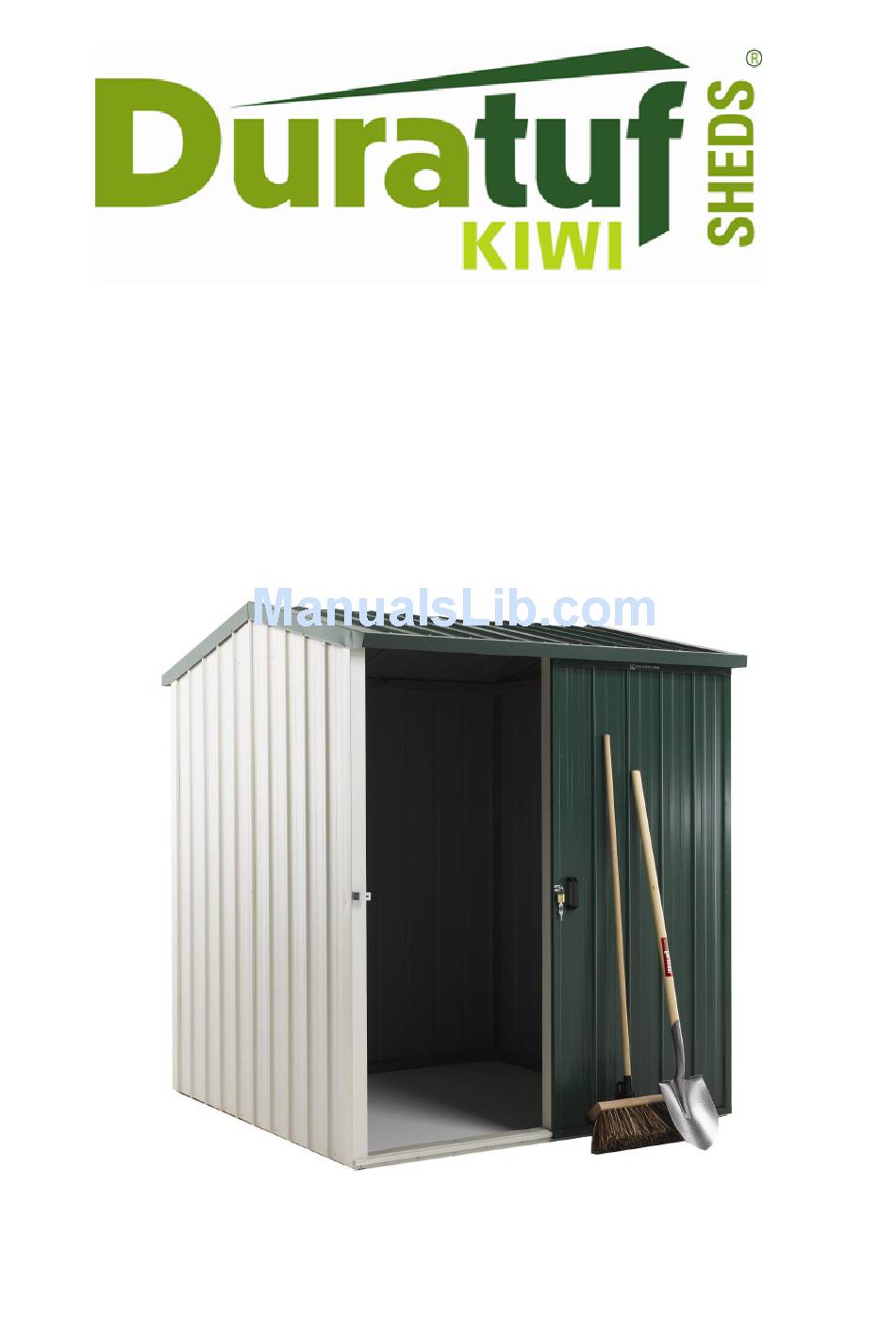

  • Page 1 Quality – Built In ASSEMBLY INSTRUCTIONS BASE SIZE 1715mm x 1715mm...
  • Page 2 ASSEMBLY INSTRUCTIONS  Tools Required: Drill  Drill Bit 3.5mm  Drill Bit 6mm (for clear roof panel only)  Riveter  Hammer  Nail Punch  Tape Measure  Ladder or Saw stool  Spanners x 2  String Line ...
  • Page 3 2.090m Gable End Wall Sheets 1.890m Wall Sheets Door - Standard Security Instruction Booklet 0.200m Jack Studs - 90 x 45mm Hardware Pack Touch-up Paint & Brush Roof Sheets 2.000m 50mm Flooring Nails 75mm Flooring Nails Fixed Window Frame 0.580m Glaze Beads 0.603 x 0.603m Glass...
  • Page 4 MK1 TIMBER FRAME 1715 1715 1625 FRONT WALL BACK WALL...
  • Page 5 MK1 TIMBER FRAME Note: For sheds with the Raised Floor Modification option the studs will be 1.780m long to allow the Wall Sheets to pro- trude 20mm below the Bottom Plate. Refer to Raised Floor Modification section (Page 15). Note: Studs and Nogs surrounding a window opening are to be fitted once the wall cladding is nailed in place.

  • Page 6: Terms Explanation

    MK1 WALL CLADDING TO AVIOD CORROSION:  Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting.  Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use either crayon or ink to mark steel. TERMS EXPLANATION ...
  • Page 7 MK1 WALL CLADDING Step 1: Front Wall: Position wall on the right hand side of the doorway with the sheet LIP on the left hand side. Ensuring the LIP is flush with the side of the Stud and the top of the Top Plate, tack in place.
  • Page 8 MK1 LOUVRE WINDOW (Optional) 588mm Step 1: Lay out the two window studs (883mm) and Step 2: On the inside of the shed, position studs Nog (634mm) on a flat surface. Position and Nog centrally on window opening. Nog and nail in place using 2x 75mm nails Make sure the studs are parallel and nail at each end.
  • Page 9 MK1 FIXED WINDOW (Optional) Step 1: Lay out the two window studs (883mm) and Nog (590mm) on a flat surface. Position 570mm Nog and nail in place using two 75mm nails at each end. Follow Steps 2 - 5 on page 8. Step 6: From the outside of the shed, place glass in Window Frame.
  • Page 10 MK1 DOOR JAMB & CORNER FLASHINGS Step3: Measure and cut Doorstep Flashing (106) to Step 4: Fit remaining three Corner Flashings over fit in between Door Jambs. Position the Door- corner Ribs and rivet in place using six riv- step Flashing in between the Door Jambs at ets per flashing.
  • Page 11 MK1 CLEAR ROOF PANEL (Optional) Step 1: Position Roof Sheets at each end. Leave a gap where the Clear Panel is to be fitted. Nail on first Roof Sheet (refer to step 2 MK1 Roof). Step 2: Where the Clear Roof Panel is to be positioned, nail a 45x45mm Bevelled Edge Support on each side of the Ridge Beam.
  • Page 12 MK1 DOOR Step 2: Hang door in Door Track. At the right hand Step 1: Position Door Track (107) on front wall up end of Door Track, adjust up or down so that against underside of Roof, with right hand end the Door hangs parallel with shed.
  • Page 13 Floor. It is recommended that the shed is anchored down with either a Duratuf Bolt Down Kit or Duratuf Peg Down Kit depending on what the shed is sited on.
  • Page 14 MK1 FLOOR (Optional) Step 3: Re-position Floor Board. Lay out remaining Step 4: Nail in each Floor Board, two 50mm nails in Floor Boards checking around Studs as each end and two into Joists. Measure and you go. The last Floor Board may have to cut Floor Flashing (110) to fit in between be cut to size.
  • Page 15 SECURITY DOOR (Optional) Step 3 On the left hand Door Jamb, position latch Step 2: Once door is hung, position the Locking Stays so so that the hook on the door handle will be they slide into the Locking Brackets easily. Screw secure and go in and out easily.

  • Page 16: Warranty Registration

    DURATUF PREMIUM SHED WARRANTY GUARANTEE TO CUSTOMER Congratulations on purchasing a Duratuf Storage Shed. With proper care and attention, this product will last many years. For your benefit PLEASE READ THE FOLLOWING INFORMATION CAREFULLY. WARRANTY ON METAL CLADDING Riverlea Group Ltd guarantee that the metal roofing and wall cladding on Kiwi and Fortress Garden Sheds may be used in moderate and inland corrosion zones or areas where the first year mild steel corrosion rate is less than 200g/m2, and that in these conditions, they will not perforate due to corrosion within 18 years of date of manufacture.
