Summary of Contents for Duratuf TUF LOCKER

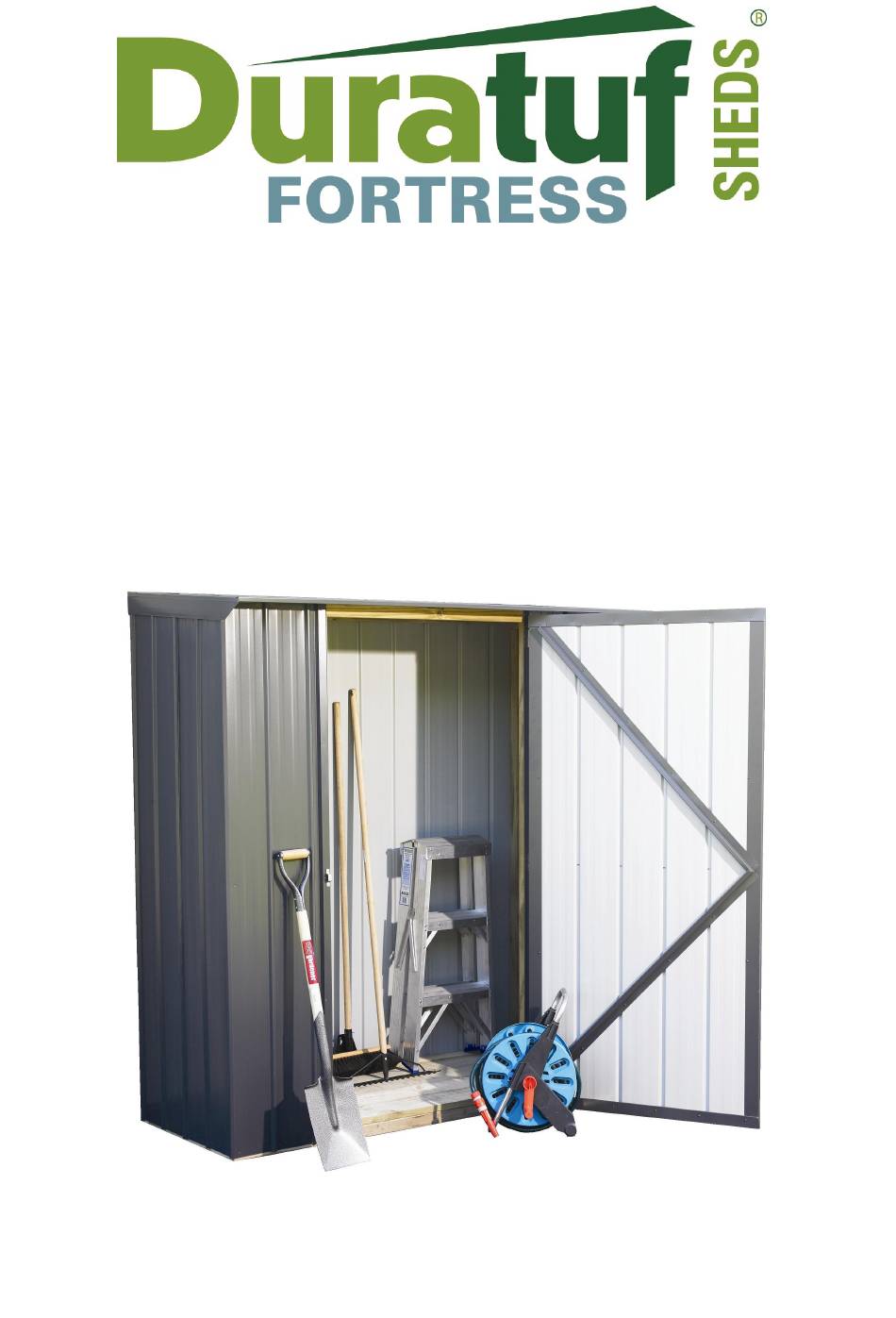

- Page 1 Quality – Made Affordable ASSEMBLY INSTRUCTIONS TUF LOCKER BASE SIZE 1810mm x 685mm...
- Page 2 ASSEMBLY INSTRUCTIONS Tools Required: Drill Drill Bit 3.5mm Drill Bit 6mm (for clear roof panel only) Riveter Hammer Nail Punch Tape Measure Ladder or Saw stool String Line Masonry Drill and 10mm Masonry Bit (for Bolt Down Kit only) Before you start: ...
- Page 3 TUF LOCKER PARTS LIST COLOUR:_________________ INV #:______________ ROOF SIZE: 1.845 x 0.820 BASE SIZE: 1.810 x 0.685 CHECKED CHECKED DESCRIPTION LENGTH 1.890 Corner Wall Sheets 1.890 3/4 Corner Wall Sheet (D008) 1.890 Wall Sheet Roof Sheet .820 .820 Clear Roof Panel .820...
- Page 4 Step 4: Carefully roll frame over onto its base. Nail on Back and End Wall Nogs .882m above the top of the Bottom plate. If fitting a Duratuf Floor, fit Floor Joists now. Evenly space joists and nail in place using three 75mm nails per end.
- Page 5 TUF LOCKER WALL CLADDING D008 CLADDING DETAIL 392mm 903mm Birds Eye View fig. 1 fig. 2 To Avoid Corrosion: Where at all possible try not to trap metal filings between two sheets. Remove all metal filings before riveting. Carbon in pencils reacts with the Zinc/Aluminium coating on steel. Use ink to mark steel.
- Page 6 TUF LOCKER WALL CLADDING Step 2: NOTE: It is very important that the Wall Sheets are positioned exactly as shown in the cladding detail diagram on the previous page. Position Corner Wall Sheets. Check that the Lip is on the correct side of the sheet. While...
- Page 7 TUF LOCKER ROOF fig. 1 Step 1: Note: Condensation can form on the under side of shed roof. If building paper is required, fit now. Build- ing paper will need to be supported by netting or roofing twine. Standard Roof: Position Roof Sheets as shown in fig 1. Make sure sheet joins at the back are flush. Rivet sheet joins, one rivet 200mm back from edge front and back.
- Page 8 TUF LOCKER DOOR NOTE: If shed has an optional security upgrade, please use Security door instructions on next page. Step 1: Place shed in final position. Check diagonal measurements are equal and shed is level before fitting door. Step 2:Hold Door in position so that door will clear Roof Flashing and fit one rivet to top hinge.
- Page 9 FORTRESS SECURITY DOOR (Optional) Step 2: Hold Door in position (approximately 5mm down from Top Plate Flashing) and fit one rivet to top hinge. While still holding in position fit one rivet to bottom hinge. Step 1: Place shed in final position. Check diagonal meas- urements are equal and shed is level before fitting door.
- Page 10 TUF LOCKER FLOOR (Optional) Step 1: Select the two Floor Boards which have Step 2: Lay out remaining Floor Boards. Nail in checked out corners. Position at front and each Floor Board, two 50mm nails each back of the shed so they fit around Studs.
- Page 11 CLEAN UP Remove all metal filings with a soft brush or rag. Hose down roof and walls thoroughly. PAINTING Painting Zinc/Aluminium coated steel will extend its life in most environments The surface must be dry and free of dirt, oil, grease and other contaminants prior to painting, but no weathering of the surface is required ...
- Page 12 DURATUF PREMIUM SHED WARRANTY REFERENCE NO:_______________________ GUARANTEE TO CUSTOMER Congratulations on purchasing a Duratuf Storage Shed. With proper care and attention, this product will last many years. For your benefit PLEASE READ THE FOLLOWING INFORMATION CAREFULLY. WARRANTY ON METAL CLADDING...
