• Follow the same steps to connect the FPC to the Waspmote 3G/GPRS board.
• Connect the Waspmote 3G/GPRS board in the socket 1 on Waspmote.

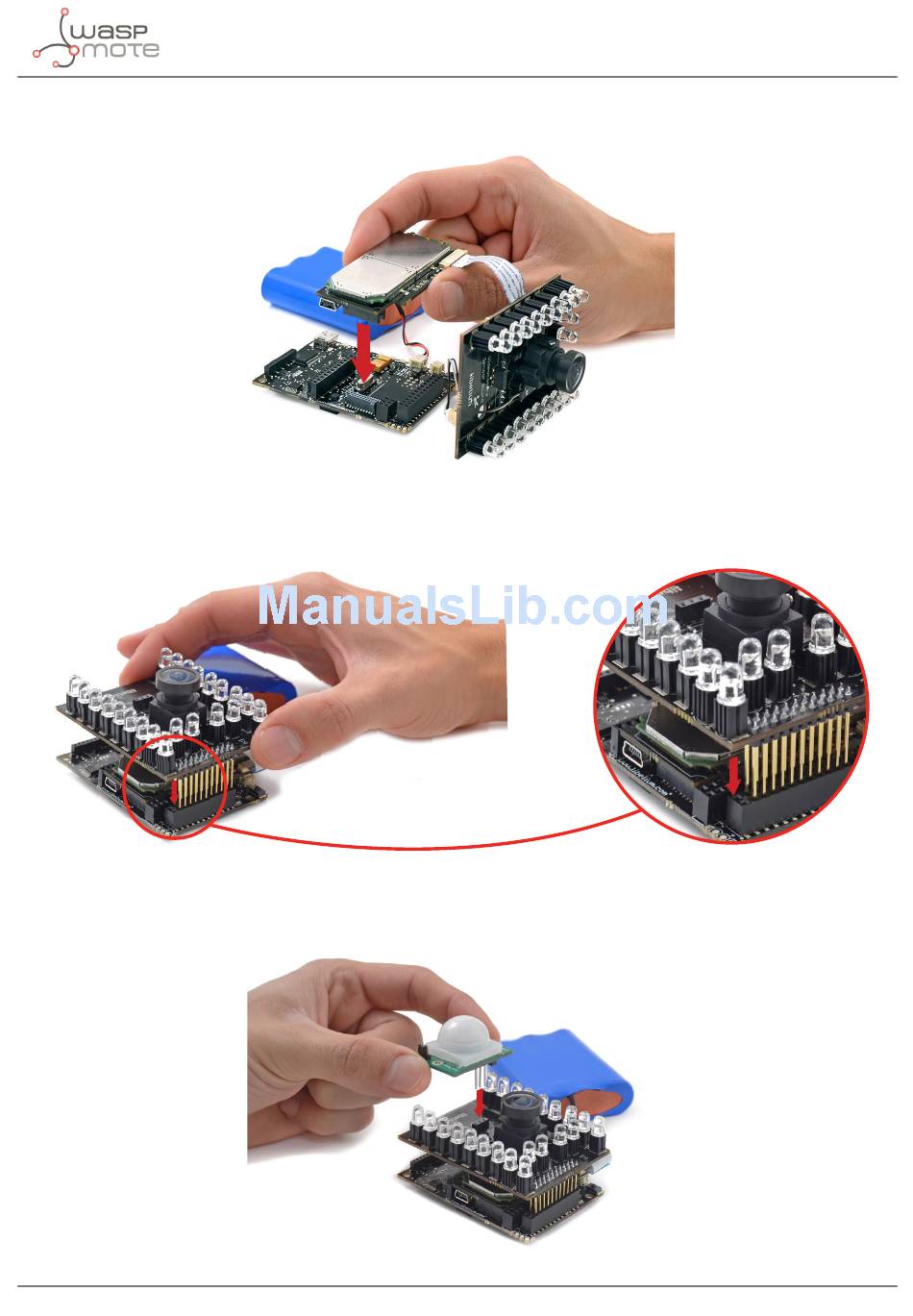

Figure : Mounting 3G/GPRS board in Waspmote
• Insert the Video Camera Sensor board on Waspmote. Beware, the last two pins of the 2x12 connector (the nearest of the
corner) must be empty.
Figure : Mounting Video Camera Sensor Board in Waspmote
• Insert the PIR sensor, the luminosity sensor and the IR sensor. The IR sensor has polarity. Please, refer to chapter "IR sensor"
for more information.
Figure : Connecting sensors
