2.3. Specifications

Weight (with sensors): 43gr
Dimensions: 73 x 53 x 1.3 mm
Dimensions Waspmote + 3G module + Videocamera: 73 x 62 x 48 mm
Temperature Range: [-25ºC, 70ºC]

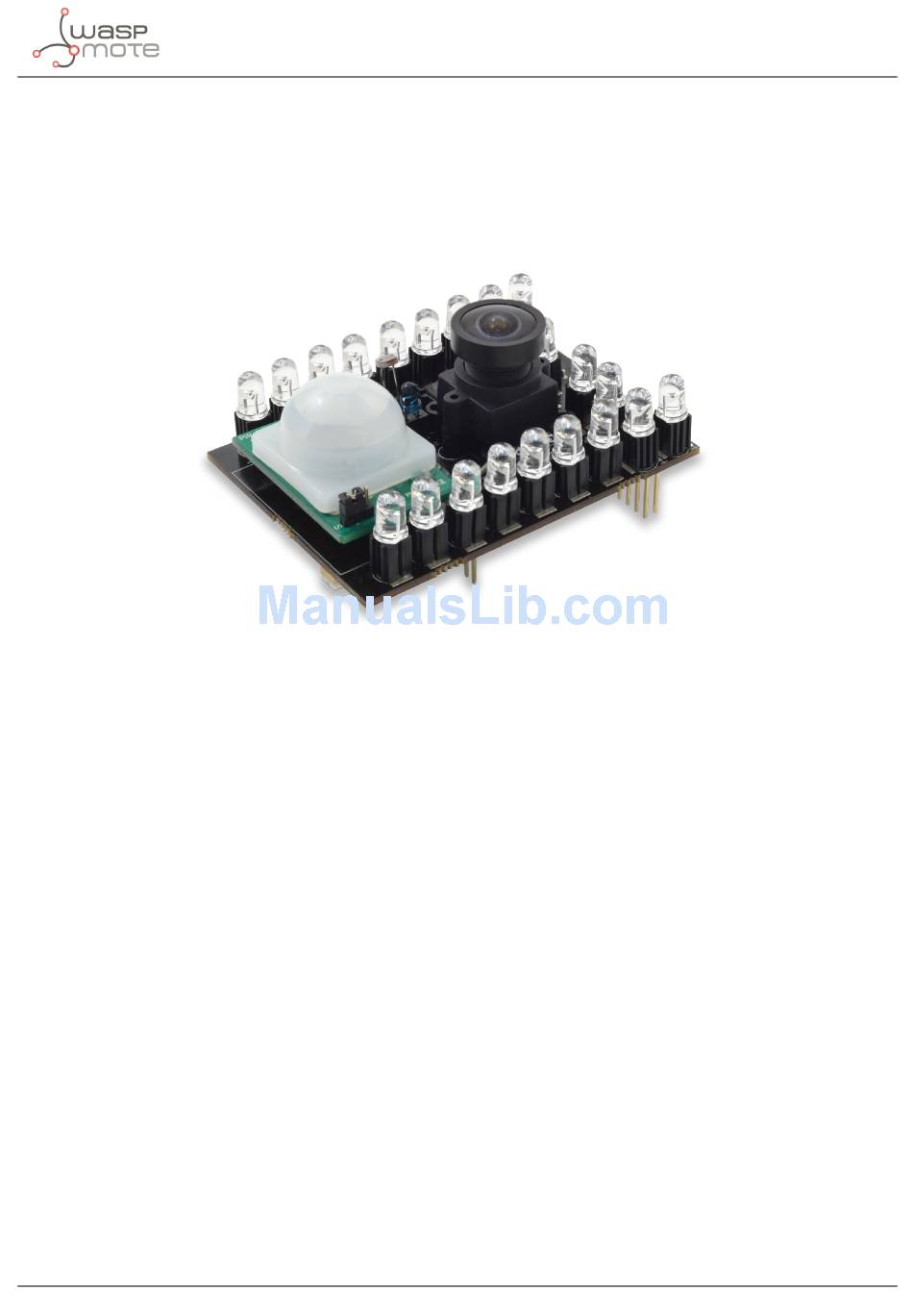

Figure : Video Camera Sensor Board

2.4. Electrical Characteristics

IR LED power voltages:
IR cut filter exchanger power voltages:
Image Sensor Analog Voltage:
Image Sensor Digital I/O Voltage:
LDR and IR photodiode Sensor Voltage:
PIR Sensor Voltage:
Maximum admitted current (continuous) for sensors:
IR LED maximum current (continuous) for block 1:
IR LED maximum current (continuous) for block 2:
3,6V – 4,2V (from battery)
3,6V - 4,2V (from battery)
3,3V
2,8V (from Waspmote 3G/GPRS board)
3,3V
3,3V
200mA
1A
1A
