HH/E01
Capsule and Battery
Installation

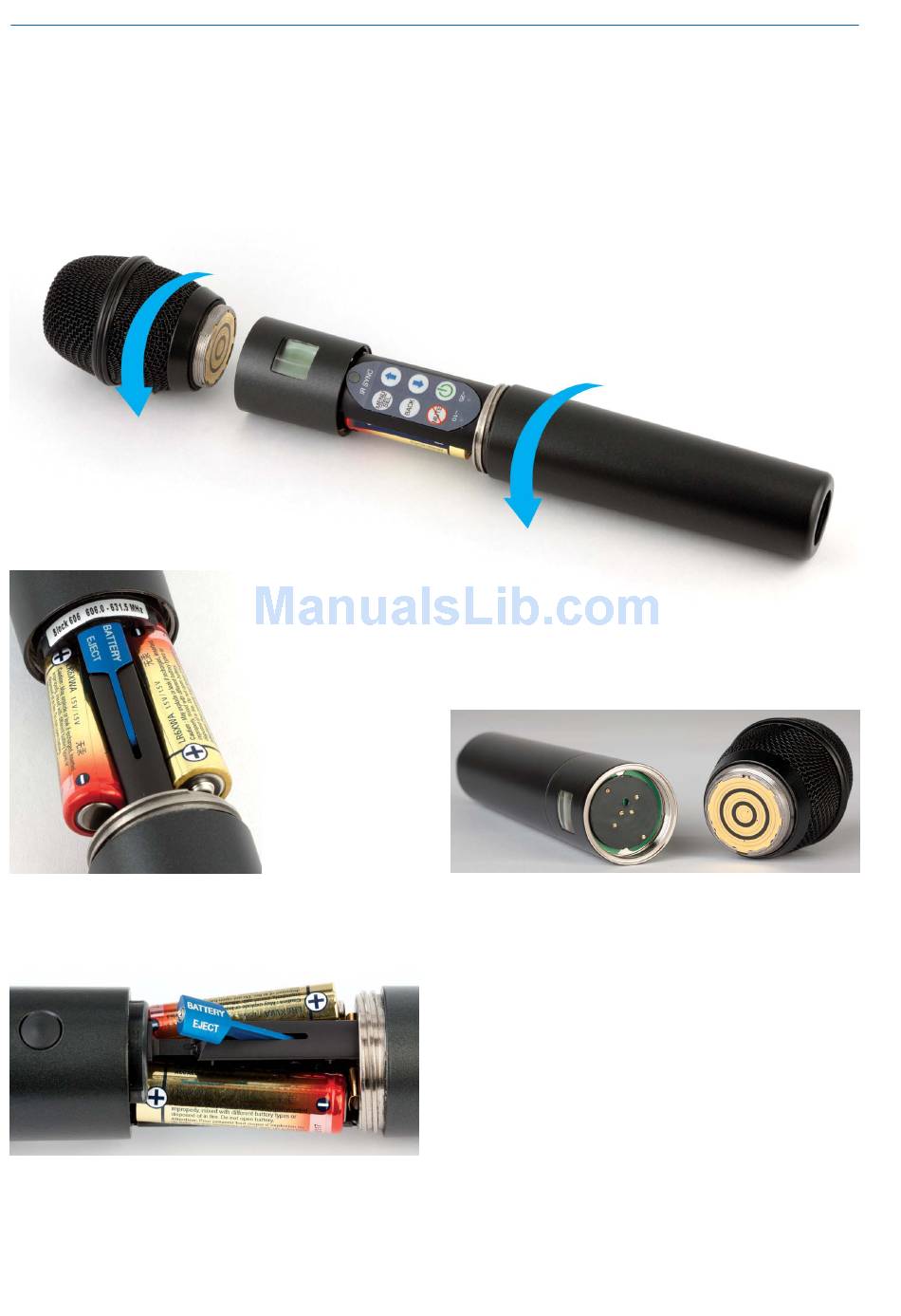

A common threaded mount allows the use of a va-
riety of different capsules from different manufactur-
ers. Capsules are attached with a right-hand thread.
The threaded interface is a 1.25 inch
opening with 28 threads per inch and
three contact rings
To remove the batteries, pull the eject lever outward. The
battery tips will move outward, making them easier to grasp.
A mic capsule is
threaded onto the body
of the transmitter in the
direction shown.
Do not overtighten it.
To insert batteries, close
the eject lever and insert
the upper contacts
first (closest to the mic
capsule). Polarity is
marked on the label in
the bottom of the battery
compartment.
The control panel and battery compartment are
accessed by opening the lower housing. Rotate the
housing as shown and pull it downward until you feel
the detent.
The lower housing opens by rotating
it in the direction shown. After the
threads are disengaged, pull the
housing downward until it engages
the detent that holds it open.
Do not touch the contacts between the mic capsule
and transmitter body. When necessary, the contacts
can be cleaned with a cotton swab and alcohol.
