Measuring system
4
The measuring system consists of the following transmitter and flow measuring sensors.
Prosonic Flow 92
Prosonic Flow W
Prosonic Flow U

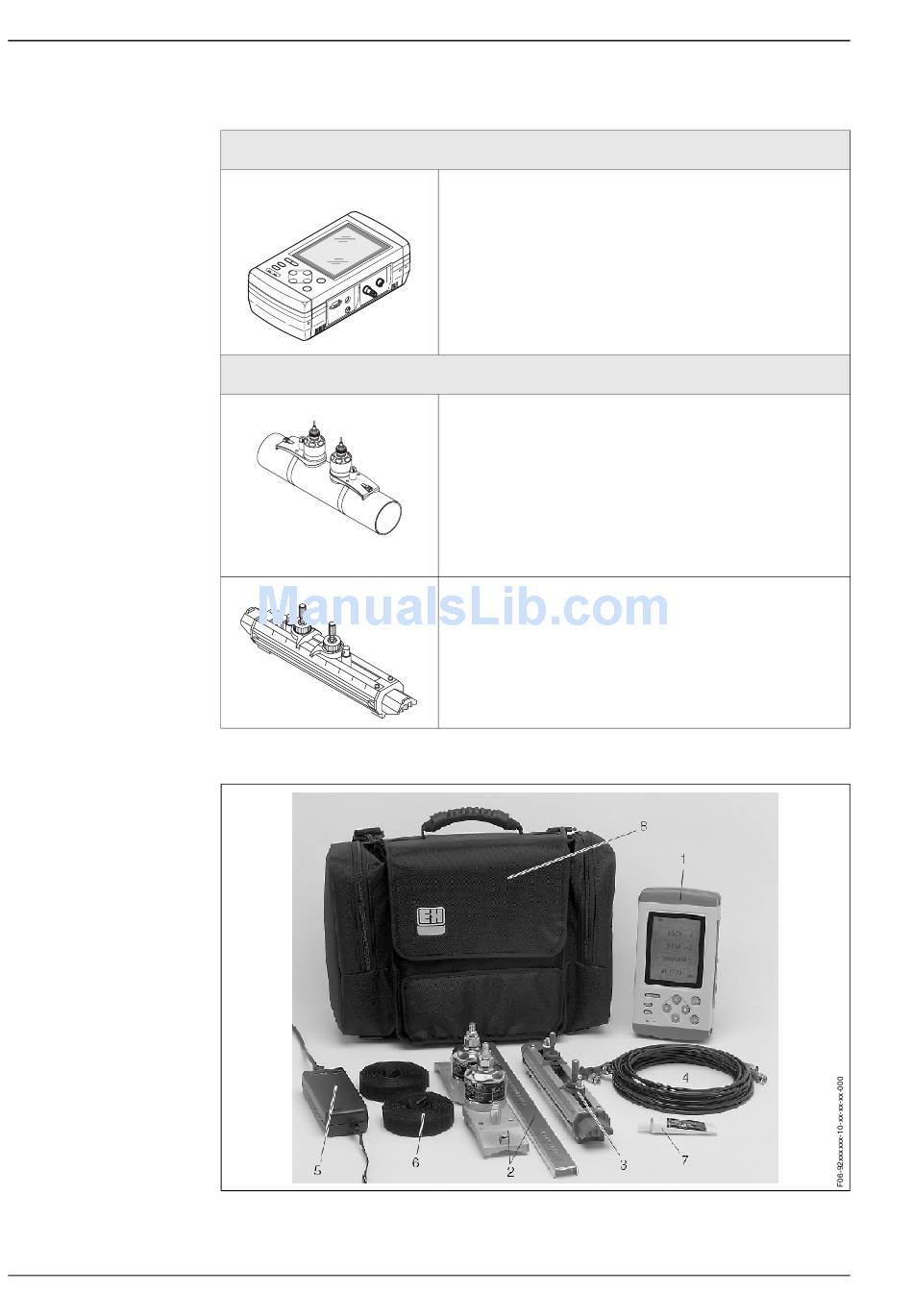

Overview of components:
1 = Prosonic Flow 92 transmitter; 2 = Prosonic Flow W sensors, sensor holders and spacing ruler;
3 = Prosonic Flow U sensor assembly; 4 = Sensor connecting cables; 5 = Power adapter;
6 = Tensioning bands; 7 = Coupling medium; 8 = Carrying case
Measuring transmitter
• For operation in the non hazardous area.
• Battery operation (power adapter included)
• Graphic display
• Configuration with push buttons
• Site Setup
• Data logger
• Volume and sound velocity measurement
• Single channel measurement
• Degree of protection IP 50
• Operation with Prosonic Flow W/U/P sensors
Flow measuring sensors
• Clamp On flow measuring sensors
• Sensor pair for flow measurement and sound velocity in the
liquid during operation.
• 2 sensor types for DN 50...4000 (2"...160")
• Temperature range -20...+80 °C
• Stainless steel sensor holders
• Degree of protection:
– Sensorbody in IP 67
– BNC adapter in IP 52
• Adaptor plug for BNC cables
• Clamp On flow measuring sensors for small pipe diameters.
• Sensor pair for flow measurement and sound velocity in the
liquid during operation.
• 1 sensor type for DN 15...100 (0.6"...4")
• Temperature range -20...+80 °C
• Plastic/Aluminum sensor assembly
• Degree of protection IP 52
