Orientation
Vertical

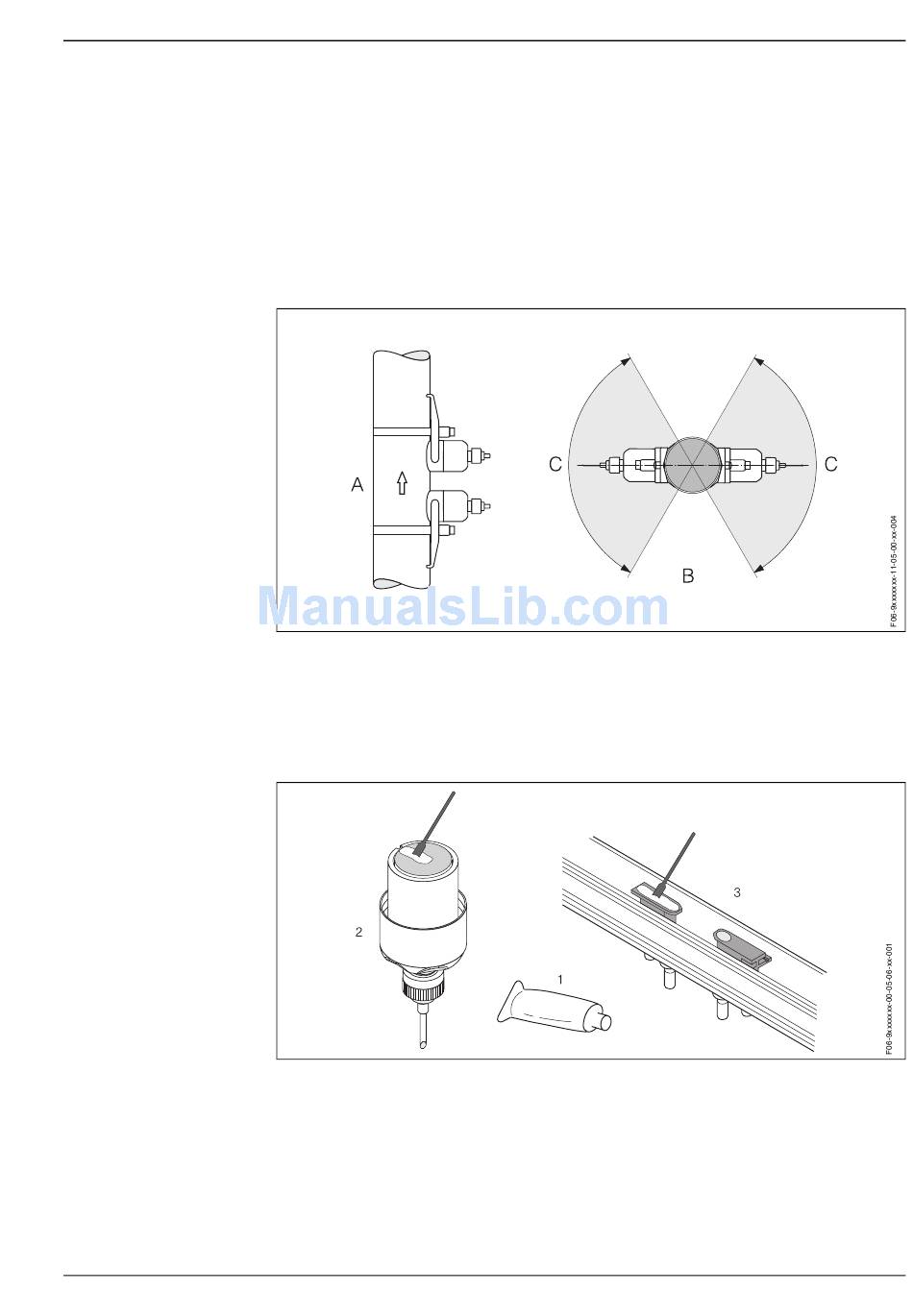

Recommended orientation with upward direction of flow (View A). Entrained solids sink down.
Gases rise away from the flow measuring sensor when liquid is not flowing. The piping can be
completely drained and protected against solids build-up.
Horizontal
In the recommended installation range (C) in a horizontal installation position (View B), gas and
air collections at the top of the pipe and problematic deposits at the bottom of the pipe have a
minor influence on the measurement.
C = recommended installation range max. 120°
Coupling medium
A coupling medium (1) is required to ensure the acoustic coupling between the sensor and the
piping. This is applied to the sensor surface (2/3) during commissioning. Replace the coupling
medium for each new measuring point.
1 = Coupling medium
2 = Sensor surface Prosonic Flow W
3 = Sensor surface Prosonic Flow U
