Stand: Mobile
Printer Installation Instructions

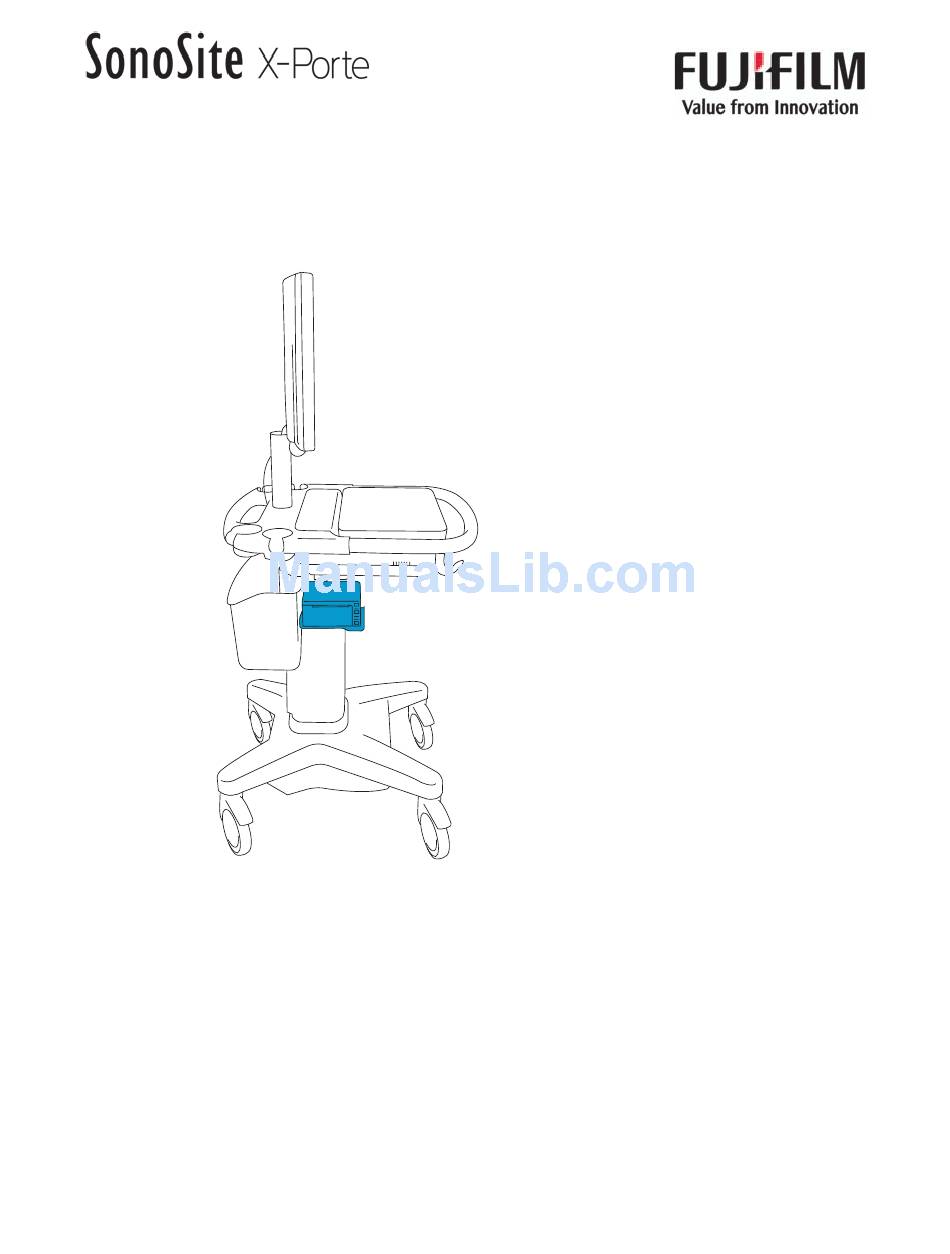

Mobile printer installed on
the SonoSite X-Porte stand
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the SONOSITE X-PORTE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for FujiFilm SONOSITE X-PORTE

  • Page 1 Stand: Mobile Printer Installation Instructions Mobile printer installed on the SonoSite X-Porte stand...
  • Page 2: Unpacking The Box

    Unpacking the box Printer box Printer bracket box Sony USB cable Printer bracket with attached (do not use) printer and dock cables (1) Printer (1) Phillips-head screw (4) Printer paper (1) 3 mm Allen wrench (1) Sony user documentation #1 Phillips screwdriver (1)
  • Page 3: Assembling The Printer

    Assembling the printer Remove the screws that Slide the bracket onto the printer, come with the printer. aligning the four holes. Screw in the four Phillips head screws. Plug the printer USB and power cables that are attached to the bracket into the printer. Installing the printer on the stand Loosen the basket with the Allen wrench, Turn off the system, and unplug it from...
  • Page 4 Snap the printer into place Disconnect the triple transducer connector (TTC) from the engine by pulling the below the stand head. latch up and rotating it clockwise. Remove the engine by lifting To loosen the engine from the stand, raise the back end out first.
  • Page 5 Reinstall the strain relief. Plug the cables into the dock. Reinstall the engine by inserting the front Reconnect the TTC to the engine. end first. Push down on both sides of the Raise and tighten the basket. back end until the latches click into place. Plug the system AC power cord into Press the Power button on the printer, the wall, and turn the system back on.
  • Page 6 Uninstalling the printer Loosen and lower the basket. Turn off the system, and unplug it from the wall. Remove all USB accessories. Disconnect the TTC from the To loosen the engine from the stand, raise engine by pulling the latch up the control panel then release the two and rotating it clockwise.
  • Page 7 Disconnect the printer cables. To Press the top part of the printer bracket disengage the power cord, first down, and slide the printer out. slide the jacket back from the end. Reconnect the TTC to the engine. Reinstall the strain relief and engine. Raise and tighten the basket.
  • Page 8 Federal (United States) law restricts this device to sale by or on the order of a physician. X-Porte, SonoSite, and the SonoSite logo are trademarks or registered trademarks of FUJIFILM SonoSite, Inc. in various jurisdictions. All other trademarks are the property of their respective owners.
