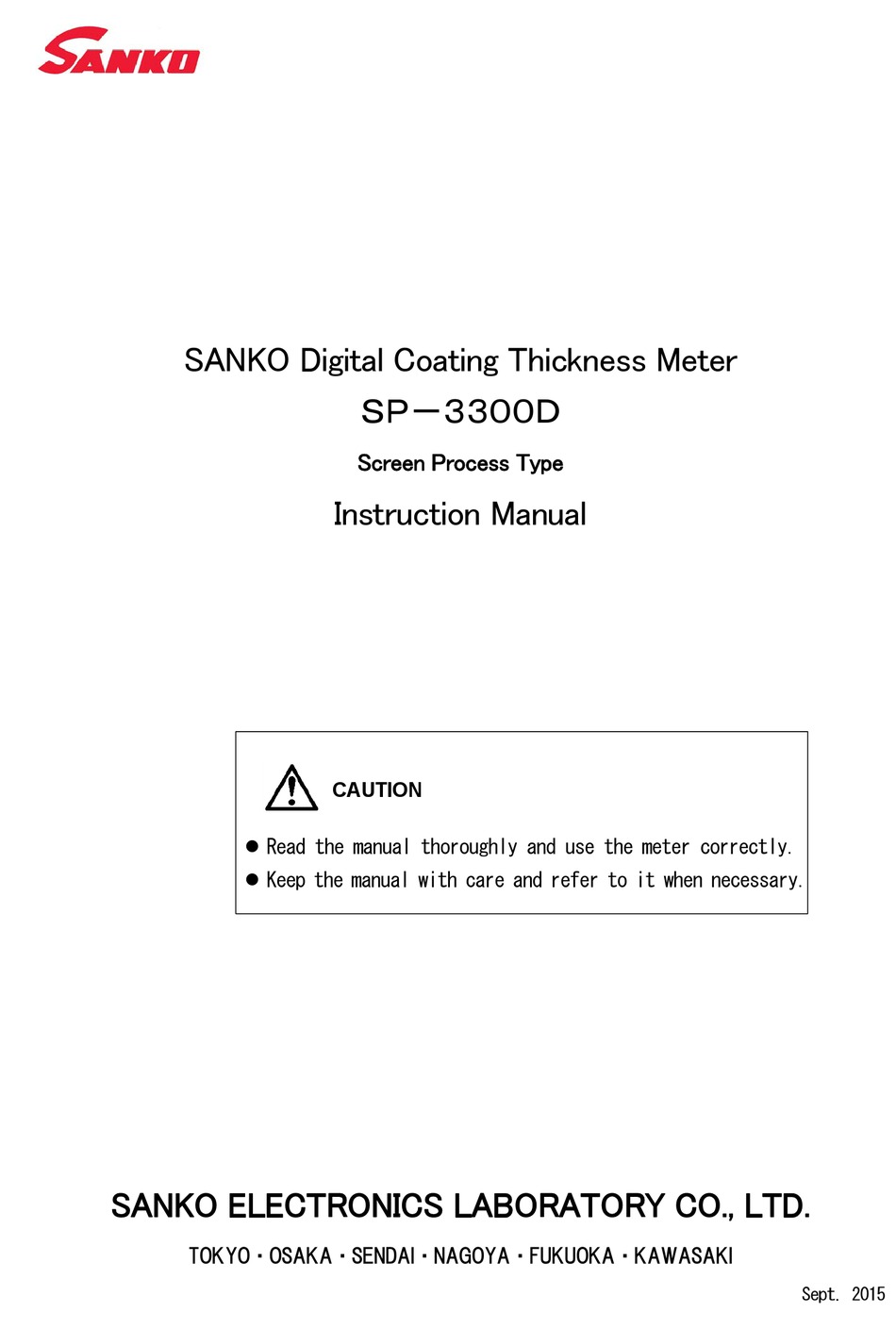

SANKO Digital Coating Thickness Meter
ＳＰ－３３００Ｄ
Screen Process Type
Instruction Manual
CAUTION
Read the manual thoroughly and use the meter correctly.
Keep the manual with care and refer to it when necessary.
SANKO ELECTRONICS LABORATORY CO., LTD.
TOKYO・OSAKA・SENDAI・NAGOYA・FUKUOKA・KAWASAKI
Sept. 2015
Advertisement
Related Manuals for SANKO SP-3300D
Summary of Contents for SANKO SP-3300D
- Page 1 SANKO Digital Coating Thickness Meter ＳＰ－３３００Ｄ Screen Process Type Instruction Manual CAUTION Read the manual thoroughly and use the meter correctly. Keep the manual with care and refer to it when necessary. SANKO ELECTRONICS LABORATORY CO., LTD. TOKYO・OSAKA・SENDAI・NAGOYA・FUKUOKA・KAWASAKI...
-
Page 2: Table Of Contents
Contents Pages Attention for safety ･････････････････････････････････････････････････････････････・・・ Notes ･･･････････････････････････････････････････････････････････････････・・・ Get started ･･･････････････････････････････････････････････････････････････････・・・ ・ Contents in a package ･･･････････････････････････････････････････････・・・ ・ Names of parts ･･････････････････････････････････････････････････････・・・ Operating instruction ････････････････････････････････････････････････････････････････ 1. Preparation ･･･････････････････････････････････････････････････････････ 2. Adjustments （Zeroing, Calibration standard） ･･････････････････････････････ 3. Measurement ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ 4. Completion of measurement ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・ Transferring data ・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・・... -
Page 3: Attention For Safety
Attention for safety （to use safely and correctly） To prevent you and your properties from damaging please take some time to read thoroughly this “Attention for Safety” and use this unit correctly. And keep these instructions attentive to read when necessary. Warning ●... -
Page 4: Notes
Attention for safety （to use safely and correctly） Attention ● Do not use Benzene or Thinner for cleaning and spray pesticides on the meter, otherwise it may cause cracks or malfunctions. Prohibition ● Do not store the meter in places getting high in temperatures such as in a car in strong sunlight or near heaters, otherwise it will be hazardous to the meter and may cause malfunctions. -
Page 5: Get Started
Get started ◆Contents in a package Please make sure if the following items are included. ・ Main unit ・ Probe, weight ・ Thickness standard（film 2 pcs, carrying case） ・ Zero plate（standard ferrous plate for test） ・ Exclusive AC adaptor ・ Instruction manual（this book） ・... -
Page 6: Names Of Parts
◆Name of parts ◎Front of main unit ① ② ③ ④ ⑤ ⑮ ◎Rear of main unit ⑥ ⑦ ⑧ ⑨ ◎Probe ⑬ ⑩ ⑭ ⑪ ⑫ ①Zero adjustment dial ⑧Printer connector ②Standard calibration dial ⑨Probe plug ⑩Probe ③Hold button When holding ：... -
Page 7: Operating Instruction
Operating instructions １． Preparation 1-1. Connecting the probe Insert the probe plug ⑨ of the probe ⑩ into the probe connector ⑤ of the main unit. Align the connector keyway to the plug guide and lightly push in until it makes a clicking sound to fix. 1-2. -
Page 8: Completion Of Measurement
3-3. Measurement in a screen process When measuring the thickness of a printing film (resist), firstly measure the thickness of a screen itself, then measure the combined thickness of a screen and a resist. The thickness of the resist can be obtained by subtracting the thickness of a screen. -
Page 9: Specifications
Specifications Items Applications Model SP-3300D SANKO Digital Coating Thickness Meter Measuring method Electromagnetic Measuring range 0～300μｍ （option：0～500μｍ） Resolutions １μｍ Accuracies ±１μｍ on uniform surface, or±2％ of reading Display ＬＥＤ digital, with hold function Output to printer Exclusive printer output 3 points contact with 2 electrodes support, arbitrary loaded perfect constant... -
Page 10: Notes To Improve Measuring Accuracy
Note to improve measuring accuracy ① Zero plate (standard ferrous plate for test) If Zero plates used for Zeroing/Calibration standard (ＣＡＬ) are soft irons, they can be used. It is not necessary to use accessorized Zero plates When using Zero plate except accessorized one, select one under the following standards. ➢... -
Page 11: References (Measuring Principles)
Reference (Principle of measurements) Electro-Magnetic Induction type (Electromagnetic Type) ● When iron (ferrous metals) approaches to the tip of the coil built-in core, the inductance of the coils changes in response to changes of the approaching distances. Electromagnetic Type coating thickness meters take measurements of thicknesses of coating films by using this technical Principle and taking out the changes of the distances in state of electric signals. - Page 12 Moisture meter, Concrete covermeter, Condensator, Needle detector, Iron piece detector, Viscosity cup Manufacturer: Sanko Electronic Laboratory Co., Ltd. Tokyo Branch：Shibata Bldg., 2-6-4, Uchikanda, Chiyoda-ku, Tokyo 101-0047, Japan Tel. 81-3-3254-5031 Fax. 81-3-3254-5038 Osaka Branch：Konishi Bldg., 2-3, Sugawara-cho, Kita-ku, Osaka 530-0046, Japan Tel.
