20.4 Working with triggers 239

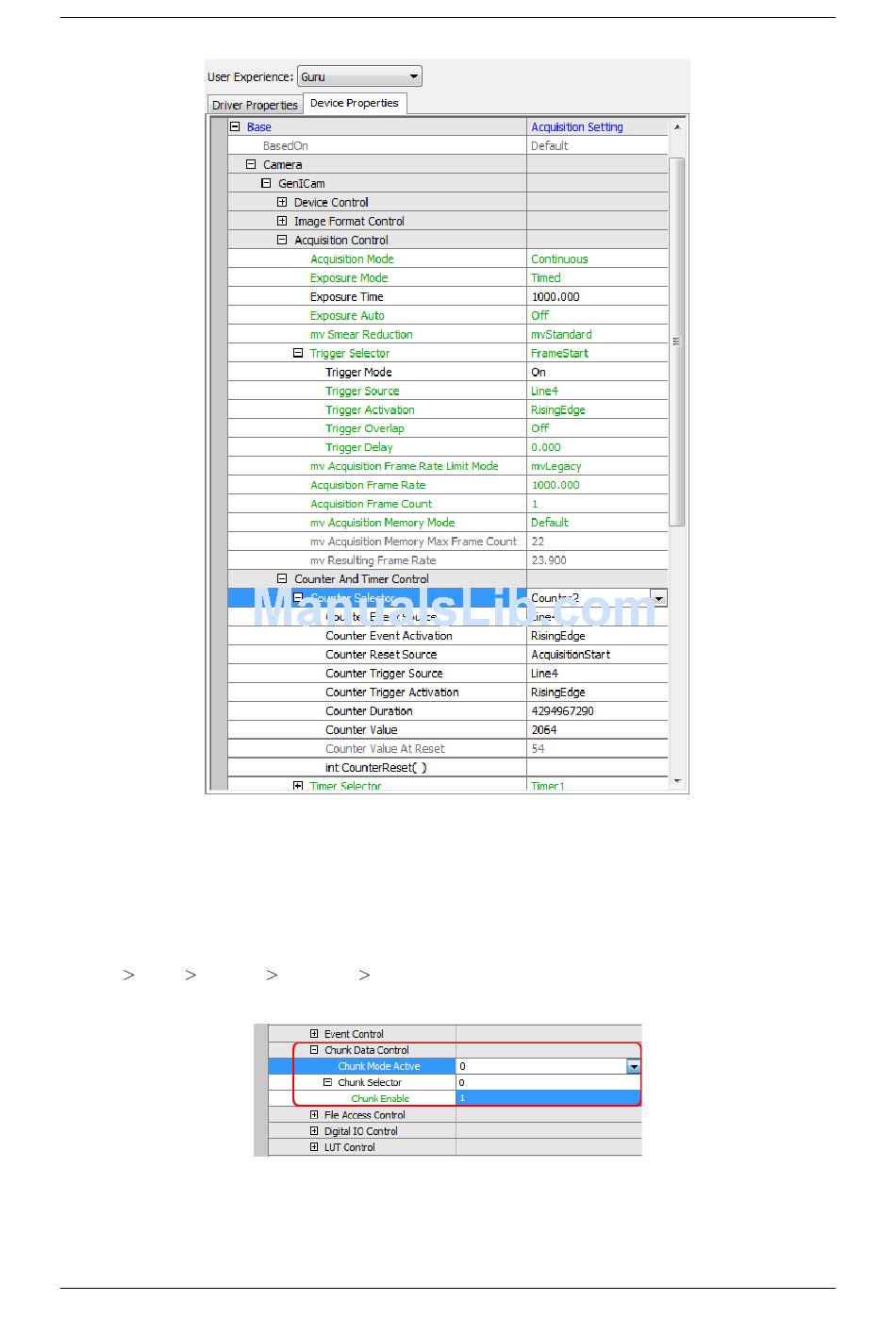

Figure 3: Setting Counter2
Now, you can check if the trigger signal is skipped (when a rising edge signal is active during readout) or not by
comparing the two counters.
Enable the inclusion of the selected chunk data ( "Chunk Mode Active = 1" ) in the payload of the image in
"Setting - Base - Camera - GenICam - Chunk Data Control":
Figure 4: Enable chunk data
Activate the info overlay in the display area. Right-click on the live display and select: "Request Info Overlay"
MATRIX VISION GmbH
