20.4 Working with triggers
20.4.2.3 Programming the pulse width modulation with wxPropView

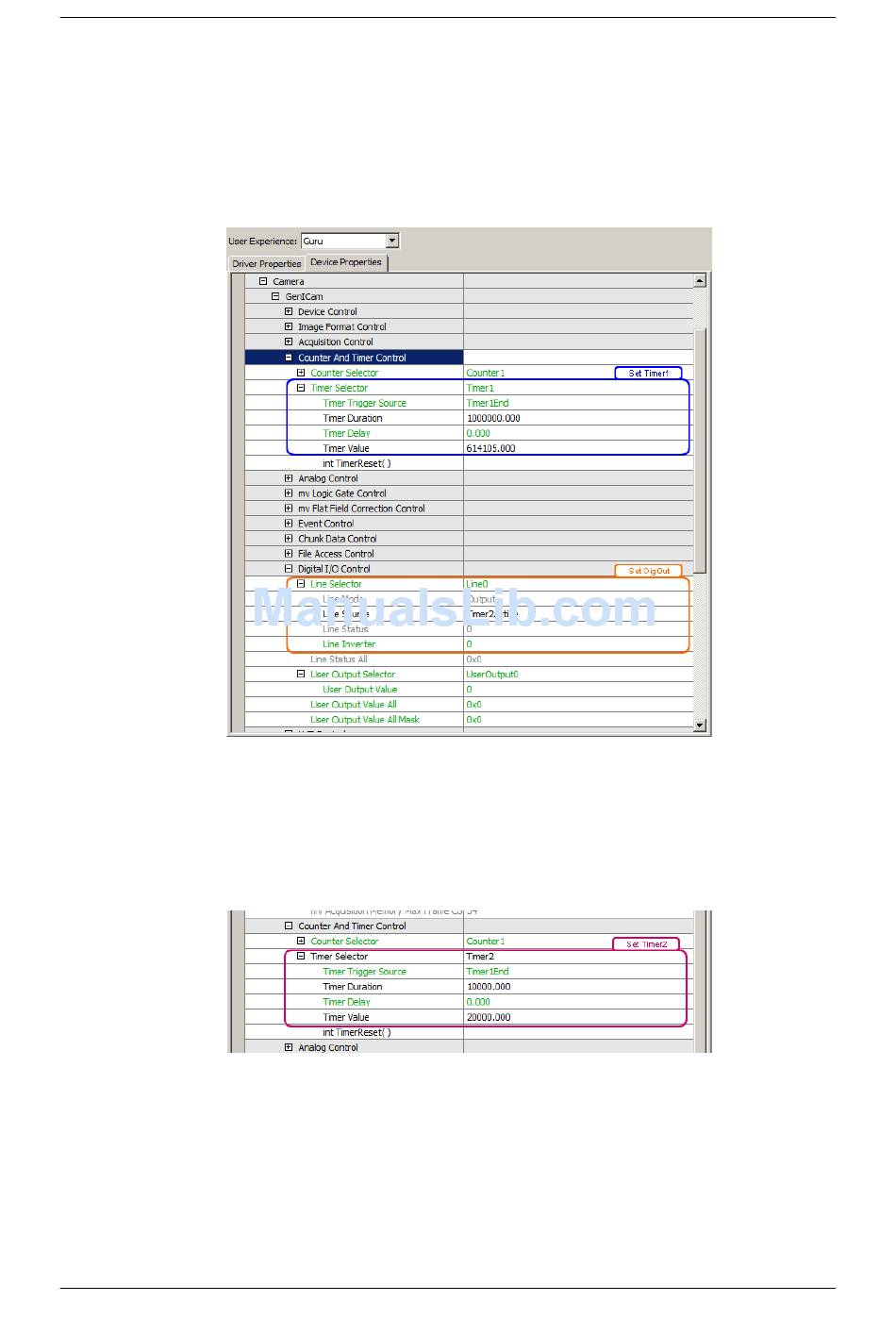

The following figures show, how you can set the timers using the GUI tool wxPropView (p. 74)
1. Setting of Timer1 (blue box) on the master camera:
2. Setting of Timer2 (purple on the master camera):
3. Assigning timer to DigOut (orange box in Figure 2).
MATRIX VISION GmbH
Figure 2: wxPropView - Setting of Timer1
Figure 3: wxPropView - Setting of Timer2
