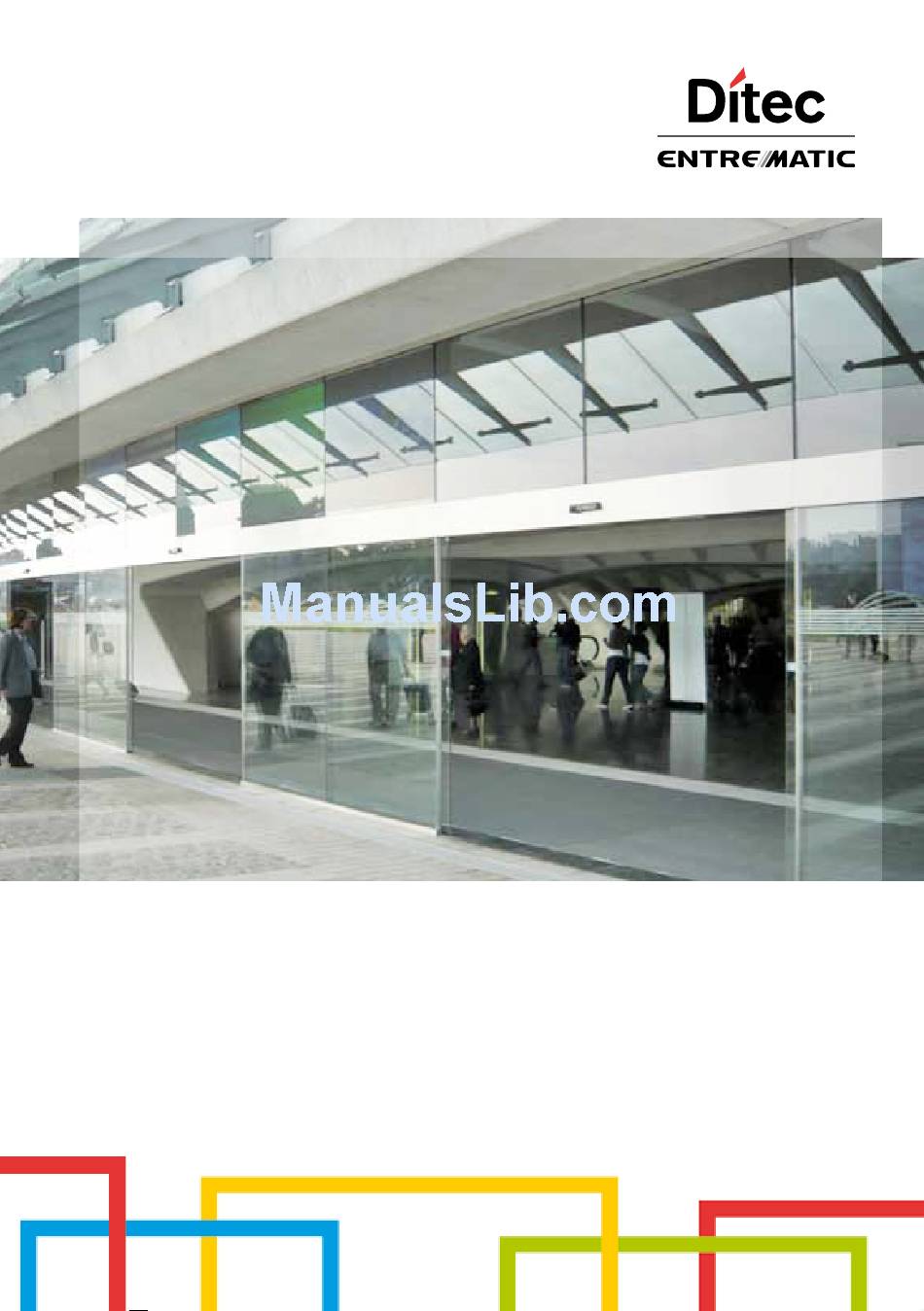

- Page 1 Ditec VALOR IP1950 EN Technical manual Sliding doors automation (Original instructions) www.ditecentrematic.com...
-
Page 2: Table Of Contents
Installation of the automation VALOR box fastening VALOR T box fastening VALOR H box fastening Preparation of glass door wing VALOR - VALOR H door wing installation and adjustment VALOR T door wing installation and adjustment Floor guide installation Belt adjustment Lock installation... -
Page 3: General Safety Precautions
1. General safety precautions Failure to observe the information in this manual may result in minor personal injury or damage to equipment. Save these instructions for future reference. This installation manual is intended for qualified personnel only. Installation, electrical connections and adjustments must be performed in accordance with Good Working Methods and in compliance with the present standards. -
Page 4: Declaration Of Incorporation Of Partly Completed Machinery
The manufacturer Entrematic Group AB with headquarters in Lodjursgatan 10, SE-261 44 Landskrona, Sweden declares that the automation system for Ditec VALOR sliding doors: has been constructed to be installed on a manual door to construct a machine pursu- ant to the Directive 2006/42/EC. The manufacturer of the motorized door shall declare conformity pursuant to the Directive 2006/42/EC (annex II-A), prior to the machine being put into service;... -
Page 5: Technical Data
3. Technical data Ditec VALOR L-H Ditec VALOR P Ditec VALOR N Ditec VALOR T Power supply 230 V~ 50/60 Hz 230 V~ 50/60 Hz 230 V~ 50/60 Hz 230 V~ 50/60 Hz Power fuse F1,6A with weight F1,6A with weight F1,6 A with weight >200 kg... -
Page 6: Standard Installation
4. Standard installation Ref. Code Description VALOR Operator Drive unit EL20 Control panel Transformer VALABE Emergency batteries (optional) VALABC No-break batteries (optional) PAS024AMW (microwave+infrared), or Combined sensor for opening and safety during closing PASAA2 (only infrared) external side PAS024AMW (microwave+infrared), or... -
Page 7: Installation Of The Automation
The VALOR automation wall fixing measurements are illustrated in the diagram, considering that the door wing profiles are not of our production. If the door wings are made with DITEC profiles of the PAM series: refer to the measurements in the related manuals. -
Page 8: Valor T Box Fastening
Wiring passage Unless otherwise specified, all measurements are expressed in millimetres (mm). The figure shows the measurements for wall mounting the VALOR H automation considering that the door wings are made of DITEC PAMH60 series profiles. If the PAMH60 door wing has lead-shielding (e.g. radiology department) refer to the measure- ments marked [*]. -
Page 9: Valor H Box Fastening
5.3 VALOR H box fastening VALH60 PAMH60 Wiring passage... - Page 10 LM=L+46 (LM=L+164)* Unless otherwise specified, all measurements are expressed in millimetres (mm). The figure shows the measurements for wall mounting the VALOR H automation considering that the door wings are made of DITEC PAMH60 series profiles. If the PAMH60 door wing has lead-shielding (e.g. radiology department) refer to the measure- ments marked [*].
-
Page 11: Preparation Of Glass Door Wing
Preparation of the glass door wing The diagram indicates the process measurements of the aluminium profile AC1356 and glass. Ø10 through holes are required on the aluminium profile and Ø15 on the glass for fastening. The number of holes and related distance between centres are based on the door wing width. Silicon should ideally be used between the edge of the glass and the internal base of the profile. -
Page 12: Valor - Valor H Door Wing Installation And Adjustment
Adjust the horizontal position of the door wing in accordance with the measurements indicated in diagram VALOR 2 for 2 door wing automations, VALOR 1 RH for right-hand opening automations and VALOR 1 LH for left-hand opening automations. Secure the adjustment with screws [a]. -
Page 13: Valor T Door Wing Installation And Adjustment
Adjust the horizontal position of the door wing in accordance with the measurements indicated in diagram VALOR 2 +2 for four door wing automations, VALOR 1 +1 RH for right-hand opening automa- tions and VALOR 1 +1 LH for left-hand opening automations. Secure the adjustment with screws [a]. - Page 14 VALOR 2+2 WINGS OPEN OPEN OPEN OPEN VALOR 1+1 WING - RIGHT OPENING OPEN OPEN VALOR 1+1 WING - LEFT OPENING OPEN OPEN...
-
Page 15: Floor Guide Installation
Floor guide installation The floor guides must be made of an antifriction material such as PVC, NYLON, TEFLON. The length of the floor guide should not be greater than the overlap of between the fixed and mobile door wing and must not enter the doorway. The measurements of the code 0KP515AB floor guide for framed door wings are indicated in the diagram. -
Page 16: Belt Adjustment
Belt adjustment Loosen screws [a], unscrew screw [b] until the spring is at a compression of 22 mm (if the length of the automation is lower than 2600 mm) or 20 mm (if the length of the automation is greater than 2600 mm). -
Page 17: Electrical Connections
6. Electrical connections Electrical wiring and starting are shown in the installation manual of control panel EL20. Make sure the yellow/green conductor is at least 30 mm longer than the brown and blue conductors. Before connecting the power supply, make sure the plate data correspond to that of the mains power supply. -
Page 18: Ordinary Maintenance Program
Routine maintenance plan Perform the following operations and checks every 6 months according to intensity of use of the automation. Without 230 V~ power supply and batteries: Clean and lubricate the moving parts (the carriage guides and the floor guides). Check the belt tension. -
Page 19: User Instructions
Ditec VALOR user’s manual Sliding door automation General safety precautions The following precautions are an integral and essential part of the product and must be sup- plied to the user. Read them carefully since they contain important information on safe installation, use and maintenance. - Page 20 Technical data Ditec VALOR L-H Ditec VALOR P Ditec VALOR N Ditec VALOR T Power supply 230 V~ 50/60 Hz 230 V~ 50/60 Hz 230 V~ 50/60 Hz 230 V~ 50/60 Hz Power fuse F1,6A with weight F1,6A with weight F1,6 A with weight >200 kg...
-
Page 21: Manual Release Instruction
Manual release instructions In the event of maintenance, malfunctioning or emergency, pull the lock release lever VALSB down and turn it to the right or lower the lock release lever LOKSBM (if installed) and move the door wings manually into the open position. To block the door wings again, reposition the lock release lever to the initial position. -
Page 22: Function Selector User Instructions
User instructions function selector The STOP position prevents the batteries from engaging in case of emergency. NOTE: for correct door operation and regular battery recharging, it is essential that the automatic system be always powered with batteries connected (also during the night). FUNCTION SELECTOR COME COMH-K... - Page 23 All the rights concerning this material are the exclusive property of Entrematic Group AB. Although the contents of this publication have been drawn up with the greatest care, Entrematic Group AB cannot be held responsible in any way for any damage caused by mistakes or omissions in this publica- tion.
- Page 24 Entrematic Group AB Lodjursgatan 10 SE-261 44, Landskrona Sweden www.ditecentrematic.com...
