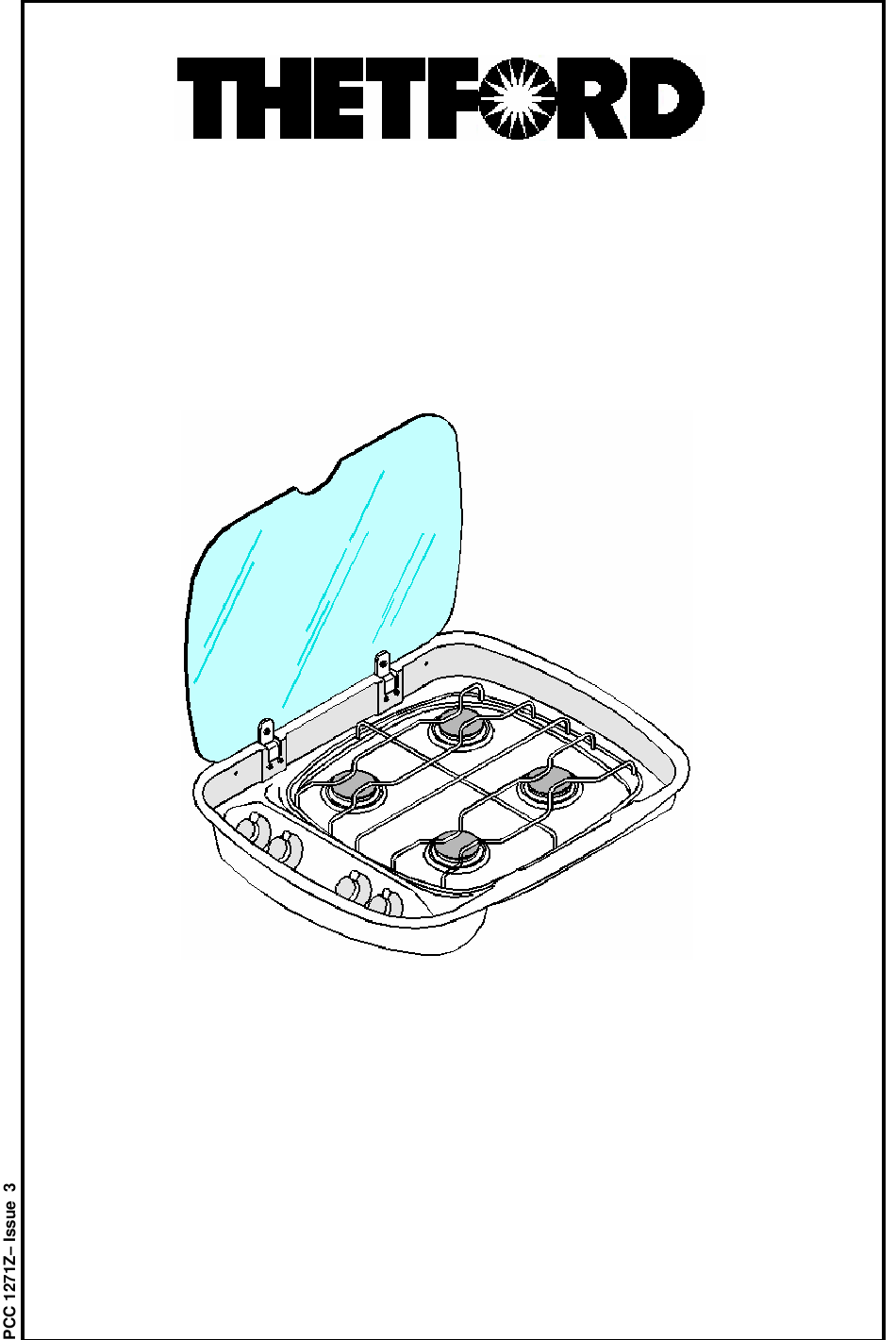

BUILD-IN
COOKING HOB
MODELS:
S~HB14000Z
S~HB14300Z S~HB14500Z
FOR USE WITH PROPANE GAS
USER AND INSTALLATION INSTRUCTIONS
WARNING
•
This appliance must be installed by an authorised person.
•
Only use this appliance in a well ventilated area.
•
Read the instructions before use.
FOR USE IN AUSTRALIA
THETFORD AUSTRALIA PTY LTD
41 LARA WAY CAMPBELLFIELD VIC
TEL: 03 9358 0700
FAX: 03 9357 7060
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Thetford S-HB14000Z
Summary of Contents for Thetford S-HB14000Z
- Page 1 This appliance must be installed by an authorised person. • Only use this appliance in a well ventilated area. • Read the instructions before use. FOR USE IN AUSTRALIA THETFORD AUSTRALIA PTY LTD 41 LARA WAY CAMPBELLFIELD VIC TEL: 03 9358 0700 FAX: 03 9357 7060...
- Page 3 CONTROL POSITIONS FIG. 1 FULL RATE LOW RATE MINIMUM ALLOWABLE DISTANCE TO COMBUSTIBLE MATERIAL FIG. 2 OPTIONAL BATTERY POWERED SPARK IGNITION–SERIESS~HB14300 FIG. 3...
- Page 5 INTRODUCTION In your own interest of safety, gas appliances should be installed by competent persons. Failure to install the appliance correctly could invalidate any warranty or liability claims. This appliance shall be installed in accordance with the manufacturer’s installation instructions, local gas fitting regulations, municipal building codes, AG5601 and any other relevant statutory regulations.
-
Page 6: Operation
OPERATION Using the Hob Burners Each burner is controlled individually and is monitored by a flame failure sensing device. The respective knob positions are shown in Fig. 1. 1. Ensure gas supply is connected and turned on. 2. To light: Push in the control knob and turn anti-clockwise to full rate – large flame on control knob ( ) Fig. -
Page 7: Installation
INSTALLATION A cut-out should be prepared in the worktop, and the appliance fixed in position through the side fixing holes - see appliance installation diagram. A direct distance of 200mm must exist between the edge of the appliance burners and any combustible material, unless protected by a layer of non-combustible material. -
Page 8: Maintenance And Servicing
Who to Contact For service, please contact your authorised local Service Agent giving full details of the model, serial number and date of purchase. Manufactured by: THETFORD Limited. Unit 19 Oakham Drive, Parkwood Industrial Estate, Rutland Road, Sheffield. S3 9QX. England. - Page 9 MAINTENANCE & SERVICING Injector Sizes & Consumption Per Burner Model S~HB14000Z Burner Injector orifice Consumption Front LH 0.62 or 0.67 mm 5.4 or 5.9 MJ/hr Front RH 0.62 or 0.67 mm 5.4 or 5.9 MJ/hr Rear LH 0.62 or 0.67 mm 5.4 or 5.9 MJ/hr Rear RH 0.62 or 0.67 mm...
