Summary of Contents for KAM InfinityBeam

  • Page 1 For the latest instruction manual updates and information on the entire Kam range visit: www.kam.co.uk Kam products are manufactured by: Lamba plc, Unit 1, Southfields Road, Dunstable, Bedfordshire, United Kingdom LU6 3EJ Telephone: (+44) (0)1582 690600 • Fax: (+44) (0)1582 690400 • Email: mail@lambaplc.com • Web: www.lambaplc.com If this product is ever no longer functional please take it to a recycling plant for environmentally friendly disposal.
  • Page 2: Manufacturer Declarations

    Thank you for purchasing this Kam product, we are sure that it will serve you for many years to come. To optimise it’s performance, please read these instructions carefully to familiarise yourself with the basic operations of the unit. Please retain them for future reference.This unit has been tested at the factory before being shipped to you. To prevent or reduce the risk of electrical shock or fire, do not expose the unit to rain or moisture.
  • Page 3: Overhead Rigging

    DMX-512 connection If you are using a standard DMX controller, you can connect the DMX output of the controller directly to the DMX input of the first unit in a DMX chain. If you wish to connect a DMX controller with other XLR outputs you will need to use adapter cables. 1 = ground 2 = minus signal (-) 3 = plus signal (+)
  • Page 4 Menu function and operation Press the Enter button to confirm AP01~AP** - selects the auto shows your choice AP** AUTP Auto programs S.01~S.99 - selects the show speed Press the Enter button to confirm 01 is the slowest / 99 is the fastest your choice and return to AP** menu Press the Enter button to confirm AF01~AF** - selects the auto flashing shows...
  • Page 5 3 channel DMX mode Channel Value Description 000-009 Black out 010-050 Auto 051-090 Auto flash 091-130 Auto mix 131-170 Sound 171-210 Sound flash 211-255 Sound mix 000-255 Auto - AP** (based on channel 1, value 010-050) see below table 000-255 Auto flash - AF** (based on channel 1, value 051-090) see below table 000-255 Auto mix - AM** (based on channel 1, value 091-130) see below table...
  • Page 6 9 channel DMX mode Channel Value Description 000-085 Red 0 - 100% (head 1) 086-170 Green 0 - 100% (head 1) 171-255 Blue 0 - 100% (head 1) 000-085 Red 0 - 100% (head 2) 086-170 Green 0 - 100% (head 2) 171-255 Blue 0 - 100% (head 2) 000-085...
  • Page 7 14 channel DMX mode Channel Value Description 000-085 Red 0 - 100% (head 1) 086-170 Green 0 - 100% (head 1) 171-255 Blue 0 - 100% (head 1) 000-085 Red 0 - 100% (head 2) 086-170 Green 0 - 100% (head 2) 171-255 Blue 0 - 100% (head 2) 000-085...

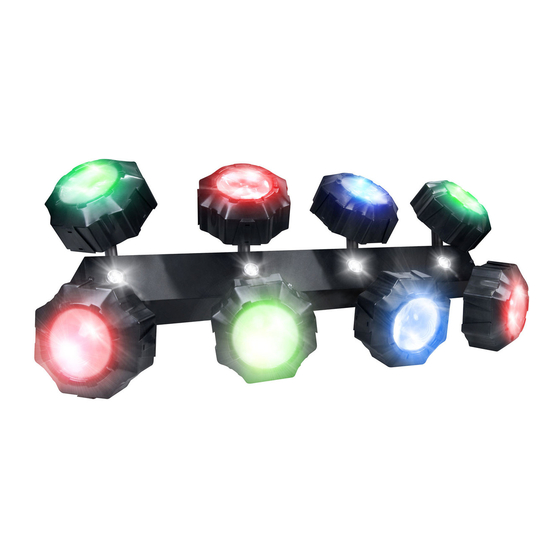

  • Page 8 Kam InfinityBeam features & specification Multi-colour wide angle beam effects Classic disco lighting effects updated with LED Room-filling beams from 8 multi-colour heads Each head has a powerful 9 watt RGB multi-colour tri-LED Position each head exactly where you want it...
