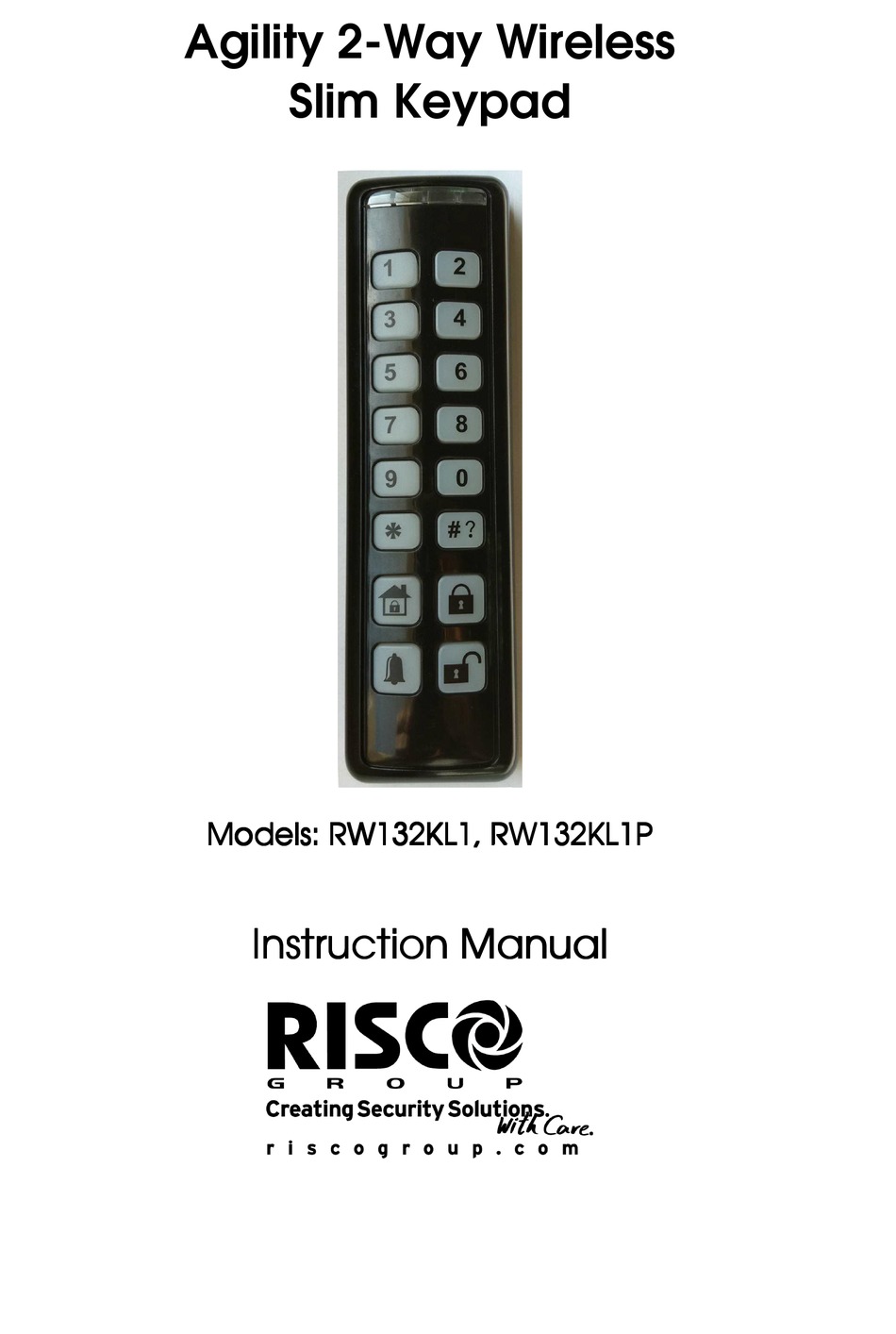

- Page 1 Agility 2-Way Wireless Slim Keypad Models s s s : RW132KL1 Model : RW132KL1, , , , RW132KL1P RW132KL1P Model Model : RW132KL1 : RW132KL1 RW132KL1P RW132KL1P Instruction Manual Instruction Manual Instruction Manual Instruction Manual...
-
Page 2: Table Of Contents
Agility 2- - - - Way Wireless Slim Agility 2 Way Wireless Slim Agility 2 Agility 2 Way Wireless Slim Way Wireless Slim Outdoor Keypad Outdoor Keypad Outdoor Outdoor Keypad Keypad Table of Contents Table of Contents Table of Contents Table of Contents INTRODUCTION EATURES... -
Page 3: Introduction
INTRODUCTION The Agility version-3-compatible 2-Way Wireless Slim Keypad comes in two models: RW132KL1P—a black protection-insulated outdoor model empowered with a proximity reader RW132K1 — a white indoor model operates in either of two modes: • Full function Mode: Wireless LED operating keypad •... -
Page 4: Mounting The Keypad
Note: Adding the keypad to the system can be done remotely using the Configuration Software. MOUNTING THE KEYPAD Note: Before mounting the keypad, test the keypad communication with the system. To mount the keypad on the wall using the supplied mounting bracket. 1. -
Page 5: Full Functional Mode
Full-Function Mode User Operations The following list details the user operations from the 2-way wireless slim keypad in a full functional mode. User operation can be defined to be activated by a quick mode or high security mode that requires the use of a code or (1P model) proximity tag. In the high security mode the (1P model) proximity tag can be used as a substitute for inserting a user code when prompted to insert a code. -
Page 6: Leds Indication
Select the volume level (0=No sound, 4=Full volume) Press to save your selection Set keypad exit/entry Press the button for 2 seconds to toggle between beeps On/Off Activate/Deactivate light Press the button for 2 seconds to toggle between sensor On/Off Press the button Press button for 2... -
Page 7: Bypass Unit Mode
Bypass Unit mode For units configured by engineers as being in bypass mode, the actions keys are disabled and the keypad is used only to authorize an opening of an exit/entry door. The following explanation details the user operations from the 2-way wireless slim outdoor keypad in bypass unit mode. -
Page 8: Changing Keypad Parameters
4. Pull out the batteries and replace them with new ones. Pay attention to the polarity when inserting the new batteries. 5. Close the case and secure the screw to its place. CAUTION: Risk of explosion if battery is replaced by an incorrect type. Dispose of used batteries according to local regulations. -
Page 9: Using The Proximity Tag
USING THE PROXIMITY TAG (1P model only) The proximity tag is correctly used by applying it within a 2 cm (two centimeter) distance from the key, as shown at right. TECHNICAL SPECIFICATION Electrical Battery Type CR123, 3V lithium battery (x 2) Current Consumption Stand by current 10µA, Max current 100 mA... - Page 10 RTTE Compliance Statement Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com. RISCO Group Limited Warranty RISCO Group and its subsidiaries and affiliates ("Seller") warrants its products to...
- Page 11 Contacting RISCO Group RISCO Group is committed to customer service and product support. You can contact us through our website www.riscogroup.com or as follows: United Kingdom Brazil Tel: +44-(0)-161-655-5500 Tel: +55-11-3661-8767 E-mail: support-uk@riscogroup.com E-mail: support-br@riscogroup.com Italy China (Shanghai) Tel: +39-02-66590054 Tel: +86-21-52-39-0066 E-mail: support-it@riscogroup.com...
