INTRODUCTION ........................................................................................................... 4
MAIN FEATURES ......................................................
COMMUNICATION SETUP ........................................................................................ 4
MOUNTING THE KEYPAD ......................................................................................... 5
MAIN USER OPERATIONS ......................................................................................... 6
COMMON OPERATIONS ........................................................................................... 6
KEY OPERATION DURING PROGRAMMING MODE .......................................... 6
ADVANCED OPERATIONS .....................................
LEDS INDICATION ....................................................................................................... 7
SLEEP MODE................................................................................................................... 7
REPLACING BATTERIES ............................................................................................. 7
CHANGING KEYPAD PARAMETERS ....................................................................... 7
TECHNICAL SPECIFICATION .................................................................................... 8
Agility 2- - - - Way
Agility 2
Agility 2
Agility 2
2W WL LCD Keypad, 915
Model: RW132KPPW3
Way
Way
Way
EN
3
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Risco Agility 2-way Wireless LCD Keypad
Summary of Contents for Risco Agility 2-way Wireless LCD Keypad
-
Page 1: Table Of Contents
Agility 2- - - - Way Agility 2 Agility 2 Agility 2 2W WL LCD Keypad, 915 Model: RW132KPPW3 Table of Contents Table of Contents Table of Contents Table of Contents INTRODUCTION ......................4 MAIN FEATURES ............COMMUNICATION SETUP ..................4 MOUNTING THE KEYPAD .................. -
Page 2: Introduction

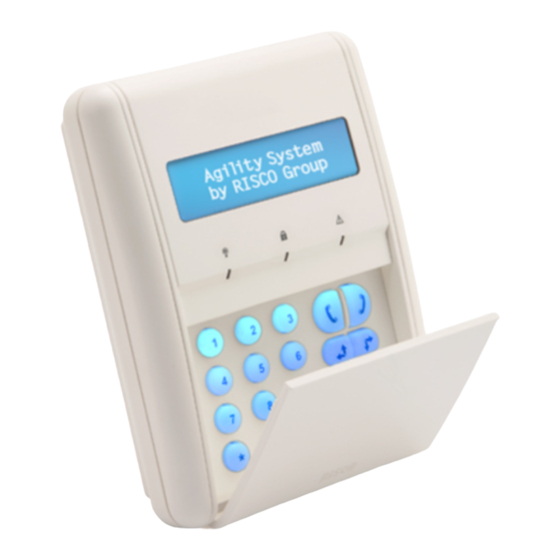

INTRODUCTION INTRODUCTION INTRODUCTION INTRODUCTION The 2-Way keypad is used to remotely program and operate the Agility security system. Being bi-directional the 2-Way keypad receives a reply status indication from the panel for each command that it has sent to the panel. To use functions of the keypad you can use a code or a proximity tag. -
Page 3: Mounting The Keypad
MOUNTING THE KEYPAD MOUNTING THE KEYPAD MOUNTING THE KEYPAD MOUNTING THE KEYPAD Mount the keypad on the wall using the supplied mounting bracket. Note: Before mounting the keypad test the keypad communication with the system. 1. Release the Mounting bracket captive screw (1). Figure 1 2. -
Page 4: Main User Operations
MAIN USER OPERATIONS MAIN USER OPERATIONS MAIN USER OPERATIONS MAIN USER OPERATIONS The following list details the user operations from the 2-way wireless keypad. User operation can be defined to be activated by a quick mode or high security mode that requires the use of a code or proximity tag. -
Page 5: Leds Indication
LEDS INDICATION LEDS INDICATION LEDS INDICATION LEDS INDICATION Function Communication with the panel (Blue) On: Fully or partially set Slow flash: Exit delay (Red) Rapid flash: Alarm Fault in the system while the system is unset. (Yellow) SLEEP MODE SLEEP MODE SLEEP MODE SLEEP MODE For extending the battery life of the keypad, the keypad is designed with a Sleep mode... -
Page 6: Technical Specification
TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION TECHNICAL SPECIFICATION Electrical Battery Type CR123, 3V lithium battery (x 3) Current Consumption Stand by current 10µA, Max current 100 mA Frequency 13.56 MHz Modulation Type Typical Battery Life 3 years Physical Dimension (HxWxD) 150 mm x 120 mm x 45 mm (5.9 x 4.7 x 1.77 inches) Weight (Including batteries) - Page 7 RISCO, for a period of (i) 24 months from the date of connection to the RISCO Cloud (for cloud connected products) or (ii) 24 months from production (for other products which are non-cloud connected), as the case may be (each, the “Product Warranty Period”...
- Page 8 (d) have been damaged by any factor beyond RISCO’s reasonable control such as, but not limited to, power failure, electric power surges, or unsuitable third party components and the interaction of...
- Page 9 DAMAGES, EVEN IF THEY WERE FORESEEABLE OR RISCO HAS BEEN INFORMED OF THEIR POTENTIAL. RISCO does not install or integrate the product in the end user security system and is therefore not responsible for and cannot guarantee the performance of the end user security system which uses the product.
