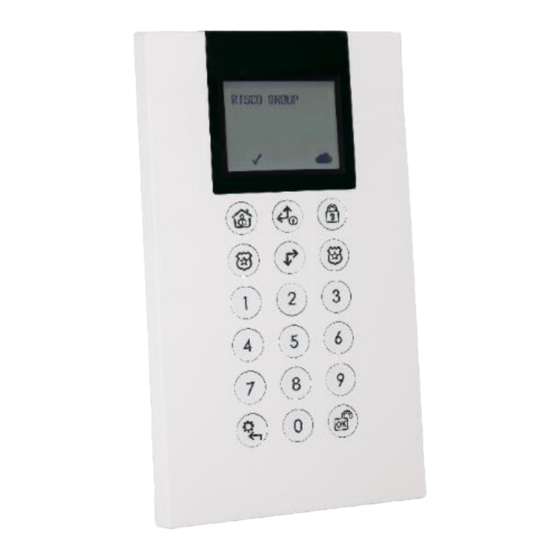

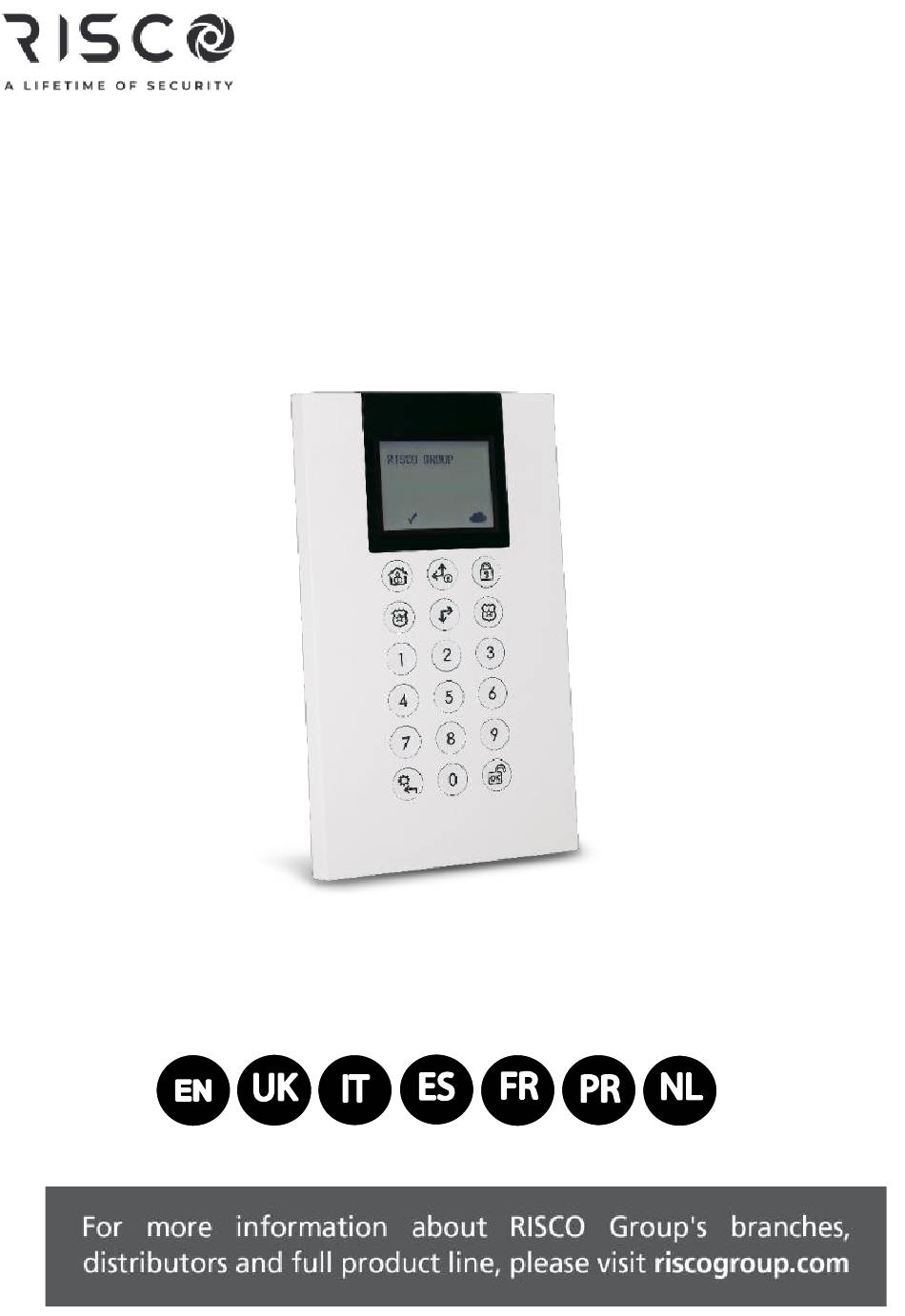

- Page 1 WL Panda for LightSYS Air/LightSYS Plus Model: RW432KPP2 Installation and User Guide...
- Page 2 Language Page...
-
Page 3: Main Features
The 2-Way WL Panda for LightSYS Air/LightSYS Plus keypad is used to remotely program and operate the LightSYS Air/LightSYS Plus control panel. Being bi-directional, the 2-Way keypad receives a reply status indication from the panel for each command sent to the panel. You can operate the keypad either using a code or a proximity tag. Main Features •... -
Page 4: Mounting The Keypad
Mounting the Keypad Mount the keypad on the wall using the supplied mounting bracket. NOTE: Before mounting the keypad test the keypad communication with the system. Remove the fastening screw that secures the mounting bracket to the keypad (see Figure 1). Separate the mounting bracket from the keypad (see Figure 2). -
Page 5: Visual Indicators
Main Keypad Operations Visual Indicators The following visual indicators are displayed on the LCD Keypad: Icon Indication Operation System trouble System is operating normally Trouble System is ready to be armed System is not ready to be armed Slow Flash System is ready to be armed while exit/entry zone is open System is armed in Full Arm or Stay Arm... -
Page 6: User Operations
User Operations Control Keys The following lists details the user operations from the 2-Way WL Panda for LightSYS Air/LightSYS Plus keypad. Operation In Normal Operation mode: Used for Away (Full setting). In User Functions menu: Used to change data. In Normal Operation mode: Used for Stay arming (Part Setting). In User Functions menu: Used to change data. - Page 7 Operation Disarm (Unset) and Silence an alarm Code > Away (Full Setting) partition 1/2/3/4 Code > > > Stay (Part Settings) partition 1/2/3/4 Code > > > Partition Disarm (Unset) Code > > > Duress Unset Duress Code > Quick Zones Bypass (Omit) Code >...
-
Page 8: Emergency Keys
Operation Changing Keypad Language simultaneously for 2 seconds > select language > Emergency Keys The following operations will send emergency notifications to the alarm monitoring station. Operation Pressing both keys simultaneously for at least two seconds activates a Fire alarm Pressing both keys simultaneously for at least two seconds activates an Emergency alarm Pressing both keys simultaneously for at least two seconds... -
Page 9: Keypad Settings
Keypad Settings Note: The following settings must be defined individually for each keypad connected to the system. ➢ To define keypad settings when idle follow this procedure: Press for two seconds until the Keypad Settings menu appears Select the relevant icon using the keys: Brightness Contrast... -
Page 10: Sleep Mode
Proximity Tag Operation Present the Proximity Tag to the keypad (after waking the keypad) as shown in the following illustrations: Figure 8 Sleep Mode For extending the battery life of the keypad, the keypad is designed with a Sleep mode function. -
Page 11: Changing Keypad Parameters
Changing keypad parameters Any change performed in the definition of the keypad parameters also requires updating the keypad. This is performed by pressing the key for 2 seconds. The panel will then send an update to the keypad. Technical Specification Electrical Battery Type CR123, 3V Lithium battery (x 4) -
Page 12: Ordering Information
WL Panda KP LightSYS+/Air&Prox for 868MHz System Standard Compliance RED Compliance Statement: Hereby, RISCO Group declares that this equipment is in compliance with the essential requirements and other relevant provisions of Directive 2014/53/EU. For the CE Declaration of Conformity please refer to our website: www.riscogroup.com. -
Page 13: Standard Limited Product Warranty
RISCO, for a period of (i) 24 months from the date of connection to the RISCO Cloud (for cloud connected products) or (ii) 24 months from production (for other products which are non-cloud connected), as the case may be (each, the “Product Warranty Period”... - Page 14 FORESEEABLE OR RISCO HAS BEEN INFORMED OF THEIR POTENTIAL. RISCO does not install or integrate the product in the end user security system and is therefore not responsible for and cannot guarantee the performance of the end user security system which uses the product.
- Page 15 France Tel: +33-164-73-28-50 support-fr@RISCOgroup.com This RISCO product was purchased at: © RISCO Group 2023. All rights reserved. No part of this document may be reproduced in any form without prior written permission from the publisher. 10/2023 Page 83 5IN3045 C...
