- Page 1 TECHNICAL MANUAL ESTRO GT ESTRO GT FAN COILS - BRUSHLESS TECHNOLOGY 1,0 kW - 6,0 kW...
-
Page 2: Table Of Contents
230 Vac The technical and dimensional data provided herein may undergo changes For any further information, contact the manufacturer: info@galletti.it in connection with product improvements. To get the weight of the unit, refer to the User Manual, Rated technical data table. -
Page 3: Generalities
THE MAXIMUM EXPRESSION OF TECHNOLOGY AT THE SERVICE OF THE HOTEL INDUSTRY GALLETTI’s extensive experience in the manufacture of fan coil units and development of refined control logics was combined with the know-how of EBM-PAPST in the construction of fan drive assemblies in order to create ESTRO GT. -
Page 4: Main Components
Galletti introduces the new ESTRO BLDC line. the art due to the possibility of regulating the operation, Galletti fan coils can be equipped with a permanent magnet (brushless) depending on the temperature of the air, its relative electric motor, controlled by an inverter, which enables continuous adjustment humidity, the temperature of the water and based on the in the number of fan revolutions. -
Page 5: Models And Constructive Components

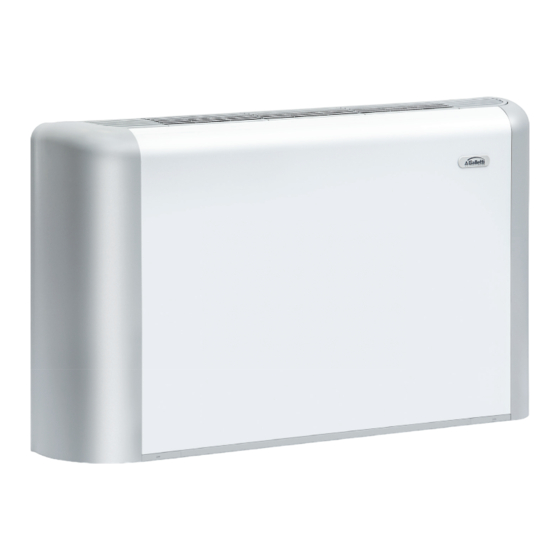

ESTRO GT MODELS AND CONSTRUCTIVE COMPONENTS GTFL Wall mounting GTFA Wall mounting > Cabinet composed of a thick > Cabinet composed of a thick steel sheet panel (10/10 mm), steel sheet panel (10/10 mm), side panels and air outlet grille side panels and air outlet grille (swinging by 180°) built from (swinging by 180°) built from... - Page 6 ESTRO GT MODELS AND CONSTRUCTIVE COMPONENTS GTFF Vertical / horizontal recess GTFP Ceiling mounted mounted > Cabinet composed of a steel > Bearing structure built from sheet panel (thickness 10/10 thick galvanised steel sheet mm), side panels and air outlet (thickness up to 15/10 mm), grille (swinging by 180°) built insulated by means of Class 1...
-
Page 7: Accessories
The standard units are supplied without control panel. REF. DESCRIPTION CONTROL PANELS AND THERMOSTATS MCLE Wall-mounted microprocessor control - GALLETTI model MYCOMFORT LARGE KBESTE KIT for on-board installation on ESTRO (1 air probe + bracket + on-board LCD controller frame + wiring kit) GTFL-GTFA-GTFU MCSWE... -
Page 8: Ratings And Technical Data
ESTRO GT RATINGS AND TECHNICAL DATA ESTRO GT Fan speed Total cooling capacity (1) (E) 0,83 0,98 1,12 1,24 1,48 1,74 1,36 1,64 1,94 1,50 1,85 2,24 Sensible cooling capacity (1) (E) 0,63 0,75 0,85 0,93 1,30 1,30 1,00 1,21 1,44 1,06 1,57... -
Page 9: Weights
Water flow (3) not available Water pressure drop (3) (E) not available inch Hydraulic connections not available inch Water content WEIGHTS not available WEIGHTS ESTRO GT 1.2 GTFL 19,1 20,1 20,1 24,8 24,8 30,4 30,4 30,9 31,0 41,3 50,4... -
Page 10: Performances
1340 1060 1830 1460 1320 1270 2310 1850 1670 1630 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN FC66003937 - Rev 00... - Page 11 1750 1720 3030 2450 2190 2190 3770 3060 2730 2730 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. FC66003937 - Rev 00 ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN...
- Page 12 1460 1140 2640 1830 2030 1580 3290 2300 2540 1990 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN FC66003937 - Rev 00...
- Page 13 2680 2120 4370 3070 3350 2660 5400 3820 4150 3310 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. FC66003937 - Rev 00 ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN...
-
Page 14: Heating Mode: Models With 1 Heat Exchanger
6460 1940 3080 3910 2680 4240 5390 3370 5320 6790 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN FC66003937 - Rev 00... - Page 15 10080 3530 5570 7110 4370 6870 8790 5390 8470 10870 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. FC66003937 - Rev 00 ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN...
-
Page 16: Heating Mode: Models With 2 Heat Exchangers
5050 1970 3050 4040 2260 3490 4650 2580 3970 5300 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN FC66003937 - Rev 00... -
Page 17: Sound Level
30,5 21,7 14,2 44,2 49,8 47,0 42,9 36,5 27,7 20,2 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. FC66003937 - Rev 00 ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN... - Page 18 37,5 28,7 21,2 52,2 57,8 55,0 50,9 44,5 35,7 28,2 NOTE: for all working conditions not mentioned in the table, refer to the Galletti selection program. ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN FC66003937 - Rev 00...
-
Page 19: Overall Dimensions
ESTRO GT OVERALL DIMENSIONS Overall dimensions of GTFL/GTCL, wall-mounted with cabinet, vertical air flow Clearance for water connection Slots for installation on the wall Clearance for electrical connections Standard heat exchanger water connections 4DF Water connection for 1-row additional heat exchanger model DF Drain outlet GTFL GTCL... - Page 20 ESTRO GT OVERALL DIMENSIONS Overall dimensions of GTFA, wall-mounted with cabinet, inclined front air flow Clearance for water connections Slots for installation on the wall Clearance for electrical connections Standard heat exchanger water connections 4DF Water connection for 1-row additional heat exchanger model DF Drain outlet 4 DF 4 DF...
- Page 21 ESTRO GT OVERALL DIMENSIONS Overall dimensions of GTFU, floor/ceiling mounted Clearance for water connection Slots for installation on the wall Clearance for electrical connections Standard heat exchanger water connections 4DF Water connection for 1-row additional heat exchanger model DF Drain outlet 4 DF 4 DF GTFU...
- Page 22 ESTRO GT OVERALL DIMENSIONS Overall dimensions of GTFP ceiling mounted with cabinet, rear air intake Clearance for water connections Slots for installation on the wall Clearance for electrical connections Standard heat exchanger water connections 4DF Water connection for 1-row additional heat exchanger model DF Drain outlet 4 DF 4 DF...
- Page 23 ESTRO GT OVERALL DIMENSIONS Overall dimensions of GTFC horizontal/vertical recess mounted Slots for installation on the wall Standard heat exchanger water connections 4DF Water connection for 1-row additional heat exchanger model DF Drain outlet Air outlet Air intake 4 DF 4 DF GTFC 1 - 4...
-
Page 24: Overall Dimensions
ESTRO GT OVERALL DIMENSIONS Overall dimensions of GTFF, horizontal / vertical recess mounted, front air intake Slots for installation on the wall Standard heat exchanger water connections 4DF Water connection for 1-row additional heat exchanger model DF Drain outlet Air outlet Air intake 4 DF 4 DF... -
Page 25: Wiring Diagrams
ESTRO GT WIRING DIAGRAMS MYCOMFORT LARGE Wall-mounted microprocessor control. Key to symbols used in wiring diagrams: CI12 Digital input common Extra-low speed A/B/GND RS 485 Minimum speed Fuse (not supplied) Medium speed Circuit breaker (not supplied) Maximum speed Solenoid valve - Cooling Phase Solenoid valve - Heating Ground... - Page 26 ESTRO GT WIRING DIAGRAMS ESTRO GT wiring diagram , BRUSHLESS EBM motor Wiring with disconnecting inverter supply EVO CONTROL FC66003554 ALL COPYING, EVEN PARTIAL, OF THIS MANUAL IS STRICTLY FORBIDDEN FC66003937 - Rev 00...
-
Page 27: Green -Tech Motor Assembly
ESTRO GT GREEN -TECH MOTOR ASSEMBLY ELECTRICAL CONECTIONS Legend Strip Molex Micro Fit 3.0 04365 00400 (matching on 04364 50400) Tachimetric out Signal 0-10V lin. / PWM Lumberg connector 3642 03 K01 (matching on 3626 03 K01) PE (ground) N (neutral) L (phase) Fixing points INVERTER CONTROL DIAGRAM... -
Page 28: Accessories
If on-board installation of the power board is requested, which is an option that is available for the majority of Galletti hydronic indoor units, during the ZL / ZC - Pair of support covering feet for... - Page 29 ESTRO GT ACCESSORIES GM+C - Anodised aluminium double-row D - Support brackets for GTFC vertical finned air outlet grille, complete with subframe installation models Anodized aluminium air outlet grille with 2-row The D support brackets are supplied in pairs swinging fins complete with galvanized sheet and combined to the recess wall mounted éstro steel subframe.
- Page 30 ESTRO GT ACCESSORIES VK - ON-OFF 3-way motor driven valve, with GIVK - Valve insulation shell hydraulic kit The GIVK valve insulation shell avoids the The ON/OFF motor driven VK 3-way valve / creation of condensate within the valve body. 4 connections kit connected to the control The plumbing connections are provided either panel for éstro fan coils, controls the room...
-
Page 31: Installation Requirements
ESTRO GT INSTALLATION REQUIREMENTS MAINTENANCE The fan coils should be installed in a position where the room can be cooled ESTRO GT type fan coils do not have particular maintenance requirements: or heated evenly, on walls or ceilings able to withstand their weight. it is sufficient to periodically clean the air filter. - Page 32 40010 Bentivoglio (BO) Via Romagnoli 12/a Tel. 051/8908111 - Fax. 051/8908122 Azienda certificata UNI EN ISO 9001 e OHSAS 18001...
