WQXGA
2560x1600
© 2015 Avenview Inc. All rights reserved.
The contents of this document are provided in connection with Avenview Inc. ("Avenview") products. Avenview makes no representations or
warranties with respect to the accuracy or completeness of the contents of this publication and reserves the right to make changes to specifications
and product descriptions at any time without notice. No license, whether express, implied, or otherwise, to any intellectual property rights is granted
by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims
any express or implied warranty, relating to its products of Avenview Inc. is strictly prohibited.
Control Your Video...

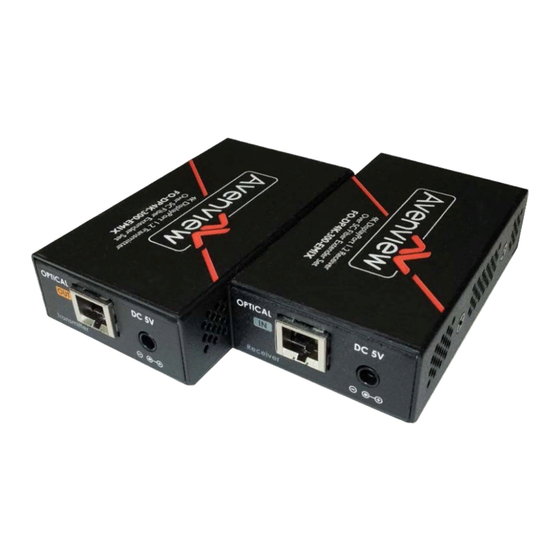

4K DisplayPort Extender over
Single SC Fiber Optic Cable
VIDEO WALLS
VIDEO PROCESSORS
VIDEO MATRIX SWITCHES
EXTENDERS
SPLITTERS
CABLES & ACCESSORIES
Model #: FO-DP4K-300-EMIX
WIRELESS
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Avenview FO-DP4K-300-EMIX
Summary of Contents for Avenview FO-DP4K-300-EMIX
- Page 1 No license, whether express, implied, or otherwise, to any intellectual property rights is granted by this publication. Except as set forth in Avenview Standard Terms and Conditions of Sale, Avenview assumes no liability whatsoever, and disclaims...
- Page 2 Product Application & Market Sectors Corporate House Of Worship Military Residential Education Industrial Medical Aviation www.avenview.com...
-
Page 3: Table Of Contents
......2 INTRODUCTION ..........................3 2.1 PACKAGE CONTENTS ........................4 APPLICATION DIAGRAM ........................5 4. PANEL DESCRITION..........................6 4.1 FRONT PANEL (Sender, FO-DP4K-300-EMIX-S) ...............6 4.2 REAR PANEL (Sender, FO-DP4K-300-EMIX-S) ................6 4.3 FRONT PANEL (Receiver, FO-DP4K-300-EMIX-S) ..............7 4.4 REAR PANEL (Receiver, FO-DP4K-300-EMIX-S) ................7 INSTALLATION ...........................8 5.1 Before Installation ..........................9... -
Page 4: Getting Started
• Removal, installation, and set-up service charges. SAFETY INSTRUCTIONS The Avenview FO-DP4K-300-EMIX, Display port Extender over fiber Optic has been tested for conformity to safety regulations and requirements, and has been certified for international use. However, like all fibre optic products, the FO-DP4K-300-EMIX should be used with care. -
Page 5: Regulatory Notices Federal Communications Commission (Fcc)
DO NOT TAMPER WITH THE FIBER CABLE; DOING SO WILL VOID THE WARRANTY AND CONTINUED USE OF THE PRODUCT. THE VIDEO BOARDS ARE VERY SENSITIVE TO STATIC. PLEASE ENSURE IF RACK MOUNTED OR INSTALLED ON A SURFACE, IT SHOULD BE IN A GROUNDED ENVIROMENT. www.avenview.com Page 2... -
Page 6: Introduction
The FO-PD4K-300-EMIX-SET includes two (2) units: Sending unit (TX) FO-DP4K-300-EMIX-S and Receiving unit (RX) FO-DP4K-300-EMIX-R with one (1) FTP output port which allows the user to extend video and audio up to 300m (1000ft). The FO-DP4K-300-EMIX-SET input and output supports HBR2 cable assembly to handle upto 5.4Gbps/lane data rate. -
Page 7: Package Contents
PACKAGE CONTENTS Before you start the installation of the converter, please check the package contents. (FO-DP4K-300-EMIX-SET) FO-DP4K-300-EMIX-S (TX) FO-DP4K-300-EMIX-R (RX) POWER ADAPTER (5V/2A DC) DISPLAYPORT (COPPER CABLE - 3FT) USER ’S MANUAL www.avenview.com Page 4... -
Page 8: Application Diagram
APPLICATION DIAGRAM www.avenview.com Page 5... -
Page 9: Panel Descrition
PANEL DESCRIPTION 4.1 FRONT PANEL (Sender, FO-DP4K-300-EMIX-S) LED LIGHT: Green light indicates an active DISPLAYPORT IN: Displayport cord interface connection. MODE: A. Default mode: video output level is set low to increase compatibility with equipment that is sensitive to jitter characteristics B. -
Page 10: Front Panel (Receiver, Fo-Dp4K-300-Emix-S)
4.3 FRONT PANEL (Receiver, FO-DP4K-300-EMIX-R) LED Light: Green light indicates an active Displayport OUT connection. MODE: A. Default mode: enable link training and automatically attempts to match the monitor output B. Manual mode: disable link training and pre-set the output signal characteristics (most compatible setting values is pre-set based on testing of different displays) 4.4 REAR PANEL (Receiver, FO-DP4K-300-EMIX-R) -
Page 11: Installation
The Transmitter should be connected to the source (Computer’s Displayport ) and the Receiver should be connected the Displayport of the digital display device (Monitor). Avenview FO-DP4K-300-EMIX-SET Transmitter / Receiver is designed to be used with SC type standard optical cable (Multi-Mode optical fiber: 50/125, 62.5/125um) Note: The Transmitter and the Receiver modules must be connected to the included power supplies for proper operation. -
Page 12: Before Installation
Do not twist or pull by force ends of the video cable. It can cause malfunction. CABLE SPECIFICATIONS To achieve best results with our FO-DP4K-300-EMIX-SET we recommend a high quality displayport cable 22-24 AWG cable with the below specifications to maintain signal integrity and distances. -
Page 13: Installation Steps
• Make sure that the quantity of optical fiber waste is minimized. Closures containing termination points for optical fiber cabling must be labeled with appropriate warning signs or a clearly viewable text. • There are four l aser Classifications based on risk levels. l aser manufacturers are required to label their lasers accordingly. www.avenview.com Page 10... -
Page 14: General Troubleshooting
• CAUTION 1. Do not put heavy object on top of the FO-DP4K-300-EMIX. It may cause product malfunction. 2. Put the product on even and stable location. If the product falls down or dropped, it may get damaged. 3. Keep away from high temperature (over 50°C), low temperature (under 0°C) or high humidity. It may cause a fire and injury by electrical shock. -
Page 15: Displayport Pin Assignment
Main Link Lane 0- Main Link Lane 3+ Auxiliary Channel - Main Link Lane 1+ Ground Hot plug Detect Ground Main Link Lane 3- Return Main Link Lane 1- Configuration 1 Main Link Lane 2+ Configuration 2 www.avenview.com Page 12... -
Page 16: Specifications
SPECIFICATIONS ITEM DESCRIPTION MODEL FO-DP4K-300-EMIX-S FO-DP4K-300-EMIX-R UNIT DESCRIPTION Displayport Extender Transmitter Displayport Extender Receiver INPUT VIDEO PORT DisplayPort Optical 4K (3840X2160 and 4096 x 2160) @ 4K (3840X2160 and 4096 x 2160) @ INPUT RESOLUTION 60Hz WQXGA (2560x1600)@60Hz 60Hz WQXGA (2560x1600)@60Hz... - Page 17 Notes www.avenview.com Page 14...
- Page 18 Notes www.avenview.com Page 15...
- Page 19 PARTS: During the Warranty Period of of THREE (3) YEARS, Avenview will supply new or rebuilt replacements in exchange for defective parts of the product(s) at no cost if the product(s) is determined to have abide by Avenview’s published guidelines. Cost of Parts applicable to product(s) after Warranty Period. For part(s) costs, please contact support@avenview.com.
-
Page 20: Technical Support
Disclaimer While every precaution has been taken in the preparation of this document, Avenview Inc. assumes no liability with respect to the operation or use of Avenview hardware, software or other products and documentation described herein, for any act or omission of Avenview concerning such products or this documentation, for any interruption of service, loss or interruption of business, loss of anticipatory profits, or for punitive, incidental or consequential damages in connection with the furnishing, performance, or use of the Avenview hardware, software, or other products and documentation provided herein.
