Summary of Contents for Nautilus INSPIRATION STRENGTH NP-R8005
Page 1

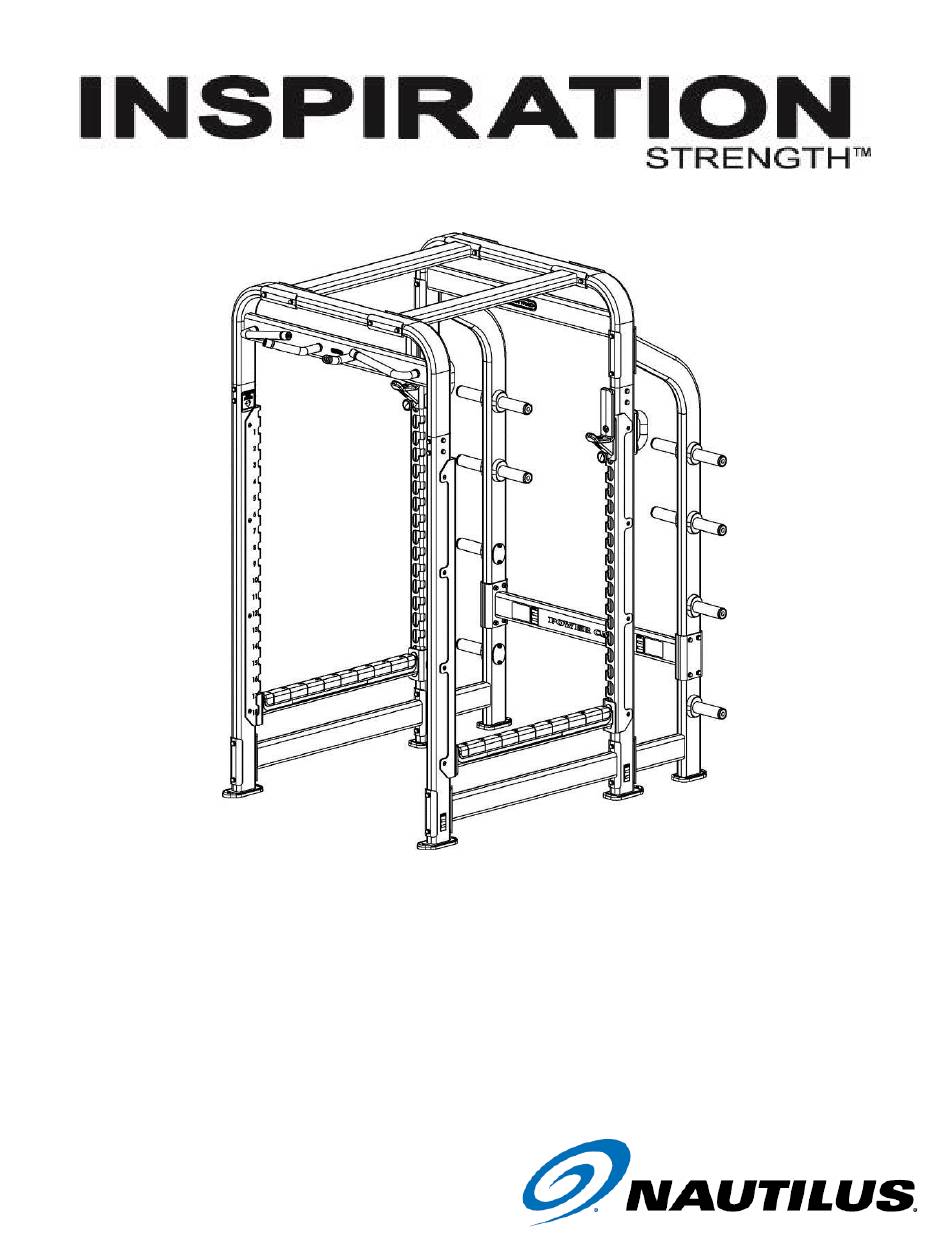

NP-R8005 POWER CAGE OWNER’S MANUAL and INSTALLATION INSTRUCTIONS...
Page 2
Power Cage Owner’s Manual Copyright 2016. Core Health and Fitness, LLC. All rights reserved, including those to reproduce this book or parts thereof in any form without first obtaining written permission from Core Health and Fitness, LLC. Every effort has been made to keep this information current; however, periodically, changes are made to the information herein, and these changes will be incorporated into new editions of this publication.
Proper Usage Do not use any equipment in any way other than designed or intended by the manufacturer. It is imperative that Nautilus equipment be used properly to avoid injury. Keep hands and feet clear at all times from moving parts to avoid injury.
Ensure that any person(s) making adjustments or performing maintenance or repair of any kind is qualified to do so. Nautilus will provide service and maintenance training at our corporate facility upon request or in the field if proper arrangements are made.
Page 6
19.Routinely inspect all fasteners that join attachments and framework tighten as needed to maintain the integrity of the unit. 20.Perform regular maintenance checks on the NAUTILUS equipment. Also, pay close attention to all areas most susceptible to wear. 21.Keep a repair log of all maintenance activities.
(safety, instructional and/or other) are read and understood by each user. • All users should be instructed on the proper use of NAUTILUS as well as those actions that should be avoided. In an attempt to minimize user and/or bystander injury: •...
Should any component not be present or if you have any operational questions, please refer to your owner’s manual or on the web @ www.nautilus.com . Specifically refer to your Nautilus serial number and model number labeled on your equipment.
Page 9
Exploded Assembly Drawing of NP-R8005 Power Cage The following pages provide close-up, sectioned exploded assembly views, specifications and a complete hardware and parts listing. Page 9...
Page 10
UNPACK THE Power Cage and ASSEMBLE UPPER WELDMENTS: NOTE: TAKE CARE WHILE OPENING THE BOXES. KEEP TRACK OF ALL ITEMS YOU REMOVE FROM THE BOXES. TAKE CARE NOT TO LAY ITEMS ON SURFACES THAT MAY SCRATCH THE PRODUCT. Take the front and back upper weldments and place them on a soft surface. (A moving blanket will help reduce damage from hard surfaces) Take (2) of the cross weldment and lay them between the upper weldments.
Page 11
ASSEMBLE UPRIGHTS: Take the (4) uprights and slide the onto the correct post sleeve. See images below. Note: the (2) fixed feet go onto the sleeved weldment with the handle grips. The adjustable feet go in the back. All mounting holes are to the outside of the user area. Take (20) m10 washers (PN:731-2419) and (20) m10 x 25 Hex Head bolts (PN:731-2333).
Page 12
UPRIGHT MAIN ASSEMBLY: NOTE: due to the weight of the assembly, you should always have at least 2 people when moving these assemblies. Lay assembly on its side. Support legs as you rotate assembly. Note: take special care not to drop the assembly.
Page 13
INSTALL WEIGHT HOLDERS: Take the (2) weight holder weldments (PN:731-2355-XX) from the packaging. Using (2) mounting plate (PN:731-23), (4) m10 x 140 Hex Head Bolts (PN:731-2398), (8) m10 Washers (PN:731-2419), and (4) m10 Nyloc Nuts (PN:731-2420), install the weldment to the back of the Main Assembly.
Page 14
INSTALL BACK BRACE: Take the Back Cross Brace (PN:731-2379-XX) from the packaging. Using (2) mounting plate (PN:731-2379-XX), (8) m10 x 80 Hex Head Bolts (PN:731-2400), (16) m10 Washers (PN:731-2419), and (8) m10 Nyloc Nuts (PN:731-2420), install the weldment between the two weight holders.
Page 15
INSTALL WEIGHT HORNS: Take the (4) Long Weight Horn weldments (PN:731-1454), (4) Short Weight Horn weldments (PN:731-2297), (12) Weight Horn Covers (PN:731-1376), (12) Base Covers (PN:731-1373), and (12) End Caps (PN:731-1374) from the packaging. Using (16) M8 x 75mm Hex Head Bolts (PN:731-2356), (32) M8 Washers (PN:731-2421), and (16) M8 Nyloc Nuts (PN:731-2422) install the weight horns.
Page 16
INSTALL BAR CATCHES AND SAFETY HOOKS: Take the (2) Bar Catches and install them on the unit from inside the Power Cage, these Bar Catches can be used on either the front or back uprights. When using the BAR Catches make sure they are install on the machine at the same level and that they are fully engaged in the mounting positions, when a bar is on the catches it should be level to the floor.
INSTALL BAR CATCHES AND SAFETY HOOKS: Take the (2) Safety Stops and install them from the inside of the Power Cage. NOTE: ALWAYS use safety stop when using this Cage, consult the facility trainers as to the proper location for your exercise.
Page 21
Health related injuries may result from incorrect or excessive use of exercise equipment. NAUTILUS strongly recommends you to encourage your members to discuss their health program or fitness regimen with a health care professional, especially if you or they have not exercised for several years, are over 35, or have known health conditions.
Inspection • Visual inspection of your NAUTILUS units will insure a safe environment for your clients and alert you to any issues that may require maintenance prior to equipment failure. Proper, timely visual inspection is a critical component to the long term care of your product.
Page 24
MANUFACTURER 4400 NE 77 Avenue, Suite 300, Vancouver, WA 98662 USA Tel +1 (888) 678-2476 www.corehandf.com CUSTOMER SUPPORT Contact your local distributor, or Core Health & Fitness directly at: Tel +1-800-503-1221 www.support@corehandf.com Part Number: 620-8408, Rev A.
