SC826 Chassis Manual
Connecting an External HBA to the Backplane
This backplane supports external host bus adapters. In this configuration, the HBA
and the backplane are in different physical chassis. This allows a JBOD (Just a
Bunch Of Drives) configuration from an existing system.

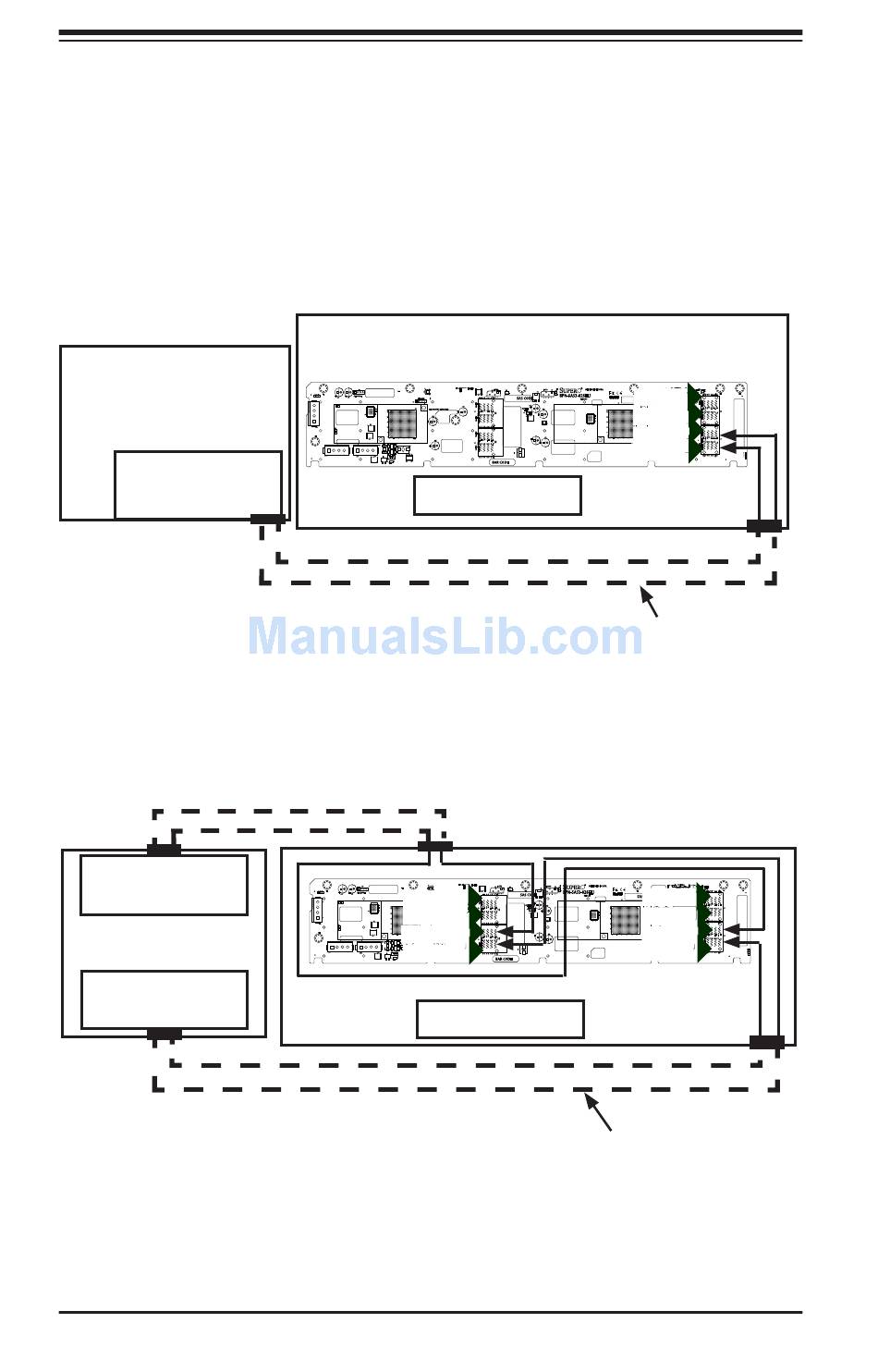

Single External Host Bus Adapter
HBA
Dual External Host Bus Adapter
HBA
HBA
Figure F-15. Dual External Host Bus Adapter
IMPORTANT: See Section 3-3 of this manual, Failover with RAID Cards and Multiple
HBAs for important information on supported configurations.
