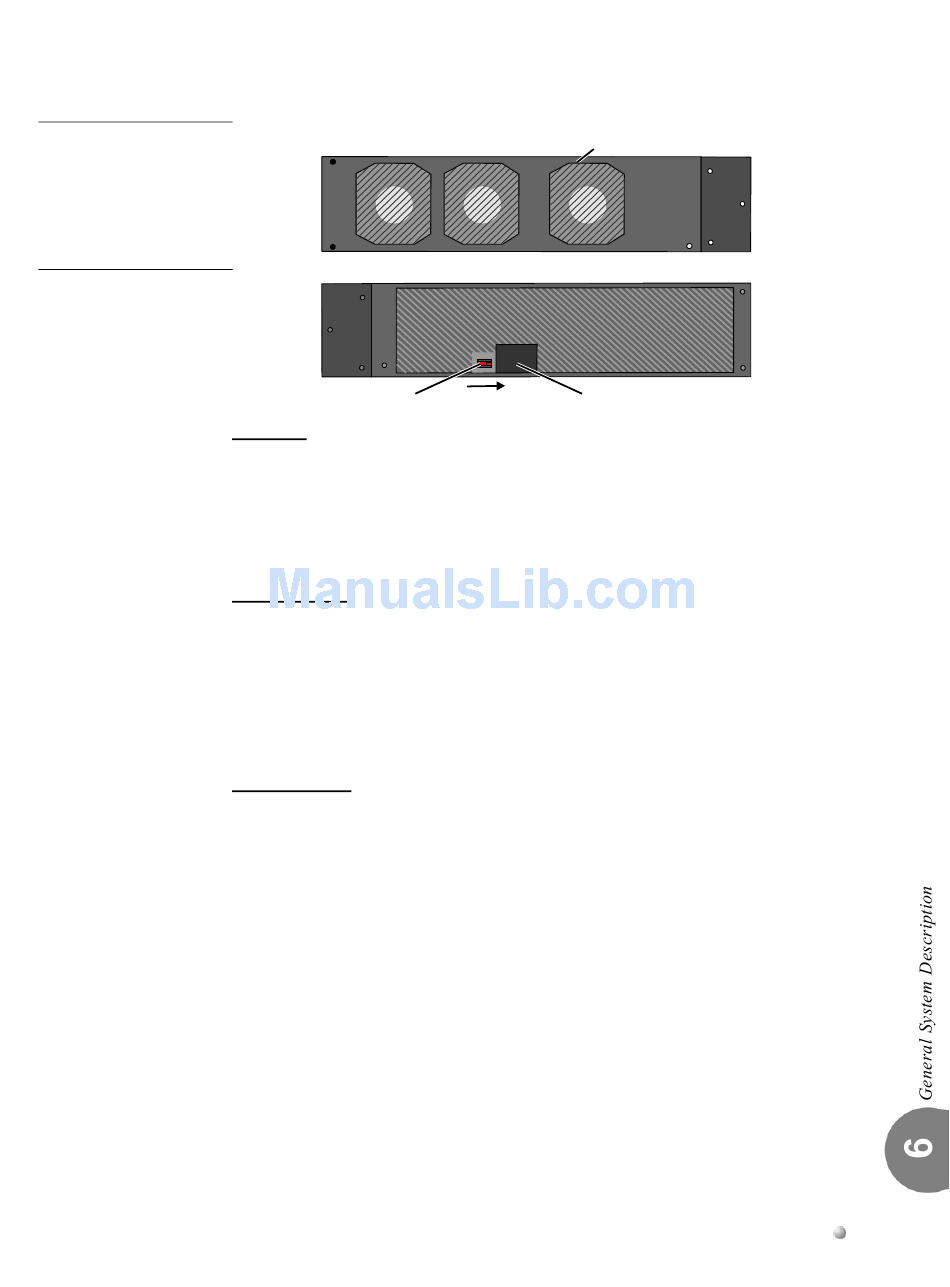

Figure 6-6 Left Panel of
the IPx Office Main Unit
Figure 6-7 Right Panel
of the IPx Office Main
Unit
Coral IPx Office Installation Manual
Convection fans
Front
panel
Battery
switch
Top Side
The top side is part of the cover. No space needs to be maintained above the unit cover
for maintenance purposes; the IPx Office unit can be positioned directly below other
equipment.
Bottom Panel
The bottom panel includes five circular indentations that mark where the five rubber
supports are to be affixed when the unit is mounted onto a table. See
Office onto a Table, page 2-15. No space needs to be maintained beneath the bottom
panel; the IPx Office unit can be positioned directly above other equipment.
Installation Kit
The cage is supplied with a kit that includes components for mounting the cage onto
a table or a rack. For table-mounted systems, five rubber supports are affixed to the
bottom panel of the IPx Office unit. See
see Mounting the IPx Office onto a Table, page
For rack-mounted units, two bracket are attached to the unit cover and the unit itself.
The bracket and unit assembly are then attached to the rack. Two additional brackets
are mounted onto the rack and provide additional support from below. See
on page 6-2. For more information, see
in main unit only
OFF ON
BATTERY
SAU
ON
Figure 6-1 on page
2-15.
Mounting the Office onto a Rack, page
Rear
panel
Mounting the IPx
6-2. For more information,
Figure 6-2
2-16.
6-7
System Description
