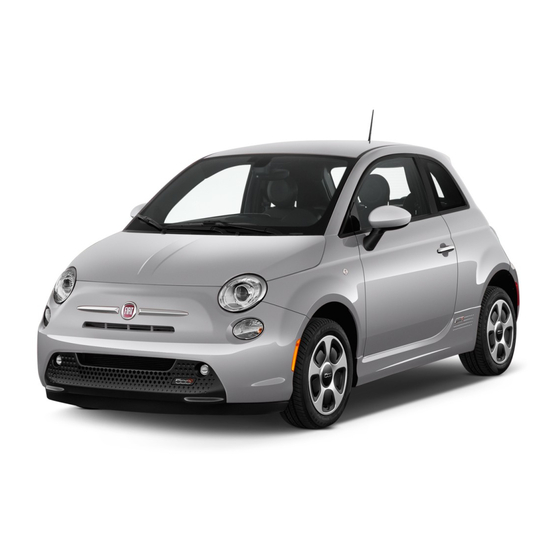

Page 1 FIAT 500e ® 2 0 1 7 O W N E R ’ S M A N U A L...
Page 2 VEHICLES SOLD IN CANADA This manual illustrates and describes the operation of With respect to any Vehicles Sold in Canada, the name FCA features and equipment that are either standard or op- US LLC shall be deemed to be deleted and the name FCA tional on this vehicle.
Page 3: Introduction 3
TABLE OF CONTENTS SECTION PAGE INTRODUCTION ............. . . 3 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE .
Page 5: Table Of Contents
INTRODUCTION CONTENTS INTRODUCTION ..... . .4 VEHICLE IDENTIFICATION NUMBER ..6 HOW TO USE THIS MANUAL ... . .4 VEHICLE MODIFICATIONS/ALTERATIONS .
Page 6: Introduction
NOTE: After reviewing the owner information, it should be stored in the vehicle for convenient refer- Congratulations on selecting your new FIAT 500e. Be encing and remain with the vehicle when sold. assured that your 500e represents an elegant marriage...
Page 7: Warnings And Cautions
INTRODUCTION 5 WARNINGS AND CAUTIONS to your vehicle. If you do not read this entire Owner’s Manual, you may miss important information. Observe This Owner’s Manual contains WARNINGS against all Warnings and Cautions. operating procedures that could result in a collision, bodily injury and/or death.
Page 8: Vehicle Identification Number
6 INTRODUCTION VEHICLE IDENTIFICATION NUMBER The Vehicle Identification Number (VIN) is found on the left front corner of the instrument panel, visible through the windshield. This number also appears engraved on the right front door sill, under the sill scuff plate, on an adhesive label applied to the right door opening on the B-Pillar, on the vehicle registration and title.
Page 9 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE CONTENTS ▫ AC Level 2 Charging (240V, 30 Amp) ..26 IMPORTANT VEHICLE INFORMATION ..9 ▫ High Voltage Battery ....9 ▫...
Page 10 8 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE ▫ To Unlock The Doors, Liftgate, And Charge Port LIFTGATE ......38 Door .
Page 11: Important Vehicle Information
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 9 IMPORTANT VEHICLE INFORMATION Your 500e operates entirely on electricity stored in the high voltage battery. Unlike a conventional vehicle or Hybrid there is no internal combustion engine. Battery Electric Vehicles have unique operating characteristics that you should become familiar with to ensure you are getting the optimal performance from your vehicle.
Page 12 10 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • Lithium-ion batteries can be recharged and dis- General Information charged thousands of times. The vehicle is also equipped with a Battery Manage- ment System that is designed to: High Voltage Battery Service Disconnect •...
Page 13: 500E Electric Vehicle Features
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 11 500e ELECTRIC VEHICLE FEATURES In DRIVE range, the system will remain active until the vehicle reaches a speed of approximately 22 mph Understanding the unique characteristics of your 500e (35.5 km/h). At approximately 22 mph (35.5 km/h), the will help ensure maximum performance and the best warning system is deactivated and will automatically driving range from your vehicle.
Page 14: Climate Control (Hvac System)
12 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE E-Park is activated when the driver pushes the PARK Electric Air Conditioning Compressor button. An electric motor activates the parking pawl Your 500e uses an electric air conditioning compressor. and locks the single-speed transmission when the ve- The air conditioning compressor is powered by the high hicle is placed into PARK.
Page 15: Smartphone Features
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 13 Smartphone Features How do I get the “Uconnect Access” smartphone App? With the “Uconnect Access” app, you can monitor the Visit the 500e registration website: state of charge of the high voltage battery or initiate www.fiatusa.com/500eRegistration charging from your phone.
Page 16: High Voltage Charging Operation
14 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE After obtaining the connectivity ID and VIN number Need help with registration? return to the vehicle registration website and perform Please call the Uconnect Call Center Toll Free number the following: below: 1.
Page 17: Ac Level 1 Charging (120V, 15 Amp)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 15 AC Level 1 Charging (120V, 15 Amp) WARNING! Your vehicle is equipped with a 120 Volt AC, SAE J1772 Shock, fire, property damage, or personal injury Level 1 Electric Vehicle Supply Equipment (EVSE), also may occur if the Portable EVSE Cordset is not used referred to as a charging cordset.
Page 18 16 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE EVSE Charging Cordset WARNING! The EVSE charging cordset is compliant with SAE • Read all the instructions before using this prod- J1772, and applicable for use with vehicles fitted with uct. the standard SAE J1772 charge inlets. The EVSE in- •...
Page 19 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 17 Charging Cord Set AC Plug And Wall Receptacle 1 — Charge Connector 3 — Charge Cable WARNING! 2 — Charging Cordset Enclo- 4 — AC Plug sure Improper connection of the equipment-grounding conductor could result in a risk of electric shock.
Page 20 18 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Check to see if the charging cordset is ready to 3. If the charging cordset is ready to charge, ensure the charge by reviewing the indicator lights. After a brief vehicle is in PARK, and then connect the charge self-check, where the indicator light will flash, a connector to the vehicle’s charge inlet.
Page 21 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 19 NOTE: The vehicle should start charging automati- coupler, push the button on the charge connector cally. If not, please check the following: before removing the connector from the vehicle charge inlet. • Charging Cordset - The charging cordset status indicators illuminate green or red to identify the charging cordset status.
Page 22 20 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Troubleshooting Using The Status Indicator is cleared. If the Fault Indicator does not attempt to provide charge to the vehicle, the charge connector will need to be Display removed from the vehicle to clear the fault. If the vehicle is not charging properly, consult the status The fault code list in the table below provides a reference indicator lights.
Page 23 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 21 Portable EVSE Cordset Fault Code List Flashing Flashing Fault Indication Recommended Actions Fault Indicator Code 1, 2, 2, 2 AC Power Vehicle Current Draw Check Portable EVSE Cordset and Vehicle at a service loca- is Too High tion.
Page 24 22 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Portable EVSE Cordset Fault Code List 1, 1, 1, 1 Fault Portable EVSE Cord- Unplug the Portable EVSE Cordset from the vehicle charge set Internal Fault inlet and retry to charge. If the issue is not corrected, check the Portable EVSE Cordset and Vehicle at a service location.
Page 25 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 23 Portable EVSE Cordset Fault Code List 1, 1, 1, 2 Fault & AC Hot AC Power Plug Use caution as the Portable EVSE Cordset AC Power Plug Power Warning may be hot. It is recommended to carefully unplug the unit from the wall outlet and allow it to cool down.
Page 26 24 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Guidelines for preventing fire and electric shock: WARNING! (Continued) • Ensure the charging cable is positioned so it will not with a worn or damaged receptacle may cause burns be stepped on, tripped over, or otherwise subjected to or start a fire.
Page 27 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 25 • charge low limited power mode — turtle flashes at Charge Low And Limited Power Messages 0% until condition changes. The state of charge is monitored during normal opera- tion. If the state of charge reaches certain thresholds the NOTE: The limited power mode can also be activated if following messages will also be displayed on the clus- the high voltage battery temperature is too high or too low.
Page 28: Ac Level 2 Charging (240V, 30 Amp)
26 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Instrument Panel State Of Charge Indicator NOTE: In the event of an error in the charging process the outer two lights will blink. In addition to the battery gauge your vehicle is equipped with a visual state of charge indicator.
Page 29: Charge Times
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 27 • What level EVSE is being used (Level 1 – 120V or NOTE: The vehicle should start charging automati- cally. If not, please check the following: Level 2 – 240V) • Charging Station – Check the indications and instruc- •...
Page 30: A Word About Your Keys
28 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE A WORD ABOUT YOUR KEYS The vehicle is supplied with a code card containing key code numbers to order duplicate keys, and the autho- The key fob contains a mechanical integrated key. To rized dealer that sold you your new vehicle has the key use the mechanical key, simply push the mechanical key code numbers for your vehicle locks.
Page 31 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 29 WARNING! (Continued) • Never leave children alone in a vehicle, or with access to an unlocked vehicle. • Allowing children to be in a vehicle unattended is dangerous for a number of reasons. A child or others could be seriously or fatally injured.
Page 32: Locking Doors With A Key
30 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Locking Doors With A Key NOTE: A key which has not been programmed is also considered an invalid key, even if it is cut to fit the You can insert the key with either side up. To lock the ignition switch lock cylinder for that vehicle.
Page 33: Replacement Keys
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 31 Replacement Keys NOTE: Changes or modifications not expressly ap- proved by the party responsible for compliance could NOTE: Only keys that have been programmed to the void the user’s authority to operate the equipment. vehicle electronics can be used to start the vehicle.
Page 34: Remote Keyless Entry
32 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The vehicle security alarm is designed to protect your vehicle. However, you can create conditions where the vehicle security alarm will give you a false alarm. If one of the previously described arming sequences has oc- curred, the vehicle security alarm will arm regardless of whether you are in the vehicle or not.
Page 35: Remote Key Unlock, Driver Door/All Doors 1St Press
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 33 Remote Key Unlock, Driver Door/All Doors 1st The recommended replacement battery is CR2032. Press 1. Push the mechanical key release button and release This feature lets you program the system to unlock the mechanical key to access the battery case screw either the driver’s door or all doors on the first press of located on the side of the key fob.
Page 36: General Information
34 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Rotate the screw located on the side of the key fob using a small screwdriver. Battery Case Removed 4. Reinstall the battery case inside the key fob and turn the screw to lock it into place. Key Fob Screw Location 3.
Page 37: Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 35 1. This device may not cause harmful interference, and 2. This device must accept any interference received, including interference that may cause undesired operation. NOTE: Changes or modifications not expressly ap- proved by the party responsible for compliance could void the user’s authority to operate the equipment.
Page 38: Power Door Locks - If Equipped
36 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Power Door Locks — If Equipped WARNING! (Continued) A power door lock switch is incorporated into the • Before exiting a vehicle, always apply the parking driver door handle. Push or pull the handle to lock or brake, place the transmission into PARK, and unlock the doors and liftgate.
Page 39: Auto Door Locks
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 37 Auto Door Locks WARNING! (Continued) When enabled, the door locks will lock automatically location accessible to children. Occupants, particu- when the vehicle’s speed exceeds 12 mph (20 km/h). larly unattended children, can become entrapped by the windows while operating the power window NOTE: Use the Automatic Door Locks feature in accor- switches.
Page 40: Auto-Down
38 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Auto-Down The driver’s door window switch has an Auto-Down feature. Push the window switch for approximately one second, release, and the window will go down auto- matically. To cancel the Auto-Down movement, operate the switch in either the up or down direction and release the switch.
Page 41: Important Safety Precautions
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 39 Some of the safety features described in this section not use child restraints or belt-positioning booster may be standard equipment on some models, or may be seats should ride properly buckled up in a vehicle optional equipment on others.
Page 42: Seat Belt Systems
40 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Enhanced Seat Belt Use Reminder System WARNING! Driver And Passenger BeltAlert (If Equipped) • Never place a rear-facing child restraint in front of BeltAlert is a feature intended to remind the an air bag. A deploying passenger front air bag driver and outboard front seat passenger (if can cause death or serious injury to a child 12 equipped with outboard front passenger seat...
Page 43 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 41 BeltAlert Warning Sequence The outboard front passenger seat BeltAlert is not active when the outboard front passenger seat is unoccupied. The BeltAlert warning sequence is activated when the BeltAlert may be triggered when an animal or other vehicle is moving above a specified vehicle speed range items are placed on the outboard front passenger seat or and the driver or outboard front seat passenger is...
Page 44 42 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The seat belt webbing retractor will lock only during WARNING! (Continued) very sudden stops or collisions. This feature allows the • Do not allow people to ride in any area of your shoulder part of the seat belt to move freely with you vehicle that is not equipped with seats and seat under normal conditions.
Page 45 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 43 WARNING! WARNING! (Continued) of the vehicle in a collision, increasing head and • A lap belt worn too high can increase the risk of neck injury. A seat belt worn under the arm can injury in a collision.
Page 46 44 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Lap/Shoulder Belt Operating Instructions 1. Enter the vehicle and close the door. Sit back and adjust the seat. 2. The seat belt latch plate is above the back of the front seat, and next to your arm in the rear seat (for vehicles equipped with a rear seat).
Page 47 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 45 Lap/Shoulder Belt Untwisting Procedure Use the following procedure to untwist a twisted lap/ shoulder belt. 1. Position the latch plate as close as possible to the anchor point. 2. At about 6 to 12 inches (15 to 30 cm) above the latch plate, grasp and twist the seat belt webbing 180 degrees to create a fold that begins immediately above the latch plate.
Page 48 46 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Seat Belt Extender Seat Belts And Pregnant Women If a seat belt is not long enough to fit properly, even when the webbing is fully extended and the adjustable upper shoulder belt anchorage (if equipped) is in its lowest position, your authorized dealer can provide you with a Seat Belt Extender.
Page 49 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 47 Seat Belt Pretensioner Switchable Automatic Locking Retractor (ALR) The front seat belt system is equipped with pretension- The seat belts in the passenger seating positions are ing devices that are designed to remove slack from the equipped with a Switchable Automatic Locking Retrac- seat belt in the event of a collision.
Page 50 48 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE around the occupant’s mid-section so as to not activate How To Engage The Automatic Locking Mode the ALR. If the ALR is activated, you will hear a clicking 1. Buckle the combination lap and shoulder belt. sound as the seat belt retracts.
Page 51: Supplemental Restraint Systems (Srs)
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 49 • Steering Wheel and Column WARNING! (Continued) • Instrument Panel • Do not use the Automatic Locking Mode to re- • Knee Impact Bolsters strain occupants who are wearing the seat belt or children who are using booster seats.
Page 52 50 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • The Air Bag Warning Light remains on after the four The ORC contains a backup power supply system that may deploy the air bag system even if the battery loses to eight-second interval. power or it becomes disconnected prior to deployment.
Page 53 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 51 The driver front air bag is mounted in the center of the WARNING! steering wheel. The passenger front air bag is mounted • Being too close to the steering wheel or instru- in the instrument panel, above the glove compartment.
Page 54 52 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The first stage inflator is triggered immediately during WARNING! (Continued) an impact that requires air bag deployment. A low may damage the air bags and you could be energy output is used in less severe collisions. A higher injured because the air bags may no longer be energy output is used for more severe collisions.
Page 55 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 53 On the other hand, depending on the type and location Knee Impact Bolsters of impact, front air bags may deploy in crashes with The Knee Impact Bolsters help protect the knees of the little vehicle front-end damage but that produce a driver and front passenger, and position the front severe initial deceleration.
Page 56 54 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Supplemental Side Air Bags The SABs may help to reduce the risk of occupant injury during certain side impacts, in addition to the injury Your vehicle is equipped with two types of supplemen- reduction potential provided by the seat belts and body tal Side Air Bags: structure.
Page 57 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 55 2. Supplemental Side Air Bag Inflatable Curtains The SABICs inflate with enough force to injure occu- (SABICs): Located above the side windows. The pants if they are not belted and seated properly, or if trim covering the SABICs is labeled “SRS AIR- items are positioned in the area where the SABICs BAG”...
Page 58 56 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE The SABICs and SABs (Side Air Bags) are designed to WARNING! activate in certain side impacts. The Occupant Restraint • Occupants, including children, who are up Controller (ORC) determines whether the deployment of the Side Air Bags in a particular impact event is against or very close to Side Air Bags can be appropriate, based on the severity and type of collision.
Page 59 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 57 Air Bag System Components WARNING! (Continued) • Occupant Restraint Controller (ORC) • Being too close to the Side Air Bags during • Air Bag Warning Light deployment could cause you to be severely in- jured or killed.
Page 60 58 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE If you do have a collision which deploys the air bags, Do not drive your vehicle after the air bags have any or all of the following may occur: deployed. If you are involved in another collision, the air bags will not be in place to protect you.
Page 61 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 59 • Cut off battery power to the motor. Maintaining Your Air Bag System • Flash hazard lights as long as the battery has power WARNING! or until the hazard light button is pressed. The hazard lights can be deactivated by pressing the •...
Page 62 60 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE • How far (if at all) the driver was depressing the WARNING! (Continued) accelerator and/or brake pedal; and, be serviced in any way (including removal or • How fast the vehicle was traveling. loosening/tightening of seat attachment bolts), •...
Page 63: Child Restraints
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 61 Child Restraints There are different sizes and types of restraints for children from newborn size to the child almost large Everyone in your vehicle needs to be buckled up at all enough for an adult safety belt. Always check the child times, including babies and children.
Page 64 62 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Weight Or Recommended Type Of Child Restraint Infants and Toddlers Children who are two years old or Either an Infant Carrier or a Con- younger and who have not vertible Child Restraint, facing reached the height or weight limits...
Page 65 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 63 The infant carrier is only used rear-facing in the vehicle. Older Children And Child Restraints It is recommended for children from birth until they Children who are two years old or who have outgrown reach the weight or height limit of the infant carrier.
Page 66 64 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE against the seatback, should use the seat belt in a rear WARNING! seat. Use this simple 5-step test to decide whether the • Improper installation can lead to failure of an child can use the vehicle’s seat belt alone: infant or child restraint.
Page 67 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 65 WARNING! Never allow a child to put the shoulder belt under an arm or behind their back. In a crash, the shoulder belt will not protect a child properly, which may result in serious injury or death. A child must always wear both the lap and shoulder portions of the seat belt correctly.
Page 68 66 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Lower Anchors And Tethers For CHildren these seating positions, the seat belt must be used with (LATCH) Restraint System the top tether anchorage to install the child restraint. Please see the following table for more information. LATCH Positions For Installing Child Restraints In This Vehicle LATCH Label...
Page 69 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 67 Frequently Asked Questions About Installing Child Restraints With LATCH What is the weight limit (child’s 65 lbs (29.5 kg) Use the LATCH anchorage system weight + weight of the child re- until the combined weight of the straint) for using the LATCH an- child and the child restraint is chorage system to attach the child...
Page 70 68 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Can the rear-facing child restraint The child seat may touch the back touch the back of the front passen- of the front passenger seat if the ger seat? child restraint manufacturer also allows contact.
Page 71 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 69 Locating The Upper Tether Anchorages the end to attach to the top tether anchorage and a way to tighten the strap after it is attached to the anchorage. There are tether strap anchorages behind each Center Seat LATCH rear seating position located on the back of the seat.
Page 72 70 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 1. Loosen the adjusters on the lower straps and on the 6. Test that the child restraint is installed tightly by tether strap of the child seat so that you can more pulling back and forth on the child seat at the belt easily attach the hooks or connectors to the vehicle path.
Page 73 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 71 WARNING! WARNING! • Improper installation of a child restraint to the • Improper installation or failure to properly secure LATCH anchorages can lead to failure of the a child restraint can lead to failure of the restraint. restraint.
Page 74 72 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Please see the table below and the following sections for more information. Lap/Shoulder Belt Systems For Installing Child Restraints In This Vehicle Automatic Locking Retractor (ALR) Locations • ALR = Switchable Automatic Locking Retractor •...
Page 75 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 73 Frequently Asked Questions About Installing Child Restraints With Seat Belts What is the weight limit (child’s Weight limit of the Child Restraint Always use the tether anchor when weight + weight of the child re- using the seat belt to install a for- straint) for using the Tether Anchor ward facing child restraint, up to...
Page 76 74 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Installing A Child Restraint With A Switchable 4. Pull on the webbing to make the lap portion tight Automatic Locking Retractor (ALR) against the child seat. Child restraint systems are designed to be secured in 5.
Page 77 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 75 9. Test that the child restraint is installed tightly by WARNING! (Continued) pulling back and forth on the child seat at the belt section “Lower Anchors and Tethers for CHildren path. It should not move more than 1 inch (25.4 mm) (LATCH) Restraint System”...
Page 78: Transporting Pets
76 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 2. Route the tether strap to provide the most direct path 4. Remove slack in the tether strap according to the for the strap between the anchor and the child seat. If child restraint manufacturer’s instructions.
Page 79: Safety Tips
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 77 SAFETY TIPS Safety Checks You Should Make Inside The Vehicle Transporting Passengers Seat Belts NOTE: Never transport passengers in the cargo area. Inspect the seat belt system periodically, checking for cuts, frays, and loose parts. Damaged parts must be WARNING! replaced immediately.
Page 80 78 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE intermittently or remains on while driving, have an WARNING! (Continued) authorized dealer service the vehicle immediately. may cause your floor mat to interfere with the Refer to “Occupant Restraints Systems” for further accelerator, brake, or clutch pedals and cause a loss information.
Page 81: Periodic Safety Checks You Should Make
THINGS TO KNOW BEFORE STARTING YOUR VEHICLE 79 WARNING! (Continued) WARNING! (Continued) with the vehicle properly parked with the engine to the vehicle carpet. Fully depress each pedal to off, fully depress the accelerator, the brake, and check for interference with the accelerator, brake, the clutch pedal (if present) to check for interfer- or clutch pedals then re-install the floor mats.
Page 82 80 THINGS TO KNOW BEFORE STARTING YOUR VEHICLE Lights Have someone observe the operation of brake lights and exterior lights while you work the controls. Check turn signal and high beam indicator lights on the instrument panel. Door Latches Check for proper closing, latching, and locking. Fluid Leaks Check area under vehicle after overnight parking for coolant or other fluid leaks.
Page 83 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CONTENTS ▫ Head Restraints ..... .89 MIRRORS ......83 ▫...
Page 84 82 UNDERSTANDING THE FEATURES OF YOUR VEHICLE ▫ Dimmer Control ..... .97 ▫ Failure Indications ....107 ▫...
Page 85: Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 83 MIRRORS Automatic Dimming Mirror — If Equipped This mirror automatically adjusts for headlight glare Inside Day/Night Mirror from vehicles behind you. You can turn the feature on The mirror can be adjusted up, down, left, and right for or off by pushing the button at the base of the mirror.
Page 86: Power Mirrors
84 UNDERSTANDING THE FEATURES OF YOUR VEHICLE The power mirror controls consist of a mirror select CAUTION! switch and a four-way mirror control switch. To adjust a mirror, push the mirror select switch to either the L To avoid damage to the mirror during cleaning, (left) or R (right) to select the mirror you need to adjust.
Page 87: Folding Mirrors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 85 the rear window defroster (if equipped). Refer to “Rear Window Features” in “Understanding The Features Of Your Vehicle” for further information. Sun Visors The driver and passenger sun visors are located on the headliner, near the front windshield.
Page 88: Seats
86 UNDERSTANDING THE FEATURES OF YOUR VEHICLE SEATS Seats are a part of the Occupant Restraint System of the vehicle. WARNING! • It is dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed.
Page 89: Recline Adjustment
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 87 WARNING! (Continued) WARNING! • Seats should be adjusted before fastening the seat Do not ride with the seatback reclined so that the belts and while the vehicle is parked. Serious shoulder belt is no longer resting against your injury or death could result from a poorly ad- chest.
Page 90: Ez Entry Feature
88 UNDERSTANDING THE FEATURES OF YOUR VEHICLE EZ Entry Feature Memory Feature The driver and front passenger seats have an EZ entry Both front seats have a memory feature, which can feature for rear seat passengers. Pull forward on the operate in two ways: release lever, located on the outboard side of the seat- Memory Function Option 1 —...
Page 91: Heated Seats
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 89 Heated Seats WARNING! (Continued) On some models, the front driver and passenger seats Sitting in a seat that has been overheated could may be equipped with heaters in both the seat cushions cause serious burns due to the increased surface and seatbacks.
Page 92 90 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Reactive Head Restraints — Front Seats The driver and front passenger seats are equipped with Reactive Head Restraints. In the event of a rear impact, the Reactive Head Restraints will automatically extend forward minimizing the gap between the back of the occupant’s head and the Reactive Head Restraint.
Page 93 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 91 NOTE: To remove the head restraint, raise it as far as it WARNING! can go then push the release button and the adjustment • A loose head restraint thrown forward in a colli- button at the base of each post while pulling the head restraint up.
Page 94: To Open And Close The Hood
92 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 2. Slide the safety catch under the front edge of the WARNING! hood, near the center, to the right. Then raise the hood. ALL the head restraints MUST be reinstalled in the vehicle to properly protect the occupants. Follow the re-installation instructions above prior to oper- ating the vehicle or occupying a seat.
Page 95: Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 93 CAUTION! To prevent possible damage, do not slam the hood to close it. Lower hood to approximately 12 inches (30 cm) and drop the hood to close. Make sure hood is fully closed for both latches. Never drive vehicle unless hood is fully closed, with both latches en- gaged.
Page 96: Headlights
94 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Headlights turn on the high beams. Pull the multifunction lever toward the steering wheel to turn off the high beams. Rotate the end of the multifunction lever Flash-To-Pass upward to the first detent for headlight op- You can signal another vehicle with your headlights by eration.
Page 97: Turn Signals
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 95 Turn Signals Lane Change Assist Push the multifunction lever upward to signal a right Tap the lever up or down once, without moving beyond turn or downward to signal a left turn. The correspond- the detent, and the turn signal (right or left) will flash ing indicator in the instrument cluster display will blink three times.
Page 98: Interior Lights
96 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Interior Lights Interior Light Timing (Center Position) The interior light switches are located in the overhead There are four different modes of operation that can be console. The interior lights can be set to three different activated in this position: positions (Off/Left Position, Center Position, On/Right •...
Page 99: Cargo Area Lights
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 97 Cargo Area Lights Ambient Light There is also a courtesy light located in the rear cargo The vehicle is equipped with ambient light on the area. Whenever the rear lift gate is opened, the light will center stack.
Page 100: Windshield Wipers And Washers
98 UNDERSTANDING THE FEATURES OF YOUR VEHICLE WINDSHIELD WIPERS AND WASHERS Windshield Wiper Off The windshield wiper/washer lever is located on the This is the normal position of the wiper lever. right side of the steering column. Intermittent Wiper Operation NOTE: The windshield wipers/washers will only op- Push the lever downward to the first detent.
Page 101 UNDERSTANDING THE FEATURES OF YOUR VEHICLE 99 Manual High Speed/Mist CAUTION! Push the lever upward from the off position. The wipers • Turn the windshield wipers off when driving will operate at high speed to clear off road mist or spray through an automatic car wash.
Page 102: Rear Windshield Wiper
100 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Rear Windshield Wiper NOTE: The windshield wipers/washers will only op- erate with the ignition in the ON/RUN position. Rotate the end of the windshield wiper/washer lever upward to the first detent past the intermittent settings Rear Windshield Washer Operation for intermittent wipe operation.
Page 103: Speed Control
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 101 SPEED CONTROL When engaged, the Speed Control takes over accelera- tor operations at speeds greater than 25 mph (40 km/h). The Speed Control buttons are located on the right side of the steering wheel. Tilt Control Lever Push down on the lever to unlock the column.
Page 104: To Activate
102 UNDERSTANDING THE FEATURES OF YOUR VEHICLE NOTE: In order to ensure proper operation, the Speed To Set A Desired Speed Control system has been designed to shut down if Turn the Speed Control on. When the vehicle has multiple Speed Control functions are operated at the reached the desired speed, push the SET (-) button and same time.
Page 105: To Vary The Speed Setting
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 103 To Vary The Speed Setting Metric Speed (km/h) • Pushing the RES (+) button once will result in a To Increase Speed 1 km/h increase in set speed. Each subsequent tap of When the Speed Control is set, you can increase speed the button results in an increase of 1 km/h.
Page 106: To Accelerate For Passing
104 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • If the button is continually pushed, the set speed will WARNING! continue to decrease until the button is released, then the new set speed will be established. Speed Control can be dangerous where the system cannot maintain a constant speed.
Page 107: Rear Park Assist Sensors
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 105 Rear Park Assist Sensors Rear Park Assist Audible Alerts The four Rear Park Assist sensors, located in the rear If an obstacle is behind the vehicle when the transmis- fascia/bumper, monitor the area behind the vehicle that sion is placed into REVERSE, an audible alert is acti- is within the sensors’...
Page 108 106 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Audible And Visual Signals Supplied By The Rear Park Assist System SIGNAL MEANING INDICATION Obstacle Distance An obstacle is present within the Audible signal (dashboard loud- sensors’ field of view speaker) • Sound pulses emitted at a rate that increases as the distance de- creases.
Page 109: Failure Indications
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 107 Failure Indications Cleaning The Rear Park Assist System A malfunction of the Rear Park Assist sensors or system Clean the Rear Park Assist sensors with water, car wash is indicated, during REVERSE gear engagement, by the soap and a soft cloth.
Page 110 108 UNDERSTANDING THE FEATURES OF YOUR VEHICLE • Objects such as bicycle carriers, etc., must not be WARNING! (Continued) placed within 12 inches (30 cm) from the rear fascia/ be much closer to the obstacle than the rear fascia bumper while driving the vehicle. Failure to do so when the warning display turns on the single can result in the system misinterpreting a close object flashing arc and sounds the continuous tone.
Page 111: Power Sunroof - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 109 POWER SUNROOF — IF EQUIPPED WARNING! The power sunroof switch is located in the overhead • Never leave children alone in a vehicle, or with console. access to an unlocked vehicle. Never leave the key fob in or near the vehicle, or in a location acces- sible to children.
Page 112: To Open
110 UNDERSTANDING THE FEATURES OF YOUR VEHICLE To Open Wind Buffeting Push and hold the power sunroof switch rearward for Wind buffeting can be described as the perception of approximately one second and the sunroof will stop at pressure on the ears or a helicopter-type sound in the the vented position.
Page 113: Sun Shade - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 111 Sun Shade — If Equipped ELECTRICAL POWER OUTLETS For vehicles equipped with either a power sunroof or a There is a standard 12 Volt (13 Amp) power outlet, fixed glass roof, there is a sun shade that can be open or located in the floor console, for added convenience.
Page 114 112 UNDERSTANDING THE FEATURES OF YOUR VEHICLE Power is available when the ignition switch is in the ON/RUN or START position. Insert the cigar lighter or accessory plug into the outlet for use. To preserve the heating element, do not hold the lighter in the heating position.
Page 115: Cigar Lighter - If Equipped
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 113 CIGAR LIGHTER — IF EQUIPPED CAUTION! This is located on the center console, in front of the cup • Many accessories that can be plugged in draw holders. To activate the cigar lighter, push and release power from the vehicle’s battery, even when not the knob.
Page 116: Cupholders
114 UNDERSTANDING THE FEATURES OF YOUR VEHICLE CUPHOLDERS For the driver and front passenger, cupholders are located on the floor console between the front seats. Rear Cupholders STORAGE Glove Compartment Front Cupholders The glove compartment is located on the passenger side For rear passengers, there are cupholders located on the of the instrument panel.
Page 117: Cargo Area Features
UNDERSTANDING THE FEATURES OF YOUR VEHICLE 115 To open the glove compartment, pull the release handle. Rear Seat Release Buttons Glove Compartment Latch CARGO AREA FEATURES The rear seatbacks have a fold down feature to allow increased cargo capacity. Push down the release button, located at the outboard top of the seatback and move the seatback to its folded-down position to provide a flat load floor cargo area.
Page 118: Rear Window Features
116 UNDERSTANDING THE FEATURES OF YOUR VEHICLE REAR WINDOW FEATURES CAUTION! Rear Window Defroster Failure to follow these cautions can cause damage to the heating elements: The rear window defroster button is located in • Use care when washing the inside of the rear the center of the instrument panel, below the window.
Page 119: Understanding Your Instrument Panel
UNDERSTANDING YOUR INSTRUMENT PANEL CONTENTS INSTRUMENT PANEL FEATURES ..119 UCONNECT RADIOS ....144 INSTRUMENT CLUSTER ....120 IPOD/USB/MEDIA PLAYER CONTROL —...
Page 120 118 UNDERSTANDING YOUR INSTRUMENT PANEL ▫ Voice Text Reply .....158 TELEMATICS MODEM....161 ▫...
Page 121: Instrument Panel Features
UNDERSTANDING YOUR INSTRUMENT PANEL 119 INSTRUMENT PANEL FEATURES 1 — Side Vent 5 — Central Air Vents 9 — Hazard Button 13 — ESC Off 2 — Voice Command Controls 6 — Storage Compartment 10 — Climate Controls 14 — Horn/Driver Airbag 3 —...
Page 122: Instrument Cluster
120 UNDERSTANDING YOUR INSTRUMENT PANEL INSTRUMENT CLUSTER Instrument Cluster...
Page 123: Instrument Cluster Descriptions
UNDERSTANDING YOUR INSTRUMENT PANEL 121 Instrument Cluster Descriptions WARNING AND INDICATOR LIGHTS The warning/indicator lights switch on in the instru- 1. Battery Charge Gauge ment panel together with a dedicated message and/or • This gauge indicates the charge level of the battery. acoustic signal when applicable.
Page 124: Red Telltale Indicator Lights
122 UNDERSTANDING YOUR INSTRUMENT PANEL Red Telltale Indicator Lights Seat Belt Reminder Warning Light Red Telltale What It Means Light Seat Belt Reminder Warning Light When the ignition is first placed in the MAR (ACC/ON/RUN) position, if the driver’s seat belt is unbuckled, a chime will sound and the light will turn on.
Page 125 UNDERSTANDING YOUR INSTRUMENT PANEL 123 Brake Warning Light Red Telltale What It Means Light Brake Warning Light This light monitors various brake functions, including brake fluid level and parking brake application. If the brake light turns on it may indicate that the parking brake is applied, that the brake fluid level is low, or that there is a problem with the anti-lock brake system reser- voir.
Page 126 124 UNDERSTANDING YOUR INSTRUMENT PANEL Operation of the Brake Warning Light can be checked WARNING! by placing the ignition in the MAR (ACC/ON/RUN) position. The light should illuminate for approximately Driving a vehicle with the red brake light on is two seconds.
Page 127 UNDERSTANDING YOUR INSTRUMENT PANEL 125 Plugged In Indicator Light Red Telltale What It Means Light Plugged In Indicator Light This red indicator will illuminate when the vehicle is plugged in. Plugged In Malfunction Indicator Light Red Telltale What It Means Light Plugged In Malfunction Indicator Light This red indicator will illuminate if there is a malfunction or interruption during the vehicle...
Page 128 126 UNDERSTANDING YOUR INSTRUMENT PANEL Service Propulsion System Warning Light Red Telltale What It Means Light Service Propulsion System Warning Light The Service Propulsion System Warning Light will illuminate if there is a malfunction de- tected with the Propulsion System. If the light comes on or remains on while driving see your authorized dealer.
Page 129: Yellow Telltale Indicator Lights
UNDERSTANDING YOUR INSTRUMENT PANEL 127 Liftgate Open Warning Light Red Telltale What It Means Light Liftgate Open Warning Light This indicator will turn when the liftgate is open. Yellow Telltale Indicator Lights EV System Malfunction Indicator Light Yellow Telltale What It Means Light EV System Malfunction Indicator Light This indicator will illuminate when there is a malfunction in the Electric Vehicle (EV) Sys-...
Page 130 128 UNDERSTANDING YOUR INSTRUMENT PANEL Electronic Stability Control (ESC) Indicator Light — If Equipped Yellow Telltale What It Means Light Electronic Stability Control (ESC) Indicator Light The “ESC Indicator Light” in the instrument cluster will come on when the ignition switch is turned to the AVV/START position.
Page 131 UNDERSTANDING YOUR INSTRUMENT PANEL 129 Electronic Stability Control (ESC) OFF Indicator Light — If Equipped Yellow Telltale What It Means Light Electronic Stability Control (ESC) OFF Indicator Light — If Equipped This light indicates the Electronic Stability Control (ESC) is off. Tire Pressure Monitoring System (TPMS) Warning Light Yellow Telltale What It Means...
Page 132 130 UNDERSTANDING YOUR INSTRUMENT PANEL indicated on the vehicle placard or tire inflation pres- Your vehicle has also been equipped with a TPMS sure label, you should determine the proper tire infla- malfunction indicator to indicate when the system is tion pressure for those tires.) not operating properly.
Page 133 UNDERSTANDING YOUR INSTRUMENT PANEL 131 CAUTION! CAUTION! (Continued) sensor damage. Using aftermarket tire sealants may The TPMS has been optimized for the original cause the Tire Pressure Monitoring System (TPMS) equipment tires and wheels. TPMS pressures and sensor to become inoperable. After using an after- warning have been established for the tire size market tire sealant it is recommended that you take equipped on your vehicle.
Page 134 132 UNDERSTANDING YOUR INSTRUMENT PANEL Regenerative Brake System (RBS) Indicator Light Yellow Telltale What It Means Light Regenerative Brake System (RBS) Indicator Light If the light turns on and remains on while driving, it suggests that there is a potential prob- lem with the Regenerative Brake System (RBS) and the need for system service.
Page 135 UNDERSTANDING YOUR INSTRUMENT PANEL 133 Rear Defrost Light Yellow Telltale What It Means Light Rear Defrost Light This indicator will illuminate when the rear window defroster is on. The rear window de- froster automatically turns off after 20 minutes. CAUTION! CAUTION! (Continued) cloth and a mild washing solution, wiping paral- Failure to follow these cautions can cause damage...
Page 136: Green Telltale Indicator Lights
134 UNDERSTANDING YOUR INSTRUMENT PANEL Icy Road Condition Indicator Light Yellow Telltale What It Means Light Icy Road Condition Indicator Light This light will illuminate during an icy road condition. Exterior Bulb Failure Indicator Light Yellow Telltale What It Means Light Exterior Bulb Failure Indicator Light This light will illuminate when there is a malfunction in one of the exterior bulbs.
Page 137 UNDERSTANDING YOUR INSTRUMENT PANEL 135 Front Fog Indicator Light — If Equipped Green Telltale What It Means Light Front Fog Indicator Light — If Equipped This indicator will illuminate when the front fog lights are on. Turn Signal Indicator Lights Green Telltale What It Means Light...
Page 138: White Telltale Indicator Lights
136 UNDERSTANDING YOUR INSTRUMENT PANEL Plugged In Indicator Light Green Telltale What It Means Light Plugged In Indicator Light This green indicator will illuminate when the vehicle is plugged in. White Telltale Indicator Lights Cruise Control Ready Indicator Light White Telltale What It Means Light Cruise Control Ready Indicator Light...
Page 139: Blue Telltale Indicator Lights
UNDERSTANDING YOUR INSTRUMENT PANEL 137 Blue Telltale Indicator Lights High Beam Indicator Light Blue Telltale What It Means Light High Beam Indicator Light This indicator shows that the high beam headlights are on. Push the multifunction control lever away from you to switch the headlights to high beam. Pull the lever toward you to switch the headlights back to low beam.
Page 140: Instrument Cluster Display And Controls
138 UNDERSTANDING YOUR INSTRUMENT PANEL Instrument Cluster Display And Controls Instrument Cluster Display Control Buttons The instrument cluster display features a driver-interactive The instrument cluster display control buttons are lo- display that is located in the instrument cluster. cated on the right side of the instrument cluster. There are three control buttons that are used to navigate through the instrument cluster display functions: •...
Page 141: Display Menu Set-Up
UNDERSTANDING YOUR INSTRUMENT PANEL 139 Push and release the MENU button briefly to access the NOTE: When the Uconnect “Display Mode” feature is instrument cluster display. Push and hold the MENU set to “Auto” the instrument cluster display control button (approximately one second) to return to the (+/-) buttons may be used to adjust the brightness of main screen.
Page 142: Trip Computer
140 UNDERSTANDING YOUR INSTRUMENT PANEL Selecting An Option Of The Main Menu Without 4. Push and release the up arrow and down arrow (by Submenu: single pushes) to select the new setting for this submenu option. 1. Briefly push and release the MENU button to select the main menu option to set.
Page 143 UNDERSTANDING YOUR INSTRUMENT PANEL 141 • Trip B Trip Button • Tire Pressure The TRIP button is located on the right steering column stalk. New Trip To reset: • Push and hold the TRIP button manually. • When the “Trip Distance” reaches 9999.9 miles/ kilometers or when the “Elapsed Time”...
Page 144: Cybersecurity
142 UNDERSTANDING YOUR INSTRUMENT PANEL “Trip B” can be used to display the figures relating to: Average Speed • distance This value shows the vehicle’s average speed as a function of the overall time elapsed since the last reset. • avg. energy Average Energy •...
Page 145 UNDERSTANDING YOUR INSTRUMENT PANEL 143 require software updates to improve the usability and WARNING! (Continued) performance of your systems or to reduce the potential • As always, if you experience unusual vehicle risk of unauthorized and unlawful access to your behavior, take your vehicle to your nearest autho- vehicle systems.
Page 146: Uconnect Radios
144 UNDERSTANDING YOUR INSTRUMENT PANEL UCONNECT RADIOS UCONNECT SETTINGS For detailed information about your Uconnect radio, The Uconnect system uses a combination of buttons on refer to your Uconnect Owner’s Manual Supplement. the touchscreen and buttons on the faceplate located on the center of the instrument panel that allow you to IPOD/USB/MEDIA PLAYER CONTROL —...
Page 147: Buttons On The Faceplate
UNDERSTANDING YOUR INSTRUMENT PANEL 145 Buttons On The Faceplate Customer Programmable Features — Uconnect 5.0/5.0 NAV Settings Buttons on the faceplate are located below, and beside the Uconnect system in the center of the instrument Push the Settings button on the faceplate, to dis- panel.
Page 148 146 UNDERSTANDING YOUR INSTRUMENT PANEL Display After pressing the “Display” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Display Mode Auto Manual NOTE: When the “Display Mode” feature is set to “Auto” the radio touchscreen’s brightness will be adjusted with all other instrument panel displays and lights when they are adjusted using the instrument cluster display buttons on the right-hand side of the instrument cluster display.
Page 149 UNDERSTANDING YOUR INSTRUMENT PANEL 147 Units displayed in the instrument cluster display. The follow- ing selectable units of measure are listed below: After pressing the “Units” button on the touchscreen, you may select each unit of measure independently Setting Name Selectable Options Changes the instrument cluster display to US units of measure.
Page 150 148 UNDERSTANDING YOUR INSTRUMENT PANEL Voice After pressing the “Voice” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Voice Response Length Brief Long Show Command List Always With Help Never Clock & Date After pressing the “Clock & Date” button on the touch- screen, the following settings will be available: Setting Name Selectable Options...
Page 151 UNDERSTANDING YOUR INSTRUMENT PANEL 149 Charging Schedule To set up a charging schedule, press the “More” or “Settings” button on the touchscreen. Setting Name Selectable Options Enable Schedule NOTE: Continue setting up the schedule, picking from the following menus: • Weekdays or Weekends •...
Page 152 150 UNDERSTANDING YOUR INSTRUMENT PANEL Lights After pressing the “Lights” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Daytime Running Lights Doors & Locks After pressing the “Doors & Locks” button on the touchscreen, the following setting will be available: Setting Name Selectable Options Auto Door Locks...
Page 153 UNDERSTANDING YOUR INSTRUMENT PANEL 151 Engine Off Options After pressing the “Engine Off Options” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Radio Off Delay 0 min. 20 min. Audio After pressing the “Audio” button on the touchscreen, the following settings will be available: Setting Name Selectable Options...
Page 154 152 UNDERSTANDING YOUR INSTRUMENT PANEL Setting Name Selectable Options Radio Off With Door NOTE: When the “Radio Off With Door” feature is selected, the radio will remain on until the driver or pas- senger door is opened or when the Radio Off Delay time expires. Phone/Bluetooth After pressing the “Phone/Bluetooth”...
Page 155 UNDERSTANDING YOUR INSTRUMENT PANEL 153 Setting Name Selectable Options NOTE: “Tune Start” begins playing the current song from the beginning when you tune to a music channel us- ing one of the twelve presets, so you can enjoy the complete song. This feature occurs the first time the preset is selected during that current song.
Page 156 154 UNDERSTANDING YOUR INSTRUMENT PANEL Restore Settings After pressing the “Restore Settings” button on the touchscreen, the following settings will be available: Setting Name Selectable Options Restore Settings NOTE: When the “Restore Settings” feature is selected it will reset the Display, Clock, Audio, and Radio Set- tings to their default settings.
Page 157: Uconnect 5.0/5.0 Nav Voice Recognition Quick Tips
UNDERSTANDING YOUR INSTRUMENT PANEL 155 UCONNECT 5.0/5.0 NAV VOICE RECOGNITION Get Started QUICK TIPS 1. Visit UconnectPhone.com to check mobile device Introducing Uconnect and feature compatibility and to find phone pairing instructions. Start using Uconnect Voice Recognition with these helpful quick tips. It provides the key Voice Commands 2.
Page 158: Basic Voice Commands
156 UNDERSTANDING YOUR INSTRUMENT PANEL All you need to control your Uconnect system with Push the VR button . After the beep, say your voice are the buttons on your steering wheel. • Cancel to stop a current voice session •...
Page 159: Radio
UNDERSTANDING YOUR INSTRUMENT PANEL 157 Radio Use your voice to quickly get to the AM, FM or SiriusXM Satellite Radio stations you would like to hear. (Subscription or included SiriusXM Satellite Radio trial required.) Push the VR button . After the beep, say •...
Page 160: Voice Text Reply
158 UNDERSTANDING YOUR INSTRUMENT PANEL • Play artist Beethoven; Play album Greatest Hits; 1. Once an incoming text message is read to you, push Play song Moonlight Sonata; Play genre Classical the PHONE button . After the beep, say... “Re- ply.”...
Page 161: Radio Operation And Mobile Phones
UNDERSTANDING YOUR INSTRUMENT PANEL 159 • This device may not cause harmful interference. TIP: Your mobile phone must have the full implemen- tation of the Message Access Profile (MAP) to take • This device must accept any interference received, advantage of this feature. For details about MAP, visit including interference that may cause undesired op- UconnectPhone.com.
Page 162: Steering Wheel Audio Controls
160 UNDERSTANDING YOUR INSTRUMENT PANEL STEERING WHEEL AUDIO CONTROLS Pushing the center button will make the radio switch between the various modes available (AM/FM/SAT/ The remote sound system controls are located on the AUX/Media Player, etc.) and can also be used to rear surface of the steering wheel.
Page 163: Radio Operation And Mobile Phones
UNDERSTANDING YOUR INSTRUMENT PANEL 161 • Send navigation destination to vehicle from within RADIO OPERATION AND MOBILE PHONES Mobile App Under certain conditions, the mobile phone being on in • Remote Door Lock/Unlock your vehicle can cause erratic or noisy performance from your radio.
Page 164: Climate Controls
162 UNDERSTANDING YOUR INSTRUMENT PANEL CLIMATE CONTROLS Automatic Temperature Control Overview Automatic Temperature Controls Control Descriptions Icon Description A/C Button Push and release to change the current setting, the indicator illuminates when A/C is ON. Performing this function again will cause the A/C operation to switch into manual mode and the A/C indicator will turn off.
Page 165 UNDERSTANDING YOUR INSTRUMENT PANEL 163 Icon Description Recirculation Button Push and release this button to change the system between recirculation mode and outside air mode. Recirculation can be used when outside conditions such as smoke, odors, dust, or high humidity are present. NOTE: •...
Page 166 164 UNDERSTANDING YOUR INSTRUMENT PANEL Icon Description Blower Control Up And Down Button Provides the passengers with blower control. Push the UP button to increase blower speed. Push the DOWN button to decrease blower speed. Modes Control: Push the button in the center of the knob to change the airflow distribution mode. The airflow distribution mode can be adjusted so air comes from the instrument panel outlets, floor outlets, defrost outlets and demist outlets.
Page 167 UNDERSTANDING YOUR INSTRUMENT PANEL 165 Icon Description Bi-Level Mode Bi-Level Mode Air comes from the instrument panel outlets and floor outlets. A slight amount of air is directed through the defrost and side window demister outlets. To access this mode, press both the Panel and Floor Mode buttons NOTE: BI-LEVEL mode is designed under comfort conditions to provide cooler air out of the panel outlets and warmer air from the floor outlets.
Page 168 166 UNDERSTANDING YOUR INSTRUMENT PANEL system. When the air conditioning system is turned on, CAUTION! cool dehumidified air will flow through the outlets into the cabin. For improved fuel economy, push the A/C Failure to follow these cautions can cause damage button to turn off the air conditioning and manually to the heating elements: •...
Page 169: Automatic Temperature Control (Atc) - If
UNDERSTANDING YOUR INSTRUMENT PANEL 167 Recirculation Automatic Temperature Control (ATC) — If Equipped When outside air contains smoke, odors, or high hu- midity, or if rapid cooling is desired, you may wish to Automatic Operation recirculate interior air by pushing the Recirculation 1.
Page 170: Operating Tips
168 UNDERSTANDING YOUR INSTRUMENT PANEL To provide you with maximum comfort in the Auto- Summer Operation matic mode during cold start-ups, the blower fan will The engine cooling system must be protected with a remain on low until the engine warms up. The blower high-quality antifreeze coolant to provide proper corro- will increase in speed and transition into Auto mode.
Page 171 UNDERSTANDING YOUR INSTRUMENT PANEL 169 Vacation/Storage Outside Air Intake Before you store your vehicle, or keep it out of service Make sure the air intake, located directly in front of the (i.e., vacation) for two weeks or more, run the air windshield, is free of obstructions such as leaves.
Page 172 170 UNDERSTANDING YOUR INSTRUMENT PANEL Operating Tips Chart...
Page 173 STARTING AND OPERATING CONTENTS STARTING PROCEDURES ....173 PARKING BRAKE .....181 ▫...
Page 174 172 STARTING AND OPERATING ▫ Tire Loading And Tire Pressure ..194 ▫ Treadwear ......211 ▫...
Page 175: Starting Procedures
STARTING AND OPERATING 173 STARTING PROCEDURES Normal Starting Before starting your vehicle, adjust your seat, adjust Turn the key to the START position while your vehicle both inside and outside mirrors, and fasten your seat is in PARK. When the ignition key is turned to the belts.
Page 176: Single-Speed Transmission
174 STARTING AND OPERATING NOTE: • If the key is held in the START position for more than 10 seconds “READY” mode will not be achieved. Return the key to OFF position, and then back to the START position and hold for less than 10 seconds to achieve “READY”.
Page 177: Key Ignition Park Interlock
STARTING AND OPERATING 175 NOTE: WARNING! (Continued) • You must press and hold the brake pedal while to be in a vehicle unattended is dangerous for a shifting in or out of PARK. number of reasons. A child or others could be •...
Page 178: Gear Ranges
176 STARTING AND OPERATING Gear Ranges NOTE: Refer to the transmission range position dis- played in the instrument cluster and verify that it Push the desired push button to shift into gear. indicates the PARK position. NOTE: WARNING! • The brake pedal must be depressed to select a transmission gear.
Page 179 STARTING AND OPERATING 177 NEUTRAL (N) WARNING! (Continued) The vehicle may be started in this gear. Apply the always apply the parking brake, shift the trans- parking brake and place the transmission into PARK if mission into PARK, and remove the ignition key. you must leave the vehicle.
Page 180: Auto Park
178 STARTING AND OPERATING DRIVE (D) Mode Of Operation With Key ON: Use this gear for all city and highway driving. Auto Park will be engaged when the transmission is in DRIVE, NEUTRAL or REVERSE and the following Auto Park conditions are detected: The Auto Park feature automatically places the trans- •...
Page 181: Traction
STARTING AND OPERATING 179 • Maintain sufficient distance between your vehicle WARNING! and the vehicle in front of you to avoid a collision in a sudden stop. Rapid acceleration on slippery surfaces is danger- ous. Unequal traction can cause sudden pulling of DRIVING THROUGH WATER the front wheels.
Page 182: Shallow Standing Water
180 STARTING AND OPERATING Shallow Standing Water CAUTION! (Continued) Although your vehicle is capable of driving through fluid that is milky or foamy in appearance) after shallow standing water, consider the following Caution driving through standing water. Do not continue and Warning before doing so.
Page 183: Power Steering
STARTING AND OPERATING 181 POWER STEERING system. Once driving conditions are safe, pull over and let the vehicle idle for a few moments until the icon and The electric power steering system will give you good message turn off. Refer to “Instrument Cluster Display” vehicle response and increased ease of maneuverability in “Understanding Your Instrument Panel”...
Page 184 182 STARTING AND OPERATING The parking brake lever is located in the center console. should always be applied whenever the driver is not in To apply the parking brake, pull the lever up as firmly the vehicle. as possible. To release the parking brake, pull the lever up slightly, push the center button, then lower the lever WARNING! completely.
Page 185: Brake System
STARTING AND OPERATING 183 Control System (TCS), and Electronic Stability Control CAUTION! (ESC). All systems work together to enhance vehicle stability and control in various driving conditions and If the Brake Warning Light remains on with the are commonly referred to as ESC. parking brake released, a brake system malfunction is indicated.
Page 186: Brake Assist System (Bas)
184 STARTING AND OPERATING as the vehicle comes to a stop. This is the result of the WARNING! system reverting to the base brake system. • Pumping the Anti-Lock Brakes will diminish Engagement of the ABS may be accompanied by a their effectiveness and may lead to a collision.
Page 187: Traction Control System (Tcs)
STARTING AND OPERATING 185 spinning wheel. This will allow more torque to be WARNING! applied to the wheel that is not spinning. This feature • The Brake Assist System (BAS) cannot prevent remains active even if TCS and ESC are in the Partial Off mode.
Page 188 186 STARTING AND OPERATING NOTE: The ESC Off switch is located on the instrument WARNING! (Continued) panel. characteristics of your vehicle, and may nega- tively affect the performance of the ESC system. WARNING! Changes to the steering system, suspension, brak- •...
Page 189: Esc Activation/Malfunction Indicator Light And Esc Off Indicator Light
STARTING AND OPERATING 187 Partial Off WARNING! This mode is entered by momentarily pushing the ESC • When in “Partial Off” mode, the TCS functional- Off switch. This mode is intended to be used if the ity of ESC, (except for the limited slip feature vehicle is in deep snow, sand or gravel conditions and described in the TCS section), has been disabled more wheel spin than ESC would normally allow is...
Page 190: Regenerative Braking System (Rbs)
188 STARTING AND OPERATING (kilometers) at speeds greater than 30 mph (48 km/h), Regenerative Braking System (RBS) see your authorized dealer as soon as possible to have the problem diagnosed and corrected. Your 500e has a Regenerative Braking System The ESC Activation/Malfunction Indicator Light (lo- (RBS).
Page 191: Tire Safety Information
STARTING AND OPERATING 189 TIRE SAFETY INFORMATION NOTE: • P (Passenger) — Metric tire sizing is based on U.S. Tire Markings design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designa- tion. Example: P215/65R15 95H. •...
Page 192 190 STARTING AND OPERATING Tire Sizing Chart EXAMPLE: Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 P = Passenger car tire size based on U.S. design standards, or ..blank..= Passenger car tire based on European design standards, or LT = Light truck tire based on U.S.
Page 193 STARTING AND OPERATING 191 EXAMPLE: Service Description: 95 = Load Index – A numerical code associated with the maximum load a tire can carry H = Speed Symbol – A symbol indicating the range of speeds at which a tire can carry a load corresponding to its load index un- der certain operating conditions –...
Page 194: Tire Identification Number (Tin)
192 STARTING AND OPERATING Tire Identification Number (TIN) tire. Look for the TIN on the outboard side of black sidewall tires as mounted on the vehicle. If the TIN is The TIN may be found on one or both sides of the tire; not found on the outboard side, then you will find it on however, the date code may only be on one side.
Page 195: Tire Terminology And Definitions
STARTING AND OPERATING 193 Tire Terminology And Definitions Term Definition B-Pillar The vehicle B-Pillar is the structural member of the body located behind the front door. Cold tire inflation pressure is defined as the tire pressure after Cold Tire Inflation Pressure the vehicle has not been driven for at least three hours, or driven less than 1 mile (1.6 km) after sitting for a minimum of three hours.
Page 196: Tire Loading And Tire Pressure
194 STARTING AND OPERATING Tire Loading And Tire Pressure Tire And Loading Information Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver’s side door. Check the inflation pressure of each tire, including the spare tire (if equipped), at least monthly and inflate to the recommended pressure for your vehicle.
Page 197 STARTING AND OPERATING 195 Tire And Loading Information Placard WARNING! (Continued) • Improperly inflated tires are dangerous and can cause collisions. Under-inflation increases tire flexing and can result in over-heating and tire failure. Over-inflation reduces a tire’s ability to cushion shock. Objects on the road and chuck holes can cause damage that results in tire failure.
Page 198 196 STARTING AND OPERATING Loading The combined weight of occupants, cargo/luggage and trailer tongue weight (if applicable) should never ex- The vehicle maximum load on the tire must not exceed ceed the weight referenced here. the load carrying capacity of the tire on your vehicle. You will not exceed the tire’s load carrying capacity if Steps For Determining Correct Load Limit—...
Page 199 STARTING AND OPERATING 197 (5) Determine the combined weight of luggage and NOTE: cargo being loaded on the vehicle. That weight may • If your vehicle will be towing a trailer, load from not safely exceed the available cargo and luggage your trailer will be transferred to your vehicle.
Page 200 198 STARTING AND OPERATING WARNING! WARNING! (Continued) recommended load capacity for your vehicle. Never Overloading of your tires is dangerous. Overload- overload them. ing can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the (Continued)
Page 201: Tires - General Information
STARTING AND OPERATING 199 TIRES — GENERAL INFORMATION WARNING! (Continued) Tire Pressure • Overinflated or underinflated tires can affect ve- hicle handling and can fail suddenly, resulting in Proper tire inflation pressure is essential to the safe and loss of vehicle control. satisfactory operation of your vehicle.
Page 202: Tire Inflation Pressures
200 STARTING AND OPERATING Tread Wear CAUTION! Improper cold tire inflation pressures can cause abnor- After inspecting or adjusting the tire pressure, mal wear patterns and reduced tread life, resulting in always reinstall the valve stem cap. This will pre- the need for earlier tire replacement.
Page 203: Tire Pressures For High Speed Operation
STARTING AND OPERATING 201 inflation pressure should be increased by 3 psi (21 kPa), WARNING! (Continued) which equals 1 psi (7 kPa) for every 12°F (7°C) for this serious collision. Do not drive a vehicle loaded to outside temperature condition. the maximum capacity at continuous speeds above Tire pressure may increase from 2 to 6 psi (13 to 40 kPa) 75 mph (120 km/h).
Page 204: Tire Types
202 STARTING AND OPERATING Consult an authorized tire dealer for tire repairs and on ice. If your vehicle is equipped with Summer tires, be additional information. aware these tires are not designed for Winter or cold driving conditions. Install Winter tires on your vehicle Damaged Run Flat tires, or Run Flat tires that have when ambient temperatures are less than 40°F (5°C) or experienced a loss of pressure should be replaced...
Page 205: Run Flat Tires - If Equipped
STARTING AND OPERATING 203 Snow Tires Run Flat Tires — If Equipped Some areas of the country require the use of snow tires Run Flat tires allow you the capability to drive 50 miles during the Winter. Snow tires can be identified by a (80 km) at 50 mph (80 km/h) after a rapid loss of “mountain/snowflake”...
Page 206 204 STARTING AND OPERATING tire. Compact spare tire descriptions begin with the CAUTION! letter “T” or “S” preceding the size designation. Ex- ample: T145/80D18 103M. Because of the reduced ground clearance, do not take your vehicle through an automatic car wash T, S = Temporary Spare Tire with a compact or limited use temporary spare Since this tire has limited tread life, the original equip-...
Page 207: Tire Spinning
STARTING AND OPERATING 205 Full Size Spare — If Equipped WARNING! The full size spare is for temporary emergency use only. Limited use spares are for emergency use only. This tire may look like the originally equipped tire on Installation of this limited use spare tire affects the front or rear axle of your vehicle, but it is not.
Page 208: Tread Wear Indicators
206 STARTING AND OPERATING WARNING! Fast spinning tires can be dangerous. Forces gener- ated by excessive wheel speeds may cause tire damage or failure. A tire could explode and injure someone. Do not spin your vehicle’s wheels faster than 30 mph (48 km/h) for more than 30 seconds continuously when you are stuck, and do not let anyone near a spinning wheel, no matter what the speed.
Page 209: Life Of Tire
STARTING AND OPERATING 207 Life Of Tire Keep dismounted tires in a cool, dry place with as little exposure to light as possible. Protect tires from contact The service life of a tire is dependent upon varying with oil, grease, and gasoline. factors including, but not limited to: Replacement Tires •...
Page 210: Tire Chains (Traction Devices)
208 STARTING AND OPERATING It is recommended to replace the two front tires or two WARNING! (Continued) rear tires as a pair. Replacing just one tire can seriously • Never use a tire with a smaller load index or affect your vehicle’s handling. If you ever replace a capacity, other than what was originally equipped wheel, make sure that the wheel’s specifications match on your vehicle.
Page 211 STARTING AND OPERATING 209 • Due to limited clearance, a 185/55R15 tire with a CAUTION! (Continued) Security Chain Company (SCC) Super Z6 low profile could indicate chain breakage. Remove the dam- traction device or equivalent is recommended aged parts of the chain before further use. •...
Page 212: Tire Rotation Recommendations
210 STARTING AND OPERATING TIRE ROTATION RECOMMENDATIONS The tires on the front and rear of your vehicle operate at different loads and perform different steering, driving, and braking functions. For these reasons, they wear at unequal rates. These effects can be reduced by timely rotation of tires. The benefits of rotation are especially worthwhile with aggressive tread designs such as those on all season type tires.
Page 213: Treadwear
STARTING AND OPERATING 211 Treadwear WARNING! The Treadwear grade is a comparative rating, based The traction grade assigned to this tire is based on the wear rate of the tire when tested under on straight-ahead braking traction tests, and does controlled conditions on a specified government test not include acceleration, cornering, hydroplan- course.
Page 214: Tire Pressure Monitor System
212 STARTING AND OPERATING information on how to properly inflate the vehicle’s WARNING! tires. The tire pressure will also increase as the vehicle is driven. This is normal and there should be no adjust- The temperature grade for this tire is established ment for this increased pressure.
Page 215 STARTING AND OPERATING 213 For example, your vehicle may have a recommended CAUTION! (Continued) cold (parked for more than three hours) placard pres- operation or sensor damage may result when sure of 33 psi (227 kPa). If the ambient temperature is using replacement equipment that is not of the 68°F (20°C) and the measured tire pressure is 28 psi (193 same size, type, and/or style.
Page 216: Tpm System
214 STARTING AND OPERATING NOTE: TPM System • The TPMS is not intended to replace normal tire care The Tire Pressure Monitor System (TPMS) uses wireless and maintenance, or to provide warning of a tire technology with wheel rim mounted electronic sensors failure or condition.
Page 217: Tpms Warning
STARTING AND OPERATING 215 seconds and then remain on solid. The system fault will sound a chime and also display a “Service Tire Pressure Monitoring System” message in the instrument cluster for approximately 5 seconds. Low Tire Indicator Should this occur, you should stop as soon as possible and inflate the tires with low pressure to the vehicle’s recommended cold placard pressure value.
Page 218 216 STARTING AND OPERATING • After driving the vehicle for up to 20 minutes above A system fault can occur due to any of the following: 15 mph (24 km/h), the “Tire Pressure Monitoring 1. Signal interference due to electronic devices or driv- Telltale Light”...
Page 219: General Information
STARTING AND OPERATING 217 General Information NOTE: Changes or modifications not expressly ap- proved by the party responsible for compliance could This device complies with Part 15 of the FCC rules and void the user’s authority to operate the equipment. RSS-210 of Industry Canada.
Page 220: Extending Your Driving Range Per Charge
218 STARTING AND OPERATING NOTE: consider setting temperatures a few degrees higher or lower during hot and cold days. If your 500e has been • When towing your vehicle, always follow applicable soaking in hot or cold temperatures for an extended state and provincial laws.
Page 221: Driver Behavior Gauge
STARTING AND OPERATING 219 Driver Behavior Gauge To help the driver extend the driving range of the high voltage battery your vehicle is equipped with a Driver Behavior Gauge. The Driver Behavior Gauge is located on the right side of the instrument cluster and contains three driving ranges: •...
Page 222: Range Projection
220 STARTING AND OPERATING • When both arrows are grey, expect the range to drop Range Projection approximately one mile for each mile driven. This area of the cluster is used to display the projected • When the up arrow is highlighted, expect the range range considering current battery charge and previous energy use.
Page 223 WHAT TO DO IN EMERGENCIES CONTENTS ▫ Preparations For Jump-Start ... . .232 HAZARD WARNING FLASHERS ..222 ▫ Jump-Starting Procedure ....233 WHEEL AND TIRE TORQUE SPECIFICATIONS .
Page 224: Hazard Warning Flashers
222 WHAT TO DO IN EMERGENCIES HAZARD WARNING FLASHERS WHEEL AND TIRE TORQUE SPECIFICATIONS The Hazard Warning flasher switch is located on the Proper lug nut/bolt torque is very important to ensure instrument panel below the radio. that the wheel is properly mounted to the vehicle. Any time a wheel has been removed and reinstalled on the Push the switch to turn on the Hazard Warning vehicle, the lug nuts/bolts should be torqued using a...
Page 225 WHAT TO DO IN EMERGENCIES 223 Inspect the wheel mounting surface prior to mounting the tire and remove any corrosion or loose particles. Torque Patterns After 25 miles (40 km), check the lug nut/bolt torque to be sure that all the lug nuts/bolts are properly seated Wheel Mounting Surface against the wheel.
Page 226: Tire Service Kit - If Equipped
224 WHAT TO DO IN EMERGENCIES TIRE SERVICE KIT — IF EQUIPPED Tire Service Kit Components And Operation Small punctures up to 1/4 inch (6 mm) in the tire tread can be sealed with Tire Service Kit. Foreign objects (e.g., screws or nails) should not be removed from the tire.
Page 227: Tire Service Kit Usage Precautions
WHAT TO DO IN EMERGENCIES 225 Using The Mode Select Knob And Hoses Tire Service Kit Usage Precautions • Replace the Tire Service Kit Sealant Bottle (1) and Your Tire Service Kit is equipped with the following Sealant Hose (6) prior to the expiration date (printed symbols to indicate the air or sealant mode.
Page 228 226 WHAT TO DO IN EMERGENCIES • When the Tire Service Kit sealant is in a liquid form, WARNING! clean water, and a damp cloth will remove the • Do not attempt to seal a tire on the side of the material from the vehicle or tire and wheel compo- nents.
Page 229: Sealing A Tire With Tire Service Kit
WHAT TO DO IN EMERGENCIES 227 2. Verify that the valve stem (on the wheel with the WARNING! (Continued) deflated tire) is in a position that is near to the warnings can result in injuries that are serious or ground. This will allow the Tire Service Kit Hoses (6) fatal to you, your passengers, and others around and (7) to reach the valve stem and keep the Tire you.
Page 230 228 WHAT TO DO IN EMERGENCIES 4. Remove the cap from the valve stem and then screw If the sealant (white fluid) does not flow within 0 – 10 the fitting at the end of the Sealant Hose (6) onto the seconds through the Sealant Hose (6): valve stem.
Page 231 WHAT TO DO IN EMERGENCIES 229 If the sealant (white fluid) does flow through the NOTE: If the tire becomes overinflated, push the De- Sealant Hose (6): flation Button to reduce the tire pressure to the recom- mended inflation pressure before continuing. 1.
Page 232 230 WHAT TO DO IN EMERGENCIES 1. Push in the Mode Select Knob (5) and turn to the Air CAUTION! (Continued) Mode position. contacting your skin, clothing, and the vehicle’s 2. Uncoil the power plug and insert the plug into the interior.
Page 233 WHAT TO DO IN EMERGENCIES 231 2. Disconnect the Tire Service Kit from the valve stem, 2. Locate the round Sealant Bottle release button in the reinstall the cap on the valve stem and unplug from recessed area under the sealant bottle. 12 Volt outlet.
Page 234: Jump-Starting Procedure (12 Volt Battery Only)
232 WHAT TO DO IN EMERGENCIES JUMP-STARTING PROCEDURE (12 VOLT Preparations For Jump-Start BATTERY ONLY) The battery in your vehicle is located in the underhood If your vehicle has a discharged 12 Volt battery, it can be compartment under the beauty cover. To access the jump-started using a set of jumper cables and a battery battery pull upward on the cover.
Page 235: Jump-Starting Procedure
WHAT TO DO IN EMERGENCIES 233 4. If using another vehicle to jump-start the battery, WARNING! park the vehicle within the jumper cables reach, set • Take care to avoid the radiator cooling fan when- the parking brake and make sure the ignition is OFF. ever the hood is raised.
Page 236 234 WHAT TO DO IN EMERGENCIES Connecting The Jumper Cables 5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then 1. Connect the positive (+) end of the jumper cable to turn the key to RUN position on the vehicle with the the positive (+) post of the discharged vehicle.
Page 237: Freeing A Stuck Vehicle
WHAT TO DO IN EMERGENCIES 235 FREEING A STUCK VEHICLE WARNING! (Continued) If your vehicle becomes stuck in mud, sand or snow, it or even failure, of the axle and tires. A tire could can often be moved using a rocking motion. Turn the explode and injure someone.
Page 238: Manual Park Release
236 WHAT TO DO IN EMERGENCIES MANUAL PARK RELEASE 3. Working from underneath the vehicle, remove the black rubber plug from the front of the Park module WARNING! (a black canister mounted on the front of the trans- mission). Always secure your vehicle by fully applying the 4.
Page 239: Towing A Disabled Vehicle
WHAT TO DO IN EMERGENCIES 237 5. Reinstall the rubber plug. TOWING A DISABLED VEHICLE This section describes procedures for towing a disabled 6. Release the parking brake only when a driver is in vehicle using a commercial towing service. the vehicle, or the vehicle is secured by other means.
Page 240: Enhanced Accident Response System (Ears)
238 WHAT TO DO IN EMERGENCIES ENHANCED ACCIDENT RESPONSE SYSTEM (EARS) This vehicle is equipped with an Enhanced Accident Response System. Please refer to “Occupant Restraint Systems” in “Things To Know Before Starting Your Vehicle” for further information on the Enhanced Accident Response Sys- tem (EARS) function.
Page 241 MAINTAINING YOUR VEHICLE CONTENTS ▫ Power Electronics And Battery Thermal UNDERHOOD COMPARTMENT ..241 Management Systems — Drain, Flush And ONBOARD DIAGNOSTIC SYSTEM (OBD II) Refill ......248 CYBERSECURITY .
Page 242 240 MAINTAINING YOUR VEHICLE ▫ Interior Fuses ..... . .261 ▫ Interior Bulbs ..... . .269 ▫...
Page 243: Underhood Compartment
MAINTAINING YOUR VEHICLE 241 UNDERHOOD COMPARTMENT 1 — Battery Thermal Coolant Reservoir 4 — Fuses 2 — Power Electronics Coolant Reservoir 5 — 12V Battery 3 — Brake Fluid Reservoir...
Page 244: Onboard Diagnostic System (Obd Ii) Cybersecurity
242 MAINTAINING YOUR VEHICLE ONBOARD DIAGNOSTIC SYSTEM (OBD II) For further information, refer to “Cybersecurity” in the CYBERSECURITY “Understanding Your Instrument Panel” section. Your vehicle is required to have an Onboard Diagnostic REPLACEMENT PARTS system (OBD II) and a connection port to allow access to Use of genuine parts for normal/scheduled mainte- information related to the performance of your emis- nance and repairs is highly recommended to ensure the...
Page 245: Maintenance Procedures
MAINTAINING YOUR VEHICLE 243 WARNING! WARNING! (Continued) components. All replacement or repairs of 500e You can be badly injured working on or around a System components should be performed by a motor vehicle. Only do service work for which you factory-trained technician at an authorized dealer.
Page 246: Power Electronics And Battery Thermal Management Systems
244 MAINTAINING YOUR VEHICLE CAUTION! (Continued) your vehicle and also allow extended mainte- nance intervals. Do not use chemical flushes in these components as the chemicals can damage them. Such damage is not covered by the New Vehicle Limited Warranty. If a flush is needed because of component malfunction, use only the specified fluid for the flushing procedure.
Page 247 MAINTAINING YOUR VEHICLE 245 Maintain coolant (antifreeze) concentration at a mini- mum of 50% Mopar Antifreeze/Coolant 10 Year/ 150,000 Mile Formula OAT (Organic Additive Technol- ogy) and distilled/deionized water for proper corrosion protection. Check the coolant bottles tubing for brittle rubber, cracking, tears, cuts and tightness of the connection at the bottles and radiator.
Page 248: Power Electronics And Battery Thermal Management Systems - Cooling Pressure Caps
246 MAINTAINING YOUR VEHICLE Power Electronics And Battery Thermal WARNING! (Continued) Management Systems — Cooling Pressure Caps • Do not use a pressure cap other than the one The caps must be fully tightened to prevent loss of specified for your vehicle. Personal injury or coolant (antifreeze).
Page 249: Adding Coolant
MAINTAINING YOUR VEHICLE 247 When adding coolant (antifreeze): CAUTION! (Continued) • The manufacturer recommends using Mopar • Do not use water alone or alcohol-based coolant Antifreeze/Coolant 10 Year/150,000 Mile Formula (antifreeze) products. Do not use additional rust OAT (Organic Additive Technology). inhibitors or antirust products, as they may not be •...
Page 250: Power Electronics And Battery Thermal Management Systems - Drain, Flush And Refill
248 MAINTAINING YOUR VEHICLE Power Electronics And Battery Thermal puddles on the ground. If ingested by a child, contact a Management Systems — Drain, Flush And Refill physician immediately. Clean up any ground spills immediately. Refer to “Maintenance Schedules” for the proper main- tenance intervals.
Page 251: Maintenance-Free Battery 12 Volt
MAINTAINING YOUR VEHICLE 249 recovery bottles. If coolant (antifreeze) needs to be WARNING! added, contents of coolant recovery bottles must also • Battery fluid is a corrosive acid solution and can be protected against freezing. burn or even blind you. Do not allow battery •...
Page 252: Air Conditioner Maintenance
250 MAINTAINING YOUR VEHICLE CAUTION! CAUTION! • It is essential when replacing the cables on the Do not use chemical flushes in your air condition- battery that the positive cable is attached to the ing system as the chemicals can damage your air positive post and the negative cable is attached to conditioning components.
Page 253: Body Lubrication
MAINTAINING YOUR VEHICLE 251 Body Lubrication Wiper Blades Locks and all body pivot points, including such items as Clean the rubber edges of the wiper blades and the seat tracks, door hinge pivot points and rollers, liftgate, windshield and rear window periodically with a tailgate, decklid, sliding doors and hood hinges, should sponge or soft cloth and a mild nonabrasive cleaner.
Page 254 252 MAINTAINING YOUR VEHICLE Rear Wiper Blade Removal/Installation 3. Grab the bottom of the wiper blade and rotate it forward to unsnap the blade pivot pin from the 1. Lift the pivot cap on the rear wiper arm upward, this wiper blade holder.
Page 255: Adding Washer Fluid
MAINTAINING YOUR VEHICLE 253 5. Lower the wiper blade and snap the pivot cap into WARNING! place. Riding the brakes can lead to brake failure and Adding Washer Fluid possibly a collision. Driving with your foot resting The windshield washer fluid reservoir is located in the or riding on the brake pedal can result in abnor- underhood compartment, and the fluid level should be mally high brake temperatures, excessive lining...
Page 256: Appearance Care And Protection From
254 MAINTAINING YOUR VEHICLE NOTE: WARNING! (Continued) Use only manufacturer’s recommended brake fluid. This may cause it to boil unexpectedly during Refer to “Fluids, Lubricants, And Genuine Parts” in hard or prolonged braking, resulting in sudden “Maintaining Your Vehicle” for further information. brake failure.
Page 257 MAINTAINING YOUR VEHICLE 255 • If insects, tar, or other similar deposits have accumu- hot or cold weather and other extreme conditions will have an adverse effect on paint, metal trim, and under- lated on your vehicle, use Mopar Super Kleen Bug body protection.
Page 258 256 MAINTAINING YOUR VEHICLE Special Care Wheel And Wheel Trim Care • If you drive on salted or dusty roads, or if you drive All wheels and wheel trim, especially aluminum and near the ocean, hose off the undercarriage at least chrome plated wheels, should be cleaned regularly once a month.
Page 259 MAINTAINING YOUR VEHICLE 257 CAUTION! CAUTION! Avoid products or automatic car washes that use Do not use scouring pads, steel wool, a bristle acidic solutions or strong alkaline additives or brush, metal polishes or oven cleaner. These prod- harsh brushes. These products and automatic car ucts may damage the wheel’s protective finish.
Page 260 258 MAINTAINING YOUR VEHICLE • For grease stains, apply Mopar Multi-Purpose Dark Vapor Or Black Satin Chrome Wheels Cleaner to a clean, damp cloth and remove stain. Use CAUTION! a fresh, damp towel to remove soap residue. • Do not use any harsh solvents or any other form of If your vehicle is equipped with Dark Vapor or protectants on Stain Repel products.
Page 261 MAINTAINING YOUR VEHICLE 259 Plastic is not as scratch resistant as glass and therefore WARNING! different lens cleaning procedures must be followed. Do not use volatile solvents for cleaning purposes. To minimize the possibility of scratching the lenses and Many are potentially flammable, and if used in reducing light output, avoid wiping with a dry cloth.
Page 262 260 MAINTAINING YOUR VEHICLE Instrument Panel Cover 2. Dry with a soft cloth. The instrument panel cover has a low glare surface Seat Belt Maintenance which minimizes reflections on the windshield. Do not Do not bleach, dye or clean the belts with chemical use protectants or other products which may cause solvents or abrasive cleaners.
Page 263: Fuses
MAINTAINING YOUR VEHICLE 261 WARNING! (Continued) WARNING! (Continued) • If a general protection fuse for safety systems (air Seat belt assemblies must be replaced after a colli- sion if they have been damaged (i.e., bent retractor, bag system, braking system), power unit systems torn webbing, etc.).
Page 264 262 MAINTAINING YOUR VEHICLE Vehicle Fuse Cavity Mini Fuse Description Number 7.5 Amp Brown Right Low Beam 5 Amp Tan Front and Rear Ceiling Lights Trunk and Door Courtesy Lights 5 Amp Tan Instrument Panel Node 20 Amp Yellow Central Door Locking 10 Amp Red Diagnostic Socket, Climate Control Sys- tem, Tire Pressure Monitor, TCU...
Page 265 MAINTAINING YOUR VEHICLE 263 The fuse for the heated mirrors is located behind an access panel on the front of the Instrument Panel. NOTE: This fuse is a single fuse attached directly to the wire harness. F90 Fuse Location 1 — Heated Mirror Fuse 2 —...
Page 266: Power Distribution Center #1
264 MAINTAINING YOUR VEHICLE Power Distribution Center #1 The ID number of the electrical component correspond- ing to each fuse can be found on the back of the cover. The Power Distribution Center #1 is located on the right side of the underhood compartment. To access the fuses, remove locking screw and slide cover off.
Page 267 MAINTAINING YOUR VEHICLE 265 Cavity Maxi Fuse Mini Fuse Description 60 Amp Blue – Radiator Fan 40 Amp Orange – Regen Brake Module 40 Amp Orange – HVAC – 5 Amp Tan Air Electric Heater Charge Indicator – 10 Amp Red Horn –...
Page 268: Power Distribution Center (Pdc) #2
266 MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Mini Fuse Description 30 Amp Green – Electronic Shifter (ESM) 30 Amp Green – Sunroof – 25 Amp Clear Regen Brake Module 30 Amp Green – Rear Window Heater – 5 Amp Tan Electronic Shifter (ESM) Power Distribution Center (PDC) #2 The Power Distribution Center #2 is located next to the...
Page 269: Vehicle Storage
MAINTAINING YOUR VEHICLE 267 FPT13 – 10 Amp Red EAC (AC Compressor) On Board Charging Module (OBCM) FPT16 – 5 Amp Tan Intelligent Battery Sensor (IBS) FPT17 – 10 Amp Red EAC (AC Compressor) Radiator Fan FPT20 – 10 Amp Red Electronic Vehicle Control Unit (EVCU) Cavity...
Page 270: Replacement Bulbs
268 MAINTAINING YOUR VEHICLE REPLACEMENT BULBS Interior Bulbs Bulb Number Overhead Lamp Courtesy Lamp Rear Cargo Lamps Exterior Bulbs Bulb Number Front Low and High Beam Headlamp HIR2LL Front Parking/Daytime Running Lamps W21/5W Front Fog Lamps H11LL Front Side Marker Lamps Front Turn Signal Lamps WY21W Side Direction Lamps...
Page 271: Bulb Replacement
MAINTAINING YOUR VEHICLE 269 Bulb Number NOTE: Numbers refer to commercial bulb types that can be purchased from your authorized dealer. If a bulb needs to be replaced, visit your authorized dealer or refer to the applicable Service Manual. BULB REPLACEMENT Headlamps Low Beam And High Beam Interior Bulbs 1.
Page 272 270 MAINTAINING YOUR VEHICLE Front/Rear Side Marker Lamps 1. Remove portion of the wheel liner to allow hand access to side marker lamp. 2. Rotate the bulb socket counterclockwise, and remove the bulb and socket assembly from the housing. 3. Pull the bulb from the socket and insert the replace- ment bulb.
Page 273: Fluid Capacities
MAINTAINING YOUR VEHICLE 271 6. Replace lamps as required and reinstall lamp. Center High Mounted Stop Lamp (CHMSL) 1. Remove the two guard caps and the two fastening screws. 2. Remove the center high mounted stop lamp assem- bly. 3. Disconnect the electric connector. 4.
Page 274: Fluids, Lubes, And Genuine Parts
272 MAINTAINING YOUR VEHICLE FLUIDS, LUBES, AND GENUINE PARTS Component Fluid, Lubricant, or Genuine Part Coolant Mopar Antifreeze/Coolant 10 Year/150,000 Mile For- mula OAT (Organic Additive Technology) or equiva- lent meeting the requirements of FCA Material Stan- dard MS.90032. Brake Master Cylinder Mopar DOT 3, SAE J1703 should be used.
Page 275 MAINTAINING YOUR VEHICLE 273 CAUTION! • Mixing of coolant (antifreeze) other than speci- fied Organic Additive Technology (OAT) coolant (antifreeze), may result in cooling system damage and may decrease corrosion protection. Organic Additive Technology (OAT) coolant is different and should not be mixed with Hybrid Organic Additive Technology (HOAT) coolant (anti- freeze).
Page 277 MAINTENANCE SCHEDULES CONTENTS ▫ Maintenance Chart ....276 MAINTENANCE SCHEDULE ... .276...
Page 278 276 MAINTENANCE SCHEDULES MAINTENANCE SCHEDULE At Every Service Interval: • Rotate the tires. Rotate at the first sign of Once A Month Or Before A Trip: irregular wear. • Check windshield washer fluid level • Inspect brake pads, shoes, rotors, drums, and •...
Page 279 MAINTENANCE SCHEDULES 277 Mileage or time passed (whichever comes first) Or Years: Or Kilometers: Additional Inspections Inspect the CV joints. Inspect front suspension, tie rod ends and boot seals, and re- place if necessary. Inspect the brake linings. Re- place as necessary. Inspect parking brake function.
Page 280 278 MAINTENANCE SCHEDULES WARNING! • You can be badly injured working on or around a motor vehicle. Do only service work for which you have the knowledge and the right equipment. If you have any doubt about your ability to perform a service job, take your vehicle to a competent mechanic.
Page 281 D.C.......283 ▫ FIAT Customer Center ....281 ▫...
Page 282: Suggestions For Obtaining Service For Your Vehicle
280 IF YOU NEED CONSUMER ASSISTANCE SUGGESTIONS FOR OBTAINING SERVICE FOR IF YOU NEED ASSISTANCE YOUR VEHICLE The manufacturer and its authorized dealer are vitally interested in your satisfaction. We want you to be Prepare For The Appointment happy with our products and services. If you are having warranty work done, be sure to bring the right papers with you, as well as your warranty Warranty service must be done by an authorized dealer.
Page 283: Fiat Customer Center
Customer Service Chrysler International Services LLC P.O. Box 21–8004 Auburn Hills, MI 48321–8004 P.O. Box 191857 Phone: 1-888-242-6342 San Juan 00919-1857 FIAT Canada Customer Center Tel.: (787) 782-5757 P.O. Box 1621 Fax: (787) 782-3345 Windsor, Ontario N9A 4H6 Phone: (800) 465-2001 English / (800) 387-9983 French...
Page 284: Customer Assistance For The Hearing Or Speech Impaired (Tdd/Tty)
282 IF YOU NEED CONSUMER ASSISTANCE Customer Assistance For The Hearing Or mail within three weeks of the vehicle delivery date. If Speech Impaired (TDD/TTY) you have any questions about the service contract, call the manufacturer’s Service Contract National Customer To assist customers who have hearing difficulties, the Hotline at 1-800-521-9922 (Canadian residents, call (800) manufacturer has installed special TDD (Telecommuni-...
Page 285: Warranty Information
IF YOU NEED CONSUMER ASSISTANCE 283 If NHTSA receives similar complaints, it may open WARNING! an investigation, and if it finds that a safety defect exists in a group of vehicles, it may order a recall and Engine exhaust (internal combustion engines only), remedy campaign.
Page 286: Publication Order Forms
284 IF YOU NEED CONSUMER ASSISTANCE PUBLICATION ORDER FORMS Owner’s Manuals To order the following manuals, you may use either the These Owner’s Manuals have been prepared with the website or the phone numbers listed below. Visa, Mas- assistance of service and engineering specialists to tercard, American Express, and Discover orders are acquaint you with specific FCA US LLC vehicles.
Page 287 INDEX...
Page 288 286 INDEX Adding Washer Fluid .....253 Anti-Lock Brake System (ABS) ....183 Air Bag .
Page 289 INDEX 287 Bulb Replacement.....268, 269 Clutch Fluid ......253 Bulbs, Light.
Page 290 288 INDEX Driving Freeing A Stuck Vehicle ....235 Through Flowing, Rising, Or Shallow Standing Fuses ....... . .261 Water .
Page 291 INDEX 289 Instrument Cluster ....121, 135 Light Bulbs ......80, 268 Instrument Cluster .
Page 292 290 INDEX Lug Nuts ......222 Power Door Locks ......36 Maintenance Free Battery.
Page 293 INDEX 291 Replacement Parts......242 Child Restraint ......61 Replacement Tires .
Page 294 292 INDEX Speed Control High Speed ......201 Accel/Decel ......104 Inflation Pressures .
Page 295 INDEX 293 Transaxle Water Automatic ......28 Driving Through ..... . .179 Transmission Wheel And Wheel Trim .
Page 296 INSTALLATION OF RADIO TRANSMITTING EQUIPMENT Special design considerations are incorporated into this The antenna cable should be as short as practical and vehicle’s electronic system to provide immunity to radio routed away from the vehicle wiring when possible. Use frequency signals. Mobile two-way radios and telephone only fully shielded coaxial cable.

Fiat 500e 2017 Owner's Manual

Introduction

Things to Know before Starting Your Vehicle

Understanding the Features of Your Vehicle

Understanding Your Instrument Panel

Starting and Operating

What to Do in Emergencies

Maintaining Your Vehicle

If You Need Consumer Assistance

Quick Links

Chapters

Need help?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fiat 500e 2017

Summary of Contents for Fiat 500e 2017
