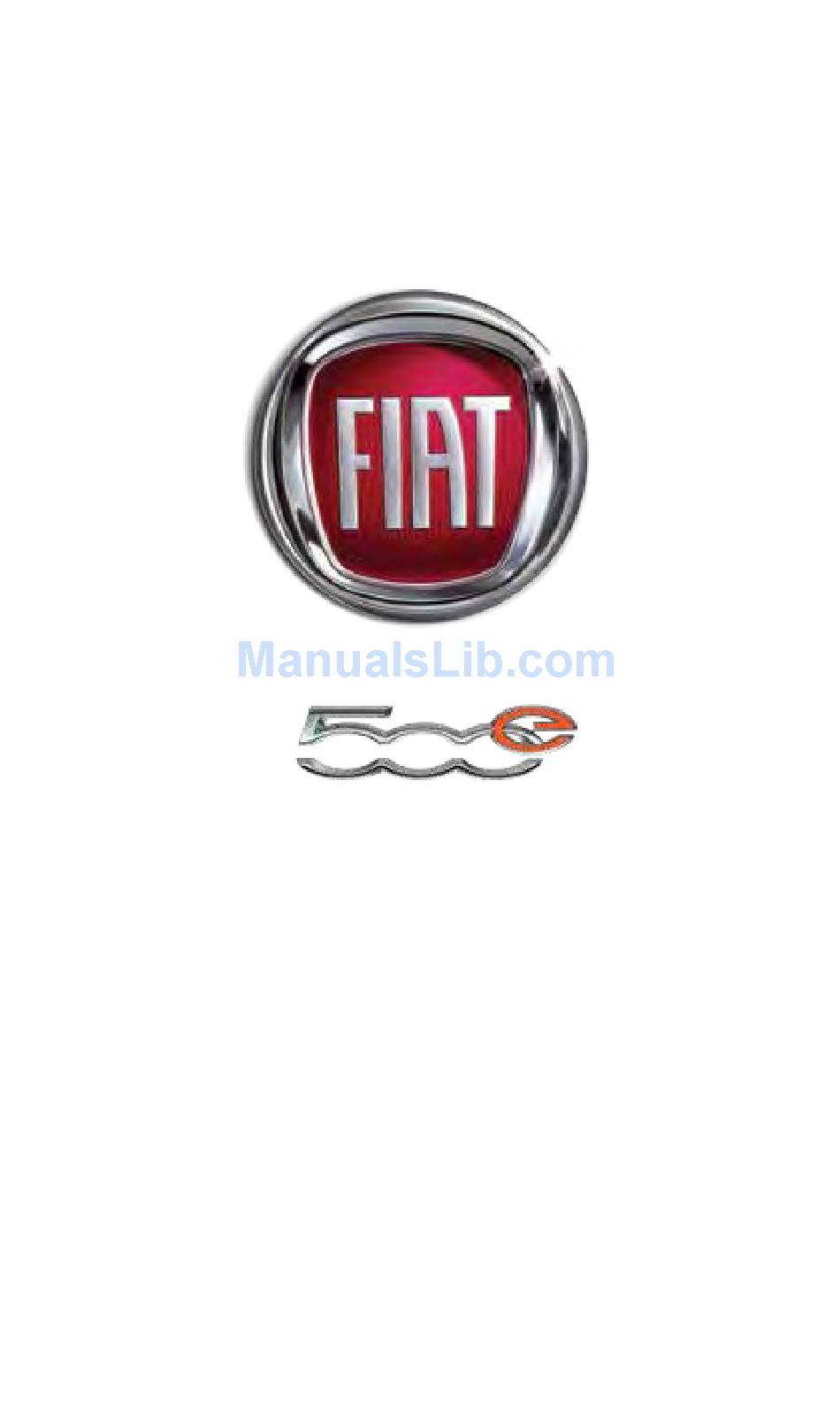

  • Page 1 2 0 17 FI AT 5 0 0 e U S E R GU ID E ®...
  • Page 2 If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner’s Manual, Navigation/Uconnect Manuals or Warranty Booklet by calling 1 888 242-6342 (U.S.) or 1 800 387-1143 (Canada) or by contacting your dealer. The driver’s primary responsibility is the safe operation of the vehicle.

  • Page 3: Table Of Contents

    INTRODUCTION/WELCOME UTILITY WELCOME FROM FIAT ....2 TRAILER TOWING ....104 IMPORTANT VEHICLE INFORMATION ..4 RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) .

  • Page 4: Introduction/Welcome

    INTRODUCTION/WELCOME WELCOME FROM FIAT Congratulations on selecting your new FIAT 500e. Be assured that your 500e represents an elegant marriage of technology and Italian styling that is as good for the environment as is fun to drive! Your new 500e has characteristics to enhance the driver's control under some driving conditions.
  • Page 5 INTRODUCTION/WELCOME WARNING! • Pedals that cannot move freely can cause loss of vehicle control and increase the risk of serious personal injury. • Always make sure that objects cannot fall into the driver foot well while the ve- hicle is moving. Objects can become trapped under the brake pedal and accelera- tor pedal causing a loss of vehicle control.

  • Page 6: Important Vehicle Information

    INTRODUCTION/WELCOME IMPORTANT VEHICLE INFORMATION Your 500e operates entirely on electricity stored in the high voltage battery. Unlike a conventional vehicle or Hybrid there is no internal combustion engine. Battery Electric Vehicles have unique operating characteristics that you should become familiar with to ensure you are getting the optimal performance from your vehicle.
  • Page 7 INTRODUCTION/WELCOME Disposal Of The High Voltage Battery Your vehicle’ s high voltage battery is designed to last the life of your vehicle. See your authorized dealer for information on the disposal of the battery if it should require re- placement. General Information The vehicle is also equipped with a Battery Management System that is designed to: •...

  • Page 8: Controls At A Glance

    CONTROLS AT A GLANCE DRIVER COCKPIT 1. Turn Signal/Lights Lever (behind steering wheel) pg. 65 2. Uconnect 5.0 Voice Recognition Controls pg. 84 3. Instrument Cluster pg. 8 4. Speed Control pg. 69 5. Instrument Cluster Display Controls pg. 100 6.
  • Page 9 CONTROLS AT A GLANCE 10. Climate Control pg. 73 11. Power Windows pg. 22 12. Transmission Gear Selector Buttons 13. Hazard Lights Button 14. Electronic Stability Control (ESC) OFF pg. 109 15. Hood Release pg. 123 16. Power Mirror Controls...

  • Page 10: Instrument Cluster

    CONTROLS AT A GLANCE INSTRUMENT CLUSTER 1. Speedometer 2. Battery Gauge 3. Messages And Interface Options 4. Range Projection Indicators (See page 105 for Instrument Cluster Warning Lights.)
  • Page 11 CONTROLS AT A GLANCE 5. Drive Mode Indicator 6. Driver Behavior Gauge 7. Driving Range (See page 109 for Instrument Cluster Indicator Lights.)

  • Page 12: Getting Started

    GETTING STARTED ELECTRIC VEHICLE FEATURES Auto Park The Auto Park feature automatically places the vehicle into PARK if there is any indication that the driver may leave the vehicle while the drive mode indicator is in the D (DRIVE), N (NEUTRAL) or R (REVERSE) modes. Auto Park is enabled under the following conditions: –...
  • Page 13 GETTING STARTED Smartphone Features With the “Uconnect Access” app, you can monitor the state of charge of the high voltage battery or initiate charging from your phone.You can also turn on your vehicle’ s climate control system remotely. The app provides the following features: •...
  • Page 14 GETTING STARTED 2. Choose “Settings” and scroll down and select “Connectivity ID”. After obtaining the connectivity ID and VIN number return to the vehicle registration website and perform the following: 1. After entering the VIN, Connectivity ID and your email address, click “submit”. 2.

  • Page 15: Electric System Operation

    GETTING STARTED ELECTRIC SYSTEM OPERATION Your vehicle is equipped with a 120 Volt AC, SAE J1172 Level 1 Electric Vehicle Supply Equipment (EVSE) charging cordset. Please refer to the Owner’ s Manual on www.fiatusa.com/en/owners/manuals for detailed instructions on charging your vehicle. Level 1 Charging (120V —...

  • Page 16: Evse Operation And Status Information

    GETTING STARTED The following factors determine how long a battery recharge will take: • The battery’ s current state of charge (percent depleted) • What level EVSE is being used (Level 1 or Level 2) • Ambient temperatures • Whether the vehicle is on during charging NOTE: •...
  • Page 17 GETTING STARTED If the self test is successful the AC LED, the Fault Indicator LED and the four Charge Level LED's will turn solid green. The EVSE LED's will be used to indicate the vehicle's connection status if no faults are found during the self test. Fault Indicator AC LED Charge Level Indicator LED's...

  • Page 18: Charging The High Voltage Battery

    GETTING STARTED CHARGING THE HIGH VOLTAGE BATTERY 1. Put the vehicle in PARK. 2. Turn the ignition to the OFF position. 3. Remove the Level 1 EVSE from its storage bin by lifting the rear cargo cover. 4. Uncoil the entire length of the EVSE (charge cord).
  • Page 19 GETTING STARTED NOTE: • The vehicle will initiate the charging cycle automatically when all the conditions are satisfied. • The vehicle battery gauge will show the pattern for charging. • Do not use an extension cord with the EVSE. • To remove the EVSE push the button on the connector and pull firmly to remove it from the vehicle’...

  • Page 20: Starting Your 500E

    GETTING STARTED Number Of Indicator Lights Illuminated Percent Of Battery Charge 1 Light 0 – 20% 2 Lights 21 – 40% 3 Lights 41 – 60% 4 Lights 61 – 80% 5 Lights 81 – 100% STARTING YOUR 500e • Before starting your vehicle, adjust your seat, adjust both inside and outside mirrors, and fasten your seat belts.

  • Page 21: Key Fob

    GETTING STARTED • When the “READY” indicator is illuminated, your 500e is ready to be driven. • If the “READY” indicator fails to illumi- nate after you have followed the normal starting procedure, contact your autho- rized dealer. NOTE: You must press the brake pedal before shifting out of PARK.

  • Page 22: Vehicle Security Alarm

    GETTING STARTED Opening The Liftgate To open the liftgate, push the liftgate release handle located on the underside of the li- cense plate bar and pull the liftgate open with one fluid motion. Push the liftgate button located on the key fob. WARNING! Never leave children alone in a vehicle, or with access to an unlocked vehicle.

  • Page 23: Power Door Locks

    GETTING STARTED POWER DOOR LOCKS A power door lock switch is incorporated into the driver door handle. Push or pull the handle to lock or unlock the doors and liftgate. If the driver’ s door handle is pushed, a red lock indicator will show on the driver’ s door handle (indicating locked). When the door is closed, the door will lock.

  • Page 24: Power Windows

    GETTING STARTED POWER WINDOWS Power Window Switches There are single window controls located on the shifter bezel, below the climate controls, which operate the driver and passenger door windows. The window controls will operate when the ignition switch is in the MAR (ACC/ON/RUN) position. WARNING! Never leave children unattended in a vehicle, and do not let children play with power windows.

  • Page 25: Liftgate

    GETTING STARTED LIFTGATE To unlock the liftgate, use the Remote Keyless Entry key fob or activate the power door lock switches located on the front door handles. To open the liftgate, squeeze the liftgate release handle and pull the liftgate open with one fluid motion.
  • Page 26 GETTING STARTED 2. If a child from 2 to 12 years old (not in a rear-facing child restraint) must ride in the front passenger seat, move the seat as far back as possible and use the proper child restraint (refer to “Child Restraints” in this section for further information). 3.
  • Page 27 GETTING STARTED Enhanced Seat Belt Use Reminder System Driver And Passenger BeltAlert (If Equipped) BeltAlert is a feature intended to remind the driver and outboard front seat passen- ger (if equipped with outboard front passenger seat BeltAlert) to buckle their seat belts. The Belt Alert feature is active whenever the ignition switch is in the AVV/START or MAR/ON/RUN position.
  • Page 28 GETTING STARTED BeltAlert can be activated or deactivated by your authorized dealer. FCA US LLC does not recommend deactivating BeltAlert. NOTE: If BeltAlert has been deactivated and the driver or outboard front seat passenger (if equipped with outboard front passenger seat BeltAlert) is unbuckled the Seat Belt Re- minder Light will turn on and remain on until the driver and outboard front seat passen- ger seat belts are buckled.
  • Page 29 GETTING STARTED WARNING! • A lap belt worn too high can increase the risk of injury in a collision. The seat belt forces won’t be at the strong hip and pelvic bones, but across your abdomen. Al- ways wear the lap part of your seat belt as low as possible and keep it snug. •...
  • Page 30 GETTING STARTED Lap/Shoulder Belt Operating Instructions 1. Enter the vehicle and close the door. Sit back and adjust the seat. 2. The seat belt latch plate is above the back of the front seat, and next to your arm in the rear seat (for vehicles equipped with a rear seat).
  • Page 31 GETTING STARTED 4. Position the lap belt so that it is snug and lies low across your hips, below your abdo- men. To remove slack in the lap belt portion, pull up on the shoulder belt. To loosen the lap belt if it is too tight, tilt the latch plate and pull on the lap belt. A snug seat belt reduces the risk of sliding under the seat belt in a collision.
  • Page 32 GETTING STARTED WARNING! • ONLY use the Seat Belt Extender if it is physically required in order to properly fit the original seat belt system. DO NOT USE the Seat Belt Extender if, when worn, the distance between the front edge of the Seat Belt Extender buckle and the center of the occupant’...
  • Page 33 GETTING STARTED Energy Management Feature This vehicle has a seat belt system with an Energy Management feature in the front seat- ing positions that may help further reduce the risk of injury in the event of a collision. The seat belt system has a retractor assembly that is designed to release webbing in a controlled manner.
  • Page 34 GETTING STARTED How To Engage The Automatic Locking Mode 1. Buckle the combination lap and shoulder belt. 2. Grasp the shoulder portion and pull downward until the entire seat belt is extracted. 3. Allow the seat belt to retract. As the seat belt retracts, you will hear a clicking sound. This indicates the seat belt is now in the Automatic Locking Mode.
  • Page 35 GETTING STARTED • Supplemental Knee Air Bags • Front and Side Impact Sensors • Seat Belt Pretensioners • Seat Track Position Sensors • Seat Belt Buckle Switch Air Bag Warning Light The ORC monitors the readiness of the electronic parts of the air bag system whenever the ignition switch is in the AVV/START or MAR/ACC/ON/RUN position.
  • Page 36 GETTING STARTED WARNING! Ignoring the Air Bag Warning Light in your instrument panel could mean you won’t have the air bag system to protect you in a collision. If the light does not come on as a bulb check when the ignition is first turned on, stays on after you start the vehicle, or if it comes on as you drive, have an authorized dealer service the air bag system immedi- ately.
  • Page 37 GETTING STARTED WARNING! • Being too close to the steering wheel or instrument panel during front air bag deployment could cause serious injury, including death. Air bags need room to in- flate. Sit back, comfortably extending your arms to reach the steering wheel or instrument panel.
  • Page 38 GETTING STARTED Front Air Bag Operation Front Air Bags are designed to provide additional protection by supplementing the seat belts. Front air bags are not expected to reduce the risk of injury in rear, side, or rollover collisions. The front air bags will not deploy in all frontal collisions, including some that may produce substantial vehicle damage —...
  • Page 39 GETTING STARTED Supplemental Side Air Bags Your vehicle is equipped with two types of supplemental Side Air Bags: 1. Supplemental Seat-Mounted Side Air Bags (SABs): Located in the outboard side of the front seats. The SABs are marked with a “SRS AIRBAG” or “AIRBAG” label sewn into the outboard side of the seats.
  • Page 40 GETTING STARTED 2. Supplemental Side Air Bag Inflatable Curtains (SABICs): Located above the side win- dows. The trim covering the SABICs is labeled “SRS AIRBAG” or “AIRBAG.” SABICs may help reduce the risk of head and other injuries to front and rear seat outboard occupants in cer- tain side impacts, in addition to the injury reduction potential provided...
  • Page 41 GETTING STARTED The Side Air Bags will not deploy in all side collisions, including some collisions at certain angles, or some side collisions that do not impact the area of the passenger compart- ment. The Side Air Bags may deploy during angled or offset frontal collisions where the front air bags deploy.
  • Page 42 GETTING STARTED The Occupant Restraint Controller (ORC) monitors the internal circuits and intercon- necting wiring associated with electrical Air Bag System Components listed below: Air Bag System Components • Occupant Restraint Controller (ORC) • Air Bag Warning Light • Steering Wheel and Column •...
  • Page 43 GETTING STARTED Do not drive your vehicle after the air bags have deployed. If you are involved in another collision, the air bags will not be in place to protect you. WARNING! Deployed air bags and seat belt pretensioners cannot protect you in another collision. Have the air bags, seat belt pretensioners, and the seat belt retractor assemblies re- placed by an authorized dealer immediately.
  • Page 44 GETTING STARTED Maintaining Your Air Bag System WARNING! • Modifications to any part of the air bag system could cause it to fail when you need it. You could be injured if the air bag system is not there to protect you. Do not modify the components or wiring, including adding any kind of badges or stick- ers to the steering wheel hub trim cover or the upper right side of the instru- ment panel.

  • Page 45: Child Restraints

    GETTING STARTED To read data recorded by an EDR, special equipment is required, and access to the ve- hicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.
  • Page 46 GETTING STARTED Summary Of Recommendations For Restraining Children In Vehicles Recommended Type Of Child Child Size, Height, Weight Or Age Restraint Children who are two years old Either an Infant Carrier or a Infants and or younger and who have not Convertible Child Restraint, fac- Toddlers reached the height or weight...
  • Page 47 GETTING STARTED Older Children And Child Restraints Children who are two years old or who have outgrown their rear-facing convertible child seat can ride forward-facing in the vehicle. Forward-facing child seats and convertible child seats used in the forward-facing direction are for children who are over two years old or who have outgrown the rear-facing weight or height limit of their rear-facing convertible child seat.
  • Page 48 GETTING STARTED If the answer to any of these questions was “no, ” then the child still needs to use a booster seat in this vehicle. If the child is using the lap/shoulder belt, check seat belt fit periodically and make sure the seat belt buckle is latched. A child’ s squirming or slouching can move the belt out of position.
  • Page 49 GETTING STARTED Lower Anchors And Tethers For CHildren (LATCH) Restraint System Your vehicle is equipped with the child re- straint anchorage system called LATCH, which stands for Lower Anchors and Teth- ers for CHildren. The LATCH system has three vehicle anchor points for installing LATCH-equipped child seats.
  • Page 50 GETTING STARTED Frequently Asked Questions About Installing Child Restraints With LATCH Use the LATCH anchorage system What is the weight limit until the combined weight of the (child’ s weight + weight of child and the child restraint is 65 lbs the child restraint) for using 65 lbs (29.5 kg) (29.5 kg).
  • Page 51 GETTING STARTED Locating The LATCH Anchorages The lower anchorages are round bars that are found at the rear of the seat cushion where it meets the seatback, below the anchorage symbols on the seatback. They are just visible when you lean into the rear seat to install the child restraint.You will easily feel them if you run your finger along the gap between the seatback and seat cushion.
  • Page 52 GETTING STARTED Center Seat LATCH WARNING! This vehicle does not have a center seating position. Do not use the center lower LATCH anchorages to install a child seat in the center of the back seat. Always follow the directions of the child restraint manufacturer when installing your child restraint.
  • Page 53 GETTING STARTED with the child restraint installation, instead of buckling it behind the child restraint, route the seat belt through the child restraint belt path and then buckle it. Do not lock the seat belt. Remind all children in the vehicle that the seat belts are not toys and that they should not play with them.
  • Page 54 GETTING STARTED Lap/Shoulder Belt Systems For Installing Child Restraints In This Vehicle Automatic Locking Retractor (ALR) Locations ALR = Switchable Automatic Locking Re- tractor = Top Tether Anchorage Symbol Frequently Asked Questions About Installing Child Restraints With Seat Belts What is the weight limit (child’ s Always use the tether anchor weight + weight of the child when using the seat belt to...
  • Page 55 GETTING STARTED Installing A Child Restraint With A Switchable Automatic Locking Retractor (ALR) Child restraint systems are designed to be secured in vehicle seats by lap belts or the lap belt portion of a lap/shoulder belt. WARNING! • Improper installation or failure to properly secure a child restraint can lead to fail- ure of the restraint.
  • Page 56 GETTING STARTED Installing Child Restraints Using The Top Tether Anchorage WARNING! Do not attach a tether strap for a rear-facing car seat to any location in front of the car seat, including the seat frame or a tether anchorage. Only attach the tether strap of a rear-facing car seat to the tether anchorage that is approved for that seating position, located behind the top of the vehicle seat.

  • Page 57: Head Restraints

    GETTING STARTED 4. Remove slack in the tether strap according to the child restraint manufacturer’ s instructions. WARNING! • An incorrectly anchored tether strap could lead to increased head motion and possible injury to the child. Use only the anchorage position directly behind the child seat to secure a child restraint top tether strap.
  • Page 58 GETTING STARTED To raise the head restraint, pull upward on the head restraint. To lower the head re- straint, push the adjustment button, located at the base of the head restraint, and push downward on the head restraint. The Reactive Head Restraints will automati- cally return to their normal position follow- ing a rear impact.

  • Page 59: Rear Head Restraints

    GETTING STARTED Rear Head Restraints To raise the head restraint, pull upward on the head restraint. To lower the head re- straint, push the adjustment button, located at the base of the head restraint, and push downward on the head restraint. Refer to “Occupant Restraints” in “Things To Know Be- fore Starting Your Vehicle”...

  • Page 60: Seats

    GETTING STARTED SEATS Seats are a part of the Occupant Restraint System of the vehicle. WARNING! • It is dangerous to ride in a cargo area, inside or outside of a vehicle. In a collision, people riding in these areas are more likely to be seriously injured or killed. •...

  • Page 61: Recline Adjustment

    GETTING STARTED Recline Adjustment The recline adjustment lever is located on the inboard side of the seat. To recline the seatback, lift up the recline lever, lean back until the desired position has been reached, and release the lever. Recline Lever WARNING! Do not ride with the seatback reclined so that the shoulder belt is no longer resting against your chest.

  • Page 62: Memory Feature

    GETTING STARTED EZ Entry Feature The driver and front passenger seats have an EZ entry feature for rear seat passengers. Pull forward on the release lever, located on the outboard side of the seatback, dump the seatback forward, then slide the seat forward to allow access in and out of the rear seat. Lift the seatback upright and push the seat rearward to its locked position once the rear passengers are seated.
  • Page 63 GETTING STARTED Heated Seats On some models, the front driver and passenger seats may be equipped with heaters in both the seat cushions and seatbacks. The controls for the front heated seats are located on the center instrument panel area. Push the switch once to turn on the heated seats.

  • Page 64: Rear Seats

    GETTING STARTED REAR SEATS Folding Rear Seatback To fold each rear seatback, push down on the button located on the upper outboard side of the seat and fold the seatback flat. NOTE: Be sure that the front seats are fully up- right and positioned forward.

  • Page 65: Tilt Steering Column

    GETTING STARTED TILT STEERING COLUMN This feature allows you to tilt the steering column upward or downward. The tilt con- trol lever is located on the left-side of the steering column, below the turn signal con- trols. Push down on the lever to unlock the col- umn.

  • Page 66: Operating Your Vehicle

    OPERATING YOUR VEHICLE EXTENDING YOUR DRIVING RANGE PER CHARGE • A little knowledge will go a long way to extend your driving range on the 500e. First and foremost understand that the drive system and cabin temperature management features use the most energy from the high voltage battery. Reducing energy draw from these features are the easiest and most effective way to extend driving range.

  • Page 67: Lights

    OPERATING YOUR VEHICLE LIGHTS Multifunction Lever The multifunction lever, located on the left side of the steering wheel, controls the opera- tion of the headlights, headlight beam selection, passing light and turn signals. NOTE: The headlights can only be turned on with the ignition in the ON/RUN position. Headlights Rotate the end of the multifunction lever upward to the first detent for headlight...
  • Page 68 OPERATING YOUR VEHICLE Turn Signals Push the multifunction lever upward to signal a right turn or downward to signal a left turn. The corresponding indicator in the instrument cluster display will blink to indicate the operation of the turn signal. NOTE: The indicators will automatically turn off when the turn has been completed and the steering wheel is returned to a straight position.
  • Page 69 OPERATING YOUR VEHICLE Interior Light Timing (Center Position) There are four different modes of operation that can be activated in this position: • When one door is opened, a three minute timer is activated. • When the key is removed from the ignition (within two minutes of the ignition being turned OFF), a 10 second timer is activated.

  • Page 70: Wiper/Washer Lever

    OPERATING YOUR VEHICLE WIPER/WASHER LEVER Front Wipers Intermittent, Low And High Operation Move the lever downward to the first de- tent for intermittent wiper operation, the second detent for low wiper operation and to the third detent for high wiper opera- tion.

  • Page 71: Speed Control

    OPERATING YOUR VEHICLE SPEED CONTROL When engaged, the Speed Control takes over accelerator operations at speeds greater than 25 mph (40 km/h). The Speed Control buttons are located on the right side of the steering wheel. NOTE: In order to ensure proper operation, the Speed Control system has been designed to shut down if multiple Speed Control functions are operated at the same time.
  • Page 72 OPERATING YOUR VEHICLE To Set A Desired Speed Turn the Speed Control on. When the vehicle has reached the desired speed, push the SET (-) button and release. Release the accelerator and the vehicle will operate at the selected speed. NOTE: The vehicle should be traveling at a steady speed and on level ground before pushing the SET (-) btton.
  • Page 73 OPERATING YOUR VEHICLE Metric Speed (km/h) • Pushing the RES (+) button once will result in a 1 km/h increase in set speed. Each subsequent tap of the button results in an increase of 1 km/h. • If the button is continually pushed, the set speed will continue to increase until the button is released, then the new set speed will be established.
  • Page 74 OPERATING YOUR VEHICLE Using Speed Control On Hills NOTE: The Speed Control system maintains speed up and down hills. A slight speed change on moderate hills is normal. On steep hills, a greater speed loss or gain may occur so it may be preferable to drive without Speed Control.

  • Page 75: Automatic Temperature Controls (Atc)

    OPERATING YOUR VEHICLE AUTOMATIC TEMPERATURE CONTROLS (ATC) Automatic Temperature Controls 1 — AUTO Button 6 — Front Window Defroster Button 2 — A/C Button 7 — Panel Mode Button 3 — Temperature Control Up/Down But- 8 — Floor Mode Button tons 9 —...

  • Page 76: Rear Park Assist

    OPERATING YOUR VEHICLE Heated Mirrors The mirrors are heated to melt frost or ice. This feature is activated when you turn on the rear window defroster, which is located in the center of the instrument panel, below the radio. REAR PARK ASSIST If an object is detected behind the rear bumper while the vehicle is in REVERSE, a chime will sound.

  • Page 77: Pinch Protect Feature

    OPERATING YOUR VEHICLE To Open Push and hold the power sunroof switch rearward for approximately one second and the sunroof will stop at the vented position. Push the switch a second time and hold for ap- proximately one second and release, the sunroof will open fully, then stop automatically. This is called “Express Open”.

  • Page 78: Electronics

    ELECTRONICS YOUR VEHICLE'S SOUND SYSTEM 1. Mute Button 2. Phone Pick Up Button pg. 91 3. Phone Hang Up Button pg. 91 4. Voice Command Button pg. 85 5. Steering Wheel Audio Controls (Left) pg. 100 6. Steering Wheel Audio Controls (Right) pg. 100 7.
  • Page 79 ELECTRONICS 9. Uconnect 5.0 Radio pg. 79 10. Settings Button 11. Tune/Scroll Knob — Browse/Enter Button 12. MORE Button 13. Power Outlet pg. 103 14. Audio Jack pg. 83 15. USB Port pg. 83...

  • Page 80: Cybersecurity

    ELECTRONICS CYBERSECURITY Your vehicle may be a connected vehicle and may be equipped with both wired and wireless networks. These networks allow your vehicle to send and receive information. This information allows systems and features in your vehicle to function properly. Your vehicle may be equipped with certain security features to reduce the risk of unau- thorized and unlawful access to vehicle systems and wireless communications.Vehicle soft- ware technology continues to evolve over time and FCA US LLC, working with its suppli-...

  • Page 81: Uconnect 5.0

    ELECTRONICS UCONNECT 5.0 Uconnect 5.0 Radio Buttons 1 — On/Off Button 7 — MORE — Access: Clock, Trip, Com- 2 — Mute Button pass And Charging Schedule 3 — Screen Off Button 8 — PHONE Button 4 — Settings Button 9 —...
  • Page 82 ELECTRONICS 3. Press the “Up” or “Down” arrows to adjust the hours or minutes, then select the “AM” or “PM” button on the touchscreen. You can also select 12hr or 24hr format by pressing the desired button on the touchscreen. 4.

  • Page 83: Radio Operation

    ELECTRONICS Radio Operation Radio Operation 1 — Radio Station Preset 5 — Station Information 2 — All Presets 6 — Direct Tune 3 — Seek Next 7 — Radio Band 4 — Audio Settings 8 — Seek Previous Store Radio Presets Manually The Radio stores up to 12 presets in each of the Radio modes.
  • Page 84 ELECTRONICS SiriusXM Premier Over 160 Channels Get every channel available on your satellite radio, and enjoy all you want, all in one place. Hear commercial-free music plus sports, news, talk and entertainment. Get all the pre- mium programming, including Howard Stern, every NFL game, Oprah Radio, every MLB and NHL game, every NASCAR race and more.

  • Page 85: Usb/Aux Control

    ELECTRONICS PRE-DEFINED VOICE TEXT REPLY RESPONSES I’ll call you later. I need directions. See you in <5, 10, 15, 20, 25, 30, 40, 45, 60>* minutes. I’m on my way. Can’t talk right now. I’m lost. Thanks. *Use only the numbers listed or the system will not transpose the message. NOTE: Voice texting reply and voice texting features require a compatible mobile device enabled with Bluetooth Message Access Profile (MAP).

  • Page 86: Uconnect 5.0 Voice Recognition Quick Tips

    ELECTRONICS UCONNECT 5.0 VOICE RECOGNITION QUICK TIPS Introducing Uconnect Start using Uconnect Voice Recognition with these helpful quick tips. It provides the key Voice Commands and tips you need to know to control your Uconnect 5.0 system. Key features: • Five-inch Color Touchscreen Display with AM/FM/USB/Bluetooth •...

  • Page 87: Get Started

    ELECTRONICS Get Started 1. Visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions. 2. Reduce background noise. Wind and passenger conversations are examples of noise that may impact recognition. 3. Speak clearly at a normal pace and volume while facing straight ahead. The micro- phone is positioned on the rearview mirror and aimed at the driver.
  • Page 88 ELECTRONICS Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect system. . After the beep, say: Push the VR button • Cancel to stop a current voice session • Help to hear a list of suggested Voice Commands •...
  • Page 89 ELECTRONICS Radio Use your voice to quickly get to the AM, FM or SiriusXM Satellite Radio stations you would like to hear. (Subscription or included SiriusXM Satellite Radio trial required.) . After the beep, say: Push the VR button • Tune to ninety-five-point-five FM •...
  • Page 90 ELECTRONICS Media . After the beep, say one of the following commands and follow Push the VR button the prompts to switch your media source or choose an artist. • Change source to Bluetooth • Change source to iPod • Change source to USB •...
  • Page 91 ELECTRONICS Phone Making and answering hands-free phone calls is easy with Uconnect. When the Phone- book button is illuminated on your touchscreen, your system is ready. U.S./Canadian residents can visit • UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions.

  • Page 92: Additional Information

    ELECTRONICS Additional Information © 2016 FCA US LLC. All rights reserved. Mopar, Mopar Owner Connect and Uconnect are registered trademarks of FCA US LLC. Android is a trademark of Google Inc. SiriusXM and all related marks and logos are trademarks of SiriusXM Radio Inc.Yelp,Yelp logo,Yelp burst and related marks are registered trademarks of Yelp.

  • Page 93: Uconnect Phone

    ELECTRONICS UCONNECT PHONE Uconnect Phone (Bluetooth Hands Free Calling) Uconnect 5.0 Phone Menu 1 — Call/Redial/Hold 7 — Uconnect Phone Settings Menu 2 — Mobile Phone Signal Strength 8 — Text Messaging 3 — Currently Paired Mobile Phone 9 — Direct Dial Pad 4 —...
  • Page 94 ELECTRONICS Refer to the “Uconnect 5.0 Voice Recognition Quick Tips” in “Understanding Your Instru- ment Panel” in the Owner's Manual on www.fiatusa.com/en/owners/manuals for further details. NOTE: • The Uconnect Phone requires a mobile phone equipped with the Bluetooth Hands- Free Profile,Version 1.0 or higher. •...
  • Page 95 ELECTRONICS Pair Your iPhone: To search for available devices on your Bluetooth enabled iPhone: 1. Press the Settings button. 2. Select Bluetooth. • Ensure the Bluetooth feature is en- abled. Once enabled, the mobile phone will begin to search for Bluetooth connections.
  • Page 96 ELECTRONICS Pair Your Android Device: To search for available devices on your Bluetooth enabled Android Device: 1. Push the Menu button. 2. Select Settings. 3. Select Connections. 4. Turn Bluetooth setting to “On.” • Ensure the Bluetooth feature is en- abled.
  • Page 97 ELECTRONICS Select The Android Mobile Phone's Priority Level When the pairing process has successfully completed, the system will prompt you to choose whether or not this is your favorite mobile phone. Selecting “Yes” will make this mobile phone the highest priority. This mobile phone will take precedence over other paired mobile phones within range and will connect to the Uconnect system automati- cally when entering the vehicle.
  • Page 98 ELECTRONICS Voice Command Tips • Speaking complete names (i.e. Call John Doe vs. Call John) will result in greater system accuracy. • You can “link” commands together for faster results. Say “Call John Doe, mobile, ” for example. • If you are listening to available voice command options, you do not have to listen to the entire list.
  • Page 99 ELECTRONICS 4. Turn “Show Notifications” to on. Enable iPhone Incoming Text Messages Android Devices 1. Push the Menu button on the mobile phone. 2. Select Settings. 3. Select Connections. 4. Turn “Show Notifications” to on. • A pop up will appear asking you to accept a request for permission to connect to your messages.
  • Page 100 ELECTRONICS Voice Text Reply (Not Compatible With iPhone) NOTE: Voice texting reply and voice texting features require a compatible mobile device enabled with Bluetooth Message Access Profile (MAP). iPhone, and some other smartphones, may not entirely support Bluetooth MAP.Visit UconnectPhone.com for the latest system and device compatibility.
  • Page 101 ELECTRONICS Helpful Tips And Common Questions To Improve Bluetooth Performance With Your Uconnect System Mobile Phone won’t reconnect to system after pairing: • Set mobile phone to auto-connect or trusted device in mobile phone Bluetooth set- tings (Blackberry devices). • Perform a factory reset on your mobile phone.

  • Page 102: Steering Wheel Audio Controls

    ELECTRONICS STEERING WHEEL AUDIO CONTROLS The Steering Wheel Audio Controls are located on the rear surface of the steering wheel. Right Switch • Push the switch up or down to increase or decrease the volume. • Push the button in the center to change modes AM/FM/USB/SAT.

  • Page 103: Programmable Features

    ELECTRONICS PROGRAMMABLE FEATURES Instrument Cluster Display • Push the MENU button to enter the menu mode. • Push the up or down arrow button to scroll through the menu settings. • Once the menu setting is shown in the instrument cluster display push the MENU but- ton to access the setting and use the up or down arrow button to change the current setting.

  • Page 104: Trip Button

    ELECTRONICS Uconnect Customer Programmable Features The Uconnect system allows you to access Customer Programmable feature settings. To change a setting: 1. Push the SETTINGS button located on the right side of the display. 2. Select a programmable feature you would like to adjust. 3.

  • Page 105: Power Outlet

    ELECTRONICS Start Of Trip Procedure • With the ignition key on, push and hold the TRIP button for over one second to reset Trip A or Trip B. Exit Trip • The Trip function is over when all the values have been displayed or by pushing the TRIP button until exit.

  • Page 106: Utility

    UTILITY TRAILER TOWING Trailer towing with this vehicle is not recommended. RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) Towing This Vehicle Behind Another Vehicle Towing Condition Wheels OFF the Ground Single-Speed Transmission Flat Tow NONE NOT ALLOWED Front Dolly Tow Rear NOT ALLOWED On Trailer NOTE: •...

  • Page 107: What To Do In Emergencies

    WHAT TO DO IN EMERGENCIES ROADSIDE ASSISTANCE • If your FIAT 500e requires jump start assistance, tire service, lockout service or towing due to a defect covered under the Basic Limited Warranty, dial toll-free 1-888-242-6342. See your Warranty booklet for further details.
  • Page 108 WHAT TO DO IN EMERGENCIES It is recommended that you do not continue driving if the charging system light is on. Have the vehicle serviced immediately. — Anti-Lock Brake (ABS) Light This light monitors the Anti-Lock Brake System (ABS). If the light is not on during startup, stays on, or turns on while driving we recommend you contact the nearest authorized dealer and have the vehicle serviced immediately.
  • Page 109 WHAT TO DO IN EMERGENCIES Anti-Lock Brake System (ABS)/Electronic Stability Control (ESC) system. In this case, the light will remain on until the condition has been corrected. If the problem is related to the brake booster, the ABS pump will run when applying the brake, and a brake pedal pulsation may be felt during each stop.
  • Page 110 WHAT TO DO IN EMERGENCIES proper pressure. Driving on a significantly under-inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also increases high voltage battery consump- tion and tire tread life, and may affect the vehicle’ s handling and stopping ability. IF THE LIGHT STARTS FLASHING INDICATING A LOW TIRE PRESSURE, ADJUST THE AIR PRESSURE IN THE LOW TIRE TO THE AIR PRESSURE SHOWN ON THE VEHICLE PLACARD OR TIRE INFLATION PRESSURE LABEL LOCATED ON THE...

  • Page 111: Instrument Cluster Indicator Lights

    WHAT TO DO IN EMERGENCIES — Electronic Stability Control (ESC) Activation / Malfunction Indicator Light The “ESC Activation/Malfunction Indicator Light” in the instrument cluster will come on for four seconds when the ignition switch is turned to the ON/RUN position. If the “ESC Activation/Malfunction Indicator Light”...

  • Page 112: Tire Service Kit

    WHAT TO DO IN EMERGENCIES TIRE SERVICE KIT Small punctures up to 1/4 inch (6 mm) in the tire tread can be sealed with Tire Service Kit. Foreign objects (e.g., screws or nails) should not be removed from the tire. Tire Ser- vice Kit can be used in outside temperatures down to approximately -4°F (-20°C).

  • Page 113: Tire Service Kit Components And Operation

    WHAT TO DO IN EMERGENCIES Tire Service Kit Components And Operation Using The Mode Select Knob And Hoses Your Tire Service Kit is equipped with the following symbols to indicate the air or sealant mode. • Selecting Air Mode Push in the Mode Select Knob (5) and turn to this position for air pump operation only.

  • Page 114: Sealing A Tire With Tire Service Kit

    WHAT TO DO IN EMERGENCIES • You can use the Tire Service Kit air pump to inflate bicycle tires. The kit also comes with two needles, located in the Accessory Storage Compartment (on the bottom of the air pump) for inflating sport balls, rafts, or similar inflatable items. However, use only the Air Pump Hose (7) and make sure the Mode Select Knob (5) is in the Air Mode when inflating such items to avoid injecting sealant into them.
  • Page 115 WHAT TO DO IN EMERGENCIES valve stem and keep the Tire Service Kit flat on the ground. This will provide the best positioning of the kit when injecting the sealant into the deflated tire and running the air pump. Move the vehicle as necessary to place the valve stem in this position be- fore proceeding.
  • Page 116 WHAT TO DO IN EMERGENCIES 3. The Sealant Bottle (1) may be empty due to previous use. Call for assistance. NOTE: If the Mode Select Knob (5) is on Air Mode and the pump is operating, air will dispense from the Air Pump Hose (7) only, not the Sealant Hose (6). If the sealant (white fluid) does flow through the Sealant Hose (6): 1.
  • Page 117 WHAT TO DO IN EMERGENCIES (D) Drive Vehicle: Immediately after injecting sealant and inflating the tire, drive the vehicle 5 miles (8 km) or 10 minutes to ensure distribution of the Tire Service Kit Sealant within the tire. Do not exceed 55 mph (90 km/h). WARNING! Tire Service Kit is not a permanent flat tire repair.

  • Page 118: Jump-Starting Procedure (12 Volt Battery Only)

    WHAT TO DO IN EMERGENCIES 6. Replace the Sealant Bottle (1) and Sealant Hose (6) assembly at your authorized dealer as soon as possible. Refer to (F) “Sealant Bottle And Hose Replacement”. NOTE: When having the tire serviced, advise the authorized dealer or service center that the tire has been sealed using the Tire Service Kit.
  • Page 119 WHAT TO DO IN EMERGENCIES CAUTION! Do not use a portable battery booster pack or any other booster source with a sys- tem voltage greater than 12 Volts or damage to the battery, power electronics or elec- trical system may occur. Preparations For Jump-Start The battery in your vehicle is located in the underhood compartment under the beauty cover.
  • Page 120 WHAT TO DO IN EMERGENCIES 4. If using another vehicle to jump-start the battery, park the vehicle within the jumper cables reach, set the parking brake and make sure the ignition is OFF. WARNING! Do not allow vehicles to touch each other as this could establish a ground connection and personal injury could result.

  • Page 121: Manual Park Release

    WHAT TO DO IN EMERGENCIES 5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then turn the key to RUN position on the vehicle with the discharged battery. 6. Once the vehicle is started, remove the jumper cables in the reverse sequence: Disconnecting The Jumper Cables 1.

  • Page 122: Towing A Disabled Vehicle

    WHAT TO DO IN EMERGENCIES 4. Using a T25 driver bit, rotate the Manual Park Release shaft (located just behind the rubber plug) clockwise, at least 20 turns, to release the Park mechanism. The vehicle is now out of PARK and can be moved. 5.

  • Page 123: Freeing A Stuck Vehicle

    WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE If your vehicle becomes stuck in mud, sand or snow, it can often be moved using a rock- ing motion. Turn the steering wheel right and left to clear the area around the front wheels.

  • Page 124: Enhanced Accident Response System (Ears)

    WHAT TO DO IN EMERGENCIES ENHANCED ACCIDENT RESPONSE SYSTEM (EARS) This vehicle is equipped with an Enhanced Accident Response System. Please refer to “Occupant Restraint Systems” in “Getting Started” for further information on the Enhanced Accident Response System (EARS) function. EVENT DATA RECORDER (EDR) This vehicle is equipped with an Event Data Recorder (EDR).

  • Page 125: Maintaining Your Vehicle

    MAINTAINING YOUR VEHICLE OPENING THE HOOD 1. Pull the release lever located below the instrument panel and in front of the driver’ s door. 2. Raise the hood and locate the safety latch in the middle of the hood open- ing.

  • Page 126: Engine Compartment - Electric

    MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — ELECTRIC 1. Battery Thermal Management Reservoir 2. Power Electronics Reservoir 3. Brake Fluid Reservoir...
  • Page 127 MAINTAINING YOUR VEHICLE 4. Power Distribution Center #1 5. 12 Volt Battery and Power Distribution Center #2 6. Washer Fluid Reservoir...

  • Page 128: Fluid Capacities

    MAINTAINING YOUR VEHICLE FLUID CAPACITIES Systems U.S. Metric Power Electronics Cooling System 3.6 Quarts 3.5 Liters Battery Thermal Management Cooling System 7.0 Quarts 6.7 Liters Single-Speed Transmission 0.8 Quart 750 ml FLUIDS, LUBES, AND GENUINE PARTS Component Fluid, Lubricant, or Genuine Part Mopar Antifreeze/Coolant 10 Year/150,000 Mile Formula Coolant OAT (Organic Additive Technology) or equivalent meeting...

  • Page 129: Maintenance Procedures

    MAINTAINING YOUR VEHICLE MAINTENANCE PROCEDURES For information on the maintenance procedures for your vehicle, please refer to “Mainte- nance Procedures” in “Maintaining Your Vehicle” in your Owner’ s Manual or applicable supplement at www.fiatusa.com/en/owners/manuals for further details. MAINTENANCE SCHEDULE Once A Month Or Before A Trip: •...
  • Page 130 MAINTAINING YOUR VEHICLE...
  • Page 131 MAINTAINING YOUR VEHICLE...

  • Page 132: Fuses

    MAINTAINING YOUR VEHICLE FUSES WARNING! • When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with another fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material.
  • Page 133 MAINTAINING YOUR VEHICLE Vehicle Fuse Cavity Mini Fuse Description Number Ignition, Climate Control, RDU 5 Amp Tan and EVCU 20 Amp Yellow Driver Power Window The fuse for the heated mirrors is located behind an access panel on the front of the Instrument Panel.
  • Page 134 MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Mini Fuse Description – 15 Amp Blue Heated Seats – If Equipped – 20 Amp Yellow Radio – 25 Amp Clear Anti-Lock Brake Valves – 7.5 Amp Brown YAW Sensor – 15 Amp Blue Fog Lamps 30 Amp Green –...

  • Page 135: Tire Safety Information

    MAINTAINING YOUR VEHICLE TIRE SAFETY INFORMATION Tire Markings NOTE: • P (Passenger) — Metric tire sizing is based on U.S. design standards. P-Metric tires have the letter “P” molded into the sidewall preceding the size designation. Example: P215/65R15 95H. • European —...
  • Page 136 MAINTAINING YOUR VEHICLE Tire Sizing Chart EXAMPLE: Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/ 80D18 103M, 31x10.5 R15 LT P = Passenger car tire size based on U.S. design standards, or "..blank.." = Passenger car tire based on European design standards, or LT = Light truck tire based on U.S.

  • Page 137: Tire Terminology And Definitions

    MAINTAINING YOUR VEHICLE Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white sidewall side of the tire.
  • Page 138 MAINTAINING YOUR VEHICLE Tire Loading And Tire Pressure Tire And Loading Information Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’ s side B-Pillar or the rear edge of the driver's side door. Check the inflation pressure of each tire, including the spare tire (if equipped), at least monthly and inflate to the recommended pressure for your vehicle.
  • Page 139 MAINTAINING YOUR VEHICLE WARNING! • Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recom- mended load capacity for your vehicle. Never overload them. • Improperly inflated tires are dangerous and can cause collisions. Under-inflation increases tire flexing and can result in over-heating and tire failure.
  • Page 140 MAINTAINING YOUR VEHICLE To determine the maximum loading conditions of your vehicle, locate the statement “The combined weight of occupants and cargo should never exceed XXX kg or XXX lbs” on the Tire and Loading Information placard. The combined weight of occupants, cargo/ luggage and trailer tongue weight (if applicable) should never exceed the weight refer- enced here.
  • Page 141 MAINTAINING YOUR VEHICLE Metric Example For Load Limit For example, if “XXX” amount equals 635 kg, and there will be five 68 kg passengers in your vehicle, the amount of available cargo and luggage load capacity is 295 kg (635-340 (5x68) = 295 kg) as shown in step 4.

  • Page 142: Tires - General Information

    MAINTAINING YOUR VEHICLE TIRES — GENERAL INFORMATION Tire Pressure Proper tire inflation pressure is essential to the safe and satisfactory operation of your vehicle. Four primary areas are affected by improper tire pressure: • Safety and Vehicle Stability • Energy Consumption •...

  • Page 143: Tire Inflation Pressures

    MAINTAINING YOUR VEHICLE Tread Wear Improper cold tire inflation pressures can cause abnormal wear patterns and reduced tread life, resulting in the need for earlier tire replacement. Ride Comfort And Vehicle Stability Proper tire inflation contributes to a comfortable ride. Over-inflation produces a jarring and uncomfortable ride.

  • Page 144: Tire Pressures For High Speed Operation

    MAINTAINING YOUR VEHICLE Tire Pressures For High Speed Operation The manufacturer advocates driving at safe speeds and within posted speed limits. Where speed limits or conditions are such that the vehicle can be driven at high speeds, main- taining correct tire inflation pressure is very important. Increased tire pressure and re- duced vehicle loading may be required for high-speed vehicle operation.

  • Page 145: Tire Types

    MAINTAINING YOUR VEHICLE Tire Types All Season Tires — If Equipped All season tires provide traction for all seasons (Spring, Summer, Fall and Winter). Traction levels may vary between different all season tires. All season tires can be identified by the M+S, M&S, M/S or MS designation on the tire sidewall.
  • Page 146 MAINTAINING YOUR VEHICLE Run Flat Tires — If Equipped Run Flat tires allow you the capability to drive 50 miles (80 km) at 50 mph (80 km/h) after a rapid loss of inflation pressure. This rapid loss of inflation is referred to as the Run Flat mode.
  • Page 147 MAINTAINING YOUR VEHICLE Do not install a wheel cover or attempt to mount a conventional tire on the compact spare wheel, since the wheel is designed specifically for the compact spare tire. Do not install more than one compact spare tire and wheel on the vehicle at any given time. WARNING! Compact and Collapsible spares are for temporary emergency use only.

  • Page 148: Tire Spinning

    MAINTAINING YOUR VEHICLE Tire Spinning When stuck in mud, sand, snow, or ice conditions, do not spin your vehicle's wheels above 30 mph (48 km/h) or for longer than 30 seconds continuously without stopping. Refer to “Freeing A Stuck Vehicle” in “What To Do In Emergencies” for further information.

  • Page 149: Replacement Tires

    MAINTAINING YOUR VEHICLE WARNING! Tires and the spare tire should be replaced after six years, regardless of the remaining tread. Failure to follow this warning can result in sudden tire failure.You could lose con- trol and have a collision resulting in serious injury or death. Keep dismounted tires in a cool, dry place with as little exposure to light as possible.
  • Page 150 MAINTAINING YOUR VEHICLE CAUTION! Replacing original tires with tires of a different size may result in false speedometer and odometer readings. Wheel And Wheel Trim Care All wheels and wheel trim, especially aluminum and chrome plated wheels, should be cleaned regularly using mild (neutral Ph) soap and water to maintain their luster and to prevent corrosion.
  • Page 151 MAINTAINING YOUR VEHICLE When cleaning extremely dirty wheels including excessive brake dust, care must be taken in the selection of tire and wheel cleaning chemicals and equipment to prevent damage to the wheels. Mopar Wheel Treatment, Mopar Chrome Cleaner, or their equivalent is recommended or select a non-abrasive, non-acidic cleaner for aluminum or chrome wheels.

  • Page 152: Department Of Transportation Uniform Tire Quality Grades

    MAINTAINING YOUR VEHICLE DEPARTMENT OF TRANSPORTATION UNIFORM TIRE QUALITY GRADES The following tire grading categories were established by the National High- way Traffic Safety Administration. The specific grade rating assigned by the tire's manufacturer in each category is shown on the sidewall of the tires on your vehicle.

  • Page 153: Tire Rotation Recommendations

    MAINTAINING YOUR VEHICLE all passenger vehicle tires must meet under the Federal Motor Vehicle Safety Standard No. 109. Grades B and A represent higher levels of performance on the laboratory test wheel, than the minimum required by law. WARNING! The temperature grade for this tire is established for a tire that is properly inflated and not overloaded.

  • Page 154: Replacement Bulbs

    MAINTAINING YOUR VEHICLE REPLACEMENT BULBS Interior Bulbs Bulb Number Overhead Lamp Courtesy Lamp Rear Cargo Lamps Exterior Bulbs Bulb Number Front Low and High Beam Headlamp HIR2LL Front Parking/Daytime Running Lamps W21/5W Front Fog Lamps H11LL Front Side Marker Lamps Front Turn Signal Lamps WY21W Side Direction Lamps...

  • Page 155: Consumer Assistance

    CONSUMER ASSISTANCE FIAT CUSTOMER CENTER P.O. Box 21–8004 Auburn Hills, MI 48321–8004 Phone: 1-888-242-6342 ASSISTANCE FOR THE HEARING IMPAIRED • To assist customers who have hearing difficulties, the manufacturer has installed special TDD (Telecommunication Devices for the Deaf) equipment at its customer center.

  • Page 156: Mopar® Accessories

    MOPAR® ACCESSORIES AUTHENTIC ACCESSORIES BY MOPAR • The following highlights just some of the many Authentic FIAT Accessories by Mopar featuring a fit, finish, and functionality specifically for your 500e. • In choosing Authentic Accessories you gain far more than expressive style, premium protection, or extreme entertainment, you also benefit from enhancing your vehicle with accessories that have been thoroughly tested and factory-approved.

  • Page 157: Faq's

    FAQ’ s FREQUENTLY ASKED QUESTIONS GETTING STARTED • How do I charge my vehicle? pg. 16 • How do I install my LATCH Equipped Child Seat? pg. 50 • How do I fold down my rear seat? pg. 62 ELECTRONICS •...

  • Page 158: Index

    INDEX Adding Washer Fluid ... .127 How To Stow An Unused ALR Seat Air Bag....34 Belt .
  • Page 159 INDEX Door Locks, Automatic ...21 Lane Change Assist ... . .66 Lap/Shoulder Belts....26 Electronics Level 1 Charging.
  • Page 160 INDEX Power Rear Seat ....26 Door Locks ....21 Reminder ....106 Outlet (Auxiliary Electrical Outlet) .
  • Page 161 INDEX Spare Tire ... .144, 145 Uniform Tire Quality Grades..150 Spinning ....146 Untwisting Procedure, Seat Belt .
  • Page 162 NOTES...
  • Page 163 This guide has been prepared to help you get quickly acquainted with your new FIAT vehicle and to provide a convenient reference ® source for common questions. However, it is not a substitute for your Owner’s Manual. For complete operational instructions, maintenance procedures and important safety messages, please consult your Owner’s Manual,...
  • Page 164 To get this app, go directly to the App Store or Google Play and enter the search keyword “MY FIAT” (U.S. market only). fiatusa.com/en/owners provides special offers tailored to your needs, customized vehicle galleries, personalized service records and more.

Table of Contents

Save PDF
