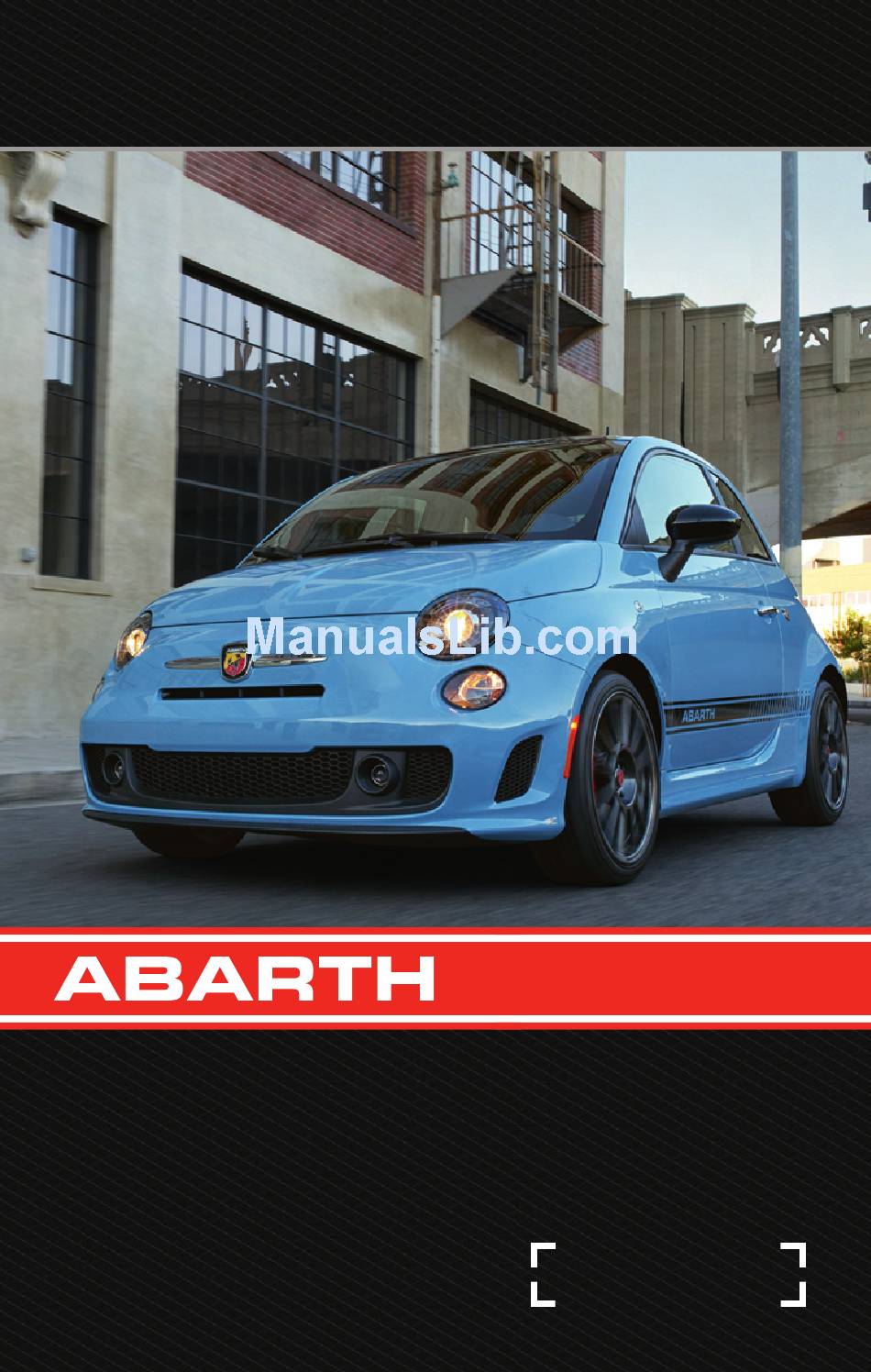

  • Page 1 2017 USER GUIDE FIAT 500 ABARTH ® and ABARTH CABRIO...
  • Page 2 If you are the first registered retail owner of your vehicle, you may obtain a complimentary printed copy of the Owner’s Manual, Navigation/ Uconnect Manuals or Warranty Booklet by calling 1 888 242-6342 (U.S.) or 1 800 387-1143 (Canada) or by contacting your dealer. The driver’s primary responsibility is the safe operation of the vehicle.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS INTRODUCTION/WELCOME UTILITY WELCOME FROM FIAT ... . . 2 TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS) . . 98 CONTROLS AT A GLANCE RECREATIONAL TOWING DRIVER COCKPIT ....4 (BEHIND MOTORHOME, ETC.)

  • Page 4: Introduction/Welcome

    INTRODUCTION/WELCOME WELCOME FROM FIAT Congratulations on selecting your new FIAT vehicle. Be assured that it represents precision workmanship, distinctive styling, and high quality. Your new FIAT vehicle has characteristics to enhance the driver's control under some driving conditions. These are to assist the driver and are never a substitute for attentive driving.
  • Page 5 INTRODUCTION/WELCOME VEHICLES SOLD IN CANADA With respect to any vehicles sold in Canada, the name FCA US LLC shall be deemed to be deleted and the name FCA Canada Inc. used in substitution (excluding legal lines). WARNING! • Pedals that cannot move freely can cause loss of vehicle control and in- crease the risk of serious personal injury.

  • Page 6: Controls At A Glance

    CONTROLS AT A GLANCE DRIVER COCKPIT 1. Multifunction Lever (behind steering wheel) pg. 52 2. Uconnect 5.0 Voice Recognition Controls pg. 78 3. Instrument Cluster pg. 6 4. Instrument Cluster Display Controls pg. 94 5. Speed Control pg. 56 6. Wiper/Washer Lever pg. 54 7.
  • Page 7 CONTROLS AT A GLANCE 10. Hazard Switch 11. Sport Mode Selector 12. Climate Control pg. 60 13. Power Windows pg. 59 14. Gear Selector 15. Hood Release pg. 120 16. Liftgate Release Button 17. Power Mirror Switch...

  • Page 8: Instrument Cluster

    CONTROLS AT A GLANCE INSTRUMENT CLUSTER 1. Tachometer 2. Temperature Gauge 3. Instrument Cluster Display (See page 99 for Instrument Cluster Warning Lights)
  • Page 9 CONTROLS AT A GLANCE 4. Fuel Gauge 5. Fuel Economy Gauge 6. Warning Lights (See page 104 for Instrument Cluster Warning Indicators.)

  • Page 10: Getting Started

    GETTING STARTED KEY FOB Locking and Unlocking the Doors and Liftgate Push the LOCK button once to lock all the doors and the liftgate. Push the UNLOCK button once to un- lock the driver’s door only and twice within five seconds to unlock all the doors and liftgate.

  • Page 11: Vehicle Security Alarm

    GETTING STARTED WARNING! Failure to follow these warnings can result in injuries that are serious or fatal to you, your passengers, and others around you: • Before operating the power top, make sure that no moving parts of the convertible top can injure a person or animal. •...

  • Page 12: Power Door Locks

    GETTING STARTED The vehicle security alarm is designed to protect your vehicle. However, you can create conditions where the vehicle security alarm will give you a false alarm. If one of the previously described arming sequences has occurred, the vehicle security alarm will arm regardless of whether you are in the vehicle or not.

  • Page 13: Power Windows

    GETTING STARTED POWER WINDOWS Power Window Switches There are single window controls located on the shifter bezel, below the climate controls, which operate the driver and passenger door windows. The window con- trols will operate when the ignition switch is in the MAR (ACC/ON/RUN) position. WARNING! Never leave children unattended in a vehicle, and do not let children play with power windows.

  • Page 14: Liftgate

    GETTING STARTED LIFTGATE To unlock the liftgate, use the Remote Keyless Entry key fob or activate the power door lock switches located on the front door handles. To open the liftgate, squeeze the liftgate release handle and pull the liftgate open with one fluid motion.

  • Page 15: Seat Belt Systems

    GETTING STARTED 2. If a child from 2 to 12 years old (not in a rear-facing child restraint) must ride in the front passenger seat, move the seat as far back as possible and use the proper child restraint (refer to “Child Restraints” in this section for further information). 3.
  • Page 16 GETTING STARTED Enhanced Seat Belt Use Reminder System (BeltAlert) Driver And Passenger BeltAlert (If Equipped) BeltAlert is a feature intended to remind the driver and outboard front seat pas- senger (if equipped with outboard front passenger seat BeltAlert) to buckle their seat belts.
  • Page 17 GETTING STARTED NOTE: If BeltAlert has been deactivated and the driver or outboard front seat passenger (if equipped with outboard front passenger seat BeltAlert) is unbuckled the Seat Belt Reminder Light will turn on and remain on until the driver and outboard front seat pas- senger seat belts are buckled.
  • Page 18 GETTING STARTED WARNING! • A lap belt worn too high can increase the risk of injury in a collision. The seat belt forces won’t be at the strong hip and pelvic bones, but across your ab- domen. Always wear the lap part of your seat belt as low as possible and keep it snug.
  • Page 19 GETTING STARTED Lap/Shoulder Belt Operating Instructions 1. Enter the vehicle and close the door. Sit back and adjust the seat. 2. The seat belt latch plate is above the back of the front seat, and next to your arm in the rear seat (for vehicles equipped with a rear seat). Grasp the latch plate and pull out the seat belt.
  • Page 20 GETTING STARTED 4. Position the lap belt so that it is snug and lies low across your hips, below your abdomen. To remove slack in the lap belt portion, pull up on the shoulder belt. To loosen the lap belt if it is too tight, tilt the latch plate and pull on the lap belt. A snug seat belt reduces the risk of sliding under the seat belt in a collision.
  • Page 21 GETTING STARTED WARNING! • ONLY use a Seat Belt Extender if it is physically required in order to properly fit the original seat belt system. DO NOT USE the Seat Belt Extender if, when worn, the distance between the front edge of the Seat Belt Extender buckle and the center of the occupant’s body is LESS than 6 inches.
  • Page 22 GETTING STARTED Energy Management Feature The front seat belt system is equipped with an Energy Management feature that may help further reduce the risk of injury in the event of a collision. The seat belt system has a retractor assembly that is designed to release webbing in a controlled manner. Switchable Automatic Locking Retractor (ALR) The seat belts in the passenger seating positions are equipped with a Switchable Automatic Locking Retractor (ALR) which is used to secure a child restraint system.
  • Page 23 GETTING STARTED How To Engage The Automatic Locking Mode 1. Buckle the combination lap and shoulder belt. 2. Grasp the shoulder portion and pull downward until the entire seat belt is extracted. 3. Allow the seat belt to retract. As the seat belt retracts, you will hear a clicking sound.
  • Page 24 GETTING STARTED • Driver and Front Passenger Air Bags • Supplemental Side Air Bags • Supplemental Knee Air Bags • Front and Side Impact Sensors • Seat Belt Pretensioners • Seat Track Position Sensors • Seat Belt Buckle Switch Air Bag Warning Light The ORC monitors the readiness of the electronic parts of the air bag system whenever the ignition switch is in the AVV/START or MAR/ACC/ON/RUN position.
  • Page 25 GETTING STARTED WARNING! Ignoring the Air Bag Warning Light in your instrument panel could mean you won’t have the air bag system to protect you in a collision. If the light does not come on as a bulb check when the ignition is first turned on, stays on after you start the vehicle, or if it comes on as you drive, have an authorized dealer service the air bag system immediately.
  • Page 26 GETTING STARTED Driver And Passenger Front Air Bag Features The Advanced Front Air Bag system has multistage driver and front passenger air bags. This system provides output appropriate to the severity and type of collision as determined by the Occupant Restraint Controller (ORC), which may receive infor- mation from the front impact sensors (if equipped) or other system components.
  • Page 27 GETTING STARTED On the other hand, depending on the type and location of impact, front air bags may deploy in crashes with little vehicle front-end damage but that produce a severe initial deceleration. Because air bag sensors measure vehicle deceleration over time, vehicle speed and damage by themselves are not good indicators of whether or not an air bag should have deployed.
  • Page 28 GETTING STARTED Supplemental Side Air Bags Your vehicle is equipped with two types of supplemental Side Air Bags: 1. Supplemental Seat-Mounted Side Air Bags (SABs): Located in the outboard side of the front seats. The SABs are marked with a “SRS AIRBAG”...
  • Page 29 GETTING STARTED 2. Supplemental Side Air Bag Inflatable Curtains (SABICs): Located above the side windows. The trim covering the SABICs is labeled “SRS AIRBAG” or “AIRBAG.” SABICs may help reduce the risk of head and other injuries to front and rear seat outboard occupants in certain side impacts, in addition to the injury reduction potential provided by the seat belts and...
  • Page 30 GETTING STARTED The SABICs and SABs (Side Air Bags) are designed to activate in certain side impacts. The Occupant Restraint Controller (ORC) determines whether the deploy- ment of the Side Air Bags in a particular impact event is appropriate, based on the severity and type of collision.
  • Page 31 GETTING STARTED NOTE: Air bag covers may not be obvious in the interior trim, but they will open during air bag deployment. The SABICs may help reduce the risk of partial or complete ejection of vehicle occupants through side windows in certain side impact events. The Occupant Restraint Controller (ORC) monitors the internal circuits and intercon- necting wiring associated with electrical Air Bag System Components listed below: Air Bag System Components...
  • Page 32 GETTING STARTED Do not drive your vehicle after the air bags have deployed. If you are involved in another collision, the air bags will not be in place to protect you. WARNING! Deployed air bags and seat belt pretensioners cannot protect you in another collision.
  • Page 33 GETTING STARTED Depending on the nature of the event the left and right turn signal lights, located in the instrument panel, may both be blinking and will continue to blink. In order to move your vehicle to the side of the road, you must follow the system reset procedure. Customer Action Customer Will See NOTE:...
  • Page 34 GETTING STARTED Maintaining Your Air Bag System WARNING! • Modifications to any part of the air bag system could cause it to fail when you need it. You could be injured if the air bag system is not there to protect you.

  • Page 35: Child Restraints

    GETTING STARTED To read data recorded by an EDR, special equipment is required, and access to the vehicle or the EDR is needed. In addition to the vehicle manufacturer, other parties, such as law enforcement, that have the special equipment, can read the information if they have access to the vehicle or the EDR.
  • Page 36 GETTING STARTED Summary Of Recommendations For Restraining Children In Vehicles Child Size, Height, Recommended Type of Weight or Age Child Restraint Children who are two Either an Infant Carrier or years old or younger and a Convertible Child Infants and Toddlers who have not reached the Restraint, facing rearward height or weight limits of...
  • Page 37 GETTING STARTED WARNING! • Never place a rear-facing child restraint in front of an air bag. A deploying passenger front air bag can cause death or serious injury to a child 12 years or younger, including a child in a rear-facing child restraint. •...
  • Page 38 GETTING STARTED Children Too Large For Booster Seats Children who are large enough to wear the shoulder belt comfortably, and whose legs are long enough to bend over the front of the seat when their back is against the seatback, should use the seat belt in a rear seat. Use this simple 5-step test to decide whether the child can use the vehicle’s seat belt alone: 1.
  • Page 39 GETTING STARTED Recommendations For Attaching Child Restraints Restraint Type Combined Use Any Attachment Method Shown With Weight of the An “X” Below Child + Child LATCH – Seat Belt LATCH – Seat Belt Restraint Lower Only Lower + Top Anchors Anchors Tether Only...
  • Page 40 GETTING STARTED LATCH Positions For Installing Child Restraints In This Vehicle LATCH Positions For Installing Child Restraints In This Vehicle Lower Anchorage Symbol (2 Anchorages Per Seating Position) Top Tether Anchorage Symbol Frequently Asked Questions About Installing Child Restraints With LATCH Use the LATCH anchorage system until the combined...
  • Page 41 GETTING STARTED Never “share” a LATCH anchorage with two or more child restraints. If the center position does not have dedi- Can two child restraints be cated LATCH lower anchor- attached using a common ages, use the seat belt to lower LATCH anchorage? install a child seat in the center position next to a...
  • Page 42 GETTING STARTED Locating The Upper Tether Anchorages There are tether strap anchorages behind each rear seating position located on the back of the seat. LATCH-compatible child restraint sys- tems will be equipped with a rigid bar or a flexible strap on each side. Each will have a hook or connector to attach to the lower anchorage and a way to tighten the connection to the anchorage.
  • Page 43 GETTING STARTED 3. Attach the lower hooks or connectors of the child restraint to the lower anchor- ages in the selected seating position. 4. If the child restraint has a tether strap, connect it to the top tether anchorage. See the section “Installing Child Restraints Using The Top Tether Anchorage” for directions to attach a tether anchor.
  • Page 44 GETTING STARTED Installing Child Restraints Using The Vehicle Seat Belt Child restraint systems are designed to be secured in vehicle seats by lap belts or the lap belt portion of a lap/shoulder belt. WARNING! • Improper installation or failure to properly secure a child restraint can lead to failure of the restraint.
  • Page 45 GETTING STARTED Frequently Asked Questions About Installing Child Restraints With Seat Belts What is the weight limit Always use the tether (child’s weight + weight of anchor when using the seat the child restraint) for using Weight limit of the belt to install a forward fac- the Tether Anchor with the Child Restraint...
  • Page 46 GETTING STARTED 5. To lock the seat belt, pull down on the shoulder part of the belt until you have pulled all the seat belt webbing out of the retractor. Then, allow the webbing to retract back into the retractor. As the webbing retracts, you will hear a clicking sound.

  • Page 47: Transporting Pets

    GETTING STARTED 2. Route the tether strap to provide the most direct path for the strap between the anchor and the child seat. If your vehicle is equipped with adjustable rear head re- straints, raise the head restraint, and where possible, route the tether strap under the head restraint and between the two posts.

  • Page 48: Head Restraints

    GETTING STARTED HEAD RESTRAINTS Head restraints are designed to reduce the risk of injury by restricting head move- ment in the event of a rear-impact. Head restraints should be adjusted so that the top of the head restraint is located above the top of your ear. WARNING! •...

  • Page 49: Head Restraint

    GETTING STARTED NOTE: To remove the head restraint, raise it as far as it can go then push the release button and the adjustment button at the base of each post while pulling the head restraint up. To reinstall the head restraint, put the head restraint posts into the holes and push down- ward.

  • Page 50: Front Seats

    GETTING STARTED FRONT SEATS Forward/Rearward Adjustment The adjusting bar is located at the front of the seats, near the floor. While sitting in the seat, lift up on the bar and move the seat forward or rearward. Release the bar once the desired posi- tion is reached.

  • Page 51: Recline Adjustment

    GETTING STARTED Recline Adjustment The recline adjustment lever is located on the inboard side of the seat. To recline the seatback, lift up the recline lever, lean back until the desired position has been reached, and release the lever. Recline Lever WARNING! Do not ride with the seatback reclined so that the shoulder belt is no longer rest- ing against your chest.

  • Page 52: Rear Seats

    GETTING STARTED EZ Entry Feature The driver and front passenger seats have an EZ entry feature for rear seat passengers. Pull upward on the release tether, located on the outboard side of the seatback, dump the seatback for- ward, then slide the seat forward to allow access in and out of the rear seat.

  • Page 53: Tilt Steering Column

    GETTING STARTED TILT STEERING COLUMN This feature allows you to tilt the steering column upward or downward. The tilt control lever is located on the left-side of the steering column, below the turn signal controls. Push down on the lever to unlock the column.

  • Page 54: Operating Your Vehicle

    OPERATING YOUR VEHICLE ENGINE BREAK-IN RECOMMENDATIONS A long break-in period is not required for the engine and drivetrain (transmission and axle) in your vehicle. Drive moderately during the first 300 miles (500 km). After the initial 60 miles (100 km), speeds up to 50 or 55 mph (80 or 90 km/h) are desirable. While cruising, brief full-throttle acceleration within the limits of local traffic laws contributes to a good break-in.
  • Page 55 OPERATING YOUR VEHICLE NOTE: The indicators will automatically turn off when the turn has been completed and the steering wheel is returned to a straight position. Lane Change Assist Tap the lever up or down once, without moving beyond the detent, and the turn signal (right or left) will flash three times.

  • Page 56: Windshield Wipers And Washers

    OPERATING YOUR VEHICLE Fog Lights — If Equipped The fog light switch is located on the center stack of the instrument panel, just below the radio. Push the switch once to turn the front fog lights on. Push the switch a second time to turn the front fog lights off.
  • Page 57 OPERATING YOUR VEHICLE Manual High Speed/Mist Push the lever upward from the off position. The wipers will operate at high speed to clear off road mist or spray from a passing vehicle. This operation will continue until the lever is released. When the lever is released, the wipers will return to the off position and automatically shut off.

  • Page 58: Speed Control

    OPERATING YOUR VEHICLE SPEED CONTROL When engaged, the Speed Control takes over accelerator operations at speeds greater than 25 mph (40 km/h). The Speed Control buttons are located on the right side of the steering wheel. NOTE: In order to ensure proper operation, the Speed Control system has been designed to shut down if multiple Speed Control functions are operated at the same time.
  • Page 59 OPERATING YOUR VEHICLE To Set A Desired Speed Turn the Speed Control on. When the vehicle has reached the desired speed, push the SET (-) button and release. Release the accelerator and the vehicle will operate at the selected speed. NOTE: The vehicle should be traveling at a steady speed and on level ground before pushing the SET (-) button.
  • Page 60 OPERATING YOUR VEHICLE To Decrease Speed When the Speed Control is set, you can decrease speed by pushing the SET (-) button. The driver’s preferred units can be selected through the Uconnect settings if equipped. Refer to "Uconnect Settings” in “Understanding Your Instrument Panel” in the Owner’s Manual at www.fiatusa.com/en/owners/manuals for more informa- tion.

  • Page 61: Power Windows

    OPERATING YOUR VEHICLE WARNING! Speed Control can be dangerous where the system cannot maintain a constant speed. Your vehicle could go too fast for the conditions, and you could lose con- trol and have an accident. Do not use Speed Control in heavy traffic or on roads that are winding, icy, snow-covered or slippery.

  • Page 62: Manual Climate Controls

    OPERATING YOUR VEHICLE MANUAL CLIMATE CONTROLS Manual Climate Controls 1 — Rotate Temperature Control 4 — Rotate Mode Control 2 — Rotate Blower Control 5 — Push Knob For A/C 3 — Rotate Recirculation Control Air Recirculation • Use recirculation for maximum A/C operation. •...

  • Page 63: Automatic Temperature Controls (Atc)

    OPERATING YOUR VEHICLE AUTOMATIC TEMPERATURE CONTROLS (ATC) Automatic Temperature Controls 1 — AUTO Button 6 — Front Window Defroster Button 2 — A/C Button 7 — Panel Mode Button 3 — Temperature Control Up/Down 8 — Floor Mode Button Buttons 9 —...

  • Page 64: Sport Mode

    OPERATING YOUR VEHICLE SPORT MODE In Sport mode, the engine is more responsive to the accelerator pedal, and pro- vides more power by increasing turbo boost. This mode increases steering feedback to the driver with slight increases in effort and throttle pedal-to-engine response. Changes to the transmission shift schedules for more aggressive shifting will occur on automatic transmission versions.

  • Page 65: Autostick - Automatic Transmission

    OPERATING YOUR VEHICLE AUTOSTICK — AUTOMATIC TRANSMISSION When the gear selector is in the AutoStick position (beside the DRIVE position), it can be moved forward and rearward to manually select the transmission gear being used. Moving the gear selector forward (-) triggers a downshift and rearward (+) an upshift.

  • Page 66: Power Sunroof

    OPERATING YOUR VEHICLE POWER SUNROOF The power sunroof switch is located in the overhead console. Power Sunroof Switch WARNING! • Never leave children alone in a vehicle, or with access to an unlocked vehicle. Never leave the key fob in or near the vehicle, or in a location acces- sible to children.

  • Page 67: Pinch Protect Feature

    OPERATING YOUR VEHICLE To Open Push and hold the power sunroof switch rearward for approximately one second and the sunroof will stop at the vented position. Push the switch a second time and hold for approximately one second and release, the sunroof will open fully, then stop automatically.

  • Page 68: Power Convertible Top

    OPERATING YOUR VEHICLE POWER CONVERTIBLE TOP On vehicles equipped with a power convertible top, the power convertible top switch is located on the overhead console. The switch contains two buttons. The passenger side button, is used to open the power top, and the driver side button, is used to close the power top.
  • Page 69 OPERATING YOUR VEHICLE Raising The Power Top Auto Close From the convertible top fully open position, push the top close button for approxi- mately one second for the three-quarter open/spoiler position. Push the top close button for approximately one second a second time for the one-quarter open posi- tion.
  • Page 70 OPERATING YOUR VEHICLE Power Convertible Top Relearn Procedure If your power convertible top does not operate in the Auto Opening/Closing mode (automatically opening/closing to the one-quarter open and three-quarter open comfort stops), or if the remote keyless power top function is inoperable, or if the trunk lid does not open - the following relearn procedure may be necessary.

  • Page 71: Engine Block Heater

    OPERATING YOUR VEHICLE ENGINE BLOCK HEATER To prevent possible engine damage while starting at low temperatures, this vehicle will inhibit engine cranking when the ambient temperature is less than –22° F (–30° C) and the oil temperature sensor reading indicates an engine block heater has not been used.

  • Page 72: Electronics

    ELECTRONICS YOUR VEHICLE'S SOUND SYSTEM 1. Mute Button 2. Phone Pick Up Button pg. 85 3. Phone Hang Up Button pg. 85 4. Voice Command Button pg. 79 5. Steering Wheel Audio Controls (Left) pg. 94 6. Steering Wheel Audio Controls (Right) pg. 94 7.
  • Page 73 ELECTRONICS 9. Uconnect 5.0 Radio pg. 73 10. Settings Button 11. Tune/Scroll Knob — Browse/Enter Button 12. MORE Button 13. Power Outlet pg. 97 14. Audio Jack pg. 77 15. USB Port pg. 77...

  • Page 74: Cybersecurity

    ELECTRONICS CYBERSECURITY Your vehicle may be a connected vehicle and may be equipped with both wired and wireless networks. These networks allow your vehicle to send and receive information. This information allows systems and features in your vehicle to function properly. Your vehicle may be equipped with certain security features to reduce the risk of unauthorized and unlawful access to vehicle systems and wireless communications.

  • Page 75: Uconnect 5.0

    ELECTRONICS UCONNECT 5.0 Uconnect 5.0 Radio 1 — On/Off Button 7 — MORE Button 2 — Mute Button 8 — PHONE Button 3 — Screen Off Button 9 — NAV Button 4 — Settings Button 10 — MEDIA Button 5 — Back Button 11 —...

  • Page 76: Clock Setting

    ELECTRONICS Clock Setting To start the clock setting procedure: 1. Push the Settings button on the faceplate and then press the “Clock and Date” button on the touchscreen. 2. Press the “Set Time” button on the touchscreen. 3. Press the “Up” or “Down” arrows to adjust the hours or minutes, then select the “AM”...
  • Page 77 ELECTRONICS Radio Operation Radio Operation 1 — Radio Station Preset 5 — Station Information 2 — All Presets 6 — Direct Tune 3 — Seek Next 7 — Radio Band 4 — Audio Settings 8 — Seek Previous Store Radio Presets Manually The Radio stores up to 12 presets in each of the Radio modes.
  • Page 78 ELECTRONICS SiriusXM Premier Over 160 Channels Get every channel available on your satellite radio, and enjoy all you want, all in one place. Hear commercial-free music plus sports, news, talk and entertainment. Get all the premium programming, including Howard Stern, every NFL game, Oprah Radio, every MLB and NHL game, every NASCAR race and more.

  • Page 79: Usb/Aux Control

    ELECTRONICS PRE-DEFINED VOICE TEXT REPLY RESPONSES Yes. Stuck in traffic. See you later. Start without me. I’ll be late. Okay. Where are you? I will be <number> minutes late. Call me. Are you there yet? I’ll call you later. I need directions. See you in <number>...

  • Page 80: Uconnect 5.0 Voice Recognition Quick Tips

    ELECTRONICS UCONNECT 5.0 VOICE RECOGNITION QUICK TIPS Introducing Uconnect Start using Uconnect Voice Recognition with these helpful quick tips. It provides the key Voice Commands and tips you need to know to control your Uconnect 5.0 system. Key features: • Five-inch Color Touchscreen Display with AM/FM/USB/Bluetooth •...
  • Page 81 ELECTRONICS Get Started 1. Visit UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions. 2. Reduce background noise. Wind and passenger conversations are examples of noise that may impact recognition. 3. Speak clearly at a normal pace and volume while facing straight ahead. The microphone is positioned on the rearview mirror and aimed at the driver.
  • Page 82 ELECTRONICS Basic Voice Commands The basic Voice Commands below can be given at any point while using your Uconnect system. Push the VR button . After the beep, say: • Cancel to stop a current voice session • Help to hear a list of suggested Voice Commands •...
  • Page 83 ELECTRONICS Radio Use your voice to quickly get to the AM, FM or SiriusXM Satellite Radio stations you would like to hear. (Subscription or included SiriusXM Satellite Radio trial required.) Push the VR button . After the beep, say: • Tune to ninety-five-point-five FM •...
  • Page 84 ELECTRONICS Media Push the VR button . After the beep, say one of the following commands and follow the prompts to switch your media source or choose an artist. • Change source to Bluetooth • Change source to iPod • Change source to USB •...
  • Page 85 ELECTRONICS Phone Making and answering hands-free phone calls is easy with Uconnect. When the Phonebook button is illuminated on your touchscreen, your system is ready. U.S./Canadian residents can visit • UconnectPhone.com to check mobile device and feature compatibility and to find phone pairing instructions.

  • Page 86: Additional Information

    ELECTRONICS Additional Information © 2016 FCA US LLC. All rights reserved. Mopar, Mopar Owner Connect and Uconnect are registered trademarks of FCA US LLC. Android is a trademark of Google Inc. SiriusXM and all related marks and logos are trademarks of SiriusXM Radio Inc.

  • Page 87: Uconnect Phone

    ELECTRONICS UCONNECT PHONE Uconnect Phone (Bluetooth Hands Free Calling) Uconnect 5.0 Phone Menu 1 — Call/Redial/Hold 8 — Text Messaging 2 — Mobile Phone Signal Strength 9 — Direct Dial Pad 3 — Currently Paired Mobile Phone 10 — Recent Call Log 4 —...
  • Page 88 ELECTRONICS If the Uconnect Phone Button exists on your steering wheel, you then have the Uconnect Phone features. Refer to the “Uconnect 5.0 Voice Recognition Quick Tips” in “Understanding Your Instrument Panel” in the Owner's Manual on www.fiatusa.com/en/owners/manuals for further details. NOTE: •...
  • Page 89 ELECTRONICS Pair Your iPhone: To search for available devices on your Bluetooth enabled iPhone: 1. Press the Settings button. 2. Select Bluetooth. • Ensure the Bluetooth feature is en- abled. Once enabled, the mobile phone will begin to search for Bluetooth connections.
  • Page 90 ELECTRONICS Pair Your Android Device: To search for available devices on your Bluetooth enabled Android Device: 1. Push the Menu button. 2. Select Settings. 3. Select Connections. 4. Turn Bluetooth setting to “On.” • Ensure the Bluetooth feature is en- abled.
  • Page 91 ELECTRONICS If “No” is selected, simply select “Uconnect” from the mobile phone/audio device Bluetooth screen, and the Uconnect system will reconnect to the Bluetooth device. You are now ready to make hands-free calls. Press the Uconnect “Phone” button on your steering wheel to begin. NOTE: Refer to UconnectPhone.com website for additional information on mobile phone pairing and for a list of compatible phones.
  • Page 92 ELECTRONICS Voice Command Tips • Speaking complete names (i.e. Call John Doe vs. Call John) will result in greater system accuracy. • You can “link” commands together for faster results. Say “Call John Doe, mobile,” for example. • If you are listening to available voice command options, you do not have to listen to the entire list.
  • Page 93 ELECTRONICS 4. Turn “Show Notifications” to on. Enable iPhone Incoming Text Messages Android Devices 1. Push the Menu button on the mobile phone. 2. Select Settings. 3. Select Connections. 4. Turn “Show Notifications” to on. • A pop up will appear asking you to accept a request for permission to connect to your messages.
  • Page 94 ELECTRONICS Voice Text Reply (Not Compatible With iPhone) NOTE: Voice texting reply and voice texting features require a compatible mobile device enabled with Bluetooth Message Access Profile (MAP). iPhone, and some other smartphones, may not entirely support Bluetooth MAP. Visit UconnectPhone.com for the latest system and device compatibility.
  • Page 95 ELECTRONICS Helpful Tips And Common Questions To Improve Bluetooth Performance With Your Uconnect System Mobile Phone won’t reconnect to system after pairing: • Set mobile phone to auto-connect or trusted device in mobile phone Bluetooth settings (Blackberry devices). • Perform a factory reset on your mobile phone. Refer to your mobile phone manu- facturer or cellular provider for instructions.

  • Page 96: Steering Wheel Audio Controls

    ELECTRONICS STEERING WHEEL AUDIO CONTROLS The Steering Wheel Audio Controls are located on the rear surface of the steer- ing wheel. Right Switch • Push the switch up or down to increase or decrease the volume. • Push the button in the center to change modes AM/FM/USB/SAT.

  • Page 97: Programmable Features

    ELECTRONICS PROGRAMMABLE FEATURES Instrument Cluster Display The instrument cluster display can be used to program the following Personal Settings. Push the MENU button until menu is displayed, then push the up or down arrow button to scroll through the settings. Once the menu setting is shown in the instrument cluster display push the MENU button to access the setting and use the up or down arrow button to change the current setting.

  • Page 98: Trip Button

    ELECTRONICS TRIP BUTTON The Trip button is located on the end of the wiper lever to the right of the steering column. The trip button can be used to display and reset the following functions: • Range • Distance Travelled •...

  • Page 99: Power Outlet

    ELECTRONICS POWER OUTLET For added convenience there is a standard 12 Volt (13 Amp) power outlet located in the floor console. NOTE: • Do not exceed the maximum power of 160 Watts (13 Amps) at 12 Volts. If the 160 Watt (13 Amp) power rating is exceeded, the fuse protecting the system will need to be replaced.

  • Page 100: Utility

    UTILITY TRAILER TOWING WEIGHTS (MAXIMUM TRAILER WEIGHT RATINGS) Trailer towing with this vehicle is not recommended. RECREATIONAL TOWING (BEHIND MOTORHOME, ETC.) TOWING THIS VEHICLE BEHIND ANOTHER VEHICLE Towing Wheels OFF the Manual Trans- Automatic Condition Ground mission Transmission Transmission in Flat Tow NONE NOT ALLOWED...

  • Page 101: What To Do In Emergencies

    WHAT TO DO IN EMERGENCIES ROADSIDE ASSISTANCE • If your Abarth requires jump start assistance, out of gas/fuel delivery, tire service, lockout service or towing due to a defect covered under the Basic Limited War- ranty, dial toll-free 1-888-242-6342 or 1-800-363-4869 for Canadian Residents. See your Warranty booklet for further details.
  • Page 102 WHAT TO DO IN EMERGENCIES — Oil Pressure Warning Light This light indicates low engine oil pressure. If the light turns on while driving, stop the vehicle and shut off the engine as soon as possible. A chime will sound when this light turns on.
  • Page 103 WHAT TO DO IN EMERGENCIES pressure telltale illuminates, you should stop and check your tires as soon as pos- sible, and inflate them to the proper pressure. Driving on a significantly under- inflated tire causes the tire to overheat and can lead to tire failure. Under-inflation also reduces fuel efficiency and tire tread life, and may affect the vehicle’s handling and stopping ability.
  • Page 104 WHAT TO DO IN EMERGENCIES WARNING! A hot engine cooling system is dangerous. You or others could be badly burned by steam or boiling content. — Seat Belt Reminder Light When the ignition switch is first turned to the ON/RUN position, this light will turn on for four to eight seconds as a bulb check.
  • Page 105 WHAT TO DO IN EMERGENCIES Vehicles equipped with the Anti-Lock Brake System (ABS) are also equipped with Electronic Brake Force Distribution (EBD). In the event of an EBD failure, the Brake Warning Light will turn on along with the ABS Light. Immediate repair to the ABS system is required.

  • Page 106: Instrument Cluster Indicator Lights

    WHAT TO DO IN EMERGENCIES — Electronic Throttle Control (ETC) Indicator Light This light informs you of a problem with the system. If a problem is detected, the light will come on while the engine is running. Cycle the ignition when the vehicle has completely stopped and the gear selector is placed in the PARK position;...
  • Page 107 WHAT TO DO IN EMERGENCIES ESC Full Off This mode is intended for off-highway or off-road use only and should not be used on public roadways. In this mode, all TCS and ESC stability features are turned OFF, except for the limited slip feature described in the TCS section. To enter the “Full Off”...

  • Page 108: If Your Engine Overheats

    WHAT TO DO IN EMERGENCIES IF YOUR ENGINE OVERHEATS In any of the following situations, you can reduce the potential for overheating by taking the appropriate action. • On the highways — slow down. • In city traffic — while stopped, place the transmission in NEUTRAL, but do not increase engine idle speed.
  • Page 109 WHAT TO DO IN EMERGENCIES Tire Service Kit Storage The Tire Service Kit is located under the front driver's seat. Tire Service Kit Components And Operation Using The Mode Select Knob And Hoses Your Tire Service Kit is equipped with the following symbols to indicate the air or sealant mode.
  • Page 110 WHAT TO DO IN EMERGENCIES • For optimum performance, make sure the valve stem on the wheel is free of debris before connecting the Tire Service Kit. • You can use the Tire Service Kit air pump to inflate bicycle tires. The kit also comes with two needles, located in the Accessory Storage Compartment (on the bottom of the air pump) for inflating sport balls, rafts, or similar inflatable items.
  • Page 111 WHAT TO DO IN EMERGENCIES Sealing A Tire With Tire Service Kit (A) Whenever You Stop To Use Tire Service Kit: 1. Pull over to a safe location and turn on the vehicle’s Hazard Warning flashers. 2. Verify that the valve stem (on the wheel with the deflated tire) is in a position that is near to the ground.
  • Page 112 WHAT TO DO IN EMERGENCIES If the sealant (white fluid) does not flow within 0 – 10 seconds through the Sealant Hose (6): 1. Push the Power Button (4) to turn off the Tire Service Kit. Disconnect the Sealant Hose (6) from the valve stem. Make sure the valve stem is free of debris. Recon- nect the Sealant Hose (6) to the valve stem.
  • Page 113 WHAT TO DO IN EMERGENCIES 3. Immediately disconnect the Sealant Hose (6) from the valve stem, reinstall the cap on the fitting at the end of the hose, and place the Tire Service Kit in the ve- hicle storage location. Quickly proceed to (D) “Drive Vehicle.” CAUTION! •...
  • Page 114 WHAT TO DO IN EMERGENCIES If the tire pressure is 19 psi (1.3 Bar) or higher: 1. Push the Power Button (4) to turn on Tire Service Kit and inflate the tire to the pressure indicated on the tire and loading information label on the driver-side door opening.

  • Page 115: Jump-Starting Procedure

    WHAT TO DO IN EMERGENCIES JUMP-STARTING PROCEDURE If your vehicle has a discharged battery, it can be jump-started using a set of jumper cables and a battery in another vehicle or by using a portable battery booster pack. Jump-starting can be dangerous if done improperly so please follow the procedures in this section carefully.
  • Page 116 WHAT TO DO IN EMERGENCIES Preparations For Jump-Start The battery in your vehicle is located on the left side of the engine compartment. Battery Posts 1 — Positive Terminal 2 — Negative Terminal WARNING! • Take care to avoid the radiator cooling fan whenever the hood is raised. It can start anytime the ignition switch is ON.
  • Page 117 WHAT TO DO IN EMERGENCIES WARNING! Do not allow vehicles to touch each other as this could establish a ground con- nection and personal injury could result. Jump-Starting Procedure WARNING! Failure to follow this jump-starting procedure could result in personal injury or property damage due to battery explosion.

  • Page 118: Towing A Disabled Vehicle

    WHAT TO DO IN EMERGENCIES 5. Start the engine in the vehicle that has the booster battery, let the engine idle a few minutes, and then turn the key to RUN position on the vehicle with the dis- charged battery. 6.

  • Page 119: Automatic Transmission

    WHAT TO DO IN EMERGENCIES If you must use the accessories (wipers, defrosters, etc.) while being towed, the ignition must be in the ON/RUN mode. CAUTION! • Do not use sling-type equipment when towing. Vehicle damage may occur. • When securing the vehicle to a flatbed truck, do not attach to front or rear suspension components.

  • Page 120: Freeing A Stuck Vehicle

    WHAT TO DO IN EMERGENCIES FREEING A STUCK VEHICLE If your vehicle becomes stuck in mud, sand or snow, it can often be moved using a rocking motion. Turn the steering wheel right and left to clear the area around the front wheels.

  • Page 121: Enhanced Accident Response System (Ears)

    WHAT TO DO IN EMERGENCIES CAUTION! • When “rocking” a stuck vehicle by shifting between DRIVE/SECOND GEAR and REVERSE, do not spin the wheels faster than 15 mph (24 km/h), or drivetrain damage may result. • Revving the engine or spinning the wheels too fast may lead to transmission overheating and failure.

  • Page 122: Maintaining Your Vehicle

    MAINTAINING YOUR VEHICLE TO OPEN AND CLOSE THE HOOD To open the hood, two latches must be released. 1. Pull the bottom of the RED hood release lever, located on the left kick panel, rearward. 2. Rotate the safety catch under the front edge of the hood, near the cen- ter, and raise the hood.
  • Page 123 MAINTAINING YOUR VEHICLE WARNING! Be sure the hood is fully latched before driving your vehicle. If the hood is not fully latched, it could open when the vehicle is in motion and block your vision. Failure to follow this warning could result in serious injury or death. CAUTION! To prevent possible damage, do not slam the hood to close it.

  • Page 124: Engine Compartment - 1.4L

    MAINTAINING YOUR VEHICLE ENGINE COMPARTMENT — 1.4L 1. Engine Coolant Reservoir Cap 2. Engine Oil Dipstick 3. Brake Fluid Reservoir 4. Power Distribution Center (Fuses) 5. Battery...
  • Page 125 MAINTAINING YOUR VEHICLE 6. Air Cleaner Filter 7. Engine Oil Fill 8. Washer Fluid Reservoir 9. Engine Coolant Reservoir...

  • Page 126: Fluid Capacities

    MAINTAINING YOUR VEHICLE FLUID CAPACITIES U.S. Metric 10.5 Gallons 40 Liters Fuel (Approximate) Engine Oil with Filter 1.4 Liter Turbo Engine 4 Quarts 3.8 Liters Cooling System 1.4 Liter Turbo Engine (Mopar Antifreeze/ 4.6 Quarts 4.4 Liters Engine Coolant 10 Year/150,000 Mile Formula) —...
  • Page 127 MAINTAINING YOUR VEHICLE CAUTION! • Mixing of engine coolant (antifreeze) other than specified Organic Additive Technology (OAT) engine coolant (antifreeze), may result in engine damage and may decrease corrosion protection. Organic Additive Technology (OAT) engine coolant is different and should not be mixed with Hybrid Organic Ad- ditive Technology (HOAT) engine coolant (antifreeze) or any “globally com- patible”...

  • Page 128: Adding Fuel

    MAINTAINING YOUR VEHICLE ADDING FUEL Fuel Filler Cap (Gas Cap) The gas cap is located on the passenger side of the vehicle. If the gas cap is lost or damaged, be sure the replacement cap is the correct one for this vehicle. CAUTION! •...

  • Page 129: Maintenance Procedures

    MAINTAINING YOUR VEHICLE Materials Added To Fuel Designated TOP TIER Detergent Gasoline contains a higher level of detergents to further aide in minimizing engine and fuel system deposits. When available, the usage of Top Tier Detergent gaso- line is recommended. Visit www.toptiergas.com for a list of TOP TIER Detergent Gasoline Retailers.
  • Page 130 MAINTAINING YOUR VEHICLE Severe Duty All Models Change Engine Oil at 4,000 miles (6,500 km) if the vehicle is operated in a dusty and off road environment or is operated predominately at idle or only very low engine RPM’s. This type of vehicle use is considered Severe Duty. Once A Month Or Before A Long Trip: Check engine oil level.
  • Page 131 MAINTAINING YOUR VEHICLE...
  • Page 132 MAINTAINING YOUR VEHICLE...
  • Page 133 MAINTAINING YOUR VEHICLE...

  • Page 134: Fuses

    MAINTAINING YOUR VEHICLE FUSES WARNING! • When replacing a blown fuse, always use an appropriate replacement fuse with the same amp rating as the original fuse. Never replace a fuse with an- other fuse of higher amp rating. Never replace a blown fuse with metal wires or any other material.
  • Page 135 MAINTAINING YOUR VEHICLE Underhood Fuses The Front Distribution Unit is located on the right side of the engine compartment, next to the battery. To access the fuses, press the release tabs and remove the cover. The ID number of the electrical component corresponding to each fuse can be found on the back of the cover.

  • Page 136: Tire Safety Information

    MAINTAINING YOUR VEHICLE Cavity Maxi Fuse Mini Fuse Description 20 Amp Yellow – Cooling Pump – If Equipped – 10 Amp Red Transmission 30 Amp Green – Rear Defroster – 5 Amp Tan Rear Defroster – 5 Amp Tan Heated Mirrors – If Equipped TIRE SAFETY INFORMATION Tire Markings NOTE:...

  • Page 137: Load Identification

    MAINTAINING YOUR VEHICLE Tire Sizing Chart EXAMPLE: Example Size Designation: P215/65R15XL 95H, 215/65R15 96H, LT235/85R16C, T145/80D18 103M, 31x10.5 R15 LT P = Passenger car tire size based on U.S. design standards, or "..blank.." = Passenger car tire based on European design standards, or LT = Light truck tire based on U.S.

  • Page 138: Tire Terminology And Definitions

    MAINTAINING YOUR VEHICLE Tire Identification Number (TIN) The TIN may be found on one or both sides of the tire; however, the date code may only be on one side. Tires with white sidewalls will have the full TIN, including the date code, located on the white sidewall side of the tire.
  • Page 139 MAINTAINING YOUR VEHICLE Tire Loading And Tire Pressure Tire And Loading Information Placard Location NOTE: The proper cold tire inflation pressure is listed on the driver’s side B-Pillar or the rear edge of the driver's side door. Check the inflation pressure of each tire, including the spare tire (if equipped), at least monthly and inflate to the recommended pressure for your vehicle.
  • Page 140 MAINTAINING YOUR VEHICLE WARNING! • Overloading of your tires is dangerous. Overloading can cause tire failure, affect vehicle handling, and increase your stopping distance. Use tires of the recommended load capacity for your vehicle. Never overload them. • Improperly inflated tires are dangerous and can cause collisions. •...

  • Page 141: Steps For Determining Correct Load Limit

    MAINTAINING YOUR VEHICLE NOTE: Under a maximum loaded vehicle condition, gross axle weight ratings (GAWRs) for the front and rear axles must not be exceeded. Refer to “Vehicle Loading” in “Starting And Operating” in the Owner’s Manual, or the Tire Information Supple- ment, located in your Owner’s Information kit for further information on GAWRs, vehicle loading, and trailer towing.
  • Page 142 MAINTAINING YOUR VEHICLE Metric Example For Load Limit For example, if “XXX” amount equals 635 kg, and there will be five 68 kg passen- gers in your vehicle, the amount of available cargo and luggage load capacity is 295 kg (635-340 (5x68) = 295 kg) as shown in step 4. NOTE: •...

  • Page 143: Tires - General Information

    MAINTAINING YOUR VEHICLE TIRES — GENERAL INFORMATION Tire Pressure Proper tire inflation pressure is essential to the safe and satisfactory operation of your vehicle. Four primary areas are affected by improper tire pressure: • Safety and Vehicle Stability • Economy •...

  • Page 144: Tire Inflation Pressures

    MAINTAINING YOUR VEHICLE Tread Wear Improper cold tire inflation pressures can cause abnormal wear patterns and reduced tread life, resulting in the need for earlier tire replacement. Ride Comfort And Vehicle Stability Proper tire inflation contributes to a comfortable ride. Over-inflation produces a jarring and uncomfortable ride.
  • Page 145 MAINTAINING YOUR VEHICLE Tire Pressures For High Speed Operation The manufacturer advocates driving at safe speeds and within posted speed limits. Where speed limits or conditions are such that the vehicle can be driven at high speeds, maintaining correct tire inflation pressure is very important. Increased tire pressure and reduced vehicle loading may be required for high-speed vehicle operation.

  • Page 146: Tire Types

    MAINTAINING YOUR VEHICLE Tire Types All Season Tires — If Equipped All season tires provide traction for all seasons (Spring, Summer, Fall and Winter). Traction levels may vary between different all season tires. All season tires can be identified by the M+S, M&S, M/S or MS designation on the tire sidewall. Use all season tires only in sets of four;...
  • Page 147 MAINTAINING YOUR VEHICLE Run Flat Tires — If Equipped Run Flat tires allow you the capability to drive 50 miles (80 km) at 50 mph (80 km/h) after a rapid loss of inflation pressure. This rapid loss of inflation is referred to as the Run Flat mode.
  • Page 148 MAINTAINING YOUR VEHICLE Do not install a wheel cover or attempt to mount a conventional tire on the compact spare wheel, since the wheel is designed specifically for the compact spare tire. Do not install more than one compact spare tire and wheel on the vehicle at any given time. WARNING! Compact and Collapsible spares are for temporary emergency use only.

  • Page 149: Tire Spinning

    MAINTAINING YOUR VEHICLE Full Size Spare — If Equipped The full size spare is for temporary emergency use only. This tire may look like the originally equipped tire on the front or rear axle of your vehicle, but it is not. This spare tire may have limited tread life.
  • Page 150 MAINTAINING YOUR VEHICLE Tread Wear Indicators Tread wear indicators are in the original equipment tires to help you in determining when your tires should be replaced. These indicators are molded into the bottom of the tread grooves. They will appear as bands when the tread depth becomes a 1/16 of an inch (1.6 mm).

  • Page 151: Replacement Tires

    MAINTAINING YOUR VEHICLE Replacement Tires The tires on your new vehicle provide a balance of many characteristics. They should be inspected regularly for wear and correct cold tire inflation pressures. The manufac- turer strongly recommends that you use tires equivalent to the originals in size, quality and performance when replacement is needed.
  • Page 152 MAINTAINING YOUR VEHICLE Wheel And Wheel Trim Care All wheels and wheel trim, especially aluminum and chrome plated wheels, should be cleaned regularly using mild (neutral Ph) soap and water to maintain their luster and to prevent corrosion. Wash wheels with the same soap solution recommended for the body of the vehicle.

  • Page 153: Department Of Transportation Uniform Tire Quality Grades

    MAINTAINING YOUR VEHICLE Dark Vapor Or Black Satin Chrome Wheels CAUTION! If your vehicle is equipped with these specialty wheels, DO NOT USE wheel cleaners, abrasives, or polishing compounds. They will permanently damage this finish and such damage is not covered by the New Vehicle Limited Warranty. HAND WASH ONLY USING MILD SOAP AND WATER WITH A SOFT CLOTH.
  • Page 154 MAINTAINING YOUR VEHICLE WARNING! The traction grade assigned to this tire is based on straight-ahead braking traction tests, and does not include acceleration, cornering, hydroplaning, or peak traction characteristics. Temperature Grades The temperature grades are A (the highest), B, and C, representing the tire's resistance to the generation of heat and its ability to dissipate heat, when tested under controlled conditions on a specified indoor laboratory test wheel.

  • Page 155: Replacement Bulbs

    MAINTAINING YOUR VEHICLE REPLACEMENT BULBS Interior Bulbs Bulb Number Overhead Lamp Courtesy Lamp Exterior Bulbs Bulb Number Front Low and High Beam Headlamp HIR2LL Front Parking/Daytime Running Lamps W21/5W Front Fog Lamps H11LL Front Side Marker Lamps Front Turn Signal Lamps WY21W Side Direction Lamps WY5W...

  • Page 156: Consumer Assistance

    Owner's Manual, Navigation/Uconnect Manuals or Warranty Booklet. United States customers may visit the Fiat Contact Us page at www.fiat.com scroll to the bottom of the page and select the “Contact Us” link, then select the “Owner’s Manual and Glove Compartment Material” from the left menu.

  • Page 157: Reporting Safety Defects In The United States

    NOTE: • The Owner's Manual and User Guide electronic files are also available on the FIAT® website. • Click on the “For Owners” tab, select “Owner/Service Manuals”, then select your desired model year and vehicle from the drop down lists.

  • Page 158: Mopar® Accessories

    MOPAR® ACCESSORIES AUTHENTIC ACCESSORIES BY MOPAR • The following highlights just some of the many Authentic FIAT 500 Abarth Accessories by MOPAR featuring a fit, finish, and functionality specifically for your FIAT 500 Abarth. • In choosing Authentic Accessories you gain far more than expressive style, pre- mium protection, or extreme entertainment, you also benefit from enhancing your vehicle with accessories that have been thoroughly tested and factory-approved.
  • Page 159 MOPAR® ACCESSORIES ELECTRONICS: • Electronic Vehicle • Mopar Web • Interior/Ambient Lighting Tracking System (EVTS) CARRIERS: • Roof-Mount • Roof-Mount Luggage • Removable Roof Rack Snowboard/Ski Carrier Carrier • Roof-Mount Bike • Hitch-Mount Bike • Bike Receiver Carriers Carrier PERFORMANCE: •...

  • Page 160: Frequently Asked Questions Frequently Asked Questions

    FREQUENTLY ASKED QUESTIONS FREQUENTLY ASKED QUESTIONS GETTING STARTED • How do I install my LATCH Equipped Child Seat? pg. 40 • How do I fold down my rear seat? pg. 50 ELECTRONICS • What Sound System do I have? pg. 73 •...

  • Page 161: Index

    INDEX Accessories....156 Brake System ....127 Mopar ....156 Master Cylinder .
  • Page 162 INDEX Engine Temperature Warning Cooling ....127 Light ....101 Fails To Start ....69 Front Fog Light Indicator .
  • Page 163 INDEX Locks Hands-Free Phone (Uconnect) ..85 Automatic Door ... .10 Headlights ....53 Lubrication, Body .
  • Page 164 INDEX Phone (Uconnect) ... . .85 Seat Belt Maintenance..127 Placard, Tire And Loading Seat Belt Reminder ... .14 Information .
  • Page 165 INDEX General Information ..141, 145 Uconnect 5.0 ... . .73, 75 High Speed ... . .143 Uconnect (Hands-Free Phone) Inflation Pressures .
  • Page 166 NOTES...
  • Page 167 NOTES...
  • Page 168 NOTES...
  • Page 169 NOTES...
  • Page 170 NOTES...

  • Page 171: Driving And Alcohol

    Manuals, Multimedia User Manual and other Warning Labels in your vehicle. Not all features shown in this guide may apply to your vehicle. For additional information on accessories to help personalize your vehicle, visit www.mopar.com (U.S.), www.mopar.ca (Canada) or your local FIAT Dealer. ®...
  • Page 172 Fiat vehicle. Simply download the app, select your make and model and enjoy the ride. To get this application, go directly to the App Store or Google Play and enter the search keyword “MY FIAT”...

This manual is also suitable for:

Abarth 500 cabrio 2017

Table of Contents
