Scanmaster 2 MKII

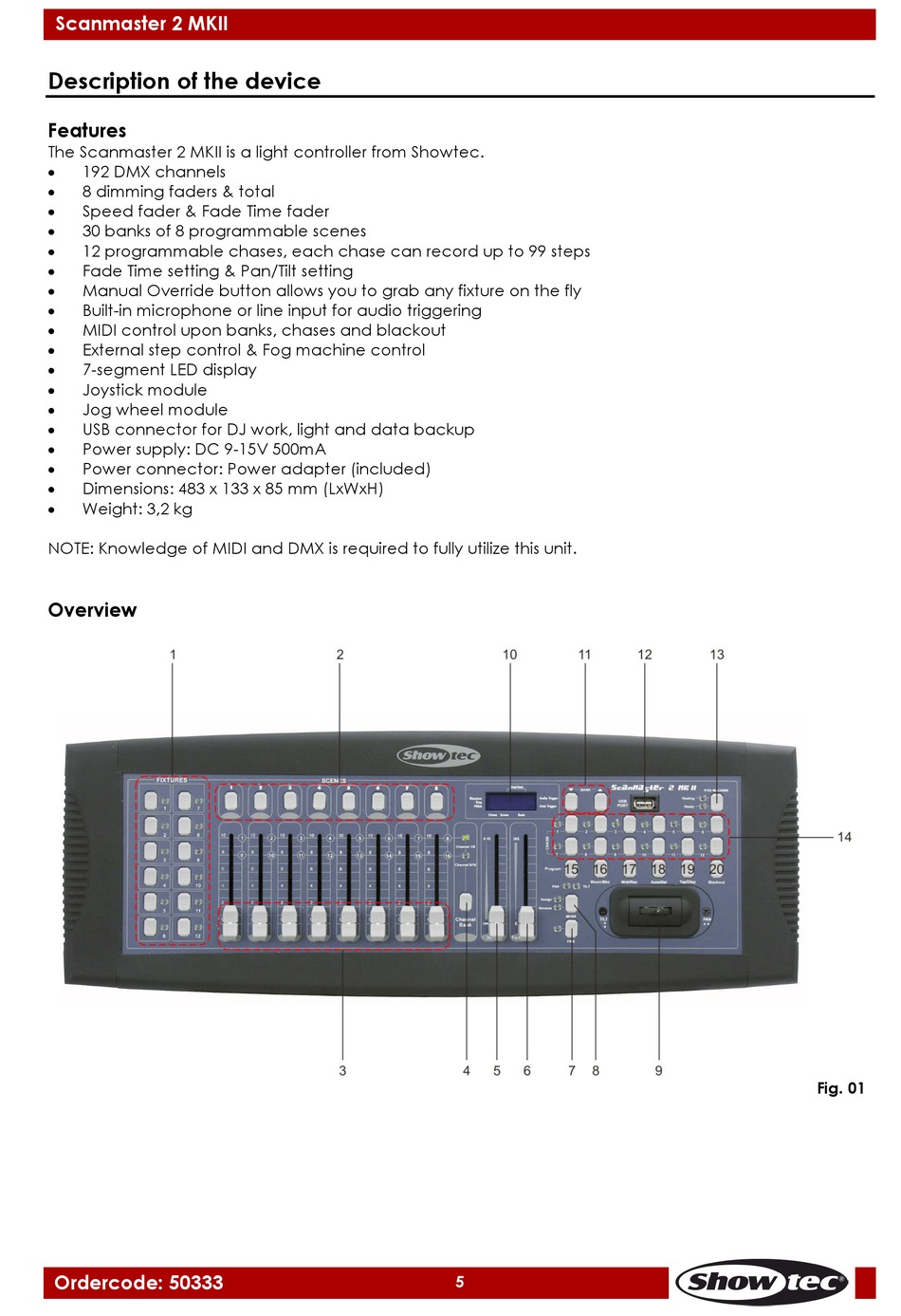

Description of the device

Features
The Scanmaster 2 MKII is a light controller from Showtec.
 192 DMX channels
 8 dimming faders & total
 Speed fader & Fade Time fader
 30 banks of 8 programmable scenes
 12 programmable chases, each chase can record up to 99 steps
 Fade Time setting & Pan/Tilt setting
 Manual Override button allows you to grab any fixture on the fly
 Built-in microphone or line input for audio triggering
 MIDI control upon banks, chases and blackout
 External step control & Fog machine control
 7-segment LED display
 Joystick module
 Jog wheel module
 USB connector for DJ work, light and data backup
 Power supply: DC 9-15V 500mA
 Power connector: Power adapter (included)
 Dimensions: 483 x 133 x 85 mm (LxWxH)
 Weight: 3,2 kg
NOTE: Knowledge of MIDI and DMX is required to fully utilize this unit.

Overview

Ordercode: 50333
5
Fig. 01
