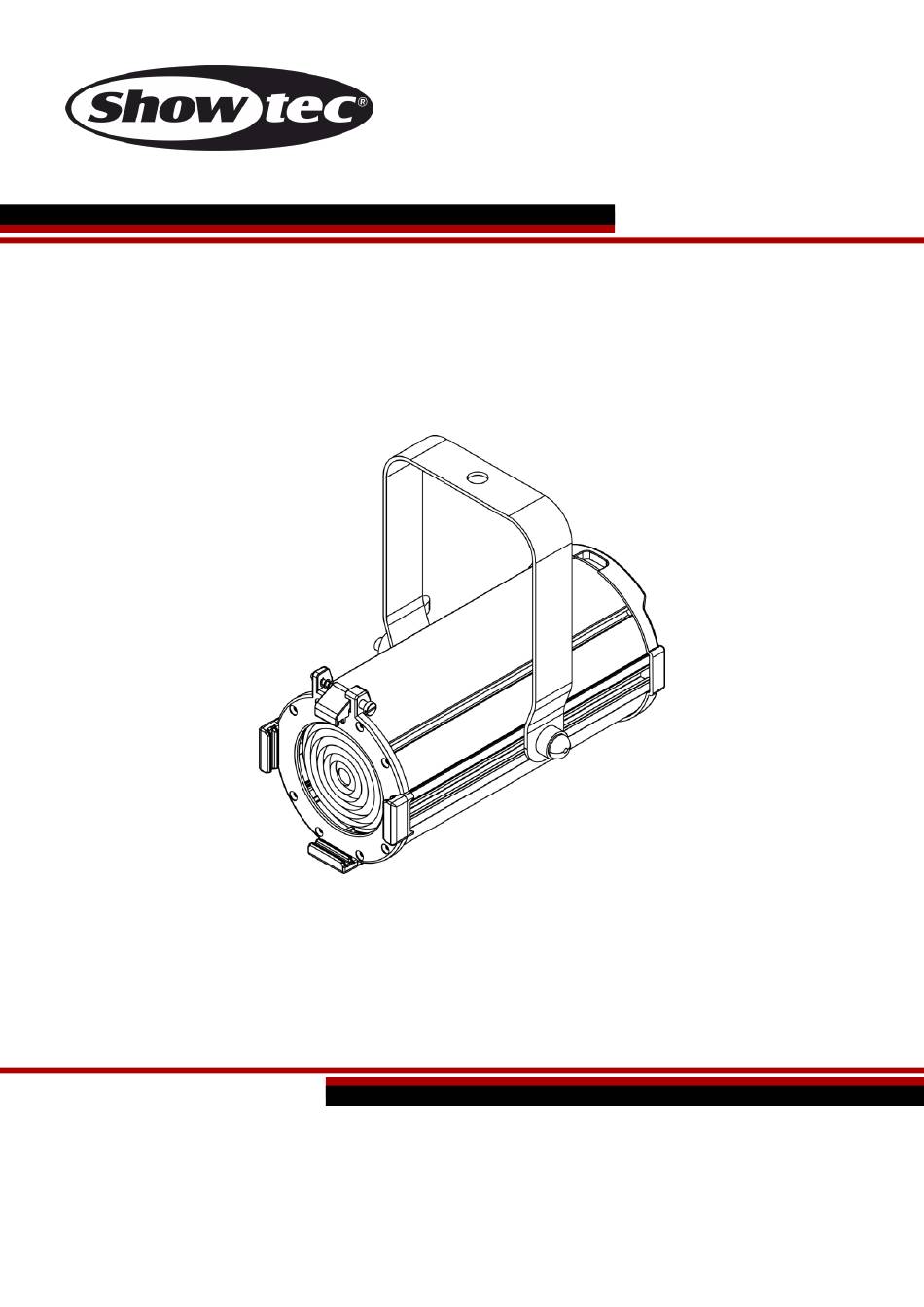

- Page 1 MANUAL ENGLISH ACT Fresnel 20 WW Order code: 34010 Highlite International B.V. – Vestastraat 2 – 6468 EX – Kerkrade – the Netherlands...
-
Page 2: Table Of Contents
ACT Fresnel 20 WW Table of contents Warning ....................................2 Safety Instructions ................................. 2 Operating Determinations ............................4 Rigging .................................... 5 Angle Adjustment ..............................5 Connection with the Mains ............................6 Return Procedure ................................6 Claims ....................................6 Description of the Device ..............................7 Features .................................. -
Page 3: Warning
Save the carton and all packing materials. In the event that a fixture must be returned to the factory, it is important that the fixture will be returned in the original factory box and packing. Your shipment includes: ● Showtec ACT Fresnel 20 WW ● Barndoor ● Color frame ●... - Page 4 ● If your Showtec device fails to work properly, discontinue the use immediately. Pack the unit securely (preferably in the original packing material), and return it to your Showtec dealer for service.
-
Page 5: Operating Determinations
ACT Fresnel 20 WW ● This device falls under protection class I. Therefore it is essential to connect the yellow/green conductor to earth. ● Repairs, servicing and electric connection must be carried out by a qualified technician. ● WARRANTY: Till one year after date of purchase. -
Page 6: Rigging
ACT Fresnel 20 WW Rigging Please follow the European and national guidelines concerning rigging, trussing and all other safety issues. Do not attempt the installation yourself! Always let the installation be carried out by an authorized dealer! Procedure: ● If the device is lowered from the ceiling or high joists, professional trussing systems have to be used. -
Page 7: Connection With The Mains
ACT Fresnel 20 WW Connection with the Mains Connect the device to the mains with the power plug. Always check if the right color cable is connected to the right place. International EU Cable UK Cable US Cable BROWN YELLOW/COPPER... -
Page 8: Description Of The Device

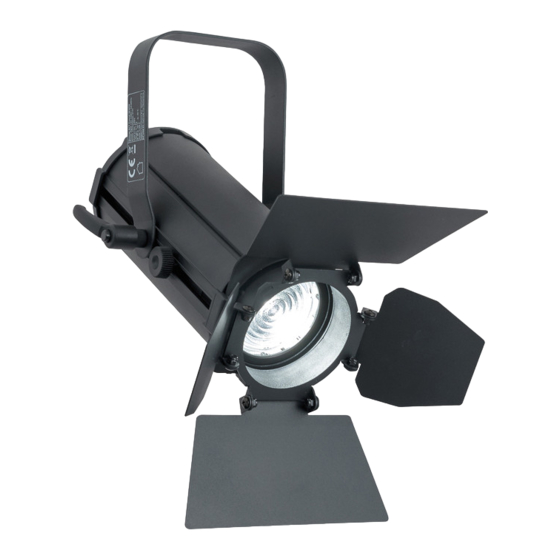

Description of the Device Features The Showtec ACT Fresnel 20 WW is a compact entry-level theater fixture. The ACT Fresnel 20 WW is equipped with a high quality molded-glass Fresnel lens and comes with a barndoor and a color frame. - Page 9 ACT Fresnel 20 WW Backside Fig. 03 09) Manual dimmer control 10) Fuse F1 AL/250 V AC 11) Pro-power connector IN 100–240 V, 50/60 Hz (Blue) Accessories Fig. 04 Fig. 05 12) Safety eye – barndoor 13) Safety eye – color frame...
-
Page 10: Installation
Connect the device to the main power supply. Beam Angle Adjustment The beam angle of the ACT Fresnel 20 WW can be adjusted manually in the range 8°–55°. To adjust the beam angle, follow the steps below: 01) Turn the zoom control (05) counterclockwise to loosen it. -
Page 11: Barndoor Installation
ACT Fresnel 20 WW. Color Frame Installation The ACT Fresnel 20 WW is delivered with a color frame. You can insert a color gel or a diffusion filter into the color frame. To install the color frame, follow the steps below: 01) Push the spring-loaded screw (01) and at the same time lift the color frame clip (02) and flip it backwards (see Fig. -
Page 12: Control Modes
04) The electric power supply cables must not show any damages or material fatigue. The ACT Fresnel 20 WW requires almost no maintenance. However, you should keep the unit clean. Otherwise, the fixture’s light output will be significantly reduced. Disconnect the mains power supply and then wipe the housing with a damp cloth. -
Page 13: Product Specifications
ACT Fresnel 20 WW Product Specifications Model: Showtec ACT Fresnel 20 WW Input voltage: 100–240 V AC, 50/60 Hz Power consumption: 21 W Fuse: F1 AL/250 V AC Dimensions: 231 x 165 x 216 mm (L x W x H) (without accessories) -
Page 14: Dimensions
ACT Fresnel 20 WW Dimensions Order code: 34010... - Page 15 ACT Fresnel 20 WW Order code: 34010...
