Page 1: User Manual

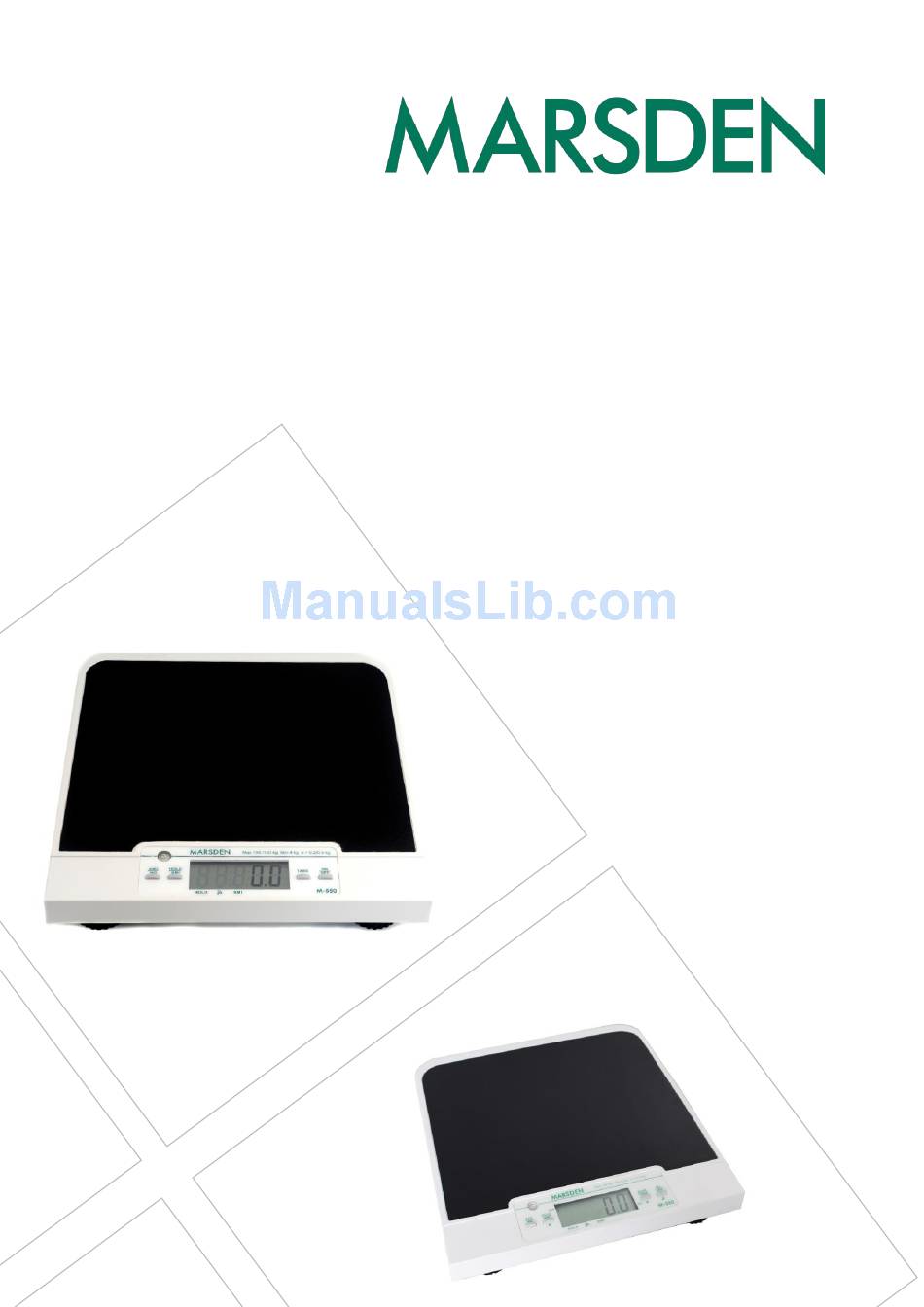

USER MANUAL M-550 Please take time to read these instructions before starting to use the scale Version 1.0 07/06... -
Page 2: Table Of Contents
Contents Introduction Product Specification Safety Instructions Explanation of Graphic Symbols Power Supply and Low Battery Functions of the Scale Error Messages Troubleshooting EMC Guidance and Manufacturer’s Declaration Recommended Separation Distance Panel & LCD Display Manufacturer’s Declaration of Conformity Contact Us Page 2... -
Page 3: Introduction
Thank you for purchasing a Marsden professional medical scale. This is a precision Class III Weighing Instrument and considerate use will result in many years of accurate weighing. The scale has a maximum load capacity of 160kg which must not be exceeded. -
Page 4: Safety Instructions
Marsden/the manufacturer shall not be liable for damages arising from failure to heed the following instructions: When using electrical components under increased safety requirements, always comply with appropriate regulations. -
Page 5: Explanation Of Graphic Symbols
This product must be disposed of at a communal collection point. Carefully read this operation manual before setup and commissioning, even if you are already familiar with Marsden weighing scales. Transport and storage temperature limit indicating the upper and lower limit (transport and storage temperature on packaging). -
Page 6: Power Supply And Low Battery
Power Supply & Low Battery The M-550 runs on four ‘AA’ alkaline batteries. When is shown on the scale’s LCD display, battery power is not sufficient enough for the scale to be used and the batteries should be replaced. Power Supply The four ‘AA’... -
Page 7: Functions Of The Scale
HOLD 1. Press the HOLD/BMI key to enter into enable the Hold feature. 2. The arrow pointing at the hold symbol will start to flash and the LCD display will show 3. The person being weighed can now stand on the scale. Their weight reading will hold and remain on the display. -
Page 8: Error Messages
Error Messages Low Battery The scale’s alkaline AA type batteries are flat; please replace the batteries. Overload This indicates that the scale’s load sensor(s) have been overloaded. Reduce the loading and retry. Counting Error 1. The signal from the load cells is too high. -
Page 9: Troubleshooting
If the scale fault is due to mechanical or electronic defect then the scale will be repaired or replaced under warranty. The purchaser will need to return the scale to the original place of purchase (Marsden/your Authorised Dealer). Before you contact your Authorised Dealer, please read through the following section carefully. -
Page 10: Emc Guidance And Manufacturers Declaration
EMC Guidance and Manufacturers Declaration Guidance and manufacturer’s declaration – electromagnet emissions. The M-550 is intended for use in the electromagnetic environment specified below. The customer or user of the M-550 should ensure that it is used in such an environment. Emission Test Compliance Electromagnetic environment-guidance... - Page 11 Guidance and manufacturer’s declaration – electromagnetic immunity. The M-550 is intended for use in the electromagnetic environment specified below. The customer or user of the M-550 should ensure that it is used in such an environment. Immunity Test IEC 60601 test level Compliance level Electromagnetic environment- guidance...
-
Page 12: Recommended Separation Distance
Recommended separation distance between portable and mobile RF communications equipment and the M-550 Digital Floor Scale The M-550 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the M-550 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the M-550 as recommended below, according to the maximum output power of the communications equipment. -
Page 13: Panel & Lcd Display
Panel and LCD Display LCD Display Stable Symbol Minor weight value Zero Manufacturer’s Declaration of Conformity Page 13... -
Page 14: Contact Us
Tel: 01709 364296 / 0800 169 2775 Fax: 01709 364293 E-mail: sales@marsdengroup.co.uk www.marsden-weighing.co.uk Manufacturing and Distribution: Unit 7, Centurion Business Park, Coggin Mill Way, Rotherham, S60 1FB Head Office: Unit 1, Genesis Business Park, Sheffield Road, Rotherham S60 1DX www.marsden-weighing.co.uk...
