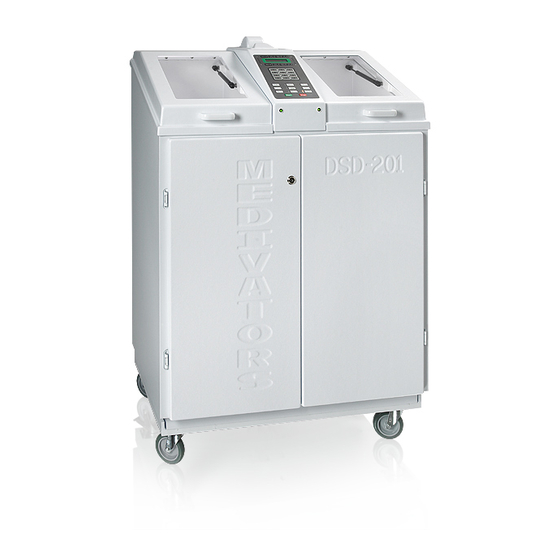

Internal water filter
Hide thumbs Also See for DSD-201:

Advertisement

Tools Required:

Filter Wrench (supplied with DSD-201)

Parts Required:

Filter Cartridge MF01-0013
Accessory Tube DSD-1064 (supplied with DSD-201)

Replace and Disinfect the Internal Water Filter

Caution: The internal water filter must be high-level disinfected or
Note: Verify that station A & B disinfectant reservoirs contain effective
sterilant/disinfectant. Sterilant/disinfectant from station B reservoir will be
used to sterilize/disinfect the internal 0.2 micron water filter, housing and
plumbing lines. The default contact time for this process is 3 hours;
shorter contact times may be used but should reflect the instructions of
the sterilant/disinfectant being used.
1.
The DSD-201 must be in the idle state. Connect the restrictors (see note) into A and
B basin. Place the floating lids onto the endoscope basins and close the station
covers.
Note: Ensure the restrictor adapter provided with the installation kit is
connected in the basin before performing this procedure.
2.
Close the incoming water supply valve external to the DSD-201.

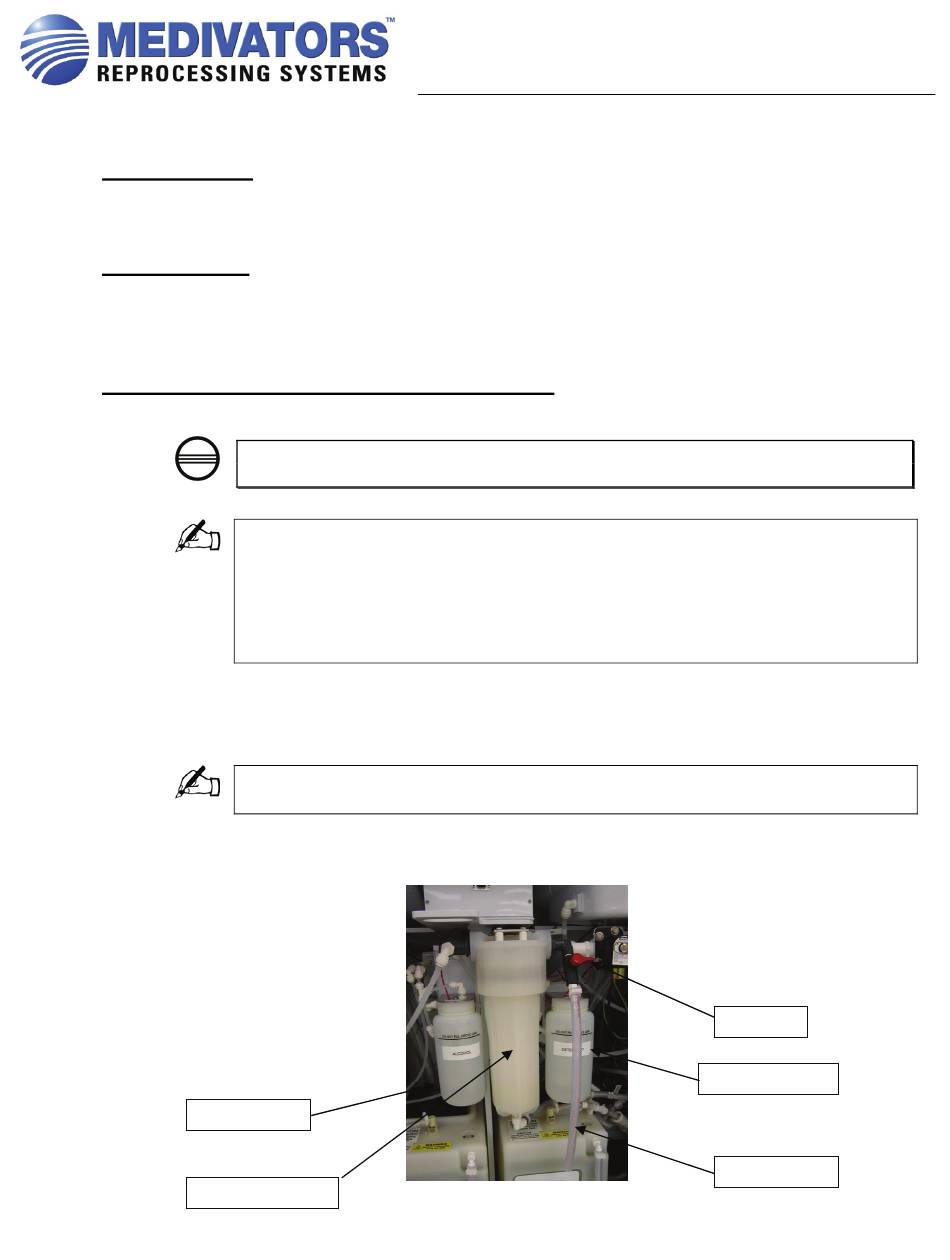

Alcohol Reservoir
0.2 Micron Filter Housing
50096-323 Rev B
Instructions for Replacement and
Disinfection of Internal Water Filter
DSD-201
sterilized with high-level disinfectant/sterilant before use:
Bleed Tap
Detergent Reservoir
Filter Bleed Tube
Page 1 of 4

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DSD-201 and is the answer not in the manual?

Questions and answers

Summary of Contents for Medivators DSD-201

  • Page 1 The DSD-201 must be in the idle state. Connect the restrictors (see note) into A and B basin. Place the floating lids onto the endoscope basins and close the station covers.
  • Page 2 Unscrew the internal water filter canister housing using the filter wrench supplied with the DSD-201, and remove in order to expose the water filter. Refer to Figure 2. Turn the water filter ½-inch in the counterclockwise position to unlock the filter; then pull the filter downwards to release the filter.
  • Page 3 Instructions for Replacement and Disinfection of Internal Water Filter DSD-201 Rotate Counter-clockwise to Remove 0.2 Micron Filter Cartridge Ensure that new filter engages locking tabs and rotate clockwise to lock into position Fig 4 Underside View of Filter Head Fig 5 For illustrative purposes only.
  • Page 4 Instructions for Replacement and Disinfection of Internal Water Filter DSD-201 10. Wipe the filter canister clean with a lint-free cloth. Do not remove silicon grease from the housing ‘O’ ring. 11. Re-attach the filter canister ensuring that the O-ring is in place.
