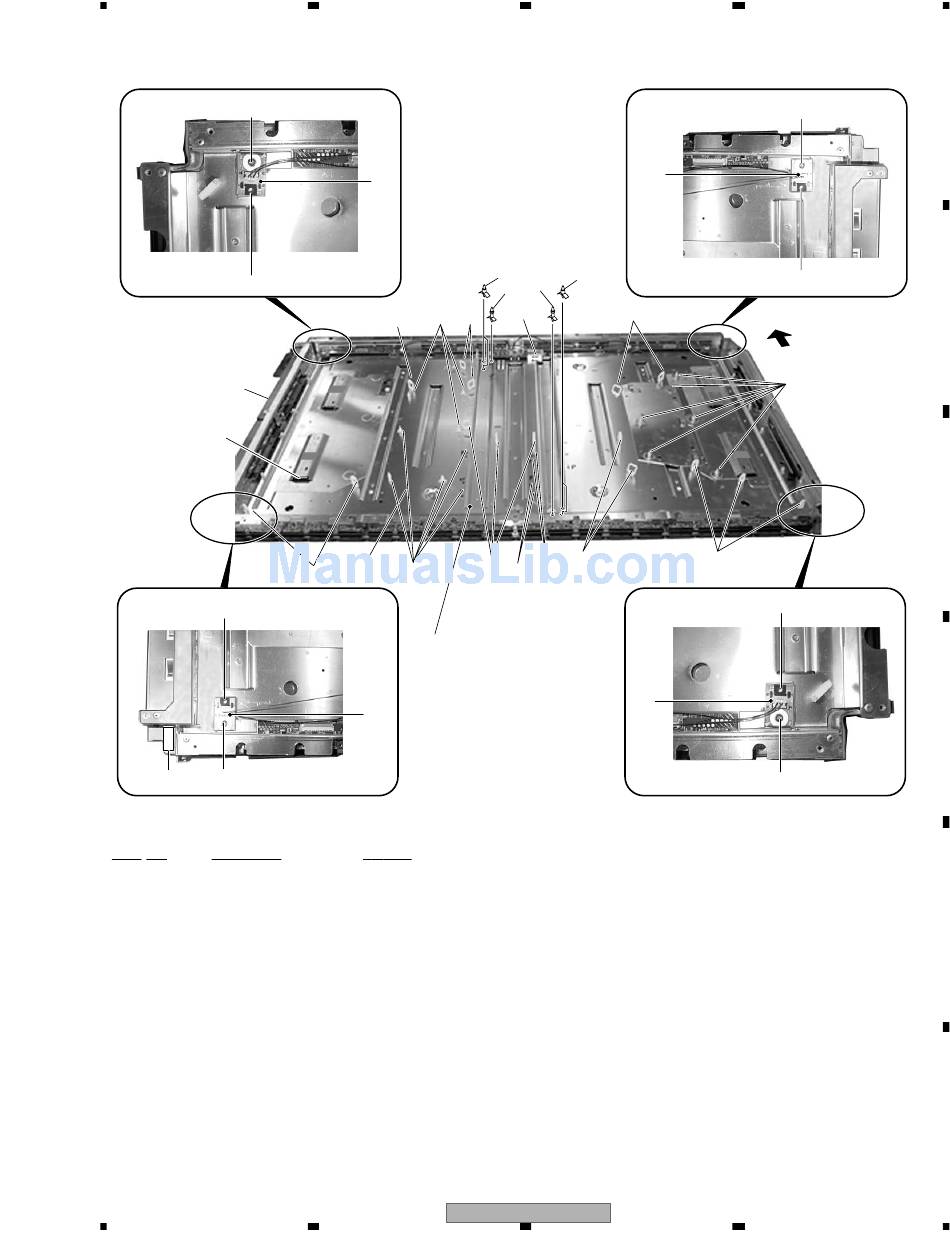

2.2 UNDER LAYER SECTION (1)

11
10
5
14
10
12
11
UNDER LAYER SECTION (1) parts List
Mark No.
Description
1
CLAMP A Assy
2
CLAMP B Assy
3
CLAMP C Assy
4
CLAMP D Assy
NSP 5
Panel Chassis (50) Assy
[Refer to "2.14 PANEL CHASSIS (50) ASSY".]
6
Wire Saddle
7
Circuit Board Spacer
8
Circuit Board Spacer
NSP 9
PCB Support
10
Locking Card Spacer
11
Screw
12
V Cushion
5
6
1
7
6
6
6
6
7
6
5
Refer to
"2.14 PANEL CHASSIS ASSY
(AWU1066)".
3
Part No.
AWZ6738
AWZ6739
AWZ6740
AWZ6741
AWU1066
AEC1904
AEC1872
AEC1873
AEC1253
AEC1736
ABA1301
AED1205
PDP-503PC
6
7
2
8
8
9
9
6
6
6
7
7
4
7
8
11
10
Upper side
7
6
10
11
8
A
B
C
D
E
F
9
