Summary of Contents for Jensen SMPS-900

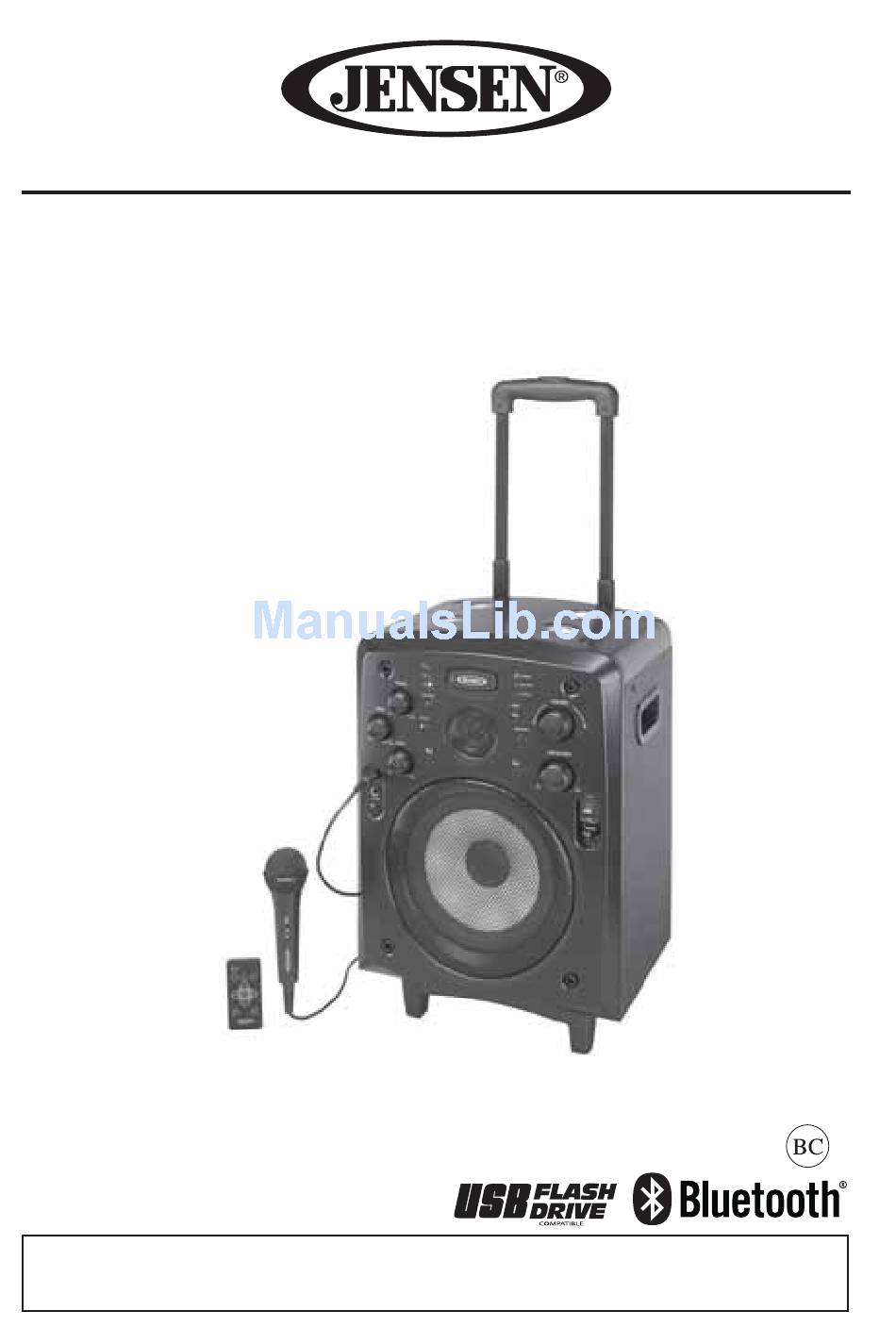

- Page 1 PORTABLE BLUETOOTH TAILGATE / TROLLEY SPEAKER MODEL: SMPS-900 USER MANUAL PLEASE READ THIS USER MANUAL COMPLETELY BEFORE OPERATING THIS UNIT AND RETAIN THIS BOOKLET FOR FUTURE REFERENCE.
-
Page 2: Important Safety Instructions
WA R NING TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO PREVENT BLADE EXPOSURE. TO PREVENT FIRE OR SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. - Page 3 13. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
-
Page 4: Compliance With Fcc Regulations
COMPLIANCE WITH FCC REGULATIONS FCC ID SSMMEF267B This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. -
Page 5: Dear Jensen Customer
The serial number of this product is found on its bottom. You should note the serial number of this unit in the space provided as a permanent record of your purchase to aid in identification in the event of theft of loss. Model Number: SMPS-900 Serial Number :... - Page 6 POWER SOURCE An AC power adaptor with an output voltage of 15V DC 2A is included with the SMPS-900. The AC adaptor is used for powering the unit, and also for charging the built-in battery. Battery Connection You will need to connect the internal battery before using the SMPS-900.
-
Page 7: Location Of Controls
LOCATION OF CONTROLS TREBLE CONTROL BASS CONTROL ECHO CONTROL MIC INPUT GUITAR INPUT AUX IN JACK AUX INDICATOR USB INDICATOR BLUETOOTH INDICATOR 10. SOURCE BUTTON 11. LED LIGHT BUTTON 12. SKIP- BUTTON 13. POWER INDICATOR 14. BATTERY INDICATOR 15. REPEAT INDICATOR 16. - Page 8 Function select MUTE button Press to select USB/BT/AUX Function. Press to mute the volume. PLAY/PAUSE button Press to play or pause a loaded Bluetooth or USB. VOLUME control Press to adjust the volume up or down. SKIP+/- buttons Press to skip between tracks on a Blutooth or USB playlist.
-
Page 9: Bluetooth Operation
Bluetooth indicator (#9) will light up. 3. Press and hold the PAIR Button (#16), and the SMPS-900 will enter pairing Mode. The Bluetooth indicator (#9) will begin flashing. 4. Turn on the Bluetooth function of your device and enable the search or scan feature to find the SMPS-900. -
Page 10: Usb Player Operation
AUX OPERATION You can play other music sources (iPod, MP3 or other digital audio players) through the speakers of the SMPS-900 by connecting the AUX IN Jack (#6) to your external player’s audio out jack or headphone jack. 1. Plug one end of an audio cable (not included) into the AUX IN Jack (#6) and the other end of the cable to the headphone jack of your digital audio player. - Page 11 TOP MOUNTED LED LIGHTS The SMPS-900 features a top mounted LED light show. When the power is ON, the LED LIGHTS (#28) will randomly flash. You can turn the LED LIGHTS ON or OFF with the LED LIGHT BUTTON (#11).
-
Page 12: Troubleshooting Guide
TROUBLE SHOOTING GUIDE If you experience difficulties in the use of this clock radio, please check the following or call 1-800-777-5331 for Customer Service and support PROBLEM POSSIBLE CAUSE REMEDY GENERAL No sound in Volume not adjusted. Adjust the Volume knob. general. -
Page 13: Specification
SPECIFICATION Power Output 30 W RMS* Speakers 8” Full range, 4 ohms AC Power Adaptor AC input : 100-240V~ 50/60Hz DC output: DC 15V 2000mA Built-in Li-ion Battery 11.1V, 6000mAh Remote Control 1 x DC 3V CR2025 button cell (included) Bluetooth V4.1, Support A2DP USB maximum size 32GB, Support MP3 Files * When using the included AC power adaptor... - Page 14 90 DAY LIMITED WARRANTY AND SERVICE VALID IN THE U.S.A. ONLY SPECTRA MERCHANDISING INTERNATIONAL, INC. warrants this unit to be free from defective materials or factory workmanship for a period of 90 days from the date of original customer purchase and provided the product is utilized within the U.S.A. This warranty is not assignable or transferable.
