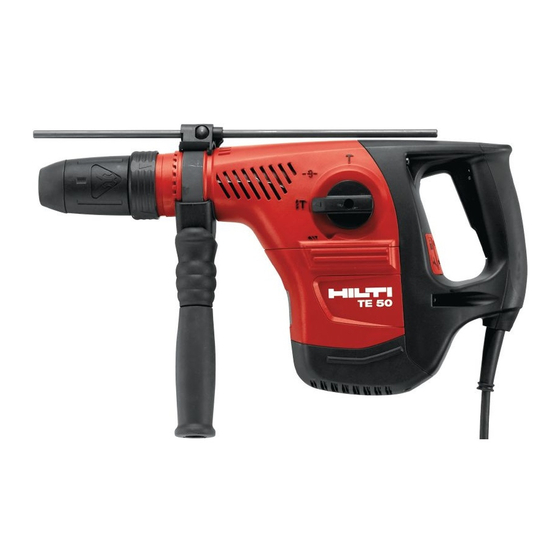

Hilti TE 50 Operating Instructions Manual
Hide thumbs
Also See for TE 50:
- Original operating instructions (204 pages) ,
- Manual (150 pages) ,
- User manual (62 pages)
Related Manuals for Hilti TE 50
Summary of Contents for Hilti TE 50
- Page 1 TE 50 TE 50-AVR English Printed: 08.03.2017 | Doc-Nr: PUB / 5130201 / 000 / 03...
- Page 2 Printed: 08.03.2017 | Doc-Nr: PUB / 5130201 / 000 / 03...
- Page 3 1 Information about the documentation 1.1 About this documentation • Read this documentation before initial operation or use. This is a prerequisite for safe, trouble-free handling and use of the product. • Observe the safety instructions and warnings in this documentation and on the product. •...
- Page 4 Lock symbol 1.4 Product information Hilti products are designed for professional use and may be operated, serviced and maintained only by trained, authorized personnel. This personnel must be informed of any particular hazards that may be encountered. The product and its ancillary equipment can present hazards if used incorrectly by untrained personnel or if used not in accordance with the intended use.
- Page 5 Personal safety ▶ Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. ▶...
- Page 6 ▶ Before starting work, check the hazard class of the dust that will be produced when working. Use an industrial vacuum cleaner with an officially approved protection class in compliance with the locally applicable dust protection regulations. Dust from materials such as lead-based paint, certain types of wood and concrete/masonry/stone containing quartz, minerals or metal can be harmful to health.
- Page 7 3 Description 3.1 Overview of the product English Printed: 08.03.2017 | Doc-Nr: PUB / 5130201 / 000 / 03...
- Page 8 Note Bring the product to Hilti Service in good time. This will help to ensure that it’s always ready for use. 3.6 Items supplied Power tool, side handle, operating instructions, depth gauge, Hilti toolbox, cleaning cloth, grease.
-
Page 9: Operation
TE 50 TE 50-AVR Weight in accordance with EPTA procedure 01 5.7 kg 5.8 kg Single impact energy 5.2 J 5.2 J EN 60745 protection class 4.2 Noise information and vibration values in accordance with EN 60745 The sound pressure and vibration values given in these instructions were measured in accordance with a standardized test and can be used to compare one power tool with another. - Page 10 3. Pull the chuck back as far as it will go and remove the accessory tool. Note Use only the recommended grease supplied by Hilti. Use of unsuitable grease may cause damage to the product. 5.4 Removing the accessory tool DANGER Risk of fire! Risk of contact between the hot accessory tool and highly inflammable materials.
- Page 11 ▶ Do not place the hot accessory tool on readily flammable materials. ▶ Pull the chuck back as far as it will go and remove the accessory tool. Note Use only genuine Hilti grease. Use of unsuitable grease may cause damage to the product. 5.5 Chisel positioning CAUTION Risk of injury! Loss of control over the chisel direction.
- Page 12 Drilling without hammering action is possible when accessory tools with a special connection end are used. Accessory tools of this kind are available from Hilti. Alternatively, when the keyless quick-release chuck is fitted, smooth-shank drill bits for wood or steel, for example, can be used to drill without hammering.
- Page 13 To help ensure safe and reliable operation, use only genuine Hilti spare parts and consumables. Spare parts, consumables and accessories approved by Hilti for use with the product can be found at your local Hilti Center or online at: www.hilti.com English Printed: 08.03.2017 | Doc-Nr: PUB / 5130201 / 000 / 03...
-
Page 14: Troubleshooting
Most of the materials from which Hilti tools and appliances are manufactured can be recycled. The materials must be correctly separated before they can be recycled. In many countries, your old tools, machines or appliances can be returned to Hilti for recycling. Ask Hilti Service or your Hilti representative for further information. - Page 15 ▶ Disposal of electric tools or appliances together with household waste is not permissible. 9 Manufacturer’s warranty ▶ Please contact your local Hilti representative if you have questions about the warranty conditions. English Printed: 08.03.2017 | Doc-Nr: PUB / 5130201 / 000 / 03...
