Summary of Contents for IBM TOTAL STORAGE NAS 100

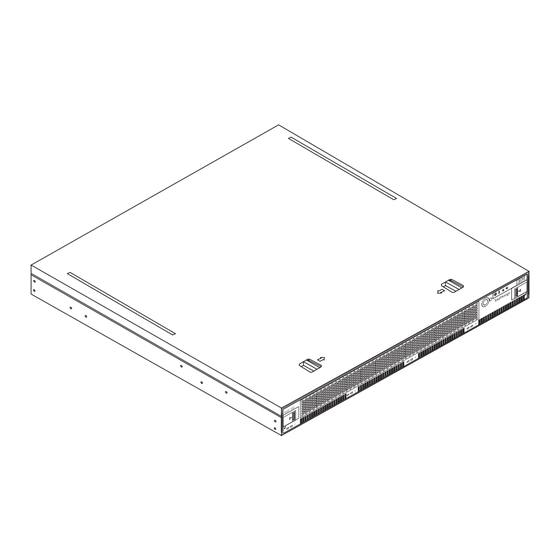

- Page 1 IBM TotalStorage NAS 100 Quick Start Instructions...
-
Page 3: Quick Start Instructions
IBM TotalStorage NAS 100 Quick Start Instructions... - Page 4 First Edition (August 2002) © Copyright International Business Machines Corporation 2002. All rights reserved. US Government Users Restricted Rights – Use, duplication or disclosure restricted by GSA ADP Schedule Contract with IBM Corp.
- Page 5 Notes: 1. The latest Release Notes are available at www.ibm.com/storage/support/. 2. Visually inspect the unit to ensure that it was not damaged during shipping. If any items are missing or damaged, contact your IBM representative. Step 2: Unpack the box Items you find in the box: v One NAS 100.
- Page 6 Step 3: Installing the appliance on a tabletop Note: If you have ordered a SCSI adapter with your appliance, refer to the IBM TotalStorage NAS 100 Hardware Installation and Service Guide for instructions on installing the adapter in your appliance.
- Page 7 Slide the bracket to the right until the bracket clicks into the cutouts on the side of the chassis. 3. Repeat for the three other brackets. ™ IBM TotalStorage NAS 100 Quick Start Instructions...
- Page 8 2. Wait at least 3 minutes after power on for the initial diagnostics to complete, and then verify that the Power LED and LAN 1 or LAN 2 LED are ON. If not, refer to the IBM TotalStorage NAS 100 User’s Reference on the Documentation CD.
- Page 9 Explorer 5.1 or later, open the browser on a remotely attached PC and: v If your system uses DHCP (LAN 1), enter http://ibm5190-xxxxxxx:8099, where xxxxxxx is the appliance’s serial number v If your system uses static IP (LAN 2), enter http://192.168.0.1:8099, the factory default ™ IBM TotalStorage NAS 100 Quick Start Instructions...
- Page 10 Note: Two situations can prevent your DHCP system from finding the host name: v The DHCP server is on a different subnetwork than the appliance v The DNS server has appended a suffix, such as .com to the host name If this happens, use the static IP address.
- Page 11 Java and all Java-based trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States, other countries, or both. Other company, product, and service names may be trademarks or service marks of others. © Copyright IBM Corp. 2002...
- Page 12 NAS 100 Quick Start Instructions...
- Page 14 Part Number: 55P4034 Printed in U.S.A. (1P) P/N: 55P4034...
