Summary of Contents for EcoxGear EcoBoulder

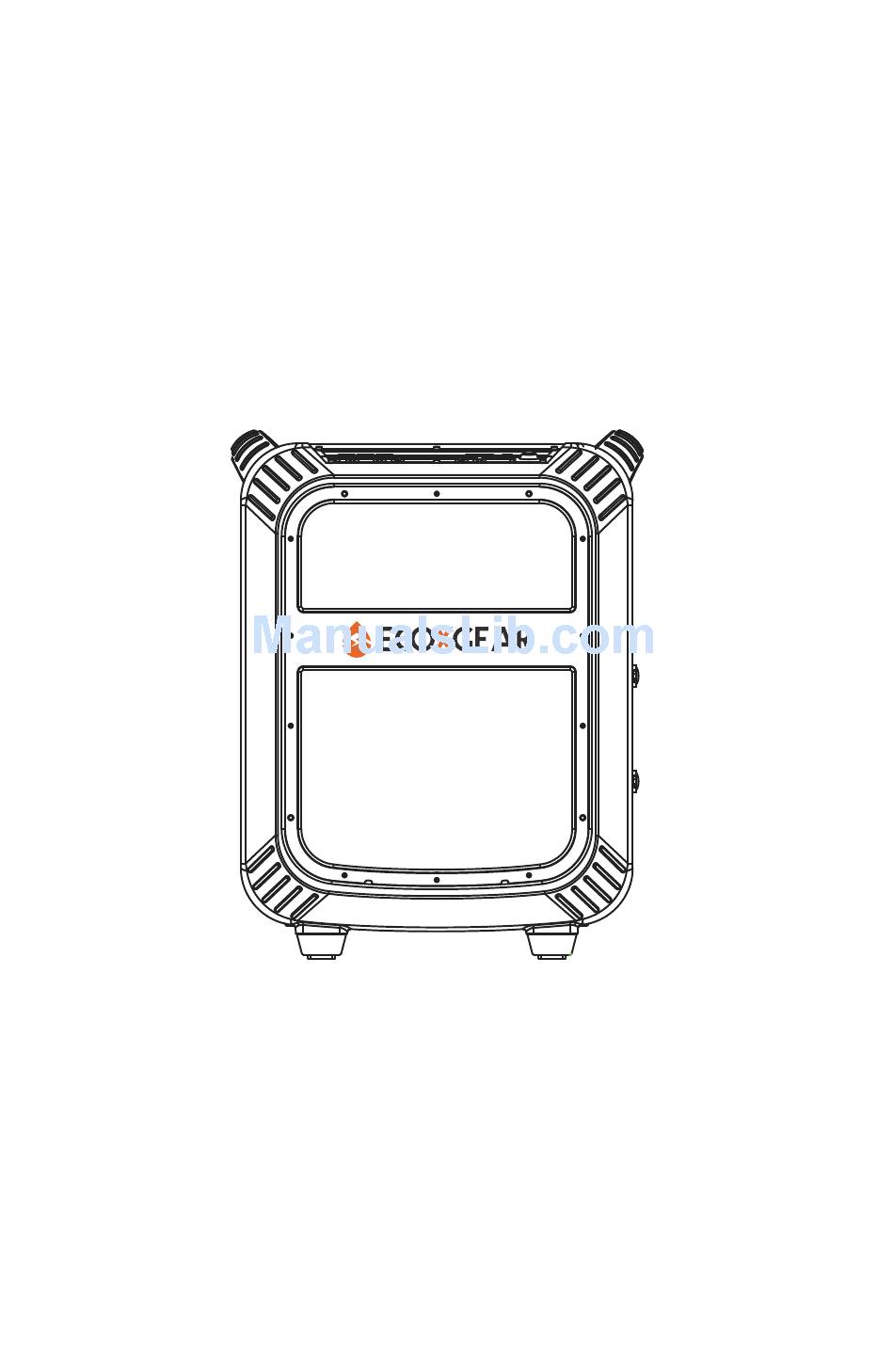

- Page 1 EcoBoulder User's Manual...
- Page 2 This device complies with part 15 of the FCC Rules. Operation is subject to the condition that this device does not cause harmful interference (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 To maintain compliance with FCC's RF Exposure guidelines, This equipment should be installed and operated with minimum distance between 20cm the radiator your body: Use only the supplied antenna. FCC ID: 2AAUI-GDIEXBM901...
-
Page 4: Congratulations
Care and Maintenance 1.Read the User' s Manual before using the EcoBoulder. 2.Do not attempt to service the EcoBoulder yourself. Opening or removing covers may expose you to dangerous voltages or other hazards. Please contact your local reseller before you send the EcoBoulder for repair. -
Page 5: Table Of Contents
Contents Congratulations Page 1 Care and Maintenance Features List Unpacking Layout 5 ~ 8 Battery/Charger Connections LCD Icons Description Key Functions 12 ~ 13 Operations 14 ~ 19 Troubleshooting Specifications... -
Page 6: Features List
Features List Clear and Crystal Sound , Superior Stereo Performance 2. Waterproof 3. Bluetooth mode, FM mode, AM mode, AUX 1 mode, AUX 2 mode Optional 4. Bluetooth Connection (Bluetooth V4.0) 5. Music Playing Control 6. Bluetooth Stereo (A2DP/AVRCP) 7. EQ(Default,Bass Boost, Treble Boost, Rock, Jazz) Optional 8. -
Page 7: Unpacking
Unpacking Once you have unpacked your product, make sure that all the parts shown below are available. If any pieces are missing or broken, please promptly call your dealer. EcoBoulder User's Manual EcoBoulder Power cable User’s Manual... -
Page 8: Layout
Layout Top View Handle Panel Front View Top Cover Speaker mesh... - Page 9 Layout Rear View Lower Cover Rear Cover Bottom View Wheels...
- Page 10 Layout Side View Closed Connect jack cover Power jack cover Open USB jack AUX 1 jack Microphone jack Power cable jack...
- Page 11 Layout Side View Closed Bolt Open AUX 2 jack USB jack...
-
Page 12: Battery/Charger
Battery/Charger Insert the included power cable(as following pictures) to charge the EcoBoulder. Note that the EcoBoulder can be used with the power cable while it simultaneously charges the battery. The icon will be on when plugged into AC power. When the power cable is connected, movement of the top battery segment shows the battery is charging. -
Page 13: Connections
This input can be used to connect a CD player, MP3 player. USB Charging Ports: Connect your device’s charge cable here to charge it. USB charging only functions when the EcoBoulder’s power is turned on. Two USB port are totally 3.1A maximum. T ablet iPhone... -
Page 14: Lcd Icons Description
LCD Icons Description The EcoBoulder is in the Indicates the battery BT mode. level of the EcooBoulder. Indicates the battery is The EcoBoulder is in very low. the FM mode. Indicates the EcooBoulder is charging. The EcoBoulder is in the AM mode. -
Page 15: Key Functions 12
Key Functions RADIO 1.Power Button: Turns EcoBoulder on or off. 2.Bluetooth Button: Press this button to enter pairing mode. Press and hold this button for 5 seconds to delete the paired device. 3.Source Button: Press this button to switch the next mode between Bluetooth, FM, AM, AUX 1 or AUX 2 cyclically. - Page 16 RADIO 9.Backlight Button: Turns the back light of buttons on or off. 10.Tune Buttons: Press this buttons to tune in a radio station. To “seek”(jump to the next available station), press and hold either button down for a few seconds until it starts to seek a station.
-
Page 17: Operations 14
EcoBoulder. Pairing a Bluetooth Device 1. Turn on your Bluetooth device. 2. Power on EcoBoulder. “Power on, ready to connect” verbal response will be heard. 3. Press briefly to start pairing to your device. The Bluetooth icon will start flashing. -
Page 18: Mode Switch
Operations Adjust the Master Volume Press briefly to adjust the speaker volume. 2. Press and hold to adjust the speaker volume continually(30 levels are adjustable). a. Press briefly will increase one sound level. Or press and hold will keep increasing one level until reached top level then stop. - Page 19 Operations Play music(Bluetooth mode) After the EcoBoulder is connected to your Bluetooth device, press briefly on the EcoBoulder to play, press again to pause. Press briefly to play previous song. Press briefly to get to the next song. During playing,...
- Page 20 Operations Listening(AM/FM mode) Press briefly to switch to FM or AM. Also, you can press briefly to set the tuner to FM or AM cyclically.Press to tune in a radio station. To “seek”(jump to the next available station), press and hold either button down for a few seconds until it starts to seek a station.
- Page 21 EcoBoulder B. The Bluetooth icon on the EcoBoulder B will start flashing. 2. After a few seconds, the EcoBoulder A and B are linked, The Bluetooth icon and link icon on the EcoBoulder A and B lit solid, “Connection successful” verbal response will be heard.
-
Page 22: Operations
Operations Master Routing is set to Left, the Slave Routing setting is Right. Press and hold to switch the TWS mode. There are 3 mode. • Master Left, Slave Right • Master Right, Slave Left • Master Stereo, Slave Stereo... -
Page 23: Troubleshooting
The sound is distorted Try lowering the volume control of your sound source or music instrument. Also, try to reduce the overall volume of the EcoBoulder. Cannot Pair With Bluetooth Device Make sure that your device is compatible with Bluetooth. -
Page 24: Specifications
Specifications Bluetooth Compliance Bluetooth V 4.0 2.402~2.480GHz ISM Spectrum Frequency Band GFSK ,π/4-DQPSK, 8DPSK Modulation Up to 10m (indoor) Operating Range 3 ' (76.2mm) tweeter Tweeter 8 ' (203.2mm) woofer Woofer 50 W (peak) Output Power Battery Capacity 12V, 7.0Ah Power Supply Input voltage: 100-240V~50/60Hz About 10 hours...
