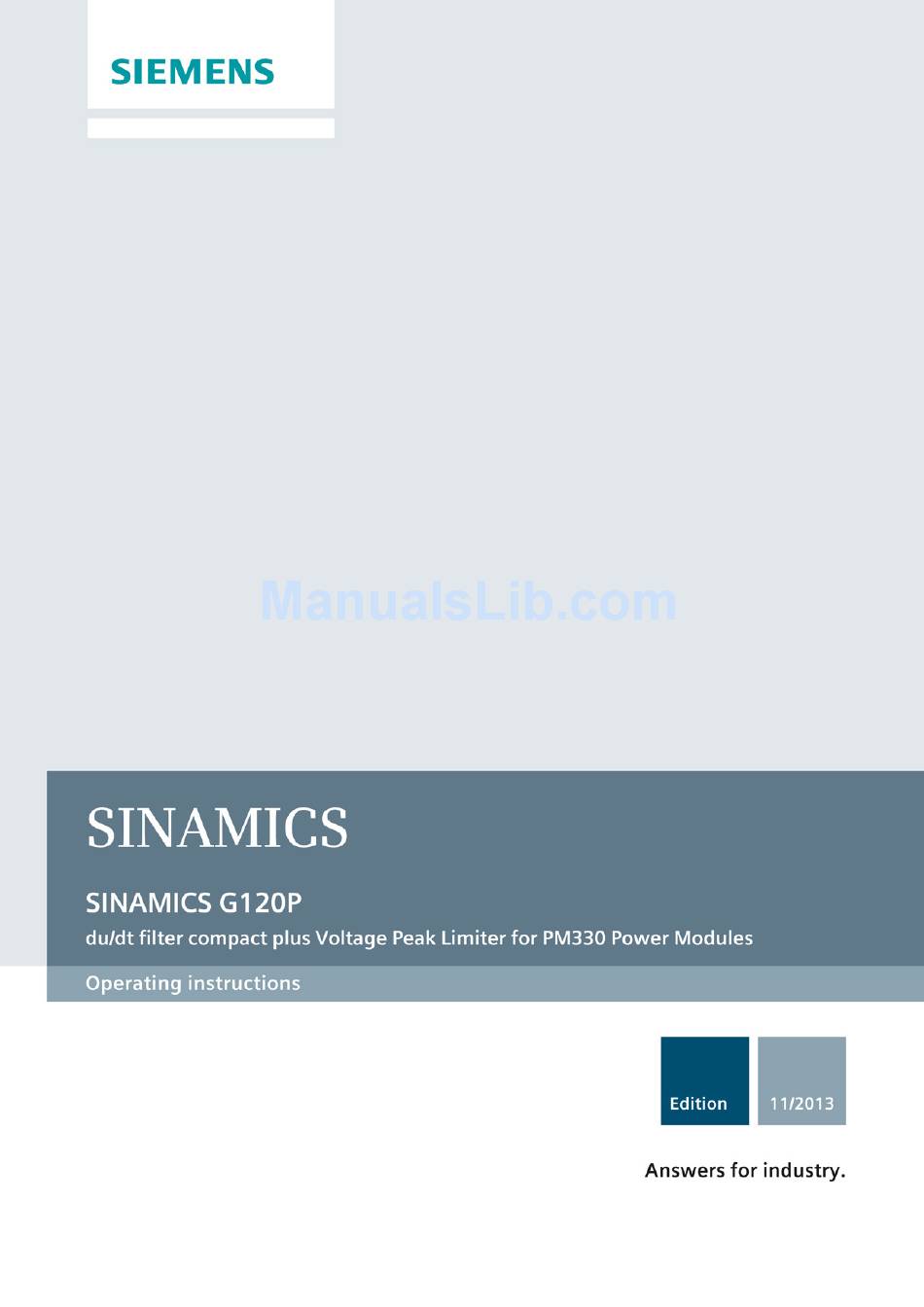

  • Page 3 Voltage Peak Safety information Limiter ___________________ General ___________________ Mechanical installation SINAMICS ___________________ Electrical installation SINAMICS G120P ___________________ dV/dt filter compact plus Voltage Maintenance and servicing Peak Limiter ___________________ Technical specifications Operating Instructions Control version V4.6 11/2013...
  • Page 4 Note the following: WARNING Siemens products may only be used for the applications described in the catalog and in the relevant technical documentation. If products and components from other manufacturers are used, these must be recommended or approved by Siemens. Proper transport, storage, installation, assembly, commissioning, operation and maintenance are required to ensure that the products operate safely and without any problems.
  • Page 5: Table Of Contents

    Table of contents Safety information ........................... 7 Warnings ............................7 Safety and application instructions ....................8 Components that can be destroyed by electrostatic discharge (ESD) .......... 9 General ..............................11 Mechanical installation .......................... 15 Electrical installation..........................17 Maintenance and servicing ........................21 Technical specifications ........................
  • Page 6 Table of contents dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 7: Safety Information

    Safety information Warnings WARNING Dangerous electrical voltage Hazardous voltages are present when electrical equipment is in operation. Severe personal injury or substantial material damage may result if these warnings are not observed. Only qualified personnel are permitted to work on or around the equipment. These personnel must be thoroughly familiar with all the warnings and maintenance procedures described in these operating instructions.
  • Page 8: Safety And Application Instructions

    Note Support by SIEMENS service centers We recommend engaging the support and services of your local Siemens service center for all planning, installation, commissioning and maintenance work. dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 9: Components That Can Be Destroyed By Electrostatic Discharge (Esd)

    Safety information 1.3 Components that can be destroyed by electrostatic discharge (ESD) Components that can be destroyed by electrostatic discharge (ESD) CAUTION Components sensitive to electrostatic charge The board contains components that can be destroyed by electrostatic discharge. These components can be easily destroyed if not handled properly. If you do have to use electronic boards, however, please observe the following: •...
  • Page 10 Safety information 1.3 Components that can be destroyed by electrostatic discharge (ESD) dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 11: General

    General Description The du/dt filter compact plus Voltage Peak Limiter comprises two components: the du/dt reactor and the voltage-limiting network (Voltage Peak Limiter), which cuts off the voltage peaks and feeds back the energy into the DC link. The du/dt filter compact plus Voltage Peak Limiter is designed for use with motors for which the voltage strength of the insulation system is unknown or insufficient.
  • Page 12 DC link, must be kept as short as possible (max. 5 m). NOTICE Use only approved du/dt filters If du/dt filters compact plus Voltage Peak Limiters are used that SIEMENS has not approved for SINAMICS, these du/dt filters may be damaged. CAUTION Hot surfaces The surface temperature of the du/dt filters may exceed 80 °C.
  • Page 13 General WARNING Risk of destruction during operation with increased pulse frequency When a du/dt filter compact plus Voltage Peak Limiter is used with SINAMICS G120, the pulse frequency of the Power Module must not exceed 2.5 kHz or 4 kHz. Setting a higher pulse frequency can lead to destruction of the du/dt filter.
  • Page 14 General dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 15: Mechanical Installation

    Mechanical installation du/dt filter compact plus Voltage Peak Limiter Figure 3-1 Dimension drawing of du/dt filter compact plus Voltage Peak Limiter, order number 6SL3000-2DE35-0EA0 dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 16 Mechanical installation dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 17: Electrical Installation

    Electrical installation Important safety precautions WARNING Dangerous electrical voltage The devices are operated with high voltages. All connection work must be carried out in a no-voltage condition! All work on the device must be carried out by trained personnel only. Death, serious injury, or substantial material damage can result if these warning notices are not observed.
  • Page 18 Electrical installation Interface overview Figure 4-1 Interface overview of du/dt filter compact plus Voltage Peak Limiter, order number 6SL3000-2DE35-0EA0 Connection When connecting the du/dt filter compact plus Voltage Peak Limiter, you must take into account the following conditions to ensure that it functions correctly: ●...
  • Page 19 Electrical installation Connection overview Figure 4-2 Connecting the du/dt filter compact plus Voltage Peak Limiter Cable cross-sections Table 4- 1 Cable cross-sections for connections between a du/dt filter and Power Module du/dt filter compact plus Voltage Peak Limiter Cross-section [mm²] Order number 6SL3000-2DE35-0EA0 WARNING Risk of fire and damage to equipment due to short-circuit/ground fault...
  • Page 20 Electrical installation WARNING Avoid mechanical load on connections The connections on the du/dt filter compact have not been designed for the direct mechanical connection of the motor cables. The customer must take steps to ensure that the mechanical load exerted by the connected cables does not deform these connections.
  • Page 21: Maintenance And Servicing

    Maintenance and servicing Maintenance and service work cannot be carried out on the du/dt filter compact plus Voltage Peak Limiter. In the case of an error, full replacement is necessary. dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 22 Maintenance and servicing dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
  • Page 23: Technical Specifications

    Technical specifications General technical data Table 6- 1 General technical data Product standard EN 61800-5-1 Specific technical data Table 6- 2 Technical data for the du/dt filter compact plus Voltage Peak Limiter, 380 V – 480 V 3 AC Order number 6SL3000- 2DE35-0EA0 Suitable for Power Module...
  • Page 24 Technical specifications dV/dt filter compact plus Voltage Peak Limiter Operating Instructions, 11/2013, A5E32847614B AA...
