Pac125M Torch Assembly And 14 Ft (4.3 M) Lead - 083069 W/Pigtail, 083073 No Pigtail; Pac125M Torch Assembly And 25 Ft (7.6 M) Lead - 083068 W/Pigtail, 083072 No Pigtail; Pac125M Torch Assembly And 35 Ft (10.6 M) Lead - 083070 W/Pigtail, 083074 No Pigtail; Pac125M Torch Assembly And 50 Ft (15.2 M) Lead - 083071 W/Pigtail, 083075 No Pigtail - Hypertherm powermax900 Operator's Manual

PAC125M Torch Assembly and 14 ft (4.3 m) Lead - 083069 w/pigtail, 083073 no pigtail

PAC125M Torch Assembly and 25 ft (7.6 m) Lead - 083068 w/pigtail, 083072 no pigtail

PAC125M Torch Assembly and 35 ft (10.6 m) Lead - 083070 w/pigtail, 083074 no pigtail

PAC125M Torch Assembly and 50 ft (15.2 m) Lead - 083071 w/pigtail, 083075 no pigtail

Part Number
120573 ...................................... Electrode, Air
120576 ...................................... Ring, Swirl
120613 ...................................... Sleeve, Machine Torch, PAC125M
020620 ...................................... Sleeve, Torch Position, PAC121/125M
129339 ...................................... Torch Lead w/pigtail, 14 ft (4.3 m)
129338 ...................................... Torch Lead w/pigtail, 25 ft (7.6 m)
129340 ...................................... Torch Lead w/pigtail, 35 ft (10.6 m)
129341 ...................................... Torch Lead w/pigtail, 50 ft (15.2 m)
129343 ...................................... Torch Lead, no pigtail, 14 ft (4.3 m)
129342 ...................................... Torch Lead, no pigtail, 25 ft (7.6 m)
129344 ...................................... Torch Lead, no pigtail, 35 ft (10.6 m)
129345 ...................................... Torch Lead, no pigtail, 50 ft (15.2 m)
044009 ............................................ Quick Disconnect O-Ring (not shown)
027599 ...................................... Snap Ring
120577 ...................................... Nozzle: PAC125 55A Shield
120602 ...................................... Shield: PAC121M Machine Torch
120600 ...................................... Cap, Retaining
120583 ...................................... Torch Main Body w/ Switch, PAC125M
044016 ............................................ O-Ring: BUNA 90 Duro .614X.070
Note: See page 5-8 or 5-9 for detail of consumable parts
Torch Main
Body w/Switch
120583
Snap Ring
027599
Torch Sleeve O-Ring
120613 044016
On/Off Pendant (not part of machine torch assembly -
See Powermax900 Field Upgrade Kits and Optional
Parts later in this section for part numbers)
Operator Manual
Description
O-Ring
044016

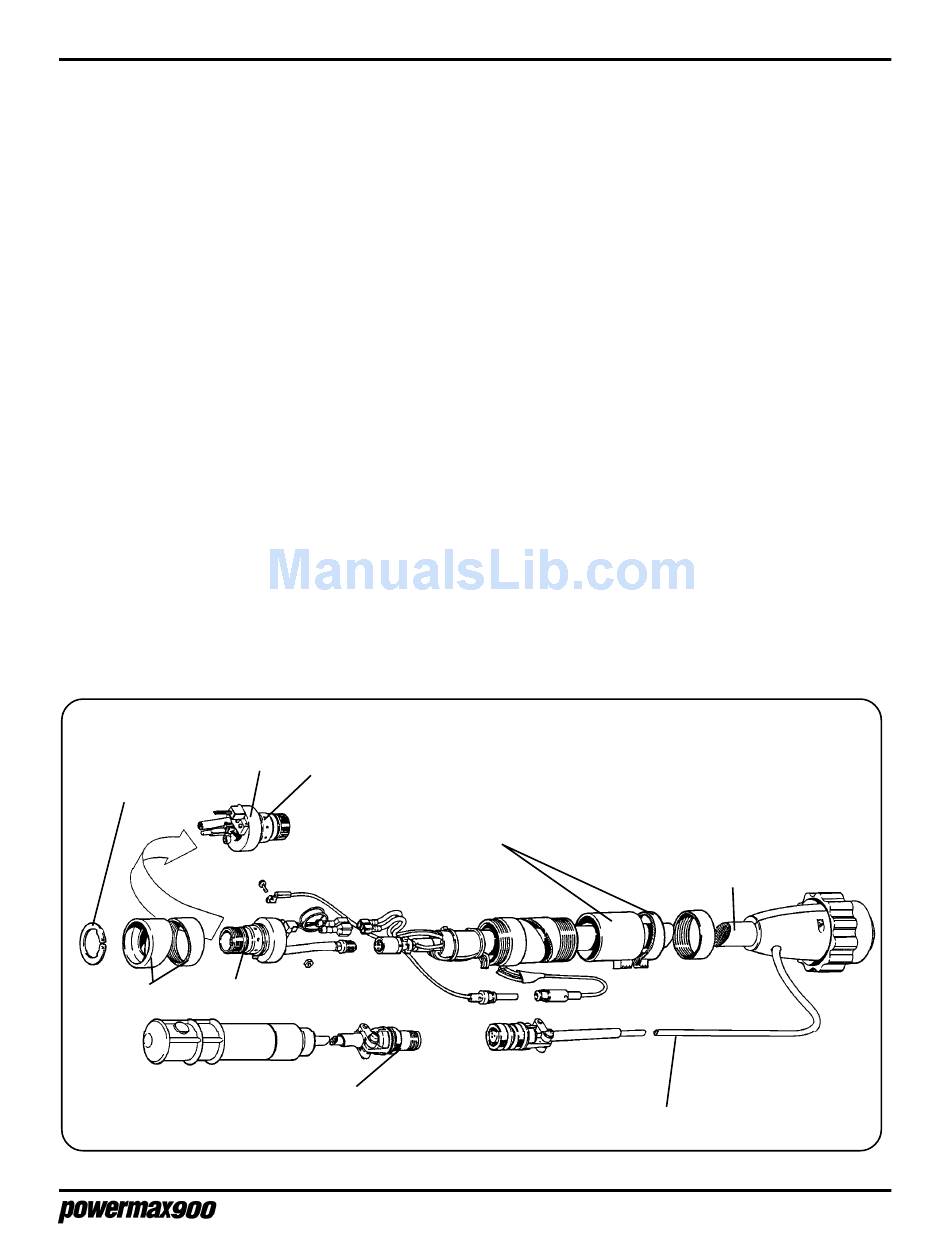

Figure 5-6 PAC125M Torch Assembly and Leads

M
Torch Lead
129339, with pigtail, 14 ft (4.3 m)
129338, with pigtail, 25 ft (7.6 m)
Torch
129340, with pigtail, 35 ft (10.6 m)
Position
129341, with pigtail, 50 ft (15.2 m)
Sleeve
129343, no pigtail, 14 ft (4.3 m)
020620
129342, no pigtail, 25 ft (7.6 m)
129344, no pigtail, 35 ft (10.6 m)
129345, no pigtail, 50 ft (15.2 m)
/P
AINTENANCE
Pigtail
ARTS
5-11
9-99
