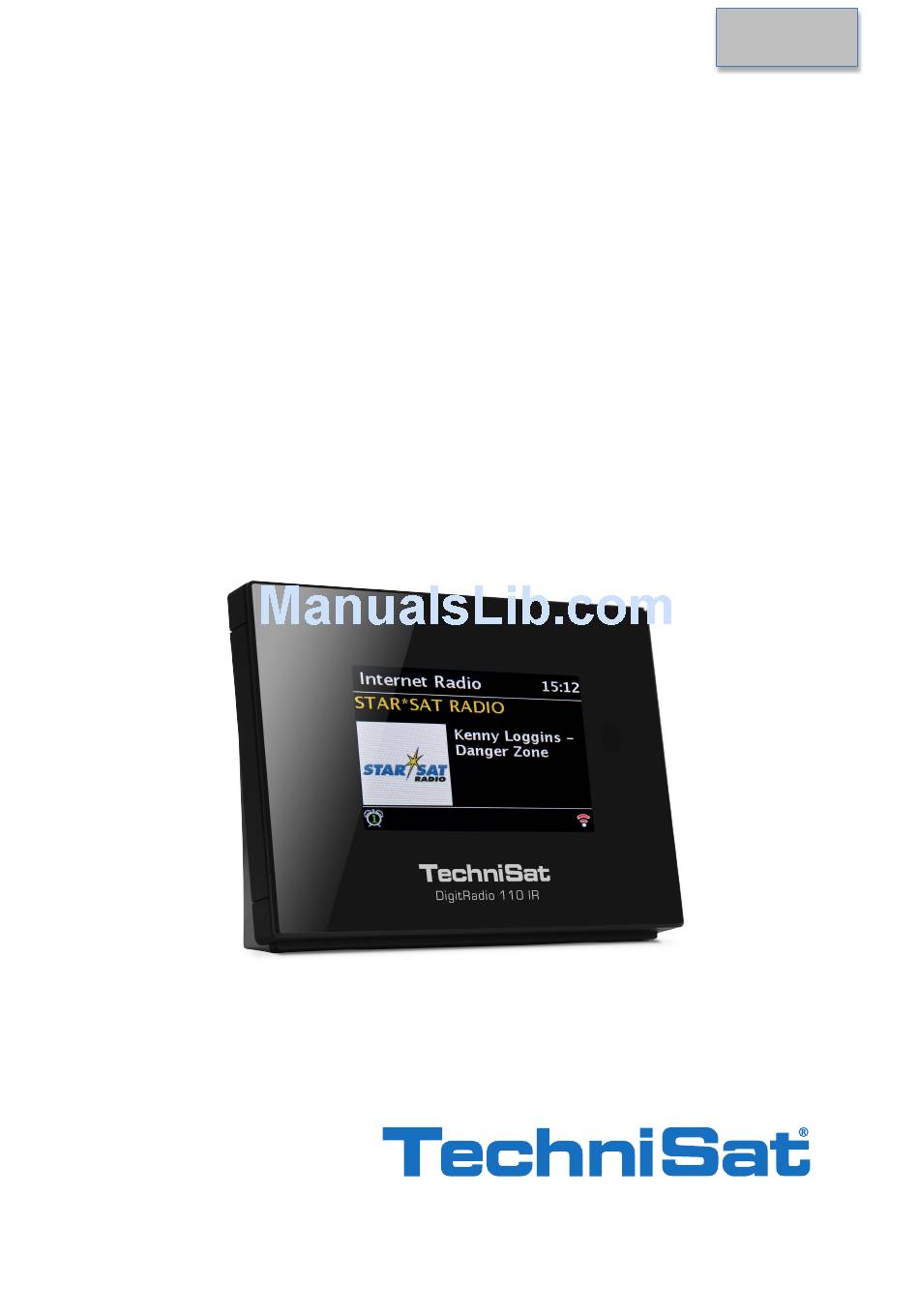

Page 1: Instruction Manual
Instruction Manual TechniSat DigitRadio 110 IR Internet, DAB/DAB+ and FM Digital Radio with Bluetooth Technology and Spotify and Multi-room features... -
Page 2: Important Safety Instructions
TechniSat DigitRadio 110 IR Important Safety Instructions 1. Read these instructions. 2. Keep these Instructions. 3. Heed all Warnings. 4. Follow all instructions. 5. Do not use the speaker near water. 6. Clean only with dry cloth. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS SPEAKER TO RAIN OR MOISTURE. -
Page 3: Table Of Contents
DigitRadio 110 IR TechniSat Contents Important Safety Instructions ....................2 Contents ..........................3 Getting Started ......................... 5 Unit Views ..........................6 Remote Control View ......................7 Setup Wizard ........................... 8 ... - Page 4 TechniSat DigitRadio 110 IR DRC (Dynamic Range Control) value ................19 Changing Station Order ..................... 19 Viewing Station Information ....................19 Storing Preset Stations ...................... 20 Recalling a Preset Station ....................20 ...
-
Page 5: Getting Started
DigitRadio 110 IR TechniSat Getting Started Carefully remove your radio from the box. You may wish to store the packaging for future use. What you can find inside of your package Main unit Instruction manual Remote control and AAA alkaline batteries... -
Page 6: Unit Views
TechniSat DigitRadio 110 IR Using RCA Cable Connect the 3.5 mm plug at the end of your RCA cable to the Audio Out socket on the back of this unit. Then insert the Red and Black plugs at the other end of the RCA cable to your audio device. -
Page 7: Remote Control View
DigitRadio 110 IR TechniSat Remote Control View button Press to switch radio on or standby. OK button Press to confirm your selection. buttons Press to browse options. VOL +/- buttons Press to adjust volume. MENU button Press to display menu options. -
Page 8: Setup Wizard
TechniSat DigitRadio 110 IR Setup Wizard For initial use, the display will show ‘Setup wizard’ screen. Press button to confirm ‘YES' to start setup. Options in the setup wizard include the following: Date/Time Set 12 or 24 hour format Auto update Update from DAB "... - Page 9 DigitRadio 110 IR TechniSat Press buttons to cycle through the alphanumeric character list, press OK button to select an appointed character. Note: WEP/WPA pass codes are case-sensitive. If a wrong operation is being conducted, select to delete designated character. Note: = Backspace;...
-
Page 10: Internet Radio Mode
TechniSat DigitRadio 110 IR Internet Radio mode The display will show 'Main menu' after 'Setup wizard' completed. Press OK button to select Internet radio mode. While 'Station list' is highlighted, press OK button to confirm. Then refer following section to choice stations. Or if failed to connect to network, please follow: a. -
Page 11: Selecting A Station Through 'Podcasts
DigitRadio 110 IR TechniSat Press button to select the region you wanted, and then press OK button to confirm. Using the same method to choose country, station in turn, radio will now loading. " ‘Genre’ enables you to choose radio stations according to their content, for example Classic Rock, Sport, News, etc. -
Page 12: Adding Station To 'My Favourites
TechniSat DigitRadio 110 IR Adding station to ‘My Favourites’ To register your radio with the portal: www.wifiradio-frontier.com Create account login, enter Access code is required. Access code can be found from “Station list > Help > Get access code". You can add your favourite stations via the portal (www. wifiradio-frontier.com). -
Page 13: Spotify Connect
Tap the square image of the song’s cover art in the bottom left of the screen. Then tap the Connect icon Tap ‘DigitRadio 110 IR’ from the list to select your radio. If you can’t see it, just check it’s connected to the same wifi network as your smartphone of tablet. -
Page 14: Controlling Spotify Connect
TechniSat DigitRadio 110 IR Your Spotify app will only recognize your radio when the radio is connected to the internet (i.e. in Internet Radio, Spotify Connect or Music player modes). To use Spotify when your radio is in non-internet modes (i.e. in DAB, FM or Bluetooth mode) you need to select Main menu >... -
Page 15: Music Player Mode
DigitRadio 110 IR TechniSat Music player Mode Setting up a Music Server In order for your radio play music files from a computer, the computer must be set up to share files or media. UPnP media sharing allows devices like this radio to play music from a shared media library, navigating through tag menus such as Artist, Album or Genre. -
Page 16: Playing Shared Media
TechniSat DigitRadio 110 IR Make sure that the radio has access to the shared media by selecting it and clicking Allow. You can also set a name for the shared media in the box of Name your media library. Click OK to close the dialogue boxes. -
Page 17: My Playlist
DigitRadio 110 IR TechniSat My Playlist The My Playlist feature enables you to create a playlist of your favourite tracks from your music libraries. Once you have your playlist ready you can choose to play through the playlist on your radio and can also set shuffle and repeat play functions while your playlist is playing. -
Page 18: Dab Mode
TechniSat DigitRadio 110 IR DAB Mode Selecting DAB mode Press MODE button repeatedly to select DAB mode. For initial use, radio will carry out a full scan and store stations list in memory. Once the scanning is completed, the DAB/DAB+ stations will be displayed in alphanumeric order. -
Page 19: Prune Invalid
DigitRadio 110 IR TechniSat Prune Invalid You may remove all unavailable stations from the station list. 1. Press MENU button, press button to select 'Prune invalid', and then press OK button to confirm. 2. Press button to select ‘YES’, and then press OK button to confirm. -
Page 20: Storing Preset Stations
TechniSat DigitRadio 110 IR Storing Preset Stations Your radio can store up to 10 of your favourite DAB stations. This will enable you to access your favourite stations quickly and easily. 1. While playing your favourite station, press and hold one of Preset buttons 1-10 until display shows ‘Preset stored’. -
Page 21: Fm Mode
DigitRadio 110 IR TechniSat FM Mode Selecting FM Mode 1. Press MODE button repeatedly to select FM mode. 2. For initial use, it will start at the beginning of the FM frequency range (87.50MHz). Otherwise, the last listened FM station will be selected. -
Page 22: Recalling A Preset Station
TechniSat DigitRadio 110 IR Recalling a Preset Station Press one of Preset buttons 1-10 to play the preset station. The display will show ‘Preset empty’ if the preset station isn’t allocated. -
Page 23: Bluetooth Mode
Activate your Bluetooth device and select the search mode. ‘DigitRadio 110 IR’ will appear on your Bluetooth device. Select ‘DigitRadio 110 IR’ and enter “0000” for the password if necessary. icon will remains steadily on the display when connection is successful. -
Page 24: General Operation
TechniSat DigitRadio 110 IR General Operation Setting Sleep This feature enables your radio to switch to standby mode by itself after a set sleep time. Press MENU button > Main menu > Sleep, and then press OK button to confirm. -
Page 25: Network Setup
DigitRadio 110 IR TechniSat To set up My EQ, select 'My EQ profile setup', and then press OK button to confirm. Press button to select Bass or Treble, and then press OK button to confirm. Press button to change the value of Bass or Treble, and then press OK button to confirm. Press button, display will show ‘Save changes’. -
Page 26: Factory Reset
TechniSat DigitRadio 110 IR Factory Reset A factory reset resets all user settings to default values, so time/date and presets are lost. 1. Press MENU button > Main menu > System settings > Factory Reset, press OK button to confirm. -
Page 27: Setting Backlight
DigitRadio 110 IR TechniSat Setting Backlight Press MENU button > Main menu > System settings > Backlight, press OK button to confirm. Press button to select ‘Power-on Level' or 'Standby Level', then press OK button to confirm. Press button to select backlight level, and then press OK button to confirm the setting. - Page 28 TechniSat DigitRadio 110 IR Edit group through App, taping ‘Edit’ at the right-top corner on device list. a. Tap ‘+ Create Group’ at the bottom on device list to create a new group and then enter a group name or select one usual name from the list, and then select ‘Create’.
- Page 29 DigitRadio 110 IR TechniSat Figure 3 Alternatively, you can edit group through your radio. Press MENU button > Main menu > System settings > Multi-room, and then press OK button to confirm. Press button to select options, and then press OK button to confirm.
-
Page 30: Specification
TechniSat DigitRadio 110 IR Specification ITEMS DESCRIPTION Internet, DAB/DAB+ and FM Digital Radio with Bluetooth Technology and Specifications: Spotify and Multi[room features AC Input: 100-240V~, 50-60Hz Power Supply: DC Output: 6V, 500mA FM: 87.5-108MHz Frequency Ranges: DAB/DAB+: 174.928 – 239.200 MHz...
