RSs 636-1/2
To be handed to the workshop
~
Operating instructions
for the double insulated and radio suppressed

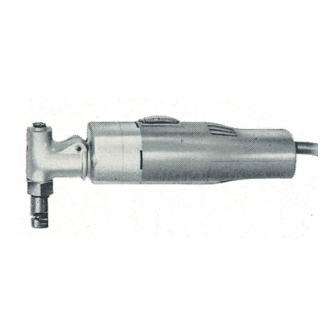

Electric Nibblers type RSs 636-1, RSs 636-2
and type RSs 736-1 and RSs 736-2 (42 Volt)
1. Technical Data
Type of current:,..., (AC single phase)
For sheet metal up to
Radius of Cutting
I
Incisions Net
Type
sheet
stainless
aluminium
3 )
smallest
speed
I
Input Output
Weight
steel') steeJ2) plastics
curve
f~/
I
m/
per
Watts Watts
SWG I
mm SWG
I
mm
SWG I
mm
lll.
I
I
RSs 636-1/2
18 1.3 22
I
0.8 14 2
3/4
RSs 736-1/2
I
1 )
up to 28.4 sh. ton/sq. in.
2 )
up to 42.5 sh. ton/sq. in. 3) up to 7.8 sh. ton/sq. in.
2. Construction
T his nibbler is an electric tool of Class II with double insulation
and in accordance with the VDE regulations 0740. The protective
insulation is additional to the normal insulation. The pole housing is
insulated by the motor housing made of shockproof Polyamide and
the electric parts of the armature are protected by a separating in-
sulation against the drive shaft. The machine is supplied with a two-
core cable without earth wire and must not be earthed. The high
voltage test is made with the prescribed test voltage of 4000 Volts.
The machine is radio-suppressed according to radio interference degree
N .
Type RSs 736-1 , 736-2 (42 V) is of the same design but not double
insulated.
In order to prevent the overbridging of the insulation no additional
marking plates and signs must be riveted or screwed on the housing.
We recommend the use of transfers only.
3. Connection and Operation
Main voltage must correspond to the operating voltage marked on
the rating plate. The tool can be plugged into plain or safety sockets.
Switch must be in the »Off<< position when connecting.
T ype RSs 636-1 is used to trim straight or shaped sheet and corr ugated
sheet with corrugations spaced at least 70 mm (2
3
/ 4 ")
apart. To cur
holes or openings of any kind, first drill a pilot hole of 18-25 mm
dia., so that the anv il can be
introd~ced .
Cutting direction: in line
with motor axis.
Type RSs 636- 2 with anvil offset through 90
°,
is used for working
on corrugated sheet with closely spaced corrugations. Cutting direc-
tion: at right angles to motor axis.
BE 147/e CX 5.72 Printed in Germany
I mm
mm
I
20
.I
5.6
I
'
Capacity:
minute
mm
1.7 1800 280 150
I
I
Steel sheet (drawn) max. 1.3 mm -
3
/o•"
Stainless steel sheet max. 0.8 mm -
1
/sz"
Aluminium sheet max. 2 mm -
5
fG4"
Welding seams must not be cut!
lbs
I
kg
3.5 1.6
N o claims can be entertained for damage resulting from cutting sheett
of heavier gauges or higher strength than those specified here or work
with blunt blades or inadequate lubrication.
N ever w ork with blunt blades and inserts
Use of blunt cutting edges imposes an excessive load on the anvil
which is likely to fracture.
4. Maintenance and Lubrication
Before carrying out any m aintenance work always remember to pull
out the plug.
Every 300 duty hours the tool should be cleaned thoroughly in order
to guarantee the safety given by the protective insulation. For this
purpose carbon holders and insulated p arts must be cleaned by means
of a brush or by blowing out the tool with dry pneumatic air or a
hand blower.
After checking carbon brushes for wear, make sure that they are
refitted in their original place and that they move easily in their holder.
They should be replaced at the latest when they have worn down to
7 mm (II <" ). Please, only use original Fein carbon brushes (Order
Reference EZ 11-62). After fitting new brushes, run tool unloaded for
about 15 minutes to allow brushes to bed in.
One pair of spare carbon brushes will be found in the handle; please,
do not forget to reorder them in time.
In order to prevent accidents check cable at regular intervals. To
replace the cable unscrew the screws (22) and (23) a nd remove the
cover (21). Clamp off cable from switch (1 4), unscrew screws (20)
at cable clamping bridge (19) and take out cable.
