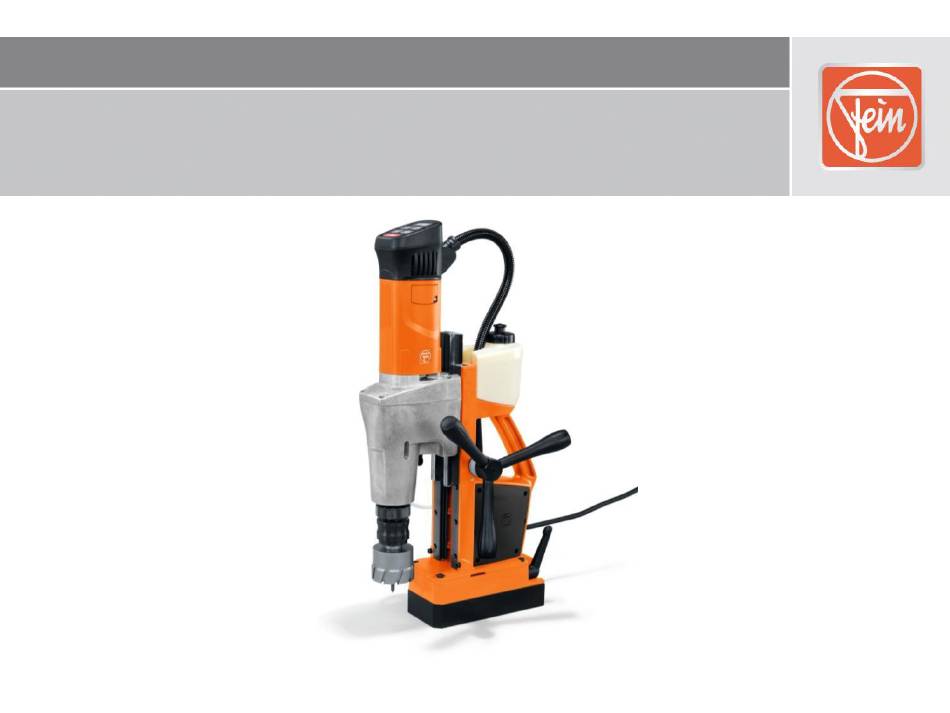

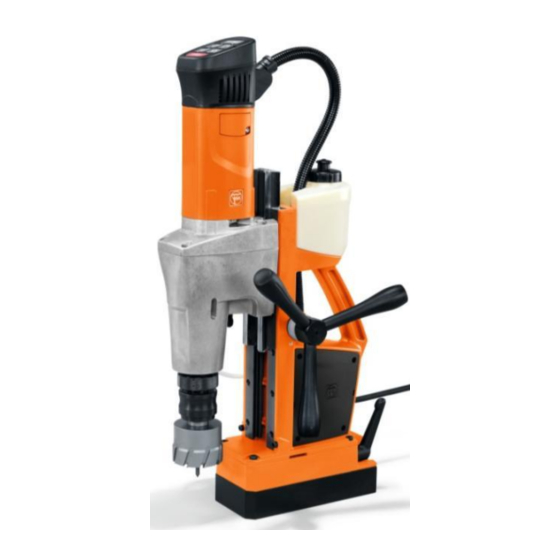

KBM 65U, JCM 256U
Repair instructions
C-SC_CSSM
Version 1.0
All rights reserved by FEIN, especially in case of industrial rights registration.
2013.06
FEIN retains all rights of disposal, such as copying and circulation.
1/82

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KBM 65U and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Fein KBM 65U

Summary of Contents for Fein KBM 65U

  • Page 1 KBM 65U, JCM 256U Repair instructions All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 1/82 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 2: Table Of Contents

    Tools required Lubricants and auxiliary substances required Disassembly Assembly Troubleshooting Connection diagram All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 2/82 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 3: Models Described

    Order no. KBM 65 U 7 270 43 00 23 0 JCM 256U 7 270 47 12 36 0 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 3/82 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 4: Technical Data

    The complete technical data can be found in the operating instructions for the model. Test data Up-to-date test data for all models can be found on the FEIN Extranet (Customer Service → Repair Guides). Lubricants The lubricants and container sizes available from FEIN can be found on the FEIN Extranet (Customer Service →...

  • Page 5: Notes / Requirements

    The German Equipment and Product Safety Act applies for correct use. Outside Germany, the regulations applicable in the relevant country must be observed! All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...

  • Page 6: Tools Required

    - Inner bearing puller, 12-16 mm - Inner bearing puller, 18-22 mm NOTE You can only order special tools with an order number from FEIN. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 7 ~15 mm Outer diameter 30 mm Inner diameter ~26 mm NOTE You can only order special tools with an order number from FEIN. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 7/82...
  • Page 8 - Base Height 66 mm Width ~20 mm NOTE You can only order special tools with an order number from FEIN. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 8/82 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 9: Lubricants And Auxiliary Substances Required

    (four balls) Grease 0 40 118 0300 9 120 g Gearbox All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 9/82 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 10: Disassembly

    KBM 65U, JCM 256U 6. Disassembly Disassembling container 1. Remove container (1). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 10/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 11 - Circlip pliers - Plastic hammer 3. Remove circlip (3). - Drift key 4. Pull off nut (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 11/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 12 1. Push up sleeve (1) and hold. 2. Remove circlip (2). 3. Remove disc (3) and bolt (4). 4. Remove spiral spring (5). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 12/82...
  • Page 13 Risk of injury due to tensioned spiral spring.  When loosening circlip, hold cover with hand. - Circlip pliers 1. Remove circlip (1). 2. Remove cover (2). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 13/82...
  • Page 14 Disassembling quick-release chuck 1. Remove spiral spring (1). 2. Remove inner sleeve (2). 3. Remove outer sleeve (3). 4. Remove four balls (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 14/82...
  • Page 15 3. Push up outer sleeve (3) and hold. CAUTION! Risk of injury due to tensioned spiral spring.  When loosening circlip, hold disc with hand. 4. Remove circlip (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 15/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 16 3. Remove circlip (4). CAUTION! Risk of injury due to tensioned spiral spring.  When loosening circlip, hold sleeve (5) with hand. 4. Remove sleeve (5). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 16/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 17 1. Remove spiral spring (1). 2. Remove inner sleeve (2). 3. Remove outer sleeve (3). 4. Remove two pins (4). 5. Remove two sealing rings (5). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 17/82...
  • Page 18 Disassembling switch insert of drill unit Tool: 1. Loosen two screws (1) and take off cover (2). 2. Remove switch insert (3). - Torx T20 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 18/82...
  • Page 19 2. Unlock plug (3) and pull off ribbon cable (4). - Torx T20 3. Pull off plug (5). 4. Remove electronics PCB (6). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 19/82...
  • Page 20 2. Disconnect and remove all cables which are connected on the PCB (2). - Two screwdrivers 3. Use two screwdrivers to remove the electronics PCB (2). 4. Pull cable shoes off brush holders. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 20/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 21 This may result in hand injuries and damage to the tool.  Hold drill unit firmly when loosening levers. 2. Slide up drill unit (3) and remove. 3. Remove pressure piece (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 21/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 22 1. Loosen the four socket head screws. 2. Disconnect gearbox housing from motor housing with intermediate bearing. - Size 5 socket wrench - Plastic hammer All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 22/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 23 3. turn the switch pushbutton (3) in position two 4. Pull off second gear-wheel (4) by hand. 5. Remove circlip (5). 6. Remove rotary switch (6). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 23/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 24 3. Remove circlip (4). - Sleeve  outer: 65 mm  inner: 55 mm 4. Press out shaft (5) with grooved ball bearing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 24/82...
  • Page 25 - Hook 4. Press grooved ball bearing (4) off shaft. - Circlip pliers - Sleeve  outer: 55 mm  inner: 40 mm All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 25/82...
  • Page 26 Tool: 1. Remove circlip (1). 2. Remove gear-wheel (2). - Circlip pliers 3. Remove second gear-wheel (3) and feather key (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 26/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 27 Tool: 1. Press gear-wheel (1) off shaft (2). - Arbor press - Sleeve  outer: 35 mm  inner: 25 mm All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 27/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 28  Only pull carbon brush out to point where it no longer scrapes the armature. - Hook 3. Loosen four screws (4). 4. Take off intermediate bearing (5). 5. Remove armature (6). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 28/82...
  • Page 29 Disassembling gearbox housing Tool: 1. Remove bearings (1). - Inner bearing puller, 6-10 mm - Inner bearing puller, 12-16 mm All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 29/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 30 - Torx T15 - Torx T20 3. Remove supply cable (4) to stator. - Plastic hammer 4. Remove stator. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 30/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 31 19 mm 4. Remove NILOS ring (4). 26 mm 5. Pull off grooved ball bearing (5). 6. Remove plate (6). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 31/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 32 2. Disconnect all connecting cables (mains and magnet cables). - Torx T20  To loosen the plugs, press down clip (3) and hold. 3. Remove earthing conductors (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 32/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 33 4. Loosen four screws (6) and remove PCBs (7 and 8). Just one PCB (8) is fitted in the 110 V/120 V variant of the tool. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 34 1. Pull protective hose (1) up and out. Tool: 2. Remove sealing ring (2). - Torx T15 - Cross screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 34/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 35 1. Unscrew the four socket head screws (1). 2. Unscrew the two nuts (2) and remove together with discs. - Ring wrench 17 mm - Size 5 socket wrench All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 35/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 36 KBM 65U, JCM 256U 6. Disassembly Disassembling magnetic foot 1. Take intermediate plate off magnetic foot and remove contact bolts (1). 2. Pull out lever (2). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 36/82...
  • Page 37 1. Move guide up to stop with help of spider. 2. Unscrew socket head screw (1) until spider can be turned one more revolution. - Size 4 socket wrench 3. Remove guide (2). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 37/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 38 1. Unscrew socket head screws (1). 2. Remove gear rack (2). - Size 4 socket wrench - Screwdriver 3. Unscrew flat headed screw (3). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 38/82...
  • Page 39 2. Loosen screw (2) and remove leaf spring (3). - Cross screwdriver - Circlip pliers 3. Unscrew handles (4) from connecting piece. 4. Remove scale (5). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 39/82...
  • Page 40 2. Slide out shaft (2). - Circlip pliers - Inner bearing puller, 18-22 mm 3. Remove spring washer (3). 4. Remove two bushes (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 40/82...
  • Page 41 1. Unscrew six socket head screws (1) on each of the guide rails. 2. Remove pressure piece and guide rails. - Size 2.5 socket wrench 3. Unscrew the six thread bolts (2). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 41/82 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 42: Assembly

    KBM 65U, JCM 256U 7. Assembly All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 42/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 43 2. Secure each guide rail with six socket head screws (2). - Size 3 socket wrench  Tighten socket head screws to torque of 2.0 Nm. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 44 3. Coat shaft (3) with thin layer of grease and slide through bushes. - Circlip pliers 4. Secure shaft on opposite side with a circlip (4). - Grease (0 40 106 0100 1) All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 44/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 45 -Circlip pliers -Size 5 socket wrench 3. Screw down spider (3) with screw (4).  Spider can be assembled on the left or right. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 45/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 46 3. Screw down screw (4) with a circlip.  Tighten screw to torque of 3 Nm. 4. Screw on flat headed screw (5).  Tighten screw to torque of 1.2 Nm. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 46/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 47 - Grease (0 40 106 0100 1) 4. Tighten socket head screw (4).  Tighten screw to torque of 3 Nm.  Socket head screw serves as stop. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 47/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 48 Tool: 1. Install the six set screws (1). The guide is adjusted after the drill motor is assembled. - Size 2.5 socket wrench All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 48/82...
  • Page 49 7. Assembly Assembling magnetic foot 1. Slide clamping lever (2) in to intermediate plate (1). 2. Slide both bolts (3) in to bushes. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 49/82...
  • Page 50 - Size 5 socket wrench 2. Screw magnetic foot down to housing with four socket head screws (1). Tighten socket head screws to torque of 8 Nm. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 51 3. Secure the two PCBs (4 and 5) with four screws (3).  Just one PCB (5) is fitted in the 110 V/120 V variant of the tool. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0...
  • Page 52  Tighten screw to torque of 0.9 Nm. - Cross screwdriver 3. Attach cover (3) and secure with screw (4).  Tighten screw to torque of 0.9 Nm. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 52/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 53 2. Connect earthing conductors (1 & 2) as shown.  Comply with order shown when connecting earthing conductor (see photo on right). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 54 1. Attach second cover half (1). 2. Use the four socket head screws (2) to screw down the first and second cover halves. - Torx T20 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 55 3. Slide second gear-wheel (4) on to shaft and secure with a circlip (5). - Sleeve  outer: ~25 mm 4. Press gear-wheel (7) on to shaft (6).  inner: 15 mm All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 55/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 56 2. Slide circlip (2) on to shaft. - Circlip pliers - Arbor press - Sleeve  outer: 55 mm  inner: 40 mm All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 56/82...
  • Page 57 - Base: Height: 66 mm Width: ~20 mm - Hook - Grease (0 40 106 0100 1) All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 57/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 58 Tool: 1. Insert feather key (1) in shaft. 2. Press gear-wheel (2) on to shaft and secure with circlip (3). - Circlip pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 58/82...
  • Page 59 3. Insert spur gear shaft (4). 4. Insert seal (5) in the correct position.  The seal is inserted such that it is fixed by the dowels. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 60 - Ball bearing support 5. Press in insulating sleeve (6) until stop is reached. D = 19 6. Press on magnet ring (7) by hand. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 60/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 61 3. Thread blue connecting cable in to recess (2). 4. Use screw (3) to fit one brush holder (4) on each side. 5. Insert air guide ring (5) and screw down. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 62  Ensure that carbon brushes are pulled to the rear. 2. Insert carbon brushes (2) and fit springs on both sides. 3. Insert cover (3) and screw down. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 63  Sealing rings must be replaced during each assembly.  inner: ~15 mm - Sleeve  outer: 21 mm  inner: ~10 mm All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 63/82...
  • Page 64 - Size 5 socket wrench 3. Use socket head screws to connect two assemblies together. Tighten socket head screws to torque of 7.5 Nm. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 64/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 65 1. Insert pressure piece (1). 2. Slide drill unit (2) on to guide rails (3). 3. Use two levers (4) to fix drill unit. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 65/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 66 Assembling drill unit Tool: 1. Screw down flat headed screw (1).  Tighten screw to torque of 1.2 Nm. - Slotted screwdriver All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 66/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 67 3. Connect connecting cables (3) to carbon brush holders.  For correct connection of connecting cables, see connection diagram. 4. Install connecting cables correctly (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 68 2. Attach first housing half (2). 3. Position protective hose (3) and install connecting cables (4 and 5) as shown. 4. Position ribbon cable (6). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 69 3. Slide ribbon cable (4) in to connection (5) and seal connection. 4. Attach second housing half (6). 5. Screw the two housing halves together (7). 6. Place electronics PCB (8) on housing. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 69/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 70 Tool: 1. Place switch insert (1) on electronics PCB. 2. Place cover (2) on housing and switch insert and screw down. - Torx T20 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 70/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 71 2. Place outer sleeve (2) on shaft. 3. Place inner sleeve (3) on shaft. 4. Insert spiral spring (4) between inner and outer sleeve. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 71/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 72 1. Place cover (1) on spring and press down. - Circlip pliers 2. Use circlip (2) to secure cover. 3. Insert spiral spring (3). 4. Insert sleeve (4) and disc (5). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 72/82...
  • Page 73 2. Press disc (2) and sleeve (3) down at the same time. 3. Insert circlip (4) and press all the way down together with disc and sleeve. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0...
  • Page 74 Assembling quick-release chuck Tool: 1. Slide nut (1) over shaft. 2. Secure circlip (2) on shaft. - Circlip pliers All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 74/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 75 3. Place outer sleeve (3) on shaft. 4. Place inner sleeve (4) on shaft. 5. Insert spiral spring (5) between inner and outer sleeve. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 75/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 76 1. Place cover (1) on spring and press down. 2. Use circlip (2) to secure cover. - Circlip pliers 3. Insert spiral spring (3). 4. Insert sleeve (4) and disc (5). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 76/82...
  • Page 77 3. Insert circlip (4) and press all the way down together with disc and sleeve. 4. Place nut (3) on shaft. 5. Assemble circlip (4). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...
  • Page 78 Assembling drill chuck Tool: 1. Slide drill chuck (1) up in to fitting. 2. Screw down drill chuck with nut (2). - Torx T20 All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 78/82...
  • Page 79 KBM 65U, JCM 256U 7. Assembly Assembling container 1. Assemble container (1). All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 79/82 FEIN retains all rights of disposal, such as copying and circulation.
  • Page 80 - Size 2.5 socket wrench  At the places where the drill unit moves too fast or too slowly, screw the stud bolts in or out. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06...

  • Page 81: Troubleshooting

    KBM 65U, JCM 256U 8. Troubleshooting See separate file on Extranet or retail partner portal. All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 81/82 FEIN retains all rights of disposal, such as copying and circulation.

  • Page 82: Connection Diagram

    KBM 65U, JCM 256U 9. Connection diagram Only for 230V variant All rights reserved by FEIN, especially in case of industrial rights registration. C-SC_CSSM Version 1.0 2013.06 82/82 FEIN retains all rights of disposal, such as copying and circulation.
