- Page 2 DAISY Authors: Dr.-Ing. T. Vaupel, M. Berger (English translation: Stefano Chiti-Batelli with kind support by Mr. Robert Frowenfeld) Copyright Uhlenbrock Elektronik GmbH, Bottrop - Germany English edition, March 2003 All rights reserved Unauthorized reproduction (including partial reproduction) prohibited Order number: 60 402...
-
Page 3: Table Of Contents
Power 2 LED status How to connect it Booster use Digital system use How to connect a DAISY throttle How to connect additional Boosters and LocoNet devices Analog system use Power 2 as an analog layout control system How to connect a Power2 in analog mode ‘Locomotive’... -
Page 4: Description

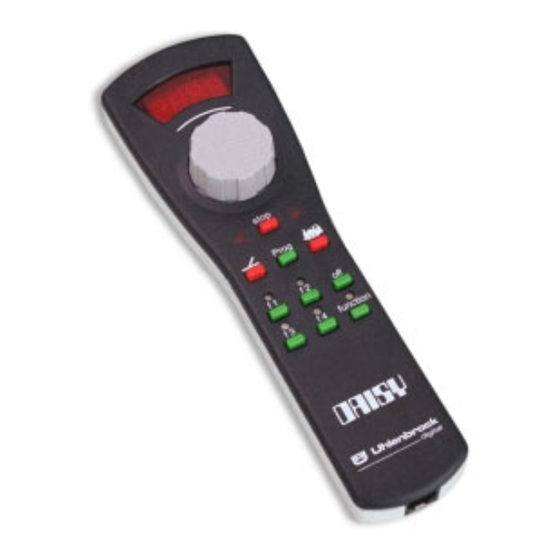

1. Description Besides being a smart add-on throttle for digital Command Stations, the DAISY can also be connected to a Power2, thus yielding a complete digital (as well as analog train control) system – and is referred to as the “DAISY-System”. The DAISY software can be updated anytime. -
Page 5: Memory Function
Digital mode (DAISY-System) If a DAISY throttle is to be used as a digital Command Station for driving a digital layout, then it should connected to the “DAISY” con- nector of the first Power2 (also check the Power2 manual), using the provided spiral cable. - Page 6 DAISY Throttle mode If the DAISY is to be used as an add-on throttle, then it must be connected to the Command Station using a suitable LocoNet connection. In case the Command Station is a DAISY-System, any additional DAISY throttle should be connected to the “LocoNet” con- nector of a Power2 (or to a cable extension/connector coming from there).
-
Page 7: Operation
DAISY 2. Digital mode (DAISY-System and DAISY throttle) Used as a digital control system, the combination of DAISY-throttle plus Power-2 (which we call “DAISY-System”) constitutes a multi-protocol digital Command Station for the Motorola old and new format (locomotive addresses 1 through 255) and for the DCC format (14, 28 and 128 speed steps;... -
Page 8: Drive Mode
F5 through F8 (and, keys [f1] through [f4] can be used to control those – as long as the [Locomotive] key remains pressed). However, if the DAISY is either part of the DAISY-System (i.e., it is connected to a Power2 through its “DAISY” connector) or is connected as add-on throttle to a DAISY-System, then functions F5 through F8 are not supported —... - Page 9 Intellibox, a Twin-Center, etc.) or to the “DAISY” connector of a Power2. Attention It is not possible to edit or erase the locomotive addresses on a DAISY throttle connected as an add-on throttle to a DAISY-System. How to edit only non-erased memories •...
- Page 10 In fact, each locomotive address which is already stored in an other memory will be shown with all decimal points turned on and the DAISY will not accept any command to memorize that address (again).
- Page 11 In order to do that, the DAISY throttle must be connected to the “DAISY” connector of a Power2. Attention It is not possible to edit a locomotive type if the DAISY throttle is connected as an add-on throttle to a LocoNet Command Station (e.g., to an Intellibox).
- Page 12 DAISY • Press the [function] key again. The display shows the address of the currently selected locomotive, e.g.: • Press the [Locomotive] key to go back to drive mode. The possible locomotive types are shown as: Mot1 Motorola old Mot2...
- Page 13 [Turnout] or [Prog] keys. 2.2.4 How to dispatch a locomotive address It is possible to use a DAISY throttle in order to “pre-select” (dispatch) a locomotive address for later control by a throttle which does not feature any locomotive (address) selection capability (e.g., a FRED in dispatch...
-
Page 14: Turnout Mode
‘yellow’ or off – can be used to tell the mode (turnout or drive) in which the DAISY throttle is currently operating. Each closure of the [f1] through [f4] keys will be shown on the DAISY display: the accessory address which has been toggled will be shown as long as the key remains pressed. - Page 15 DAISY throttle is connected to the “DAISY” connector of a Power2. Attention It is not possible to edit the turnout format (type) if the DAISY throttle is connected as an add-on throttle to a LocoNet Command Station (e.g., an Intellibox).
-
Page 16: Programming Mode
Important Decoder programming commands will be repeated by all boosters con- nected to the DAISY-System. Therefore, it is important that only the locomotive(s) which you wish to program/configure should be sitting on the rails. Other locomotives must be temporarily removed from the layout. -
Page 17: Analog Mode (Daisy-System)
If the analog layout features more than one “electric circuit” (or section), then it is possible to link (“daisy-chain”) several Power2 Boosters - up to a maximum of 63 Power2’s. This is done by connecting the LocoNet connector of the “previous”... -
Page 18: Operation
(5) Turnout key for activating turnout mode and for turnout/signal ad- dress selection (6) Programming key for per- forming DCC programming procedures and for the setup of DAISY operational para- meters (Special Options) (7) Locomotive drive mode selection and for loco- motive (address) selection (8) Function keys [f1] through [f4]. - Page 19 DAISY [Stop] key The [Stop] key can be used for turning off/on power to the layout. If the layout power is off, the display shows 4 blinking decimal points. [function] and [off] keys The [function] key starts the coupling of two electric circuits. This allows...
-
Page 20: Drive Mode
“electric circuit”. 3.2.1 Electric circuit Selection In analog mode, the DAISY System can be used to control up to 63 different electric circuits (through an equal number of Power2’s). The DAISY throttle default is to control the first electric circuit: #1. -
Page 21: Turnout Mode
‘yellow’ or off – can be used to tell the mode (turnout or drive) in which the DAISY throttle is currently operating. Each closure of the [f1] through [f4] keys will be shown on the DAISY display: the accessory address which has been toggled will be shown as long as the key remains pressed. -
Page 22: Programming Mode
The display will now revert to indicate the speed of the currently selected locomotive. 3.4 Programming mode With a DAISY System in analog mode, the programming mode of a DAISY throttle can only be used for changing configuration parameters of the DAISY throttle itself. -
Page 23: Software Update
This is how to proceed: • Disconnect all devices from the Intellibox • Connect the DAISY throttle with the LocoNet-T connector of the Intellibox using a LocoNet cable • Connect the Intellibox to a suitable COM port (serial port) of a PC –... -
Page 24: Special Options
DAISY 5 Special Options The DAISY Special Options can be edited using the DAISY “Programming mode”. Special Description Range Default Option Software version number (cannot be edited!) DAISY serial number (cannot be edited!) 0=turnout positions not saved (analog mode) 1=turnout positions saved (analog mode) -
Page 25: Power 2
DAISY Power 2... -
Page 26: Description
(the power output has been turned off) • LED is normally on. It is briefly off every 1 second A short or an overload condition has been detected on either the Loco- Net or the “DAISY” connector (the power output has been turned off) -
Page 27: How To Connect It
2. Booster use If a Power2 is to operate as digital booster, then it must be connected to the Command Station either through LocoNet, using the “DAISY” Power2 connector, or through a 5-pole Booster cable, using the “Booster” connector. -
Page 28: Digital System Use
DAISY 3. Digital system use If used with a DAISY throttle, the Power 2 can be used as a digital Command Station to operate digital layouts. 3.1 How to connect a DAISY throttle If the DAISY throttle will be used along with a Power 2 to operate a digital layout, then it must be connected to the “DAISY”... -
Page 29: How To Connect A Daisy Throttle
The following Uhlenbrock devices can be used to control trains by Power2’s in analog mode (of course, throttles from other manufacturers can also be used): DAISY throttle (66 200), FRED throttle (66 000), IB- Control (65 200) and Profi-Control (65 500). -
Page 30: Power 2 As An Analog Layout Control System
Power2’s. Doing this will result in a malfunctioning of the auto-num- bering procedure. If a new Power2 is to be added to an existing ‘daisy-chain’ of Power2’s, e.g. for controlling a new electric circuit to be added to the analog layout, then the best solution is to add the new Power2 at the end of the existing ‘daisy-chain’... -
Page 31: Locomotive' (Electric Circuit) Selection
“A” as locomotive type. Locomotive selection is initiated by pressing the Locomotive key – as described in the DAISY manual. Locomotive selection with a FRED In order to be used with a Power2 in analog mode, a FRED has to be configured for “Twin-Center”... -
Page 32: Coupling Electric Circuits
DAISY 4.4 Coupling electric circuits The DAISY System in analog mode allows one to couple the electric circuit in which a locomotive is currently driving with the next electric circuit – that is, the electric circuit in which the locomotive is going to operate. -
Page 33: Power2 As Dcc Digital Turnout Booster
DAISY to the same rail, so that a crossing from one electrical circuit to an ‘adjacent’ electric circuit (layout section) will not cause a short. Connection In order to allow connection and use of a loop- back controller or half-automatic loopback con-... -
Page 34: Functions In Analog Mode
DAISY 4.8 Functions in analog mode The function keys (f1 through f4) can be used to control features pertaining to the driving characteristics of analog locomotives. Each Power2 (each electric circuit) has its own setting, which is independent of the setting applied to other Power2’s.
