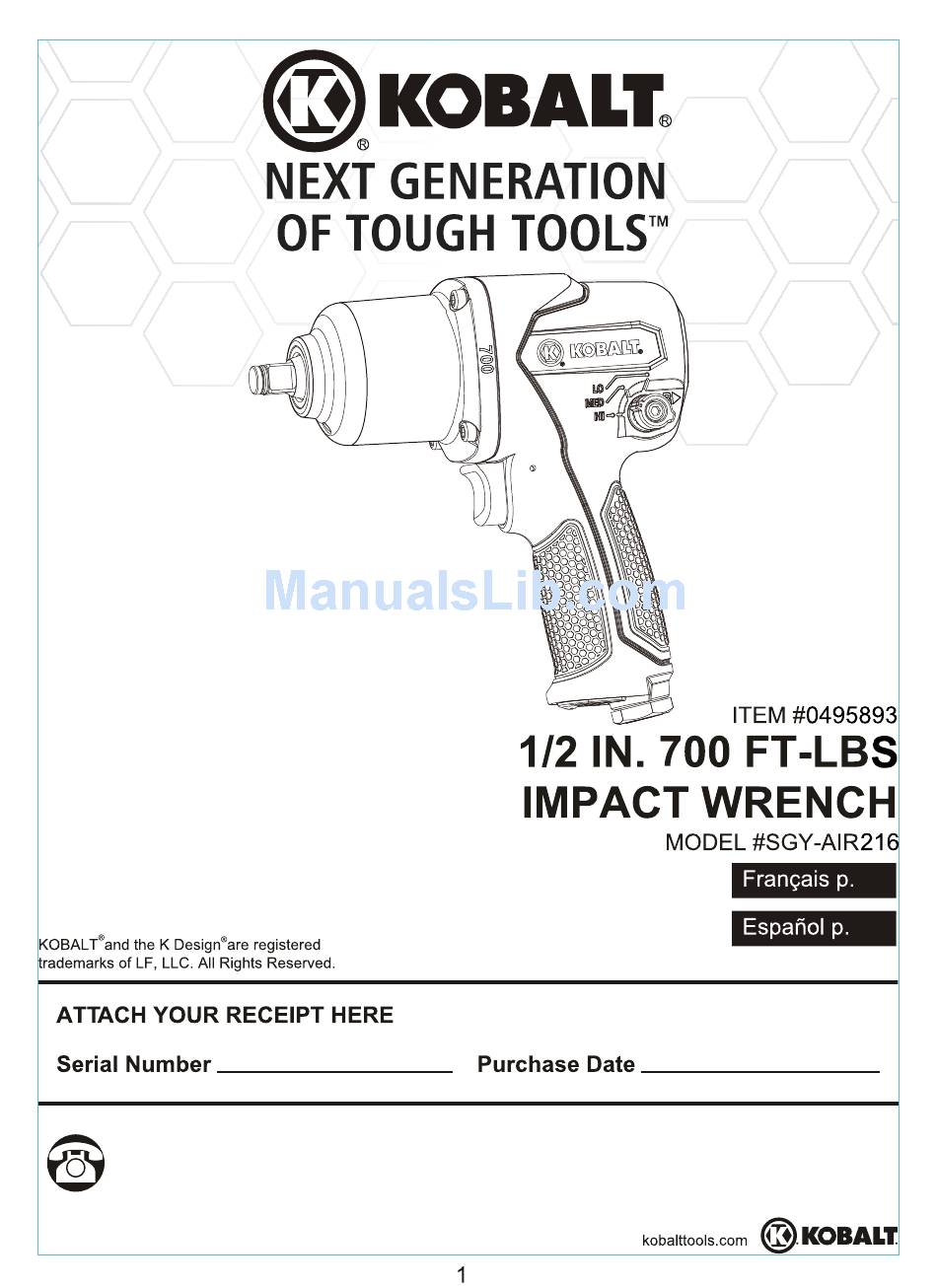

- Page 1 Questions, problems, missing parts? Before returning to your retailer, please call our Customer Service Department at 1-888-3KOBALT, 8:00 a.m. – 8:00 p.m. EST, Monday – Friday. AB14871...
-
Page 2: Compressor Requirements
Compressor Requirements COMPRESSOR REQUIREMENTS IMPORTANT: To operate correctly, this tool requires airflow of at least 8.5 cubic feet per minute (CFM) at 90 pounds per Square Inch (PSI) at the tool. Air hoses may cause loss in pressure up to 15 PSI, requiring a higher compressor output to compensate and maintain required pressure at the tool. - Page 3 Please read and understand this entire manual before attempting to assemble, operate or maintain this product. If you have any questions, please call our Customer Service Department at 1-888-3KOBALT, 8:00 a.m. – 8:00 p.m. EST, Monday – Friday. Improper operation or maintenance of this tool could result in serious injury and property damage.
- Page 4 This air powered tool is capable of Always wear ANSI approved Z87.1 propelling materials such as fasteners, safety glasses with side shields. metal chips, sawdust and other debris at Never leave a pressurized tool unattended. high speed which could result in serious Disconnect tool from air supply when tool injury.
- Page 5 Air tools which contain moving elements Do not wear loose clothing, jewelry, or or drive other moving parts (such as anything that may get caught or tangled impact sockets) can become entangled in the tool, hose or workpiece. in hair, clothing, jewelry and other loose Always keep hands and body parts objects, resulting in severe injury.
- Page 6 An unattended tool could be activated Remove air hose when the tool is not in by unauthorized/untrained persons, use and store tool in a secure location leading to their injury or injury to others. away from reach of children and untrained users.
- Page 7 Loss of control of the tool can lead to Always shut off the air supply and operator injury or injury to others in the release/drain air pressure from the hose work area. before changing accessories, making repairs. When tool is not in use, disconnect it from the air supply and store the tool in a safe location.
- Page 8 Use only impact-grade sockets with air impact tools. Always use attachments rated for the speed of the tool. Do not modify tools or attachments. Do not apply excessive force to the tool; let the tool perform the work. Follow lubrication instructions for best and safest operation.
- Page 9 Before assembling this tool, make sure all parts are present. Compare parts with package contents list. If any part is missing or damaged, do not attempt to assemble the tool. Tools and Materials Required for Assembly (not included): • Adjustable wrench •...
- Page 10 2. Prepare a 1/4 in. male plug (not included) by applying sealant tape to the threading, wrapping clockwise. Screw threaded male air plug by hand into air inlet as shown in Fig. 2 and tighten with a wrench (not included) for an airtight connection.
- Page 11 5. Place 2 – 3 drops of air tool oil (not included) into the male air plug before each use, as shown in Fig. 5. NOTE: Proper lubrication is EXTREMELY important to assure proper tool performance and avoid tool damage. ALWAYS lubricate the tool before each use if not using an in-line oiler.
- Page 12 1. This tool features a torque setting switch (D) which has two functions: • Control the direction of spin: Forward (“F”) to tighten or Reverse (“R”) to loosen the fastener • Set the amount of torque applied to the fastener: LO, MED or HI The direction of spin is controlled by pushing the switch to the left or right, through the tool body, so it extends further from the tool on one side.
- Page 13 2. To install and tighten a threaded fastener, push the torque setting switch to the left so it extends further out on the left side of the tool. Then turn the LEFT switch while reading the torque settings on the RIGHT side of the tool until it clicks into place at the desired setting: the notch on the RIGHT side switch will point to the setting LO, MED or HI.
- Page 14 ALWAYS DISCONNECT TOOL FROM THE AIR SUPPLY BEFORE PERFORMING ANY MAINTENANCE ON THE TOOL. Always make sure the tool is properly lubricated during operation. Proper lubrication is shown in this instruction manual. An in-line oiler (not included) is recommended to help increase tool life and keep the tool properly lubricated.
- Page 15 If the tool runs slowly or will not operate, check these possible problems and take the required corrective action: POSSIBLE PROBLEM SOLUTION Grit or gum in tool. Flush the tool with air-tool oil or gum solvent. No oil in tool. Lubricate the tool.
