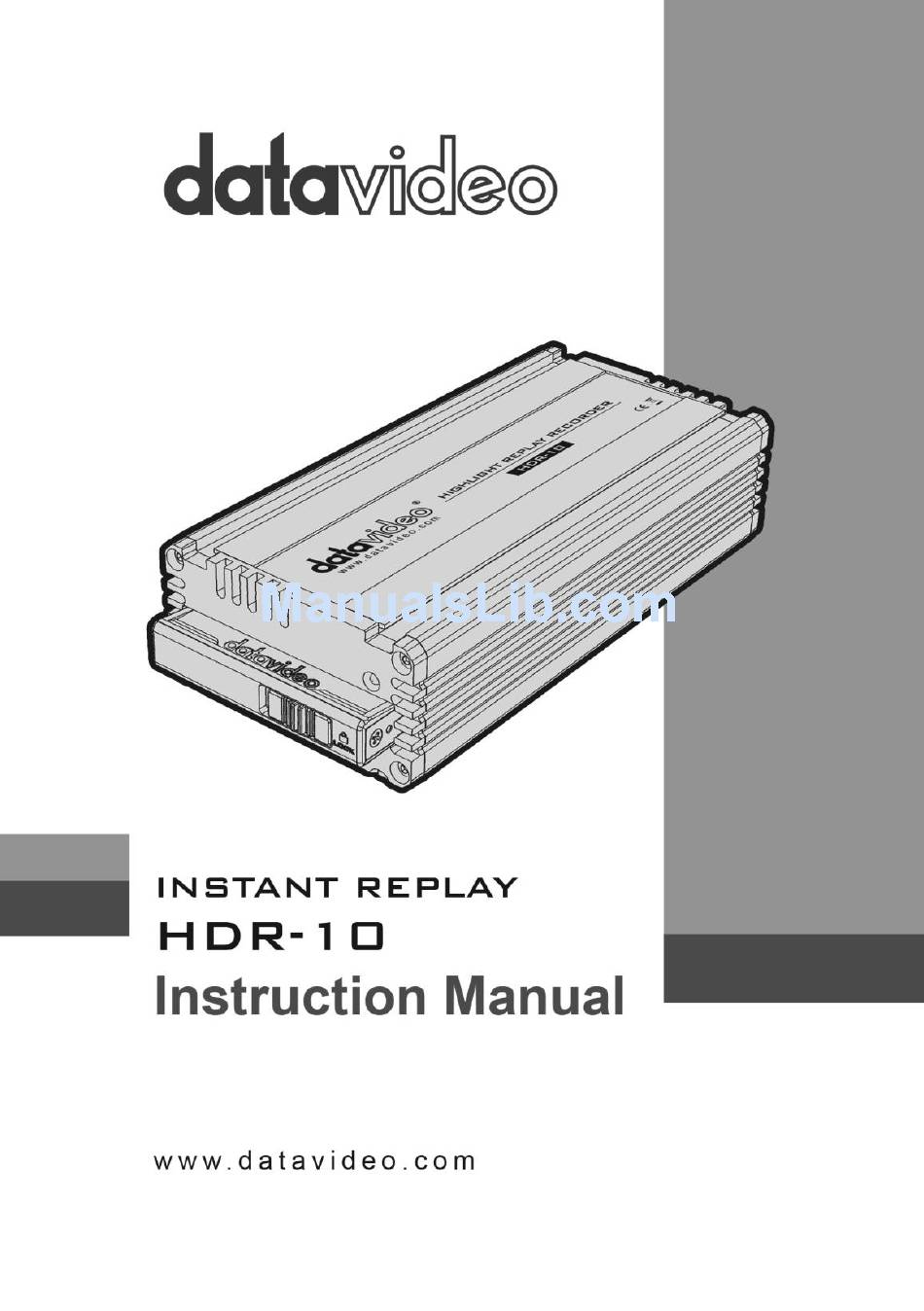

Summary of Contents for Datavideo HDR-10
-
Page 2: Table Of Contents
Datavideo Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies cannot exclude that some information in this manual, from time to time, may not be correct or may be incomplete. This manual may contain typing errors, omissions or... - Page 3 Datavideo Technologies is not responsible for any omissions or errors, or for any subsequent loss or damage caused by using the information contained within this manual. Further...
-
Page 4: Fcc Compliance Statement
7. This product should only be operated from the type of power source indicated on the marking label of the AC adapter. If you are not sure of the type of power available, consult your Datavideo dealer or your local power company. -
Page 5: Warranty
Your statutory rights are not affected. Two Year Warranty All Datavideo products purchased after 01-Oct.-2008 qualify for a free one year extension to the standard Warranty, providing the product is registered with Datavideo within 30 days of purchase. For information on how to register please visit www.datavideo.com... -
Page 6: Disposal
Drives and Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires. -
Page 7: Introduction
The HDR-10 is a Highlight Replay Recorder (3G/HD/SD SDI) capable of capturing specific, desired or special scenes during any sports game. The captured scene is then output to the switcher as a replay. The HDR-10 also allows the user to store the chosen Highlights into removable compatible media (2.5”... -
Page 8: Rear Panel
Rear Panel DC In Socket (12V) ON/OFF Switch USB 2.0 port for Control or Updates External GPI Trigger AUX OUT PGM OUT SDI IN... -
Page 9: Quick Operation Instruction
Quick Operation Instruction To operate the HDR-10, the user needs to be familiar with the supplied Contour Shuttle Express USB 2.0 controller. When viewing the HDR-10 AUX SDI output, relevant controller buttons or wheels are annotated as an OSD menu in the lower left hand corner of the video with a number or icon assigned to each. -
Page 10: Capture Mode
AUX OSD display. This memory buffer will only store up to the latest 30 seconds of video. Once the buffer memory is full the line stops growing and the HDR-10 starts recycling memory or buffer space. During this recycle process the oldest video frames captured are lost in order to save the latest video data being supplied to the HDR-10. -
Page 11: Review Mode
Review Mode. Review Mode The HDR-10 automatically enters this mode when capture mode is exited. This mode can also be selected from the OSD Home menu by the user. In review mode the buffer line has changed colour to a... -
Page 12: Saving An Edited Clip Or Highlight To Mov File
4GB, depending on the clip length in seconds. The saved clip can be replayed from the unit at a later stage or added (appended) to other clips on the same SSD. The SSD removed from the HDR-10 can also be used to transfer saved clips to a non-linear editing computer. -
Page 13: Capture And Replay
Capture and Replay 1. Power on the HDR-10 and by default, the HDR-10 will be in the capture mode. 2. The HDR-10 will start capturing once it is in the capture mode. 3. Press the No. 2 controller button to place the start cue. - Page 14 Refer to Review Mode section Mode Replay Replay Refer to Replay Mode section Mode Space Avail: Space available on HDR-10 Audio and Video formats (e.g. STEREO 1080i59.9) SELECT CLIP Recall Clip CLEAR AND RECALL Storage RECALL APPEND Media Media Select Bin...
- Page 15 SET TIMECODE MONO Audio Setup STEREO QUAD Firmware Upgrade Currently selected option is indicated by an asterisk mark (*).
-
Page 16: Rmc-400 Replay Control Center
The RMC-400 offers the user a powerful and effective way to control multiple HDR-10 highlight replay recorders. The RMC-400 allows the user to control up to four HDR-10 units simultaneously. Moreover, the user can use the RMC-400 to capture their desired scenes during any live events such as sports game or live concert. -
Page 17: Control Panel
DEV1 to DEV4 Buttons: “Dev” Buttons allow the user to activate the respective HDR-10 devices. ALL Button: Press the “ALL” button to activate all HDR-10 devices simultaneously. CAPTURE Button: Press the “CAPTURE” button to enter the Capture mode. - Page 18 MENU Button: Press the “MENU” button to open the on-screen menu. Play/Pause Button: In Replay and TRIM mode, press this button to start and pause the clip playback. MARK IN/ENTER Button: In Capture and TRIM modes, this button determines the start point of the clip.
-
Page 19: How To Purchase
Menu modes, the jog wheel can be used to browse the on-screen menu. How to Purchase The RMC-400 Replay Control Center is available for separate purchase. If the RMC-400 is of interest to you, please contact the local Datavideo sales representatives for more details. -
Page 20: Firmware Upgrade
3. Disconnect the USB Jog/Shuttle Controller and connect the Flash Drive in its place. 4. Turn power to the HDR-10 unit ON and the unit will upgrade itself. 5. When finished, turn power OFF and return the Jog/Shuttle controller to the HDR-10. -
Page 21: Formatting Storage Media
Formatting Storage Media Follow the procedure below to format SSD media in your HDR-10: WARNING: Formatting the SSD will destroy any existing files already on the SSD. Back up any important files before formatting a previously used SSD in the HDR-10. -
Page 22: Specifications
Specifications HDR-10 Specifications Description 3G/HD Recorder, Player, Highlight Replay Recorder Housing Size Standalone Type HDD Size No size limitation Removable SSD / HDD File Format 3G/HD-SDI Input Level A 3G/HD-SDI One is programmable as loop- Output through or independent output... -
Page 23: Service And Support
Service and Support...
