- Page 1 HDV / SD CF CARD VIDEO RECORDER. DN-60 Instruction Manual www.datavideo-tek.com...
-
Page 2: Table Of Contents
Rear Panel ..........................9 CF Card Slot ....................10 Powering On ..........................11 DN-60 Power Sources ......................11 DN-60 Status LED and Error Messages .................. 11 DN-60 Menus ....................12 Main Menu ..........................12 Setup Mode ...................... 13 Play Setup Options ........................13 Record Setup Options ...................... - Page 3 Further advice on the content of this manual or on the product can be obtained by contacting your local Datavideo Office or...
- Page 4 dealer.
-
Page 5: Warnings And Precautions
Use the supplied power adaptor to power the unit reliably. Alternatively use a charger specifically designed to charge the rechargeable AA batteries in use. The DN-60 unit can accept voltages of 6 to 24 volts (Max) via its center positive DC input. -
Page 6: Warranty
Certain parts with limited lifetime expectancy such as LCD Panels, DVD Drives, Hard Drives are only covered for the first 10,000 hours, or 1 year (whichever comes first). Any second year warranty claims must be made to your local Datavideo office or one of its authorized Distributors before the extended warranty expires. -
Page 7: Packing List
Editing program using popular DV file types such as Microsoft AVI type 2, Canopus AVI, QuickTime MOV and MXF (OP 1A) as well as M2T in HDV mode. With this many useful features the DN-60 is ideal for a variety applications within broadcast, education, animation, science, medical, construction and security. -
Page 9: Connections & Controls

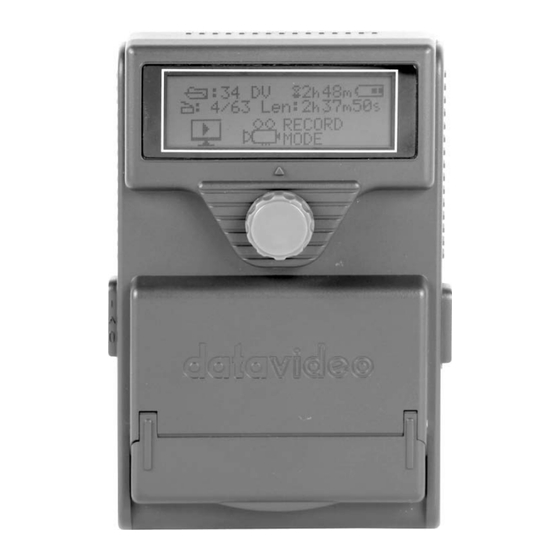

Connections & Controls Front Panel LCD Panel – Shows the status and menu options of the DN-60 Menu Navigation Button – Rotate to change options and press in to select DC Power input – Connect the DN-60 power adaptor here... -
Page 10: Cf Card Slot
CF Card Slot 1. CF Card Protection Cover – Slide down then lift up carefully to open this cover and get access to the CF card slot and the card eject button. 2. CF Card Eject Button – Press in to eject the fitted CF card. When the slot is empty (no CF card inserted), this button is normally in the depressed position. -
Page 11: Powering On
Switching between internal battery power and the external power adaptor (or vice versa) will cause the unit to restart and thus interrupt the normal Record or Playback operation already in progress. The DN-60 unit can safely accept voltages of 6 to 24 Volts DC (Max) via its centre positive DC input socket. -
Page 12: Menus
Home screen. The DN-60 is a menu driven unit; there are several menus which are used to set up the unit. The menu settings are non-volatile (settings are stored even when the unit is switched off). So general settings, such as Signal and File types, may only need to be set once. -
Page 13: Setup Mode
Here settings for input Signal Type, File System, Volume ID, Timecode and Battery Type can be chosen. SAVE SET UP The DN-60 allows current settings to be saved as USER1 or USER2 to allow time efficient set up of the unit when in the field. RECALL SET UP Used to quickly adopt user stored settings in USER1 and USER2 or adopt a factory default for PAL DV, NTSC DV or HDV. -
Page 14: System Set Up
SET VOLUME ID When reading a DN-60 CF card the volume name is shown on the computer as Datavideoxx. This option sets the xx value between 0 and 99. A useful feature when ingesting multiple CF cards at the same time from a multi-camera shoot. -
Page 15: General Setup Notes
The NTFS format is fully compatible with PCs and is read compatible with Macs. Its main advantage is that it does not impose a file size limitation to the DN-60 files resulting in one file per take. Note: When using 64GB cards, if you plan on shooting one continuous take greater then 3 hrs (using NTFS setup) please note that some Non-Linear Editing Software cannot accept file sizes greater than 40GB, please make sure your NLE is not one of them before you plan to shoot. -
Page 16: Set Up Synch To Tape
NOTE: The IEEE-1394 output signal on the camera/source device must match the DN-60 input Signal Type for the recording to start. If the DN-60 or source device do not match then the DN-60 will stay at 00:00:00:00 as it cannot automatically recognise the signal presented to it. -
Page 17: Marking The Recording
NOTE: The IEEE-1394 output signal on the camera/source must match the DN-60 input Signal Type for the recording to start. If the DN-60 or source do not match then the DN-60 will stay at 00:00:00:00. Time Lapse Recording In this Record Set Up option a DV recording can be set up using the following flexible settings. -
Page 18: Playback
By placing the connected camera into VCR/playback mode some cameras can accept a video stream from the DN-60 whilst the DN-60 is playing content from a bin. This can be a useful way of confirming the composition of DN-60 captured shots in the field in-between takes. -
Page 19: Qualified Dn-60 Cf Cards And Max Recording Times
Not all CF cards on general sale are optimised for video applications. Certain cards may look to be compatible but may provide un-reliable results when reading or writing DN-60 video data. Datavideo have tested and recommend using only CF media that has been qualified for use with this product. -
Page 20: Updating Dn-60 Firmware
5. Use the DN-60 to format the CF card to FAT32, once formatted switch off the DN-60. 6. Eject the CF card from the DN-60 using the button next to it and attach it to the computer using a CF card reader or slot 7. -
Page 21: Rs-232 Controller Command Set
Other than the sense command, the unit will respond to all commands affirmatively by sending a three byte acknowledgement (ACK) if the Checksum is valid. If the Checksum is not valid, the DN-60 will ignore the command. Most commands will be responded to within 8 msec. However, a PLAY command from an idle state will result in response delay of up to 700 msec. -
Page 22: Connector Pin Assignment
Connector Pin Assignment Interface : 9 pin D-Sub female to 3.5mm Jack The pin assignment of the Controller and DN-60 is shown in the following table: 9 Pin D-Sub Controller (P1) DN-60 (P2) 3.5mm Jack Pin 2 (Rx) 2 Jack Ring... -
Page 23: Sense Request
Sense Request 61h, 0Ch, 04h Current Time Sense Requests the Time code data. The unit responds with 4 bytes indicating the present time code in Binary-Coded-Decimal. The first byte holds the frame number, the second byte holds the seconds, the third the minutes and the fourth the hour. In the play state, the time code returned is the time associated with the current frame being played, in the record state, the time code returned represents the elapsed time recorded in the present bin. -
Page 24: Transport Control
Transport Control 20h, 00h, Stop The unit enters the idle state. In the A2D, the outputs reflect the video source as selected by the Front Panel. 20h, 01h Play Content of the present bin is played at 1x speed. This command may be issued from the idle state or any other Play state. -
Page 26: Free Dv File Converter Software Cd
Software Registration The CD contains the Datavideo DV File Converter trial software. This allows the user trial access to the software for evaluation and any video files converted will show watermark text in the video playback. An activation code allows the software to produce files without the watermark text. -
Page 27: Specifications
Idle: 4.3W, Play/Record: 6W, HDD mode: 5.3W Size (H x W x D): 4.65” x 3.09” x 1.51” (116mm x 78.5mm x 38.5mm) Weight: DN-60: 5.64oz (160g), Temperature: Operating: +40°F to +104°F (+4°C to +40°C) Non-Operating -40°F to +149°F (-40°C to +65°C) -
Page 28: Service And Support
It is our goal to make your products ownership a satisfying experience. Our supporting staff is available to assist you in setting up and operating your system. Please refer to our web site www.datavideo-tek.com for answers to common questions, support requests or contact your local office below.
