Summary of Contents for Extech Instruments 480400

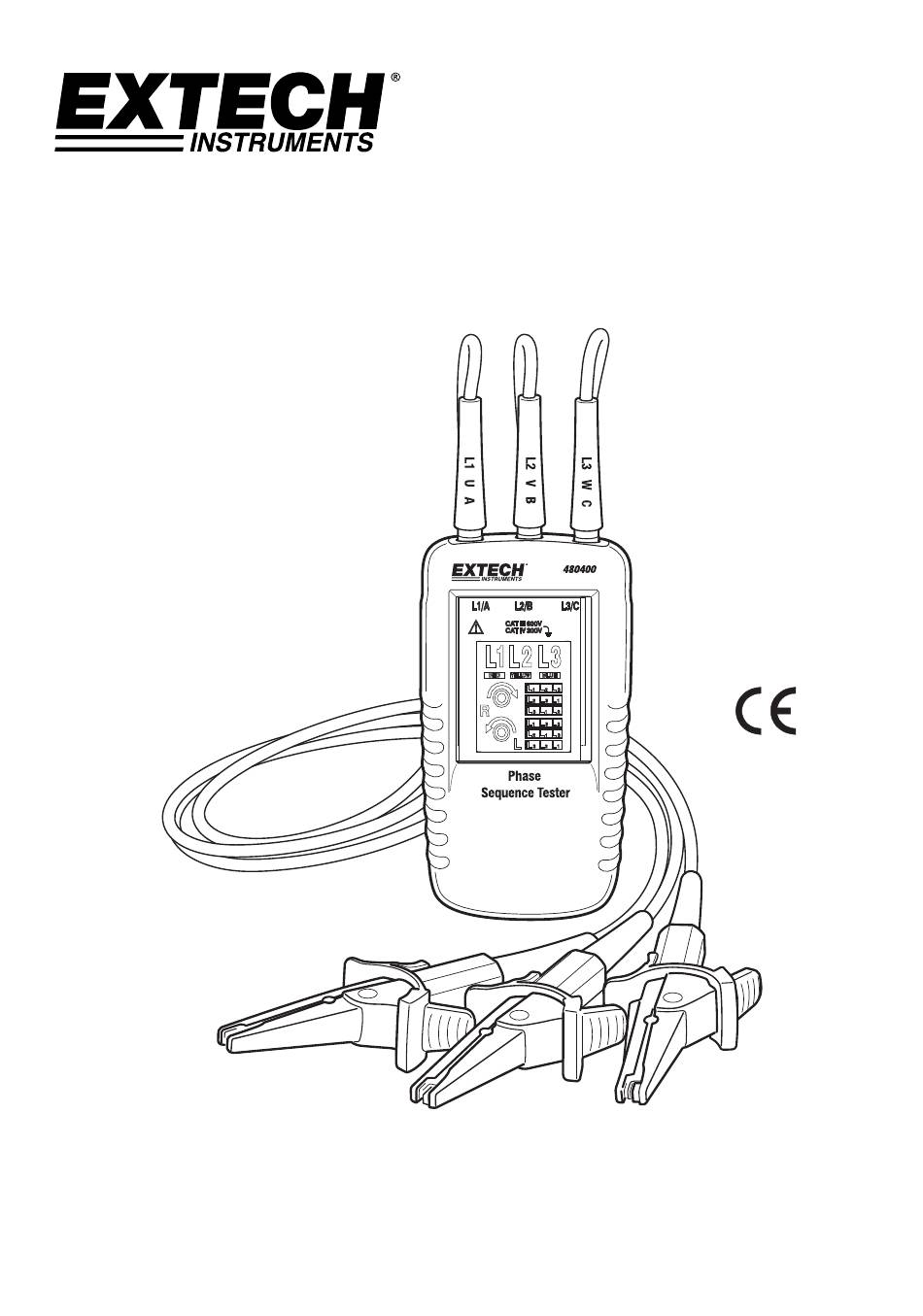

- Page 1 User's Guide Phase Sequence Tester Model 480400 contact: www.ponpe.com sale@ponpe.com...
- Page 2 Do not use the phase Rotation indicator with any of the parts removed. Do not use the phase Rotation indicator around explosive gas, vapor, or dust. Do not use the meter in a wet environment. 480400‐en‐EU_V3.3 9/14 contact: www.ponpe.com sale@ponpe.com...
- Page 3 Clockwise Rotation LCD Indicator R (right) and L (left) icons Sequence grid Display Description Line designators (L1, L2, and L3) Color codes for test leads Clockwise / Counter-Clockwise indicator LEFT (L) or RIGHT (R) rotation direction Phase Sequence grid 480400‐en‐EU_V3.3 9/14 contact: www.ponpe.com sale@ponpe.com...
-
Page 4: Specifications
130g (4.6 oz.) Approvals CE (EU directives) Safety For indoor use and in accordance with the requirements for double insulation to IEC1010-1 (1995): EN61010-1 (1995) Overvoltage Category III 600V, Pollution Degree 2. Copyright © 2014 FLIR Systems, Inc. All rights reserved including the right of reproduction in whole or in part in any form ISO‐9001 Certified www.extech.com 480400‐en‐EU_V3.3 9/14 contact: www.ponpe.com sale@ponpe.com...
