LED-Status Indication

Subscriber Cards

IP-DSP-Subscriber Cards G8-IP
IP-DSP-Subscriber card for connection of up to 8 IP-Subscribers via Ethernet (LAN/WAN). A maximum
of 14 G8-IP cards can be used in a GE 800 IP-Intercom Server
werden. The cards are available in feature levels B, C, D and P. The number of subscribers and the in-
dividual feature levels can also be activated with a licence key.
DSP-Subscriber Cards G8-GED
DSP-Subscriber card for connection of up to 4 digital subscribers via 2-wire lines. A maximum of 14
G8-GED cards can be used in a GE 800 IP-Intercom Server. Per Subscriber one
conversation is possible simultaneously (non-blocking). The card is available in feature levels B, C, D
and P. These individual feature levels can also be activated via a licence key.
DSP-Subscriber Cards G8-GET
DSP-Subscriber card for connection of up to 4 analogue subscribers via 4-wire lines. A maximum of 14
G8-GET cards can be used in a GE 800 IP-Intercom Server. Per subscriber one conversation is possible
simultaneously (Non-Blocking). With the license L8-GET-DSP the DSP-features (see datasheet) are also
available at analogue Intercom Terminals. The card is available in feature levels B, C, D and P. Via li-
cence key the DSP-Features and the individual feature levels can be activated.

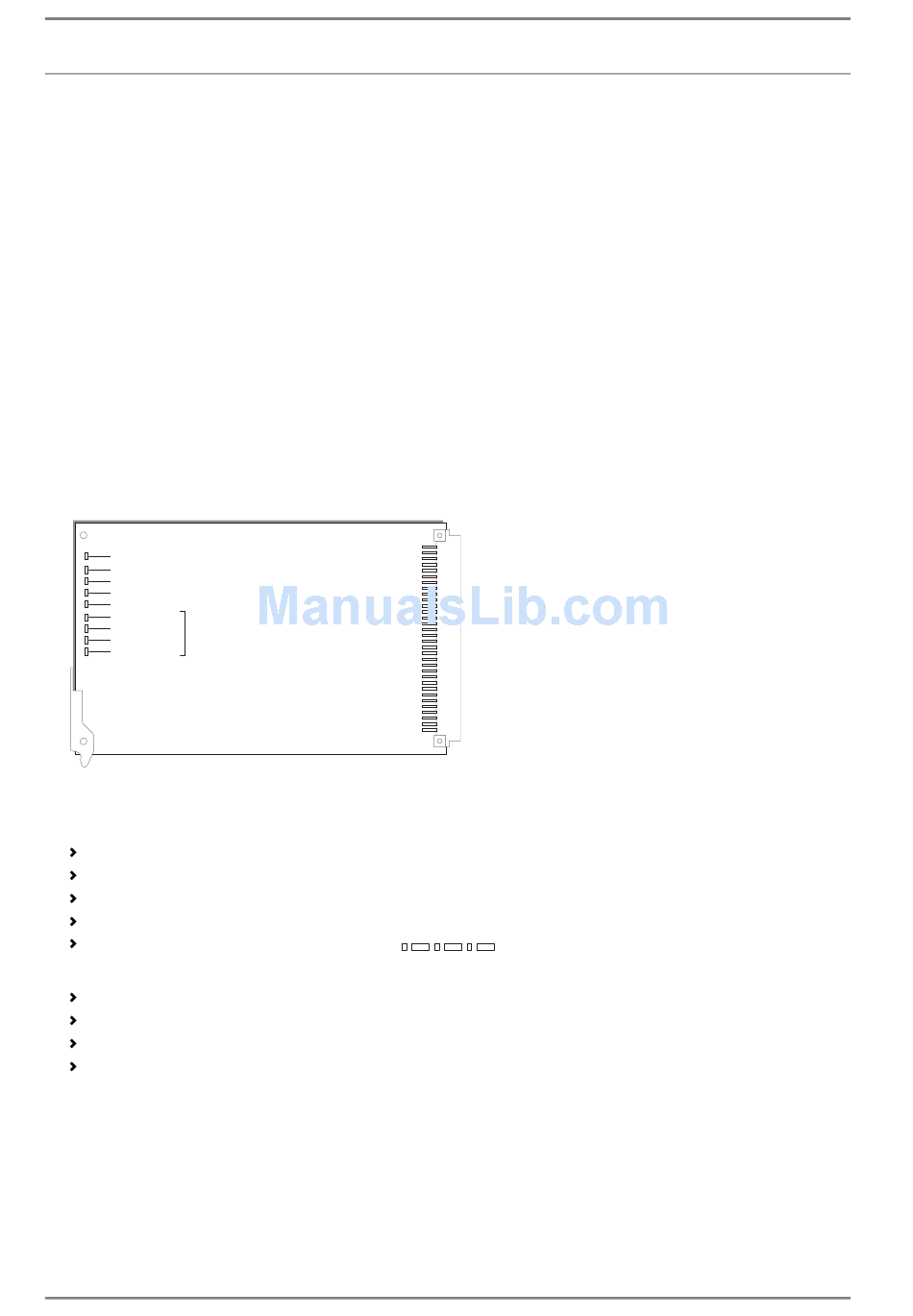

Status LEDs:
Subscriber cards
1 st subscriber
2 nd subscriber
3 rd subscriber
4 th subscriber
5 th subscriber
6 th subscriber
only at IP-subscriber cards
7 th subscriber
8 th subscriber
LED-Status Indication
Status Subscriber cards:
LED blinks in rhythm of one second: the card is working correctly.
LED is permanently off: no power, warmstart or hardware fault.
LED is permanently on: waiting for connection to the main processor (during initialising) or reset).
LED blinks fast: card inserted in wrong slot.
LED blinks: in rhythm "definition error" (
Status Subscribers:
LED on: a working Intercom station is connected
LED off: no Intercom station connected
LED blinks: Line fault
LED flickers: during data transmission
54
): Wrong type of subscriber card.
