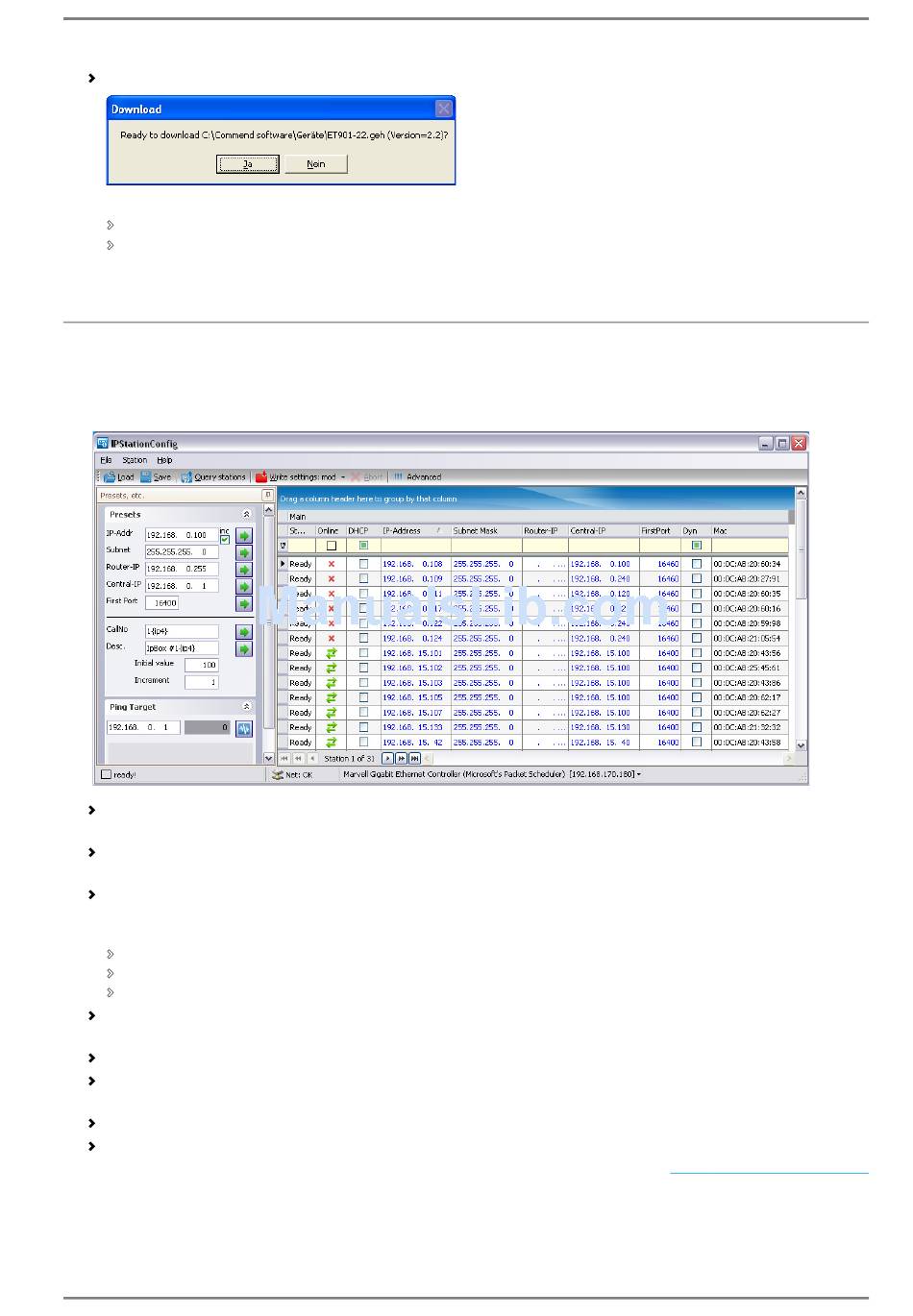

After selection of the file an acknowledgement dialog is displayed:
Click on "Yes" to start the download:
The current download status is indicated in the field Description.
The result of the download is indicated in the field Status.

Configuration

Configuration of IP-Subscribers
Click on the button Query stations to list the IP-subscribers in the network.
In the column Status the current status of the device in dependency to the program IPStationConfig
is indicated – either "Ready", "Success", "Timeout" or "Firmware Download".
In the column Online the status of the connection between the IP-station / IP-box and the central is
indicated (online: green icon, offline: red icon).
If the checkbox DHCP is activated, a request to a DHCP server is sent by the IP-station/IP-box (after
the configuration has been sent to the station/box) in order to get the following required IP-confi-
guration data:
IP-Address IP-station/IP-box
Subnet mask
Router IP-Address
In the column IP-Address the IP-address of the IP-station / IP-box is defined manually (i.e. if DHCP is
not activated).
In the column Subnet mask the subnet mask can be changed manually (if DHCP is not activated).
In the column Router-IP the IP-address of the router or standard gateway can be defined manually
(if DHCP is not activated).
In the column Central-IP the IP-address of the allocated G8-IP card is defined.
In the field FirstPort the standard destination port number can be changed (standard = 16400). The
port numbers only must be changed for special configurations with NAT
