Indicators, Controls, and Operation

Refer to Figure 45 below for LED indicators, control buttons, and switches locations.

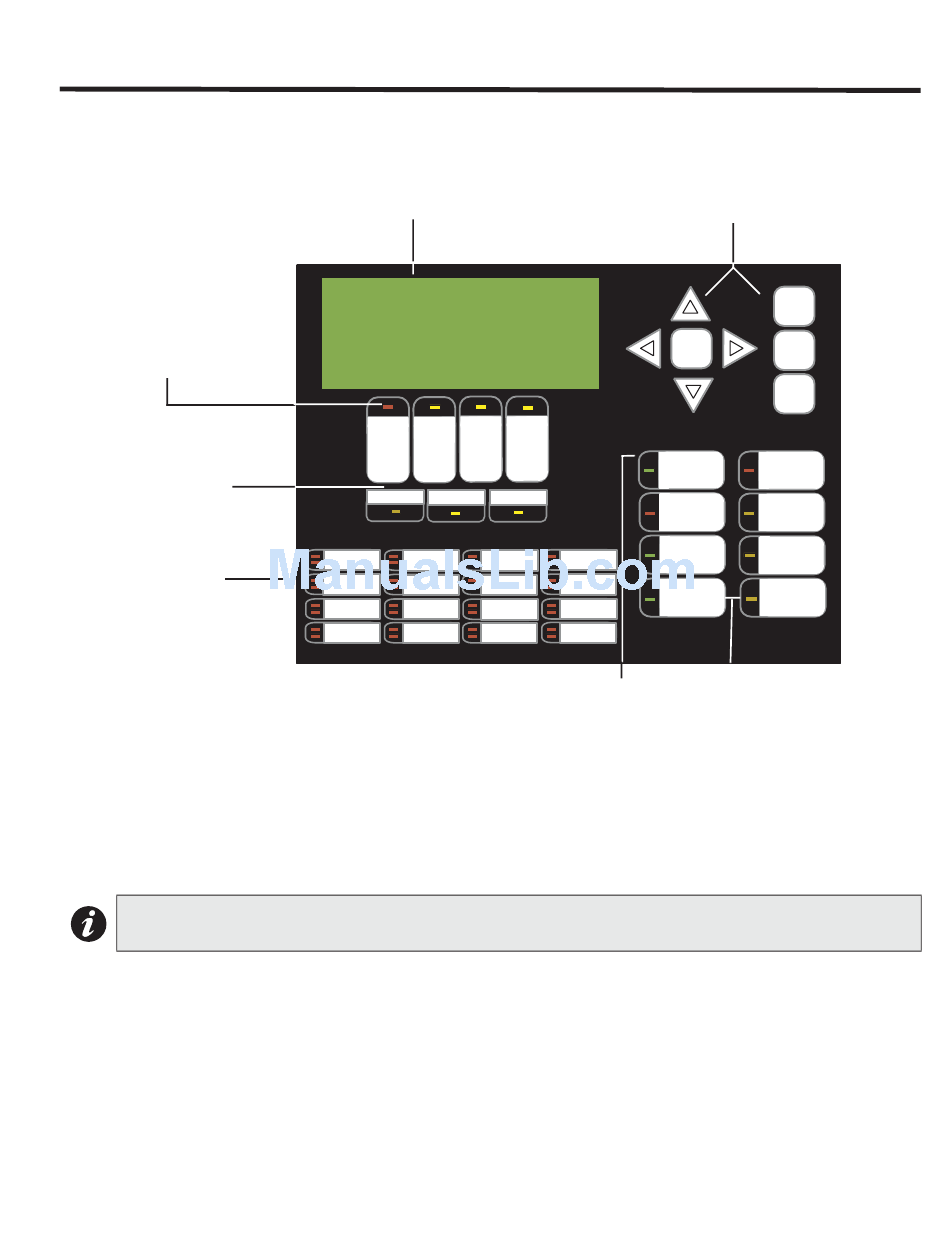

Figure 45: Indicators and Control Location
Queue controls and
indicators for Alarm,
Supervisory, Trouble,
and Monitor
Indicators for AC On,
CPU Fault, and Ground
Fault (GND FAULT)
16 configurable
bi-coloured zone
indicators and 16
trouble indicators
LED indicators are amber (trouble or supervisory), red (alarm), or green (AC On), and may illuminate continuously
(steady) or at one of two flash rates:
• Fast Flash: 120 flashes per minute, 50% duty cycle
• Trouble Flash: 20 flashes per minute, 50% duty cycle
Note: The General Alarm LED and pushbutton, and the Acknowledge LED and pushbutton, are active only
on a system configured for "Two Stage."
Paper Labels for Buttons and Indicators
Buttons and indicators are supplied with paper labels. These labels slide into the plastic label templates on the face
of the panel. Paper labels allow for easy English / French selection and custom-printed zone information.
LCD Display - four lines,
20 characters per line
MGC Network
Fire Alarm Control Panel
Normal Condition
June 17, 2014
SUPV. TROUBLE
ALARM
QUEUE
QUEUE QUEUE
A.C. ON CPU FAULT GND FAULT
LED 8 LED 12 LED 16
LED 13
LED 9 LED 17
LED 10
LED 14 LED 18
LED 11 LED 15
LED 19
Controls & Indicators for Signal
Silence, General, Alarm,
Acknowledge, Fire Drill, System
Reset, Lamp Test
FleX-Net
Cursor buttons,
ENTER, MENU, CANCEL, INFO
ENTER
MONITOR
QUEUE
SIGNAL
SILENCE
SWITCH/LED 0
GENERAL
ALARM
SWITCH/LED 1
ACKNOW-
LEDGE
LED 20
SWITCH/LED 2
LED 21
CONFIGURABLE
SWITCH/LED 3
LED 22
LED 23
TM
Installation and Operation Manual
MENU
CANCEL
INFO
FIRE
DRILL
SWITCH/LED 4
SYSTEM
RESET
SWITCH/LED 5
LAMP
TEST
SWITCH/LED 6
CONFIGURABLE
SWITCH/LED 7
Two configurable
switches & amber LEDs
