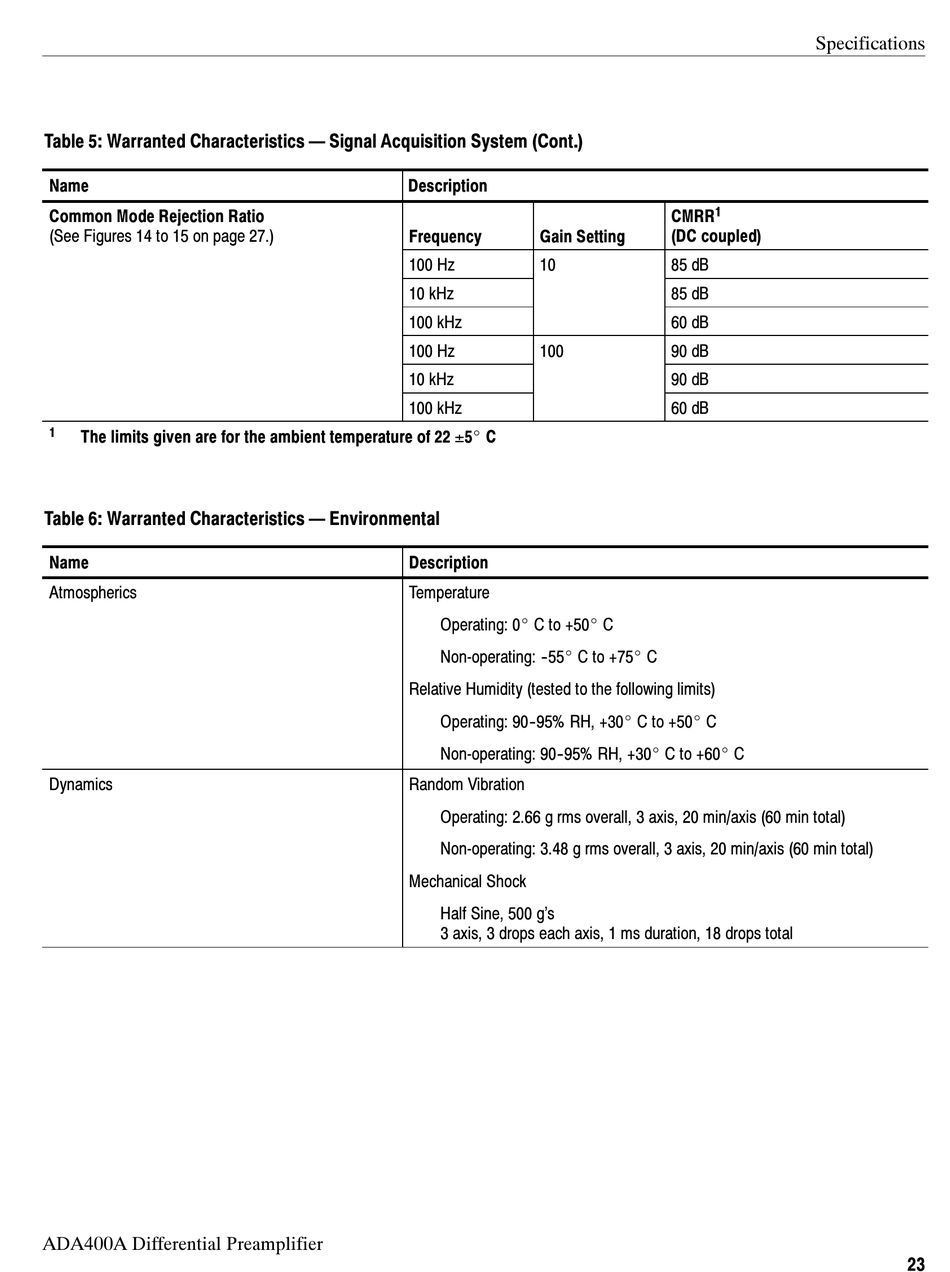

Table 5: Warranted Characteristics — Signal Acquisition System (Cont.)
Name
Common Mode Rejection Ratio
( (See Figures 14 to 15 on page 27.) g p g
1
The limits given are for the ambient temperature of 22 ±5_ C
Table 6: Warranted Characteristics — Environmental
Name
Atmospherics
Dynamics
ADA400A Differential Preamplifier
Description
)
Frequency
100 Hz
10 kHz
100 kHz
100 Hz
10 kHz
100 kHz
Description
Temperature
Operating: 0_ C to +50_ C
Non-operating: - - 55_ C to +75_ C
Relative Humidity (tested to the following limits)
Operating: 90- - 95% RH, +30_ C to +50_ C
Non-operating: 90- - 95% RH, +30_ C to +60_ C
Random Vibration
Operating: 2.66 g rms overall, 3 axis, 20 min/axis (60 min total)
Non-operating: 3.48 g rms overall, 3 axis, 20 min/axis (60 min total)
Mechanical Shock
Half Sine, 500 g's
3 axis, 3 drops each axis, 1 ms duration, 18 drops total
CMRR
(DC coupled)
Gain Setting
10 85 dB
85 dB
60 dB
100 90 dB
90 dB
60 dB
g
Specifications
1
23
