Specifications

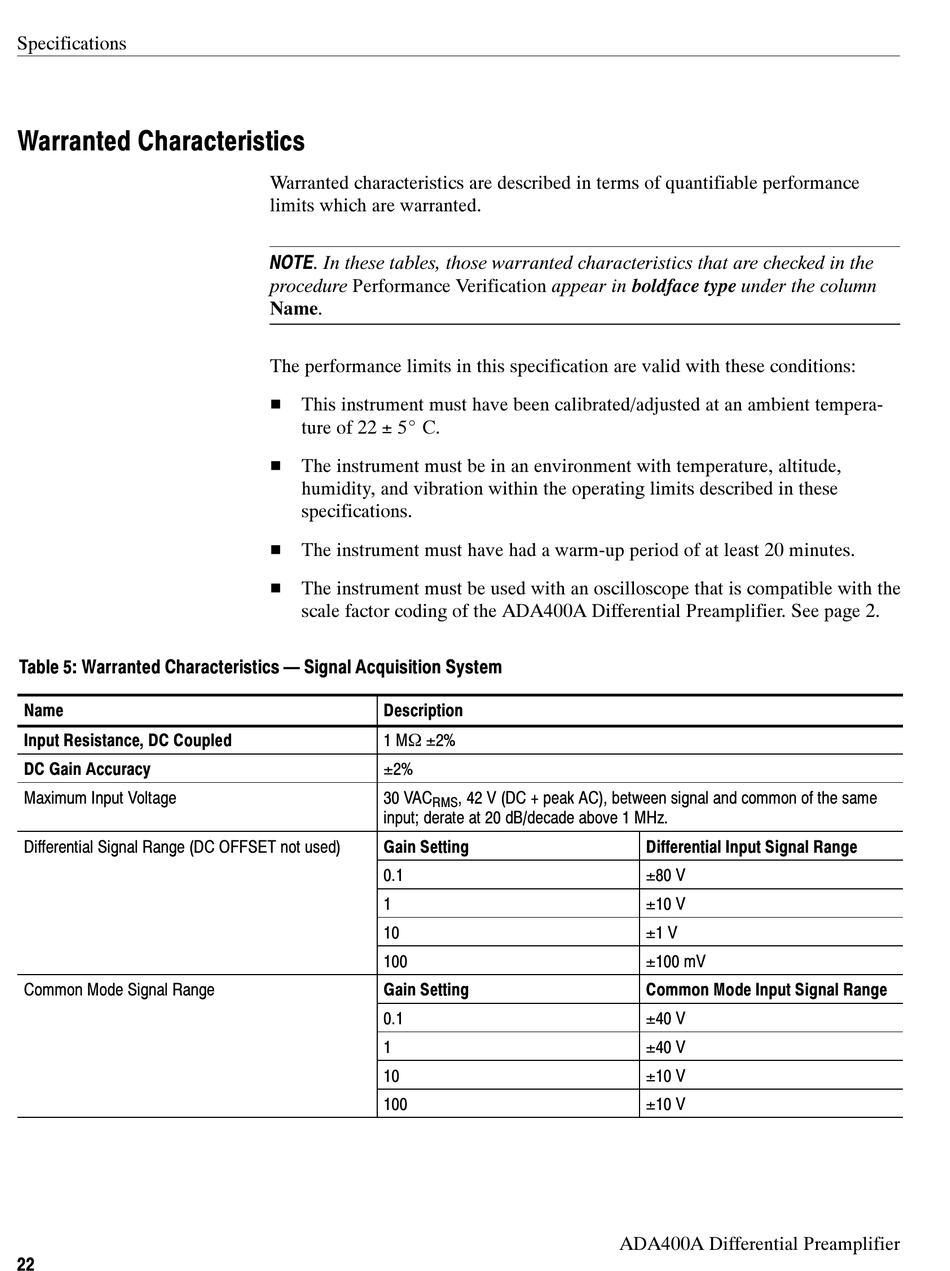

Warranted Characteristics

Table 5: Warranted Characteristics — Signal Acquisition System
Name
Input Resistance, DC Coupled
DC Gain Accuracy
Maximum Input Voltage
Differential Signal Range (DC OFFSET not used) g g (
Common Mode Signal Range g
22
Warranted characteristics are described in terms of quantifiable performance
limits which are warranted.
NOTE. In these tables, those warranted characteristics that are checked in the
procedure Performance Verification appear in boldface type under the column
Name.
The performance limits in this specification are valid with these conditions:
H This instrument must have been calibrated/adjusted at an ambient tempera-
ture of 22 ± 5_ C.
H The instrument must be in an environment with temperature, altitude,
humidity, and vibration within the operating limits described in these
specifications.
H The instrument must have had a warm-up period of at least 20 minutes.
H The instrument must be used with an oscilloscope that is compatible with the
scale factor coding of the ADA400A Differential Preamplifier. See page 2.
)
g
Description
1 MΩ ±2%
±2%
30 VAC , 42 V (DC + peak AC), between signal and common of the same
RMS
input; derate at 20 dB/decade above 1 MHz.
Gain Setting
0.1
1
10
100
Gain Setting
0.1
1
10
100
Differential Input Signal Range
±80 V
±10 V
±1 V
±100 mV
Common Mode Input Signal Range
±40 V
±40 V
±10 V
±10 V
ADA400A Differential Preamplifier
